目录

一、ODB简介

二、Person类

1、Person.h

2、Person.cpp

三、工程修改

1、Person类修改

2、运行odb

3、添加生成的文件到工程中

 4、配置​

 5、添加database.hxx文件到工程中

6、添加DATABASE_SQLITE宏

 7、main函数

 8、copy dll

 9、运行

一、ODB简介

      ODB是应用于C++的一个开源、跨平台、跨数据库的对象关系映射（ORM）系统。它可以让你持久化C++对象到关系数据库，而不必处理表、列或者SQL，无需手动编写任何映射代码。ODB支持MySQL，SQLite，PostgreSQL，Oracle和微软SQL Server关系数据库以及C ++98/03和C ++11语言标准。它还配备了用于Boost和Qt可选的配置文件，让你可以无缝地使用这些库持久化C++类的值类型、容器和智能指针。它有易用性，简洁的代码，安全，数据库可移植性，优良的性能，可维护性等优点。

二、Person类

1、Person.h

#ifndef PERSON_H #define PERSON_H #include <string> class person { public: person(void); ~person(void); person(const std::string& first, const std::string& last, unsigned short age); const std::string& first() const; const std::string& last() const; unsigned short age() const; void age(unsigned short age); private: unsigned long id_; std::string first_; std::string last_; unsigned short age_; }; #endif

2、Person.cpp

讯享网#include "StdAfx.h" #include "person.h" person::person(void) { } person::person(const std::string& first, const std::string& last, unsigned short age) : first_(first), last_(last), age_(age) { } person::~person(void) { } const std::string& person::first() const { return first_; } const std::string& person::last() const { return last_; } unsigned short person::age() const { return age_; } void person::age(unsigned short age) { age_ = age; }

三、工程修改

1、Person类修改

（1）Person.hxx

         将person.h修改为person.hxx

讯享网

#ifndef PERSON_CXX_H #define PERSON_CXX_H #include <string> #include <odb/core.hxx> // 包含odb::access #pragma db object // 告诉编译器这是一个 persistent class class person { public: person(void); ~person(void); person(const std::string& first, const std::string& last, unsigned short age); const std::string& first() const; const std::string& last() const; unsigned short age() const; void age(unsigned short age); private: friend class odb::access; #pragma db id auto unsigned long id_; std::string first_; std::string last_; unsigned short age_; }; #endif

(2)Person.cpp修改

讯享网#include "StdAfx.h" #include "person.hxx" person::person(void) { } person::person(const std::string& first, const std::string& last, unsigned short age) : first_(first), last_(last), age_(age) { } person::~person(void) { } const std::string& person::first() const { return first_; } const std::string& person::last() const { return last_; } unsigned short person::age() const { return age_; } void person::age(unsigned short age) { age_ = age; }

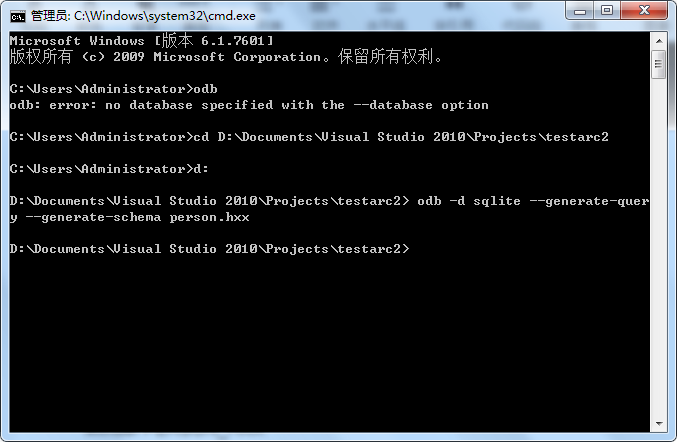

2、运行odb

odb -d sqlite --generate-query --generate-schema person.hxx

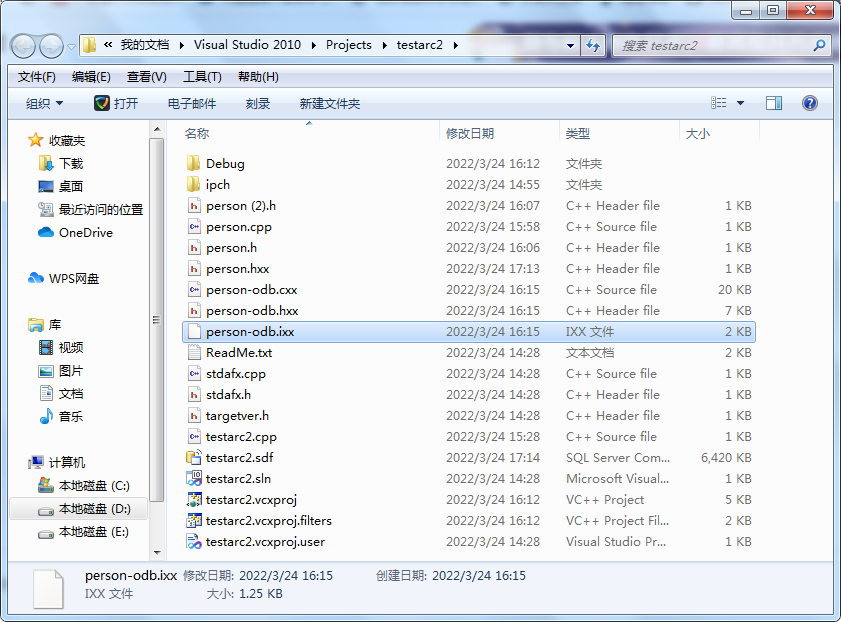

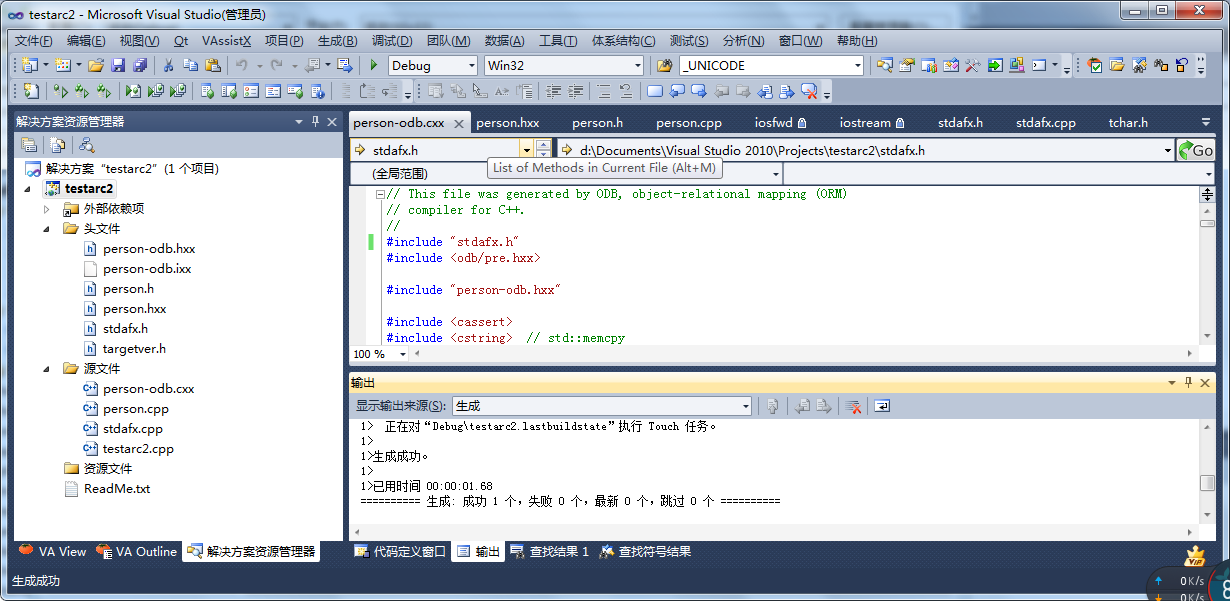

3、添加生成的文件到工程中

     将生成的person-odb.hxx,person-odb.cxx和person-odb.ixx添加到项目中

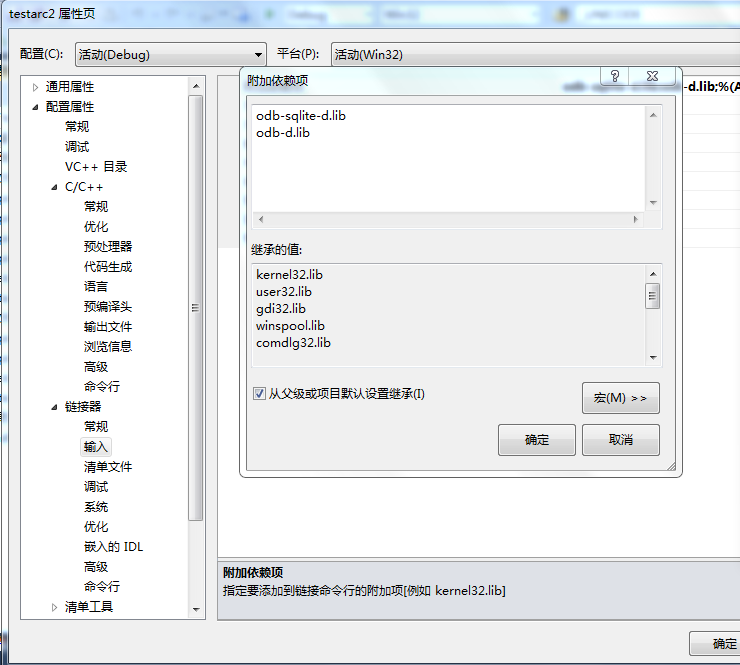

 4、配置

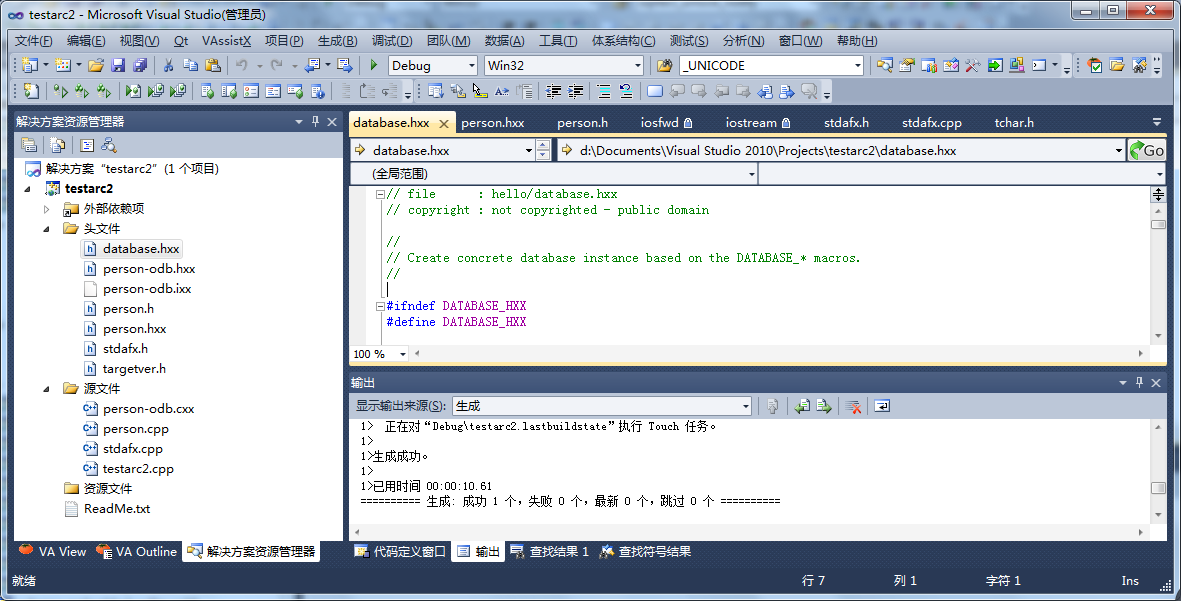

 5、添加database.hxx文件到工程中

// file : hello/database.hxx // copyright : not copyrighted - public domain // // Create concrete database instance based on the DATABASE_* macros. // #ifndef DATABASE_HXX #define DATABASE_HXX #include <string> #include <memory> // std::auto_ptr #include <cstdlib> // std::exit #include <iostream> #include <odb/database.hxx> #if defined(DATABASE_MYSQL) # include <odb/mysql/database.hxx> #elif defined(DATABASE_SQLITE) # include <odb/connection.hxx> # include <odb/transaction.hxx> # include <odb/schema-catalog.hxx> # include <odb/sqlite/database.hxx> #elif defined(DATABASE_PGSQL) # include <odb/pgsql/database.hxx> #elif defined(DATABASE_ORACLE) # include <odb/oracle/database.hxx> #elif defined(DATABASE_MSSQL) # include <odb/mssql/database.hxx> #else # error unknown database; did you forget to define the DATABASE_* macros? #endif inline std::auto_ptr<odb::database> create_database (int& argc, char* argv[]) { using namespace std; using namespace odb::core; if (argc > 1 && argv[1] == string ("--help")) { cout << "Usage: " << argv[0] << " [options]" << endl << "Options:" << endl; #if defined(DATABASE_MYSQL) odb::mysql::database::print_usage (cout); #elif defined(DATABASE_SQLITE) odb::sqlite::database::print_usage (cout); #elif defined(DATABASE_PGSQL) odb::pgsql::database::print_usage (cout); #elif defined(DATABASE_ORACLE) odb::oracle::database::print_usage (cout); #elif defined(DATABASE_MSSQL) odb::mssql::database::print_usage (cout); #endif exit (0); } #if defined(DATABASE_MYSQL) auto_ptr<database> db (new odb::mysql::database (argc, argv)); #elif defined(DATABASE_SQLITE) auto_ptr<database> db ( new odb::sqlite::database ( argc, argv, false, SQLITE_OPEN_READWRITE | SQLITE_OPEN_CREATE)); // Create the database schema. Due to bugs in SQLite foreign key // support for DDL statements, we need to temporarily disable // foreign keys. // { connection_ptr c (db->connection ()); c->execute ("PRAGMA foreign_keys=OFF"); transaction t (c->begin ()); schema_catalog::create_schema (*db); t.commit (); c->execute ("PRAGMA foreign_keys=ON"); } #elif defined(DATABASE_PGSQL) auto_ptr<database> db (new odb::pgsql::database (argc, argv)); #elif defined(DATABASE_ORACLE) auto_ptr<database> db (new odb::oracle::database (argc, argv)); #elif defined(DATABASE_MSSQL) auto_ptr<database> db (new odb::mssql::database (argc, argv)); #endif return db; } #endif // DATABASE_HXX

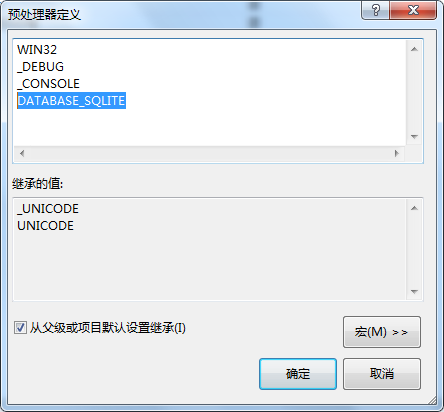

6、添加DATABASE_SQLITE宏

 7、main函数

讯享网#include "stdafx.h" #include <memory> // std::auto_ptr #include <iostream> #include <odb/database.hxx> #include <odb/transaction.hxx> #include "database.hxx" // create_database #include "person.hxx" #include "person-odb.hxx" using namespace std; using namespace odb::core; int main (int argc, char* argv[]) { try { auto_ptr<database> db (create_database (argc, argv)); unsigned long john_id, joe_id; // Create a few persistent person objects. // { person john ("John", "Doe", 33); person jane ("Jane", "Doe", 32); person joe ("Joe", "Dirt", 30); transaction t (db->begin ()); // Make objects persistent and save their ids for later use. // john_id = db->persist (john); db->persist (jane); joe_id = db->persist (joe); t.commit (); } typedef odb::query<person> query; typedef odb::result<person> result; // Say hello to those over 30. // { transaction t (db->begin ()); result r (db->query<person> (query::age > 30)); for (result::iterator i (r.begin ()); i != r.end (); ++i) { cout << "Hello, " << i->first () << " " << i->last () << "!" << endl; } t.commit (); } // Joe Dirt just had a birthday, so update his age. // { transaction t (db->begin ()); auto_ptr<person> joe (db->load<person> (joe_id)); joe->age (joe->age () + 1); db->update (*joe); t.commit (); } // John Doe is no longer in our database. // { transaction t (db->begin ()); db->erase<person> (john_id); t.commit (); } } catch (const odb::exception& e) { cerr << e.what () << endl; return 1; } }

 (1)存储

 // Create a few persistent person objects. // { person john ("John", "Doe", 33); person jane ("Jane", "Doe", 32); person joe ("Joe", "Dirt", 30); transaction t (db->begin ()); // Make objects persistent and save their ids for later use. // john_id = db->persist (john); db->persist (jane); joe_id = db->persist (joe); t.commit (); }

（2）查询

讯享网 // Say hello to those over 30. // { transaction t (db->begin ()); result r (db->query<person> (query::age > 30)); for (result::iterator i (r.begin ()); i != r.end (); ++i) { cout << "Hello, " << i->first () << " " << i->last () << "!" << endl; } t.commit (); }

（3）更新

 // Joe Dirt just had a birthday, so update his age. // { transaction t (db->begin ()); auto_ptr<person> joe (db->load<person> (joe_id)); joe->age (joe->age () + 1); db->update (*joe); t.commit (); }

（4）删除

讯享网 // John Doe is no longer in our database. // { transaction t (db->begin ()); db->erase<person> (john_id); t.commit (); }

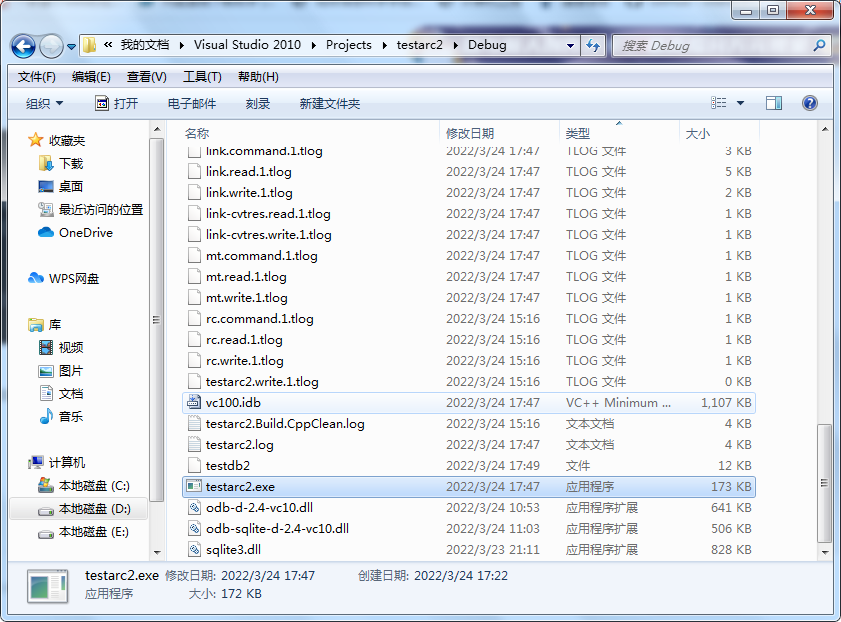

8、copy dll

      copy odb-d-2.4-vc10.dll，odb-sqlite-d-2.4-vc10.dll和sqlite3.dll到debug目录下

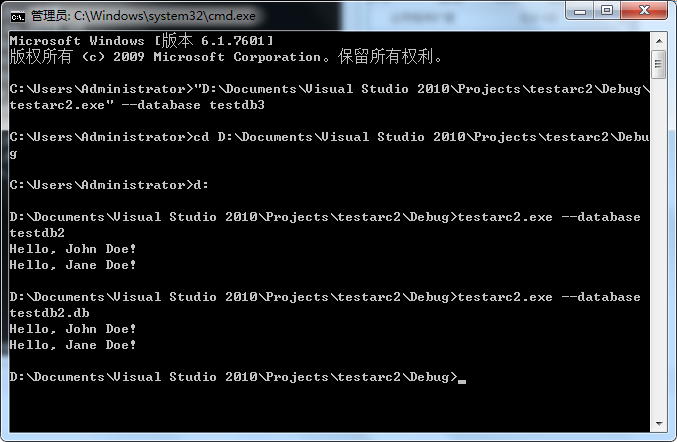

 9、运行
