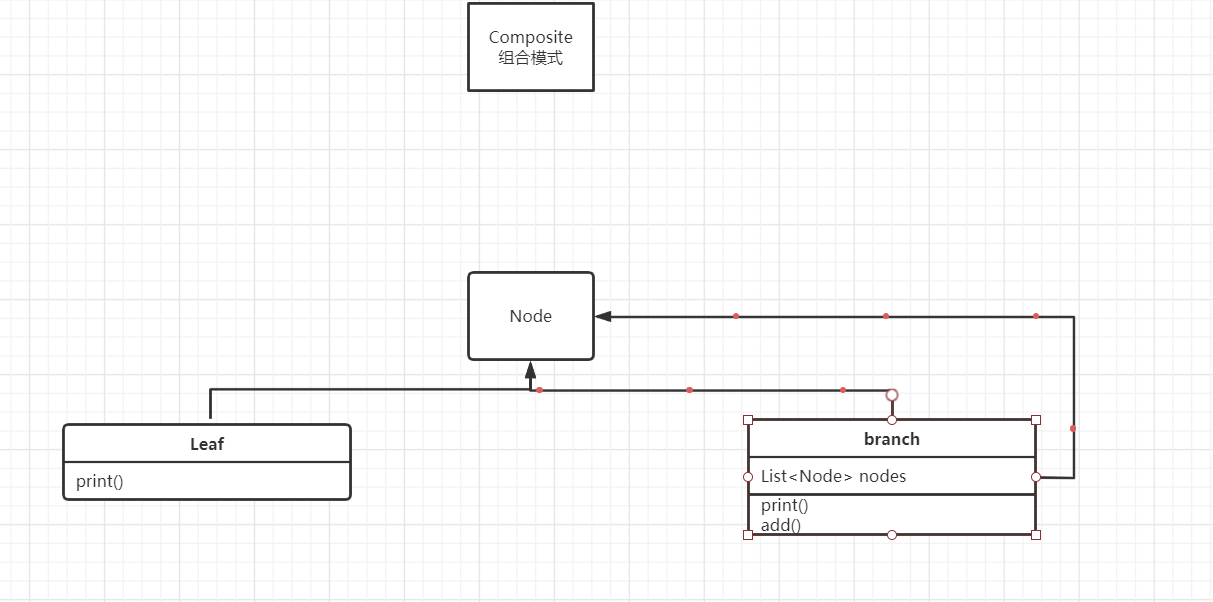

结构图
创建下图这个结构
定义一个接口
/ * Created by lijinquan on 2020/8/28. */ public interface Node { public void print(); }讯享网
定义一个枝丫实现Node接口
讯享网import java.util.List;
/ * Created by lijinquan on 2020/8/28. */ public class Branch implements Node { List<Node> nodes=new ArrayList<>(); private String name; public Branch(String name) { this.name=name; } @Override public void print() { System.out.println(name); } public void add(Node node){ nodes.add(node); } }
再定义一个叶子类实现Node
讯享网/ * Created by lijinquan on 2020/8/28. */ public class Leaf implements Node { private String name; public Leaf(String name){ this.name=name; } @Override public void print() { System.out.println(name); } }
写一个测试类
package DesignPatterns.com.lijinquan.Composite; / * Created by lijinquan on 2020/8/28. */ public class Main { public static void main(String[] args) { //实例化一个枝丫bRoot Branch bRoot = new Branch("bRoot"); //再实例化一个枝丫branch1 Branch branch1 = new Branch("branch1"); //实例化一个叶子leaf1 Leaf leaf1 = new Leaf("leaf1"); //实例化一个叶子leaf2 Leaf leaf2 = new Leaf("leaf2"); //将bRoot当作一个根，下面放入一个枝丫branch1 bRoot.add(branch1); //枝丫branch1放入两张叶子leaf1 leaf2 branch1.add(leaf1); branch1.add(leaf2); tree(bRoot,0); } public static void tree(Node node, int depth) { for(int s=0;s<=depth;s++) System.out.print("--"); node.print(); if (node instanceof Branch) { Branch b = (Branch) node; if (b.nodes != null && b.nodes.size() > 0) { for (int i = 0; i < b.nodes.size(); i++) { System.out.println(""); tree(b.nodes.get(depth), depth+1); } } } } }

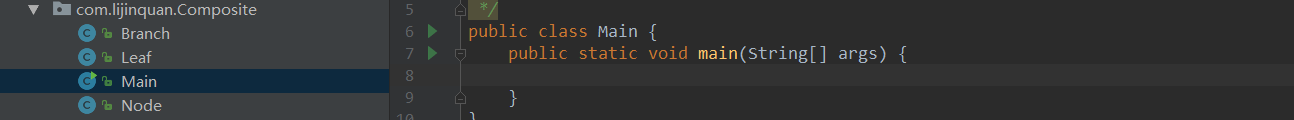

运行结果
总结：组合模式主要用来遍历树，你能联想到什么算法呢？
