echarts版本：4.8.0

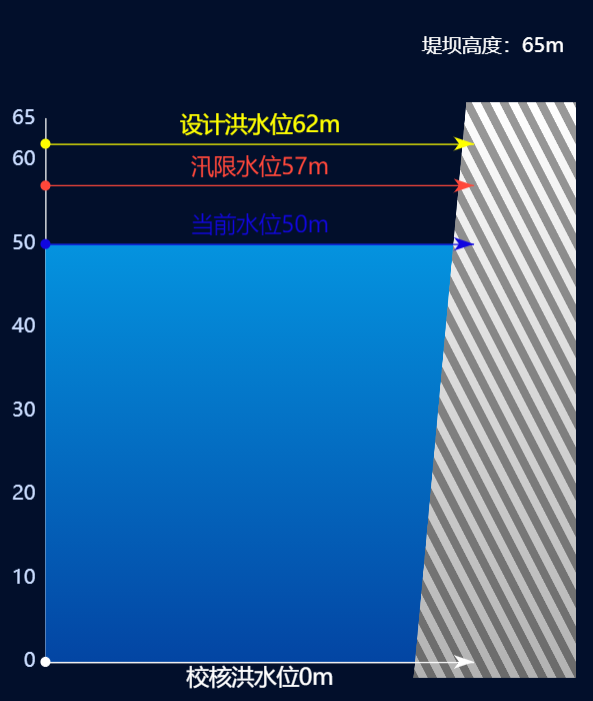

效果图：

讯享网
实现：

<template> <div id="chart" style="width: 480px; height: 650px; background: #020f2b" ></div> </template> <script> export default {
    data() {
    return {
   }; }, created() {
   }, mounted() {
    this.initChart(); }, methods: {
    initChart() {
    var maxHeight = "65"; //最大高度/堤坝高度 let markline = ["62", "57", "50", "0"]; //设计水位，汛限水位，当前水位，校核水位 let normalColor = "#CBDDFF"; let option = {
    xAxis: {
    type: "category", data: [""], axisTick: {
    show: false }, axisLabel: {
    fontSize: 16, color: normalColor, }, axisLine: {
    lineStyle: {
    color: "#FFF", width: 1, }, }, splitLine: {
    lineStyle: {
    color: "#FFF", }, }, }, yAxis: {
    nameTextStyle: {
    fontSize: 16, color: normalColor, }, max: maxHeight, min: 0, boundaryGap: [1, 1], type: "value", axisLine: {
    show: true, lineStyle: {
    color: "#FFF", width: 1, }, }, axisTick: {
    show: false }, axisLabel: {
    fontSize: 16, color: normalColor, }, splitLine: {
    show: false, lineStyle: {
    color: "#FFF", type: "dotted", opacity: 0.02, width: 1, }, }, splitNumber: 5, }, grid: {
    top: "20%", right: "20%", left: "3%", bottom: "12%", containLabel: true, }, graphic: {
    elements: [ {
    type: "image", right: "3%", top: "18%", z: 5, bounding: "raw", origin: [0, 0], style: {
    image: require("../images/reservoir.png"), width: 130, height: 460, }, }, {
    type: "text", right: 0, top: "10%", right: "5%", z: 5, style: {
    text: "堤坝高度：" + maxHeight + "m", fill: "#FFF", fontSize: 16, }, }, ], }, series: [ {
    type: "bar", data: [markline[2]], barCategoryGap: "-100%", itemStyle: {
    color: new this.$echarts.graphic.LinearGradient(0, 0, 0, 1, [ {
    offset: 0, color: "#0493df" }, {
    offset: 1, color: "#0345a3" }, ]), }, markLine: {
    silent: true, //鼠标移入高亮 true不高亮 data: [ {
    label: {
    position: "middle", fontSize: 18, formatter: "{b}{c}m", color: "#FF0", }, name: "设计洪水位", yAxis: markline[0], lineStyle: {
    type: "solid", color: "#FF0", width: 1 }, }, {
    label: {
    position: "middle", fontSize: 18, formatter: "{b}{c}m", color: "#FF473A", }, name: "汛限水位", yAxis: markline[1], lineStyle: {
    type: "solid", color: "#FF473A", width: 1 }, }, {
    label: {
    position: "middle", fontSize: 18, formatter: "{b}{c}m", color: "#1106df", }, name: "当前水位", yAxis: markline[2], lineStyle: {
    type: "solid", color: "#1106df", width: 1 }, }, {
    label: {
    position: "insideMiddleBottom", fontSize: 18, formatter: "{b}{c}m", color: "#FFF", }, name: "校核洪水位", yAxis: markline[3], lineStyle: {
    type: "solid", color: "#FFF", width: 1 }, }, ], }, }, ], }; let myChart = this.$echarts.init(document.getElementById("chart")); myChart.setOption(option); window.addEventListener("resize", () => {
    myChart.resize(); }); }, } }; </script>

附图片：
