前后端分离（VUE+SPRINGBOOT+SpringDataJapa+Echarts）报表开发

一、后端实现

1、创建springboot项目，添加 web、jpa、lombok、mysql、jdbc 启动器，加载pom.xml。

<?xml version="1.0" encoding="UTF-8"?> <project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd"> <modelVersion>4.0.0</modelVersion> <parent> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-parent</artifactId> <version>2.2.1.RELEASE</version> <relativePath/> <!-- lookup parent from repository --> </parent> <groupId>com.xkxx</groupId> <artifactId>chart</artifactId> <version>0.0.1-SNAPSHOT</version> <name>chart</name> <description>Demo project for Spring Boot</description> <properties> <java.version>1.8</java.version> </properties> <dependencies> <dependency> <groupId>org.projectlombok</groupId> <artifactId>lombok</artifactId> <optional>true</optional> </dependency> <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-data-jdbc</artifactId> </dependency> <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-data-jpa</artifactId> </dependency> <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-web</artifactId> </dependency> <dependency> <groupId>mysql</groupId> <artifactId>mysql-connector-java</artifactId> <scope>runtime</scope> </dependency> <dependency> <groupId>org.projectlombok</groupId> <artifactId>lombok</artifactId> <optional>true</optional> </dependency> <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-test</artifactId> <scope>test</scope> <exclusions> <exclusion> <groupId>org.junit.vintage</groupId> <artifactId>junit-vintage-engine</artifactId> </exclusion> </exclusions> </dependency> </dependencies> <build> <plugins> <plugin> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-maven-plugin</artifactId> </plugin> </plugins> </build> </project>

2、在resources下，将application.properties文件后缀改成.yml

讯享网server: port: 8888 spring: datasource: url: jdbc:mysql://127.0.0.1:3306/china?useSSL=false&serverTimezone=GMT%2B8 username: root password: sasa driver-class-name: com.mysql.cj.jdbc.Driver jpa: show-sql: true database: mysql hibernate: ddl-auto: update naming: implicit-strategy: org.hibernate.boot.model.naming.ImplicitNamingStrategyComponentPathImpl physical-strategy: org.hibernate.boot.model.naming.PhysicalNamingStrategyStandardImpl main: allow-bean-definition-overriding: true

3、编写统计对象Phone（由于数据库表过于简单，在此忽略）idea使用了lombok插件

package com.xkxx.chart.entity; import com.fasterxml.jackson.annotation.JsonIgnore; import lombok.Data; import javax.persistence.*; @Data @Entity @Table(name = "phone") public class Phone {
    @Id @GeneratedValue(strategy = GenerationType.IDENTITY) @Column(name = "id",unique = true,nullable = false,length = 50) @JsonIgnore //不返回id private Integer id; @Column(name = "name",nullable = false,length = 50) private String name; @Column(name = "num",nullable = false,length = 50) private String num; }

4、编写dao（使用SpringDataJpa)

讯享网package com.xkxx.chart.dao; import com.xkxx.chart.entity.Phone; import org.springframework.data.jpa.repository.JpaRepository; public interface PhoneDao extends JpaRepository<Phone,Integer> {
    }

5、5、编写service，调用dao接口方法，返回信息

package com.xkxx.chart.service; import com.xkxx.chart.dao.PhoneDao; import com.xkxx.chart.entity.Phone; import org.springframework.beans.factory.annotation.Autowired; import org.springframework.stereotype.Service; import javax.transaction.Transactional; import java.util.List; @Service @Transactional public class PhoneService {
    @Autowired private PhoneDao phoneDao; public List<Phone> findAll(){
    return phoneDao.findAll(); } }

6、编写web，调用service方法,实现数据与前端交互

讯享网package com.xkxx.chart.web; import com.xkxx.chart.entity.Phone; import com.xkxx.chart.service.PhoneService; import org.springframework.beans.factory.annotation.Autowired; import org.springframework.web.bind.annotation.GetMapping; import org.springframework.web.bind.annotation.RestController; import java.util.List; @RestController public class IndexController {
    @Autowired private PhoneService phoneService; @GetMapping("/phone") public List<Phone> findAll(){
    return phoneService.findAll(); } }

7、编写CorsConfig类进行前后端分离跨域请求

package com.xkxx.chart.config; import org.springframework.context.annotation.Bean; import org.springframework.context.annotation.Configuration; import org.springframework.web.cors.CorsConfiguration; import org.springframework.web.cors.UrlBasedCorsConfigurationSource; import org.springframework.web.filter.CorsFilter; @Configuration public class CorsConfig {
    // 初始化 CorsConfiguration 对象并设置允许的域名、请求头部信息和请求方式 private CorsConfiguration buildConfig() {
    CorsConfiguration corsConfiguration = new CorsConfiguration(); corsConfiguration.addAllowedOrigin("*"); // 1 允许任何域名使用 corsConfiguration.addAllowedHeader("*"); // 2 允许任何头 corsConfiguration.addAllowedMethod("*"); // 3 允许任何方法（post、get 等） return corsConfiguration; } / * 创建 CorsFilter 对象 * @return CorsFilter */ @Bean public CorsFilter corsFilter() {
    UrlBasedCorsConfigurationSource source = new UrlBasedCorsConfigurationSource(); source.registerCorsConfiguration("/", buildConfig()); //拦截所有请求 return new CorsFilter(source); } }

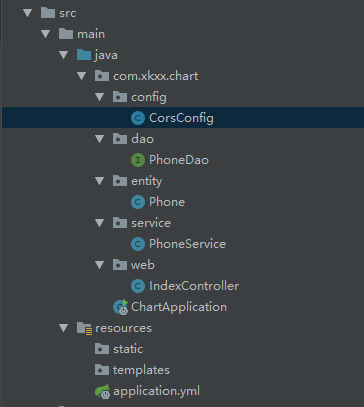

8、后端最终样式

讯享网

二，前端VUE+Echarts

1、创建vue项目（如何创建vue项目？）

3、在 src 文件夹下的程序入口 main.js 中导入

讯享网import axios from 'axios' import VueAxios from 'vue-axios' // element-ui 引入文件 import ElementUI from 'element-ui'; import 'element-ui/lib/theme-chalk/index.css'; //注册 VueAxios, axios Vue.use(VueAxios, axios) Vue.use(ElementUI)

4、在src的main.js下导入插件

import axios from 'axios' import VueAxios from 'vue-axios' import VCharts from 'v-charts' Vue.use(VCharts) //注册 VueAxios, axios Vue.use(VueAxios, axios)

5、创建vue文件，编写柱状图

讯享网<template> <ve-histogram :data="chartData" :title="chartTitle" :settings="chartSettings" :extend="extend"></ve-histogram> </template> <script> const axios = require("axios"); import "echarts/lib/component/title"; export default {
    data () {
    this.chartSettings = {
    yAxisType: ['KMB'], yAxisName: ['销量/万'], }, this.extend = {
    barWidth: 25,//设置宽度为15px // x轴的文字倾斜 'xAxis.0.axisLabel.rotate': 45, 'xAxis.0.axisLabel.fontSize': 20,//x轴文本字体大小 'xAxis.0.axisLabel.fontWeight': 'bold',//x轴文本字体粗细 series: {
    label: {
    show: true, position: "top" }, color: function (value) {
    return "#" + ("00000" + ((Math.random() *  + 0.5) >> 0).toString(16)).slice(-6); } } }, this.chartTitle = {
    // 文字啥的，用\n可以换行 text: '2019各大手机品牌销量', x: '25px', textStyle: {
    fontSize: 20, fontWeight: 'normal', } } return {
    chartData: {
    columns: ['name', 'num'], rows: [] } } }, created: function () {
    var app = this; console.log("init"); this.init() }, methods: {
    init: function () {
    var app = this; axios .get("http://localhost:8888/phone") .then(function (response) {
    app.chartData.rows = response.data; }) .catch(function (error) {
    console.log(error); }); }, } } </script>

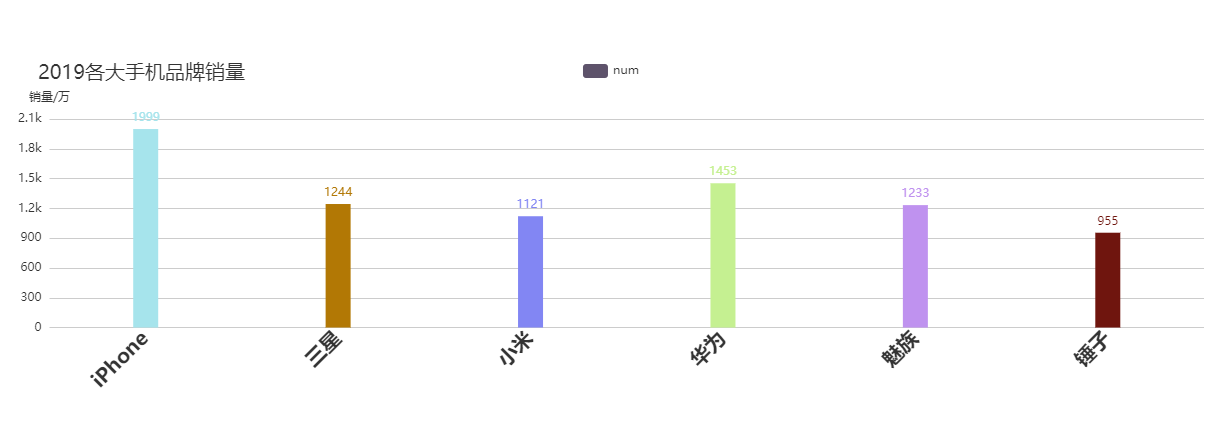

展示效果

6、创建vue文件，编写饼状图

<template> <ve-pie :data="chartData" :title="chartTitle" :events="chartEvents" :settings="chartSettings"></ve-pie> </template> <script> const axios = require("axios"); import "echarts/lib/component/title"; export default {
    data () {
    var self = this this.chartEvents = {
    click: function (e) {
    self.name = e.name alert(e.name + ":" + e.percent); console.log(e) } }, this.chartSettings = {
    radius: 150, offsetY: 250, label: {
    normal: {
    fontSize: 16, formatter: '{b}' + '\n\r' + '{c}' + '\n\r' + '({d}%)' } } }, this.chartTitle = {
    // 文字啥的，用\n可以换行 text: '2019各大手机品牌销量', x: '25px', textStyle: {
    fontSize: 20, fontWeight: 'normal', } } return {
    chartData: {
    columns: ['name', 'num'], rows: [] } } }, created: function () {
    var app = this; console.log("init"); this.init() }, methods: {
    init: function () {
    var app = this; axios .get("http://localhost:8888/phone") .then(function (response) {
    app.chartData.rows = response.data; }) .catch(function (error) {
    console.log(error); }); }, } } </script>

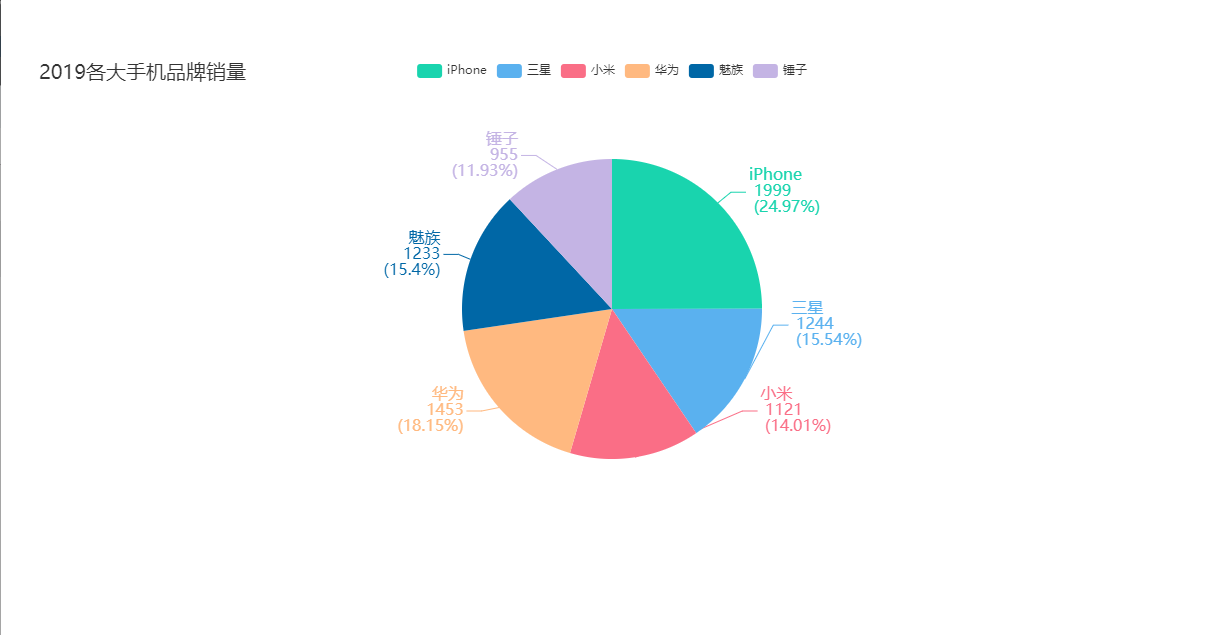

展示效果

总结：难点就是在前端样式的更改，后端是最基础的查询所有数据。
