Kubeadm 部署 Kubernetes1.18.6 集群

一、环境说明

主机名	IP地址	角色	系统
k8s-node-1	192.168.120.128	k8s-master	Centos7.6
k8s-node-2	192.168.120.129	k8s-node	Centos7.6
k8s-node-3	192.168.120.130	k8s-node	Centos7.6

• 注意：官方建议每台机器至少双核2G内存，同时需确保MAC和product_uuid唯一（参考下面的命令查看）

[root@k8s-master ~]# ip link [root@k8s-master ~]# cat /sys/class/dmi/id/product_uuid

讯享网

二、环境配置

• 以下命令在三台主机上均需运行

1、设置阿里云yum源（可选）

讯享网[root@k8s-master ~]# curl -o /etc/yum.repos.d/CentOS-Base.repo http://mirrors.aliyun.com/repo/Centos-7.repo [root@k8s-master ~]# rm -rf /var/cache/yum && yum makecache && yum -y update && yum -y autoremove # 注意： 网络条件不好，可以不用 update

2、安装依赖包

[root@k8s-master ~]# yum install -y epel-release conntrack ipvsadm ipset jq sysstat curl iptables libseccomp

3、关闭防火墙

讯享网[root@k8s-master ~]# systemctl stop firewalld && systemctl disable firewalld [root@k8s-master ~]# iptables -F && iptables -X && iptables -F -t nat && iptables -X -t nat && iptables -P FORWARD ACCEPT

4、关闭SELinux

[root@k8s-master ~]# setenforce 0 [root@k8s-master ~]# sed -i "s/SELINUX=enforcing/SELINUX=disabled/g" /etc/selinux/config

5、关闭swap分区

讯享网[root@k8s-master ~]# swapoff -a [root@k8s-master ~]# sed -i '/ swap / s/^\(.*\)$/#\1/g' /etc/fstab

6、加载内核模块

[root@k8s-master ~]# cat > /etc/sysconfig/modules/ipvs.modules <<EOF #!/bin/bash modprobe -- ip_vs modprobe -- ip_vs_rr modprobe -- ip_vs_wrr modprobe -- ip_vs_sh modprobe -- nf_conntrack_ipv4 modprobe -- br_netfilter EOF chmod 755 /etc/sysconfig/modules/ipvs.modules && bash /etc/sysconfig/modules/ipvs.modules

• modprobe ip_vs lvs基于4层的负载均很
• modprobe ip_vs_rr 轮询
• modprobe ip_vs_wrr 加权轮询
• modprobe ip_vs_sh 源地址散列调度算法
• modprobe nf_conntrack_ipv4 连接跟踪模块
• modprobe br_netfilter 遍历桥的数据包由iptables进行处理以进行过滤和端口转发

7、设置内核参数

讯享网[root@k8s-master ~]# cat << EOF | tee /etc/sysctl.d/k8s.conf net.bridge.bridge-nf-call-iptables=1 net.bridge.bridge-nf-call-ip6tables=1 net.ipv4.ip_forward=1 net.ipv4.tcp_tw_recycle=0 vm.swappiness=0 vm.overcommit_memory=1 vm.panic_on_oom=0 fs.inotify.max_user_watches=89100 fs.file-max= fs.nr_open= net.ipv6.conf.all.disable_ipv6=1 net.netfilter.nf_conntrack_max= EOF [root@k8s-master ~]# sysctl -p /etc/sysctl.d/k8s.conf

• overcommit_memory是一个内核对内存分配的一种策略,取值又三种分别为0， 1， 2
  • overcommit_memory=0， 表示内核将检查是否有足够的可用内存供应用进程使用；如果有足够的可用内存，内存申请允许；否则，内存申请失败，并把错误返回给应用进程。
  • overcommit_memory=1， 表示内核允许分配所有的物理内存，而不管当前的内存状态如何。
  • overcommit_memory=2， 表示内核允许分配超过所有物理内存和交换空间总和的内存
• net.bridge.bridge-nf-call-iptables 设置网桥iptables网络过滤通告
• net.ipv4.tcp_tw_recycle 设置 IP_TW 回收
• vm.swappiness 禁用swap
• vm.panic_on_oom 设置系统oom（内存溢出）
• fs.inotify.max_user_watches 允许用户最大监控目录数
• fs.file-max 允许系统打开的最大文件数
• fs.nr_open 允许单个进程打开的最大文件数
• net.ipv6.conf.all.disable_ipv6 禁用ipv6
• net.netfilter.nf_conntrack_max 系统的最大连接数

8、安装 Docker

1、首先卸载旧版

[root@k8s-master ~]# yum remove docker \ docker-client \ docker-client-latest \ docker-common \ docker-latest \ docker-latest-logrotate \ docker-logrotate \ docker-selinux \ docker-engine-selinux \ docker-engine

2、安装依赖包

讯享网[root@k8s-master ~]# yu[root@k8s-master ~]# m install -y yum-utils device-mapper-persistent-data lvm2

3、设置安装源（阿里云）

[root@k8s-master ~]# yum-config-manager --add-repo http://mirrors.aliyun.com/docker-ce/linux/centos/docker-ce.repo

4、启用测试库（可选）

讯享网[root@k8s-master ~]# yum-config-manager --enable docker-ce-edge [root@k8s-master ~]# yum-config-manager --enable docker-ce-test

5、安装

[root@k8s-master ~]# yum makecache fast [root@k8s-master ~]# yum list docker-ce --showduplicates | sort -r [root@k8s-master ~]# yum -y install docker-ce-18.09.9-3.el7

6、启动

讯享网[root@k8s-master ~]# systemctl start docker

7、开机自启设置

[root@k8s-master ~]# systemctl enable docker

• Docker建议配置阿里云镜像加速
• 安装完成后配置启动时的命令，否则 docker 会将 iptables FORWARD chain 的默认策略设置为DROP
• 另外Kubeadm建议将 systemd 设置为 cgroup 驱动，所以还要修改 daemon.json

讯享网[root@k8s-master ~]# sed -i "13i ExecStartPost=/usr/sbin/iptables -P FORWARD ACCEPT" /usr/lib/systemd/system/docker.service [root@k8s-master ~]# tee /etc/docker/daemon.json <<-'EOF' {
    "registry-mirrors": ["https://bk6kzfqm.mirror.aliyuncs.com"], "exec-opts": ["native.cgroupdriver=systemd"], "log-driver": "json-file", "log-opts": {
    "max-size": "100m" }, "storage-driver": "overlay2", "storage-opts": [ "overlay2.override_kernel_check=true" ] } EOF [root@k8s-master ~]# systemctl daemon-reload [root@k8s-master ~]# systemctl restart docker

9、安装 kubeadm 和 kubelet

1、配置安装源

[root@k8s-master ~]# cat <<EOF > /etc/yum.repos.d/kubernetes.repo [kubernetes] name=Kubernetes baseurl=https://mirrors.aliyun.com/kubernetes/yum/repos/kubernetes-el7-x86_64/ enabled=1 gpgcheck=0 repo_gpgcheck=0 gpgkey=https://mirrors.aliyun.com/kubernetes/yum/doc/yum-key.gpg https://mirrors.aliyun.com/kubernetes/yum/doc/rpm-package-key.gpg EOF #重建yum缓存，输入y添加证书认证 [root@k8s-master ~]# yum makecache fast

2、安装

讯享网[root@k8s-master ~]# yum install -y kubelet kubeadm kubectl [root@k8s-master ~]# systemctl enable --now kubelet

3、配置自动补全命令

#安装bash自动补全插件 [root@k8s-master ~]# yum install bash-completion -y #设置kubectl与kubeadm命令补全，下次login生效 [root@k8s-master ~]# kubectl completion bash > /etc/bash_completion.d/kubectl [root@k8s-master ~]# kubeadm completion bash > /etc/bash_completion.d/kubeadm

10、拉取所需镜像

• 由于国内网络因素，kubernetes镜像需要从mirrors站点或通过dockerhub用户推送的镜像拉取

讯享网[root@k8s-master ~]# kubeadm config images list --kubernetes-version v1.18.6 W0803 07:13:18. 11055 configset.go:202] WARNING: kubeadm cannot validate component configs for API groups [kubelet.config.k8s.io kubeproxy.config.k8s.io] k8s.gcr.io/kube-apiserver:v1.18.6 k8s.gcr.io/kube-controller-manager:v1.18.6 k8s.gcr.io/kube-scheduler:v1.18.6 k8s.gcr.io/kube-proxy:v1.18.6 k8s.gcr.io/pause:3.2 k8s.gcr.io/etcd:3.4.3-0 k8s.gcr.io/coredns:1.6.7

1、拉取镜像

• 另因阿里云的镜像暂时还没更新到v1.18.5版本，所以通过dockerhub上拉取，目前阿里云最新同步版本是v1.18.3，想通过v1.18.3版本拉取镜像请参考

[root@k8s-master ~]# vim get-k8s-images.sh #!/bin/bash # Script For Quick Pull K8S Docker Images KUBE_VERSION=v1.18.6 PAUSE_VERSION=3.2 CORE_DNS_VERSION=1.6.7 ETCD_VERSION=3.4.3-0 # pull kubernetes images from hub.docker.com docker pull kubeimage/kube-proxy-amd64:$KUBE_VERSION docker pull kubeimage/kube-controller-manager-amd64:$KUBE_VERSION docker pull kubeimage/kube-apiserver-amd64:$KUBE_VERSION docker pull kubeimage/kube-scheduler-amd64:$KUBE_VERSION # pull aliyuncs mirror docker images docker pull registry.cn-hangzhou.aliyuncs.com/google_containers/pause:$PAUSE_VERSION docker pull registry.cn-hangzhou.aliyuncs.com/google_containers/coredns:$CORE_DNS_VERSION docker pull registry.cn-hangzhou.aliyuncs.com/google_containers/etcd:$ETCD_VERSION # retag to k8s.gcr.io prefix docker tag kubeimage/kube-proxy-amd64:$KUBE_VERSION k8s.gcr.io/kube-proxy:$KUBE_VERSION docker tag kubeimage/kube-controller-manager-amd64:$KUBE_VERSION k8s.gcr.io/kube-controller-manager:$KUBE_VERSION docker tag kubeimage/kube-apiserver-amd64:$KUBE_VERSION k8s.gcr.io/kube-apiserver:$KUBE_VERSION docker tag kubeimage/kube-scheduler-amd64:$KUBE_VERSION k8s.gcr.io/kube-scheduler:$KUBE_VERSION docker tag registry.cn-hangzhou.aliyuncs.com/google_containers/pause:$PAUSE_VERSION k8s.gcr.io/pause:$PAUSE_VERSION docker tag registry.cn-hangzhou.aliyuncs.com/google_containers/coredns:$CORE_DNS_VERSION k8s.gcr.io/coredns:$CORE_DNS_VERSION docker tag registry.cn-hangzhou.aliyuncs.com/google_containers/etcd:$ETCD_VERSION k8s.gcr.io/etcd:$ETCD_VERSION # untag origin tag, the images won't be delete. docker rmi kubeimage/kube-proxy-amd64:$KUBE_VERSION docker rmi kubeimage/kube-controller-manager-amd64:$KUBE_VERSION docker rmi kubeimage/kube-apiserver-amd64:$KUBE_VERSION docker rmi kubeimage/kube-scheduler-amd64:$KUBE_VERSION docker rmi registry.cn-hangzhou.aliyuncs.com/google_containers/pause:$PAUSE_VERSION docker rmi registry.cn-hangzhou.aliyuncs.com/google_containers/coredns:$CORE_DNS_VERSION docker rmi registry.cn-hangzhou.aliyuncs.com/google_containers/etcd:$ETCD_VERSION

2、Master 导出镜像

讯享网[root@k8s-master ~]# docker save $(docker images | grep -v REPOSITORY | awk 'BEGIN{OFS=":";ORS=" "}{print $1,$2}') -o k8s-1.18.6-images.tar

3、node 1、2节点导入镜像

[root@k8s-node1 ~]# docker image load -i k8s-1.18.6-images.tar

三、初始化集群

• 以下命令如无特殊说明，均在k8s-node-1上执行

1、使用kubeadm init初始化集群（注意修 apiserver 地址为本机IP）

讯享网[root@k8s-master ~]# kubeadm init --kubernetes-version=v1.18.6 --apiserver-advertise-address=192.168.152.168 --pod-network-cidr=10.244.0.0/16 --service-cidr=10.1.0.0/16

• –kubernetes-version=v1.16.2 ： 加上该参数后启动相关镜像（刚才下载的那一堆）
• –pod-network-cidr=10.244.0.0/16 ：（Pod 中间网络通讯我们用flannel，flannel要求是10.244.0.0/16，这个IP段就是Pod的IP段）
• –service-cidr=10.1.0.0/16 ： Service（服务）网段（和微服务架构有关）
• 初始化成功后会输出类似下面的加入命令，暂时无需运行，先记录。


  讯享网

[root@k8s-master ~]# kubeadm join 192.168.120.128:6443 --token duz8m8.njvafly3p2jrshfx --discovery-token-ca-cert-hash sha256:60e15ba0f562a9fa1540bd284e021a37ebdbcea128f4e257e25002db

2、为需要使用kubectl的用户进行配置

讯享网#把密钥配置加载到自己的环境变量里 [root@k8s-master ~]# export KUBECONFIG=/etc/kubernetes/admin.conf #每次启动自动加载$HOME/.kube/config下的密钥配置文件（K8S自动行为） [root@k8s-master ~]# mkdir -p $HOME/.kube [root@k8s-master ~]# sudo cp -i /etc/kubernetes/admin.conf $HOME/.kube/config [root@k8s-master ~]# sudo chown $(id -u):$(id -g) $HOME/.kube/config

3、 集群网络配置（选择一种就可以）

1、安装 flannel 网络

kubectl apply -f https://raw.githubusercontent.com/coreos/flannel/master/Documentation/kube-flannel.yml # 注意：修改集群初始化地址及镜像能否拉去

2、安装Pod Network（使用七牛云镜像）

讯享网curl -o kube-flannel.yml https://raw.githubusercontent.com/coreos/flannel/master/Documentation/kube-flannel.yml sed -i "s/quay.io\/coreos\/flannel/quay-mirror.qiniu.com\/coreos\/flannel/g" kube-flannel.yml kubectl apply -f kube-flannel.yml rm -f kube-flannel.yml

• 使用下面的命令确保所有的Pod都处于Running状态，可能要等到许久。

kubectl get pod --all-namespaces -o wide

3、安装 calico 网络

讯享网[root@k8s-master ~]# kubectl apply -f https://docs.projectcalico.org/v3.15/manifests/calico.yaml # 注意修该集群初始化地址

4、向Kubernetes集群中添加Node节点

• 在k8s-node-1和k8s-node-2上运行之前在k8s-master输出的命令

[root@k8s-node1 ~]# kubeadm join 192.168.120.128:6443 --token duz8m8.njvafly3p2jrshfx --discovery-token-ca-cert-hash sha256:60e15ba0f562a9fa1540bd284e021a37ebdbcea128f4e257e25002db

• 注意：没有记录集群 join 命令的可以通过以下方式重新获取

讯享网[root@k8s-master ~]# kubeadm token create --print-join-command --ttl=0

2、为需要使用kubectl的用户进行配置

• 查看集群中的节点状态，可能要等等许久才Ready

[root@k8s-master ~]# kubectl get nodes

5、kube-proxy 开启 ipvs

讯享网[root@k8s-master ~]# kubectl get configmap kube-proxy -n kube-system -o yaml > kube-proxy-configmap.yaml [root@k8s-master ~]# sed -i 's/mode: ""/mode: "ipvs"/' kube-proxy-configmap.yaml [root@k8s-master ~]# kubectl apply -f kube-proxy-configmap.yaml [root@k8s-master ~]# rm -f kube-proxy-configmap.yaml [root@k8s-master ~]# kubectl get pod -n kube-system | grep kube-proxy | awk '{system("kubectl delete pod "$1" -n kube-system")}'

四、部署 kubernetes-dashboard

1、在 Master 上部署 Dashboard

[root@k8s-master ~]# kubectl get pods -A -o wide NAMESPACE NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES kube-system calico-kube-controllers-74c9747c46-cp4dk 1/1 Running 0 143m 10.244.235.193 k8s-master <none> <none> kube-system calico-node-6xmxh 1/1 Running 0 143m 192.168.152.145 k8s-master <none> <none> kube-system calico-node-8mbwq 1/1 Running 0 131m 192.168.152.146 k8s-node1 <none> <none> kube-system calico-node-sqtgq 1/1 Running 0 131m 192.168.152.147 k8s-node2 <none> <none> kube-system coredns-f44-n8d8v 1/1 Running 0 3h44m 10.244.235.195 k8s-master <none> <none> kube-system coredns-f44-p4kd4 1/1 Running 0 3h44m 10.244.235.194 k8s-master <none> <none> kube-system etcd-k8s-master 1/1 Running 0 3h44m 192.168.152.145 k8s-master <none> <none> kube-system kube-apiserver-k8s-master 1/1 Running 0 3h44m 192.168.152.145 k8s-master <none> <none> kube-system kube-controller-manager-k8s-master 1/1 Running 0 3h44m 192.168.152.145 k8s-master <none> <none> kube-system kube-flannel-ds-amd64-2d88c 1/1 Running 0 131m 192.168.152.147 k8s-node2 <none> <none> kube-system kube-flannel-ds-amd64-69ftl 1/1 Running 0 3h6m 192.168.152.145 k8s-master <none> <none> kube-system kube-flannel-ds-amd64-9ct9d 1/1 Running 0 131m 192.168.152.146 k8s-node1 <none> <none> kube-system kube-proxy-7p56k 1/1 Running 0 122m 192.168.152.146 k8s-node1 <none> <none> kube-system kube-proxy-mfbs8 1/1 Running 0 122m 192.168.152.145 k8s-master <none> <none> kube-system kube-proxy-skt9w 1/1 Running 0 122m 192.168.152.147 k8s-node2 <none> <none> kube-system kube-scheduler-k8s-master 1/1 Running 0 3h44m 192.168.152.145 k8s-master <none> <none> kube-system metrics-server-cfc97f444-ptpqv 1/1 Running 0 7m10s 10.244.36.75 k8s-node1 <none> <none> kubernetes-dashboard dashboard-metrics-scraper-d8-2z5dq 1/1 Running 0 20m 10.244.36.73 k8s-node1 <none> <none> kubernetes-dashboard kubernetes-dashboard-6b86b44f87-ctwth 1/1 Running 0 20m 10.244.169.134 k8s-node2 <none> <none>

2、下载并修改Dashboard安装脚本（在Master上执行）

• 参照官网安装说明在master上执行：

讯享网[root@k8s-master ~]# wget https://raw.githubusercontent.com/kubernetes/dashboard/v2.0.0-beta5/aio/deploy/recommended.yaml cat > recommended.yaml<<-EOF # Copyright 2017 The Kubernetes Authors. # # Licensed under the Apache License, Version 2.0 (the "License"); # you may not use this file except in compliance with the License. # You may obtain a copy of the License at # # http://www.apache.org/licenses/LICENSE-2.0 # # Unless required by applicable law or agreed to in writing, software # distributed under the License is distributed on an "AS IS" BASIS, # WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. # See the License for the specific language governing permissions and # limitations under the License. apiVersion: v1 kind: Namespace metadata: name: kubernetes-dashboard --- apiVersion: v1 kind: ServiceAccount metadata: labels: k8s-app: kubernetes-dashboard name: kubernetes-dashboard namespace: kubernetes-dashboard --- kind: Service apiVersion: v1 metadata: labels: k8s-app: kubernetes-dashboard name: kubernetes-dashboard namespace: kubernetes-dashboard spec: ports: - port: 443 targetPort: 8443 selector: k8s-app: kubernetes-dashboard --- apiVersion: v1 kind: Secret metadata: labels: k8s-app: kubernetes-dashboard name: kubernetes-dashboard-certs namespace: kubernetes-dashboard type: Opaque --- apiVersion: v1 kind: Secret metadata: labels: k8s-app: kubernetes-dashboard name: kubernetes-dashboard-csrf namespace: kubernetes-dashboard type: Opaque data: csrf: "" --- apiVersion: v1 kind: Secret metadata: labels: k8s-app: kubernetes-dashboard name: kubernetes-dashboard-key-holder namespace: kubernetes-dashboard type: Opaque --- kind: ConfigMap apiVersion: v1 metadata: labels: k8s-app: kubernetes-dashboard name: kubernetes-dashboard-settings namespace: kubernetes-dashboard --- kind: Role apiVersion: rbac.authorization.k8s.io/v1 metadata: labels: k8s-app: kubernetes-dashboard name: kubernetes-dashboard namespace: kubernetes-dashboard rules: # Allow Dashboard to get, update and delete Dashboard exclusive secrets. - apiGroups: [""] resources: ["secrets"] resourceNames: ["kubernetes-dashboard-key-holder", "kubernetes-dashboard-certs", "kubernetes-dashboard-csrf"] verbs: ["get", "update", "delete"] # Allow Dashboard to get and update 'kubernetes-dashboard-settings' config map. - apiGroups: [""] resources: ["configmaps"] resourceNames: ["kubernetes-dashboard-settings"] verbs: ["get", "update"] # Allow Dashboard to get metrics. - apiGroups: [""] resources: ["services"] resourceNames: ["heapster", "dashboard-metrics-scraper"] verbs: ["proxy"] - apiGroups: [""] resources: ["services/proxy"] resourceNames: ["heapster", "http:heapster:", "https:heapster:", "dashboard-metrics-scraper", "http:dashboard-metrics-scraper"] verbs: ["get"] --- kind: ClusterRole apiVersion: rbac.authorization.k8s.io/v1 metadata: labels: k8s-app: kubernetes-dashboard name: kubernetes-dashboard rules: # Allow Metrics Scraper to get metrics from the Metrics server - apiGroups: ["metrics.k8s.io"] resources: ["pods", "nodes"] verbs: ["get", "list", "watch"] --- apiVersion: rbac.authorization.k8s.io/v1 kind: RoleBinding metadata: labels: k8s-app: kubernetes-dashboard name: kubernetes-dashboard namespace: kubernetes-dashboard roleRef: apiGroup: rbac.authorization.k8s.io kind: Role name: kubernetes-dashboard subjects: - kind: ServiceAccount name: kubernetes-dashboard namespace: kubernetes-dashboard --- apiVersion: rbac.authorization.k8s.io/v1 kind: ClusterRoleBinding metadata: name: kubernetes-dashboard namespace: kubernetes-dashboard roleRef: apiGroup: rbac.authorization.k8s.io kind: ClusterRole name: kubernetes-dashboard subjects: - kind: ServiceAccount name: kubernetes-dashboard namespace: kubernetes-dashboard --- kind: Deployment apiVersion: apps/v1 metadata: labels: k8s-app: kubernetes-dashboard name: kubernetes-dashboard namespace: kubernetes-dashboard spec: replicas: 1 revisionHistoryLimit: 10 selector: matchLabels: k8s-app: kubernetes-dashboard template: metadata: labels: k8s-app: kubernetes-dashboard spec: containers: - name: kubernetes-dashboard image: kubernetesui/dashboard:v2.0.0-beta1 imagePullPolicy: Always ports: - containerPort: 8443 protocol: TCP args: - --auto-generate-certificates - --namespace=kubernetes-dashboard # Uncomment the following line to manually specify Kubernetes API server Host # If not specified, Dashboard will attempt to auto discover the API server and connect # to it. Uncomment only if the default does not work. # - --apiserver-host=http://my-address:port volumeMounts: - name: kubernetes-dashboard-certs mountPath: /certs # Create on-disk volume to store exec logs - mountPath: /tmp name: tmp-volume livenessProbe: httpGet: scheme: HTTPS path: / port: 8443 initialDelaySeconds: 30 timeoutSeconds: 30 volumes: - name: kubernetes-dashboard-certs secret: secretName: kubernetes-dashboard-certs - name: tmp-volume emptyDir: {
   } serviceAccountName: kubernetes-dashboard # Comment the following tolerations if Dashboard must not be deployed on master tolerations: - key: node-role.kubernetes.io/master effect: NoSchedule --- kind: Service apiVersion: v1 metadata: labels: k8s-app: kubernetes-metrics-scraper name: dashboard-metrics-scraper namespace: kubernetes-dashboard spec: ports: - port: 8000 targetPort: 8000 selector: k8s-app: kubernetes-metrics-scraper --- kind: Deployment apiVersion: apps/v1 metadata: labels: k8s-app: kubernetes-metrics-scraper name: kubernetes-metrics-scraper namespace: kubernetes-dashboard spec: replicas: 1 revisionHistoryLimit: 10 selector: matchLabels: k8s-app: kubernetes-metrics-scraper template: metadata: labels: k8s-app: kubernetes-metrics-scraper spec: containers: - name: kubernetes-metrics-scraper image: kubernetesui/metrics-scraper:v1.0.0 ports: - containerPort: 8000 protocol: TCP livenessProbe: httpGet: scheme: HTTP path: / port: 8000 initialDelaySeconds: 30 timeoutSeconds: 30 serviceAccountName: kubernetes-dashboard # Comment the following tolerations if Dashboard must not be deployed on master tolerations: - key: node-role.kubernetes.io/master effect: NoSchedule EOF

• 修改recommended.yaml文件内容(vi recommended.yaml)：

--- #增加直接访问端口 kind: Service apiVersion: v1 metadata: labels: k8s-app: kubernetes-dashboard name: kubernetes-dashboard namespace: kubernetes-dashboard spec: type: NodePort #增加 ports: - port: 443 targetPort: 8443 nodePort: 30008 #增加 selector: k8s-app: kubernetes-dashboard --- #因为自动生成的证书很多浏览器无法使用，所以我们自己创建，注释掉kubernetes-dashboard-certs对象声明 #apiVersion: v1 #kind: Secret #metadata: # labels: # k8s-app: kubernetes-dashboard # name: kubernetes-dashboard-certs # namespace: kubernetes-dashboard #type: Opaque ---

3、创建证书

讯享网[root@k8s-master ~]# mkdir dashboard-certs [root@k8s-master ~]# cd dashboard-certs/ #创建命名空间 [root@k8s-master ~]# kubectl create namespace kubernetes-dashboard # 创建私钥key文件 [root@k8s-master ~]# openssl genrsa -out dashboard.key 2048 #证书请求 [root@k8s-master ~]# openssl req -days 36000 -new -out dashboard.csr -key dashboard.key -subj '/CN=dashboard-cert' #自签证书 [root@k8s-master ~]# openssl x509 -req -in dashboard.csr -signkey dashboard.key -out dashboard.crt #创建kubernetes-dashboard-certs对象 [root@k8s-master ~]# kubectl create secret generic kubernetes-dashboard-certs --from-file=dashboard.key --from-file=dashboard.crt -n kubernetes-dashboard

4、创建 dashboard 管理员

1、创建账号

[root@k8s-master ~]# vim dashboard-admin.yaml apiVersion: v1 kind: ServiceAccount metadata: labels: k8s-app: kubernetes-dashboard name: dashboard-admin namespace: kubernetes-dashboard #保存退出后执行 kubectl create -f dashboard-admin.yaml

2、为用户分配权限

讯享网[root@k8s-master ~]# vim dashboard-admin-bind-cluster-role.yaml apiVersion: rbac.authorization.k8s.io/v1 kind: ClusterRoleBinding metadata: name: dashboard-admin-bind-cluster-role labels: k8s-app: kubernetes-dashboard roleRef: apiGroup: rbac.authorization.k8s.io kind: ClusterRole name: cluster-admin subjects: - kind: ServiceAccount name: dashboard-admin namespace: kubernetes-dashboard #保存退出后执行 kubectl create -f dashboard-admin-bind-cluster-role.yaml

5、安装 Dashboard

#安装 [root@k8s-master ~]# kubectl create -f ~/recommended.yaml #检查结果 [root@k8s-master ~]# kubectl get pods -A -o wide [root@k8s-master ~]# kubectl get service -n kubernetes-dashboard -o wide NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE SELECTOR dashboard-metrics-scraper ClusterIP 10.1.186.219 <none> 8000/TCP 19m k8s-app=dashboard-metrics-scraper kubernetes-dashboard NodePort 10.1.60.1 <none> 443:30008/TCP 19m k8s-app=kubernetes-dashboard

6、查看并复制用户Token

讯享网[root@k8s-master ~]# kubectl -n kubernetes-dashboard describe secret $(kubectl -n kubernetes-dashboard get secret | grep dashboard-admin | awk '{print $1}') Name: dashboard-admin-token-9mqvw Namespace: kubernetes-dashboard Labels: <none> Annotations: kubernetes.io/service-account.name: dashboard-admin kubernetes.io/service-account.uid: 762b0839-9ba3-4442-b123-e2c2b37a1088 Type: kubernetes.io/service-account-token Data ==== ca.crt: 1025 bytes namespace: 20 bytes token: eyJhbGciOiJSUzI1NiIsImtpZCI6Ik9VVVQ1YkdpeDA1N1U0OUc4X0RZM2ppUndsNUdUNTRuOU1jZ0RuSUcxd00ifQ.eyJpc3MiOiJrdWJlcm5ldGVzL3NlcnZpY2VhY2NvdW50Iiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9uYW1lc3BhY2UiOiJrdWJlcm5ldGVzLWRhc2hib2FyZCIsImt1YmVybmV0ZXMuaW8vc2VydmljZWFjY291bnQvc2VjcmV0Lm5hbWUiOiJkYXNoYm9hcmQtYWRtaW4tdG9rZW4tOW1xdnciLCJrdWJlcm5ldGVzLmlvL3NlcnZpY2VhY2NvdW50L3NlcnZpY2UtYWNjb3VudC5uYW1lIjoiZGFzaGJvYXJkLWFkbWluIiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9zZXJ2aWNlLWFjY291bnQudWlkIjoiNzYyYjA4MzktOWJhMy00NDQyLWIxMjMtZTJjMmIzN2ExMDg4Iiwic3ViIjoic3lzdGVtOnNlcnZpY2VhY2NvdW50Omt1YmVybmV0ZXMtZGFzaGJvYXJkOmRhc2hib2FyZC1hZG1pbiJ9.W5DLW4dYX5u33Lg97BYb33eIWL5gTFT5xyZ5uqcPun4ChpMY7lrGA2GuxPhdfWbju7DaFMr7eacgnWoAOQzr_rgrCWCWnT7xmEWpvChbi7VVpyEGrVVqxXVRYIWMrpP5s-TYD8doEjeoxrFDwo4CWX7zv834vhkjnharY5ZBZYEKAw06Eg7d-HFsq8ZTAkeg8wXtuRd_OHvPddAuxmZCnf3Y3yLh6Ak7n3OkWKBupY7pRVUnzDBT2Nk7vv0YrAFm6f6x2Wg-WeE7Wbgwt7cOBMo2fJixfdmo0GDdwv0stCk4kuz-8wXpGtR2nGzEWX7AY5snT9AEabYvrOLIYRy7sQ

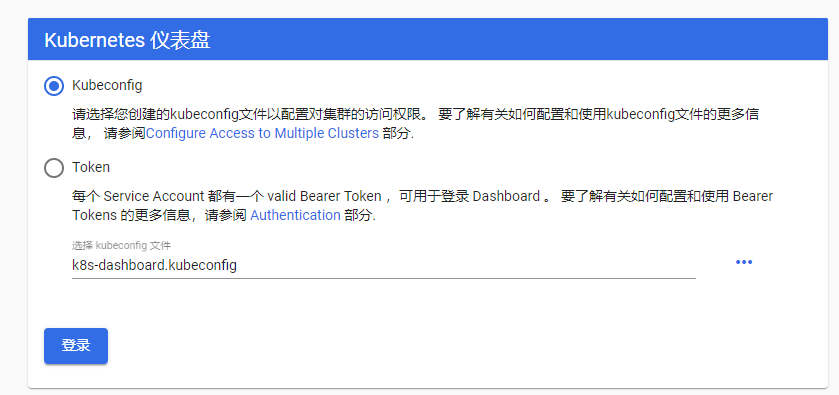

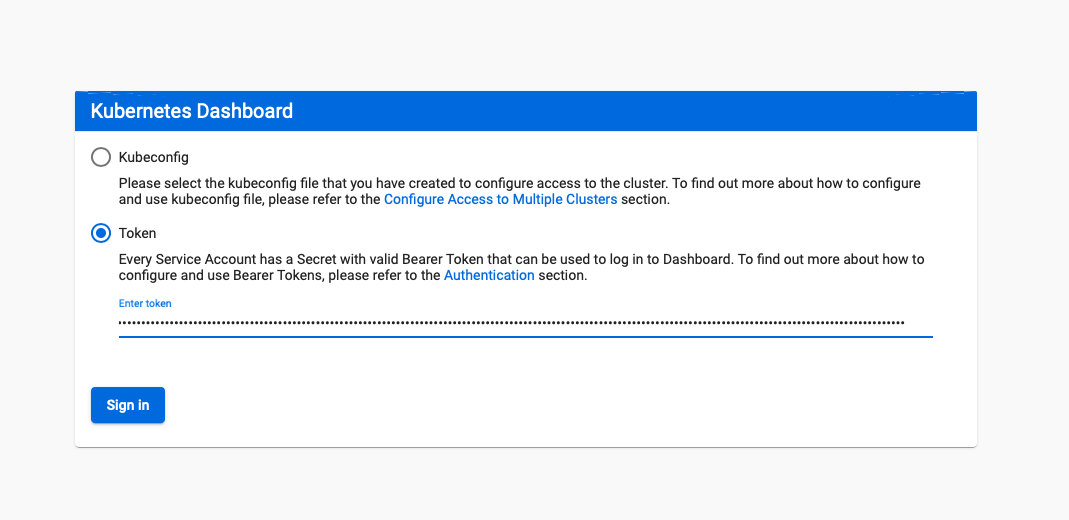

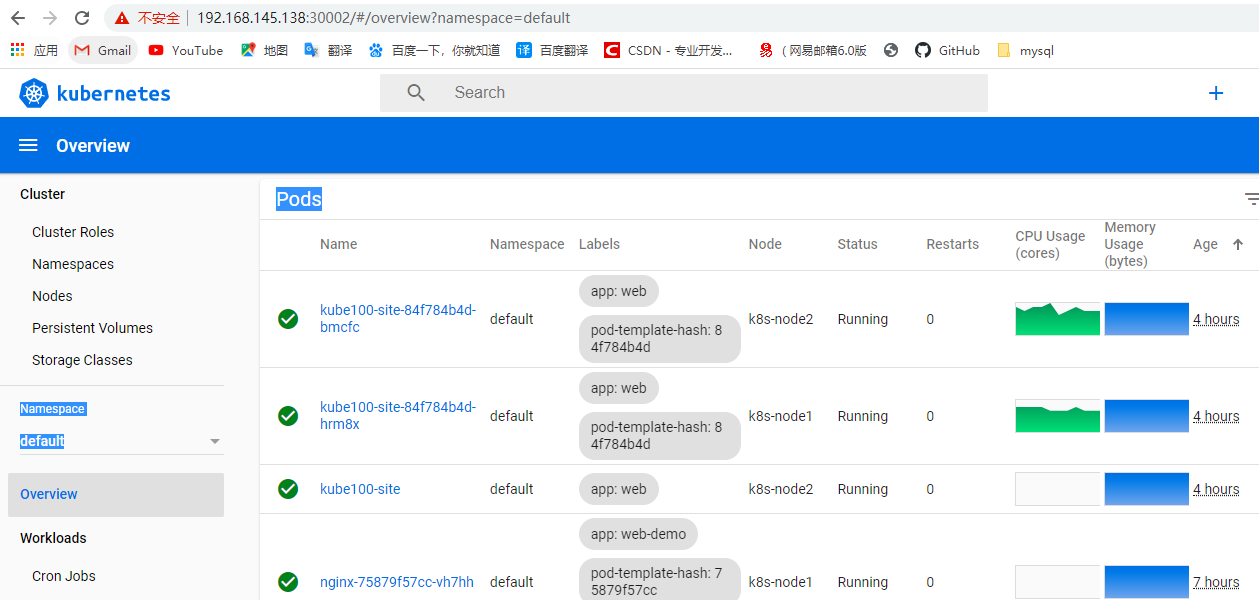

7、访问

![在这里插入图片描述](https://img-blog.csdnimg.cn/.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2FsYW5wb18=,size_16,color_FFFFFF,t_70

8、安装部署 metrics-server 插件

1、简单介绍

• heapster已经被metrics-server取代，如果使用kubernetes的自动扩容功能的话，那首先得有一个插件，然后该插件将收集到的信息（cpu、memory…）与自动扩容的设置的值进行比对，自动调整pod数量。关于该插件，在kubernetes的早些版本中采用的是heapster，1.13版本正式发布后，丢弃了heapster，官方推荐采用metrics-sever。

2、下载相关yaml文件

• https://github.com/kubernetes-incubator/metrics-server

[root@k8s-master ~]# git clone https://github.com/kubernetes-incubator/metrics-server.git

讯享网[root@k8s-master ~]# cd metrics-server/deploy/1.8+/ [root@k8s-master 1.8+]# ll 总用量 28 -rw-r--r-- 1 root root 384 4月 28 09:46 aggregated-metrics-reader.yaml -rw-r--r-- 1 root root 308 4月 28 09:46 auth-delegator.yaml -rw-r--r-- 1 root root 329 4月 28 09:46 auth-reader.yaml -rw-r--r-- 1 root root 298 4月 28 09:46 metrics-apiservice.yaml -rw-r--r-- 1 root root 815 4月 28 09:46 metrics-server-deployment.yaml -rw-r--r-- 1 root root 291 4月 28 09:46 metrics-server-service.yaml -rw-r--r-- 1 root root 502 4月 28 09:46 resource-reader.yaml

3、修改安装脚本

vim metrics-server-deployment.yaml --- apiVersion: v1 kind: ServiceAccount metadata: name: metrics-server namespace: kube-system --- apiVersion: apps/v1 kind: Deployment metadata: name: metrics-server namespace: kube-system labels: k8s-app: metrics-server spec: selector: matchLabels: k8s-app: metrics-server template: metadata: name: metrics-server labels: k8s-app: metrics-server spec: serviceAccountName: metrics-server volumes: # mount in tmp so we can safely use from-scratch images and/or read-only containers - name: tmp-dir emptyDir: {
   } containers: - name: metrics-server image: mirrorgooglecontainers/metrics-server-amd64:v0.3.6 # 修改镜像下载地址 args: # 添加以下内容 - --cert-dir=/tmp - --secure-port=4443 - --kubelet-insecure-tls - --kubelet-preferred-address-types=InternalIP,ExternalIP,Hostname ports: - name: main-port containerPort: 4443 protocol: TCP securityContext: readOnlyRootFilesystem: true runAsNonRoot: true runAsUser: 1000 imagePullPolicy: Always volumeMounts: - name: tmp-dir mountPath: /tmp

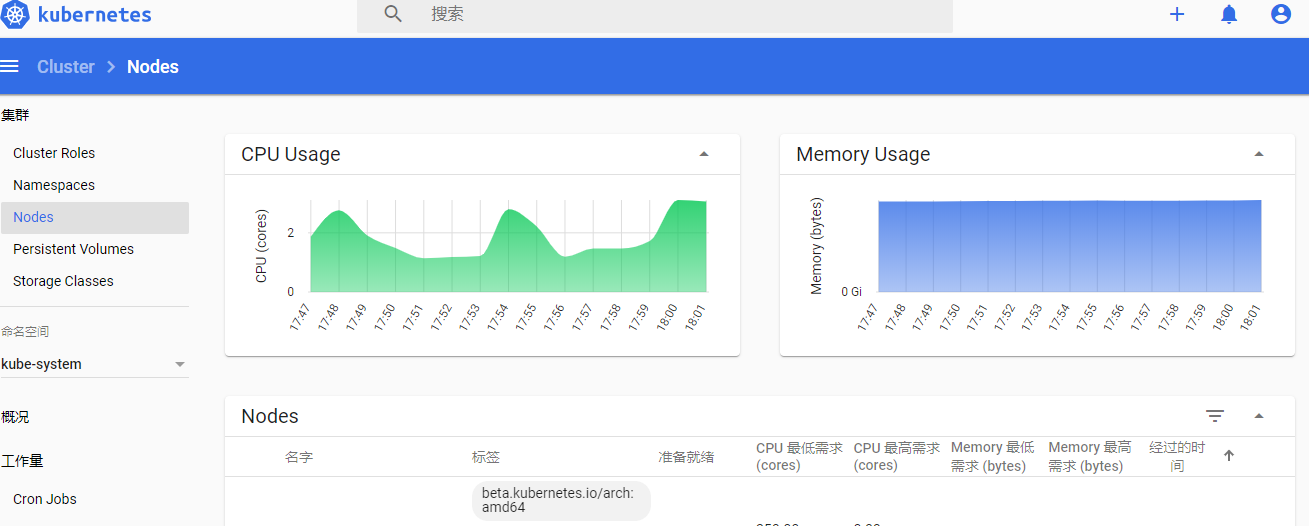

5、执行安装脚本并产看结果

讯享网#安装 [root@k8s-master 1.8+]# kubectl create -f . #1-2分钟后查看结果 [root@k8s-master 1.8+]# kubectl top nodes NAME CPU(cores) CPU% MEMORY(bytes) MEMORY% k8s-master 256m 12% 2002Mi 52% k8s-node1 103m 5% 1334Mi 34% k8s-node2 144m 7% 1321Mi 34%

源码

Github仓库:https://github.com/sunweisheng/Kubernetes

9、导出认证

[root@k8s-master01 dashboard]# kubectl -n kube-system describe secret $(kubectl -n kube-system get secret | grep admin-user | awk '{print $1}') Name: admin-user-token-cj5l4 Namespace: kube-system Labels: <none> Annotations: kubernetes.io/service-account.name: admin-user kubernetes.io/service-account.uid: d4a13fad-f427-435b-86a7-6dfc534e926d Type: kubernetes.io/service-account-token Data ==== ca.crt: 1350 bytes namespace: 11 bytes token: eyJhbGciOiJSUzI1NiIsImtpZCI6Il9wNERQb2tOU2pMRkdoTXlDSDRIOVh5R3pLdnA2ektIMHhXQVBucEdldFUifQ.eyJpc3MiOiJrdWJlcm5ldGVzL3NlcnZpY2VhY2NvdW50Iiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9uYW1lc3BhY2UiOiJrdWJlLXN5c3RlbSIsImt1YmVybmV0ZXMuaW8vc2VydmljZWFjY291bnQvc2VjcmV0Lm5hbWUiOiJhZG1pbi11c2VyLXRva2VuLWNqNWw0Iiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9zZXJ2aWNlLWFjY291bnQubmFtZSI6ImFkbWluLXVzZXIiLCJrdWJlcm5ldGVzLmlvL3NlcnZpY2VhY2NvdW50L3NlcnZpY2UtYWNjb3VudC51aWQiOiJkNGExM2ZhZC1mNDI3LTQzNWItODZhNy02ZGZjNTM0ZTkyNmQiLCJzdWIiOiJzeXN0ZW06c2VydmljZWFjY291bnQ6a3ViZS1zeXN0ZW06YWRtaW4tdXNlciJ9.T65yeuBa2ExprRigERC-hPG-WSdaW7B-04O5qRcXn7SLKpK_4tMM8rlraClGmc-ppSDIi35ZjK0SVb8YGDeUnt2psJlRLYVEPsJXHwYiNUfrigVs67Uo3aMGhSdjPEaqdZxsnRrReSW_rfX8odjXF0-wGKx7uA8GelUJuRNIZ0eBSu_iGJchpZxU_K3AdU_dmcyHidKzDxbPLVgAb8m7wE9wcelWVK9g6UOeg71bO0gJtlXrjWrBMfBjvnC4oLDBYs9ze96KmeOLwjWTOlwXaYg4nIuVRL13BaqmBJB9lcRa3jrCDsRT0oBZrBymvqxbCCN2VVjDmz-kZXh7BcWVLg [root@k8s-master01 dashboard]# vim /root/.kube/config # 增加 token 内容  - name: admin user: client-certificate-data: LS0tLS1CRUdJTiBDRVJUSUZJQ0FURS0tLS0tCk1JSUQxekNDQXIrZ0F3SUJBZ0lVTFFhcXpaaitVc0tRU1BiWVlMRmxDWnhDZVBNd0RRWUpLb1pJaHZjTkFRRUwKQlFBd1lURUxNQWtHQTFVRUJoTUNRMDR4RVRBUEJnTlZCQWdUQ0VoaGJtZGFhRzkxTVFzd0NRWURWUVFIRXdKWQpVekVNTUFvR0ExVUVDaE1EYXpoek1ROHdEUVlEVlFRTEV3WlRlWE4wWlcweEV6QVJCZ05WQkFNVENtdDFZbVZ5CmJtVjBaWE13SUJjTk1qQXdOREU1TURVeE1UQXdXaGdQTWpBM01EQTBNRGN3TlRFeE1EQmFNR2N4Q3pBSkJnTlYKQkFZVEFrTk9NUkV3RHdZRFZRUUlFd2hJWVc1bldtaHZkVEVMTUFrR0ExVUVCeE1DV0ZNeEZ6QVZCZ05WQkFvVApEbk41YzNSbGJUcHRZWE4wWlhKek1ROHdEUVlEVlFRTEV3WlRlWE4wWlcweERqQU1CZ05WQkFNVEJXRmtiV2x1Ck1JSUJJakFOQmdrcWhraUc5dzBCQVFFRkFBT0NBUThBTUlJQkNnS0NBUUVBeG1MWWxNQXFEeGVreXljWWlvQXUKU2p5VzhiUCtxTzF5bUhDWHVxSjQ3UW9Vd0lSVEFZdVAyTklQeFBza04xL3ZUeDBlTjFteURTRjdYd3dvTjR5cApacFpvRjNaVnV1NFNGcTNyTUFXT1d4VU93REZNZFZaSkJBSGFjZkdMemdOS01FZzRDVDhkUmZBUGxrYVdxNkROCmJKV3JYYW41WGRDUnE2NlpTdU9lNXZXTWhENzNhZ3UzWnBVZWtHQmpqTEdjNElTL2c2VzVvci9LeDdBa0JuVW0KSlE3M2IyWUl3QnI5S1ZxTUFUNnkyRlhsRFBpaWN1S0RFK2tGNm9leG04QTljZ1pKaDloOFZpS0trdnV3bVh5cwpNREtIUzJEektFaTNHeDVPUzdZR1ZoNFJGTGp0VXJuc1h4TVBtYWttRFV1NkZGSkJsWlpkUTRGN2pmSU9idldmCjlRSURBUUFCbzM4d2ZUQU9CZ05WSFE4QkFmOEVCQU1DQmFBd0hRWURWUjBsQkJZd0ZBWUlLd1lCQlFVSEF3RUcKQ0NzR0FRVUZCd01DTUF3R0ExVWRFd0VCL3dRQ01BQXdIUVlEVlIwT0JCWUVGS1pCcWpKRldWejZoV1l1ZkZGdApHaGJnQ05MU01COEdBMVVkSXdRWU1CYUFGQWJLKzBqanh6YUp3R1lGYWtpWVJjZzZENkpmTUEwR0NTcUdTSWIzCkRRRUJDd1VBQTRJQkFRQ05Ra3pueDBlSDU3R2NKZTF5WUJqNkY4YmVzM2VQNGRWcUtqQVZzSkh6S3dRWnpnUjIKcnVpMmdZYTZjdWNMNGRWVllHb05mRzRvdWI0ekJDTUIzZkRyN2FPRFhpcGcrdWx3OFpRZGRaN3RIYnZRTlIyMApTTHhnWnlFYU9MSFdmRVNYNFVJZk1mL3pDaGZ0Yzdhb1NpcUNhMGo2NmY2S3VVUnl6SSsxMThqYnpqK1gwb1d1ClVmdVV3dk5xWHR5ZjlyUTVWQW40bjhiU25nZDBGOXgzNFlyeUNMQ0REOWdBaWR3SDlVM3I3eVVGQ1Rkbm9leEgKSTgyYjRLdHZzT2NGMk5Dd21WZDFBWDNJSEFmMENRMEZSQ21YWjF3aFNxd1lFeVAxTStMMEcxN29CTmU5cmttMwo4U0NyWjczaWtiN0k1NXlVOWRrMjdXbVByb1hXMjAvcXhHeDYKLS0tLS1FTkQgQ0VSVElGSUNBVEUtLS0tLQo= client-key-data: LS0tLS1CRUdJTiBSU0EgUFJJVkFURSBLRVktLS0tLQpNSUlFcFFJQkFBS0NBUUVBeG1MWWxNQXFEeGVreXljWWlvQXVTanlXOGJQK3FPMXltSENYdXFKNDdRb1V3SVJUCkFZdVAyTklQeFBza04xL3ZUeDBlTjFteURTRjdYd3dvTjR5cFpwWm9GM1pWdXU0U0ZxM3JNQVdPV3hVT3dERk0KZFZaSkJBSGFjZkdMemdOS01FZzRDVDhkUmZBUGxrYVdxNkROYkpXclhhbjVYZENScTY2WlN1T2U1dldNaEQ3MwphZ3UzWnBVZWtHQmpqTEdjNElTL2c2VzVvci9LeDdBa0JuVW1KUTczYjJZSXdCcjlLVnFNQVQ2eTJGWGxEUGlpCmN1S0RFK2tGNm9leG04QTljZ1pKaDloOFZpS0trdnV3bVh5c01ES0hTMkR6S0VpM0d4NU9TN1lHVmg0UkZManQKVXJuc1h4TVBtYWttRFV1NkZGSkJsWlpkUTRGN2pmSU9idldmOVFJREFRQUJBb0lCQVFDdkRPRld3QWxjcjl3MQpkaFh0Z0JWWVpBWTgyRHBKRE53bExwUnpscEZsZDVUhBS3lSbGR6VmtlYjVJNmNYZ1pucEtYWTZVaDIxYWhxCndldHF1Szl4V2g0WE5jK0gxaklYMlBiQnRPVmI4VVRHeWJsUmdBV0ZoNjBkQmFuNjZtUTRIa0Z6eDBFcFNSNDMKMTZselg3eGpwOTFDRkkxNC9tVExQSkQreDhLYXYxcDVPU1BYQkxhdzR6V1JycmFVSnFrVUtZcmRJUVlkNC9XpLNVp3WGpRdklpZzlGclArb2Fnb1kyelFzODFXMmlVd1pXanhkQnV0dXZiQW5mVEc0ZkQvUjc3MnNzUU44dkFvCldDUGpTcTlLckJZQzJYaWd5L2JkSHFFT3lpSmxUQVpaazZLQXlBN0ExbCs5WDFSOWxyUTFPTkpOS1k5WWRybTIKajFudW1WSXhBb0dCQU5sS3B4MW9tQVBQK0RaOGNMdjkwZDlIWm1tTDJZYkppUUtNdEwrUTJLKzdxZHNwemtOaQorb1J2R0NOR0R1U3JZbDZwWjFDMk0xajkxNXJwbWFrZmJmV2NDRWtKenlVRjhSMzUyb2haMUdYeWQzcmkxMWxqCndpcnlmcHl2QnF1SWlKYWR4Rk1UdGRoTmFuRTNFeURrSVJ0UW03YXcyZHppUnNobHkxVXFGMEYvQW9HQkFPbTYKQjFvbnplb2pmS0hjNnNpa0hpTVdDTnhXK2htc1I4akMxSjVtTDFob3NhbmRwMGN3ekJVR05hTDBHTFNjbFRJbwo4WmNNeWdXZU1XbmowTFA3R0syVUwranlyK01xVnFkMk1PRndLanpDOHNXQzhTUEovcC96ZWZkL2ZSUE1PamJyCm8rMExvblUrcXFjTGw1K1JXQ2dJNlA1dFo2VGR5eTlWekFYVUV2Q0xBb0dBQjJndURpaVVsZnl1MzF5YWt5M3gKeTRTcGp3dC9YTUxkOHNKTkh3S1hBRmFMVWJjNUdyN3kvelN5US9HTmJHb1RMbHJqOUxKaFNiVk5kakJrVm9tRgp2QXVYbExYSzQ5NHgrKzJhYjI5d2VCRXQxWGlLRXJmOTFHenp0KytYY0oxMDJuMkNSYnEwUmkxTlpaS1ZDbGY4CmNPdnNndXZBWVhFdExJT2J6TWxraFkwQ2dZRUEyUnFmOGJLL3B4bkhqMkx5QStYT3lMQ1RFbmtJWUFpVHRYeWsKbTI0MzFGdUxqRW9FTkRDem9XUGZOcnFlcUVZNm9CbEFNQnNGSFNyUW81ZW1LVWk0cDZQYXpQdUJQZlg2QUJ2ZApVOHNvc01BMVdocERmQWNKcWZJei9SNURSTHlUNXFnRDRSREptemJXdGN3aXoybm5CV2toWkJTa0RaU29SQlBpCkxCZk9iL2tDZ1lFQXk1ZS9MaXgzSzVvdHhGRC8xVVV0cGc2dEJqMksxVkg5bDJJWFBidmFKMjZQYnZWYkEwQTUKM0Z5UmZnSTlZTTc3T3QxbTY0ZlRTV21YdTJKU0JpM3FFQ2xic3FRT2taZXZ1V2VsSVY5WnhWblc5NVMzMHVuUwp0ZEk3ZDVTUm1OSUpWK0l1Mk9IRGxkYXN4TzJmcVFoTnVxSFRiVStvNW42ZCtUUlpXVTdpN0drPQotLS0tLUVORCBSU0EgUFJJVkFURSBLRVktLS0tLQo= token: JSUzI1NiIsImtpZCI6Ikg5dThGMmc0c1ZBOTVkajVjMGRlb2poZjJMaExDSFp1T1NJWTdobkYtWmsifQ.eyJpc3MiOiJrdWJlcm5ldGVzL3NlcnZpY2VhY2NvdW50Iiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9uYW1lc3BhY2UiOiJrdWJlLXN5c3RlbSIsImt1YmVybmV0ZXMuaW8vc2VydmljZWFjY291bnQvc2VjcmV0Lm5hbWUiOiJhZG1pbi11c2VyLXRva2VuLTRsYzkyIiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9zZXJ2aWNlLWFjY291bnQubmFtZSI6ImFkbWluLXVzZXIiLCJrdWJlcm5ldGVzLmlvL3NlcnZpY2VhY2NvdW50L3NlcnZpY2UtYWNjb3VudC51aWQiOiJiNjc2MGRkZi1kN2FhLTRlZjctYWZkOS05YzA0ZThlMWE5NTQiLCJzdWIiOiJzeXN0ZW06c2VydmljZWFjY291bnQ6a3ViZS1zeXN0ZW06YWRtaW4tdXNlciJ9.XCA6-Wo7q8tJY8td1PRGkruvuNOmtHenjzyToRq5fJjGmWjdLspMDRvDul7YjMeY5eNuhcMG1cJgnyTZZW4gypIiVK1cAtvNR-U4oS0Vv8PqknZdc5-U1ftjIUeayH33tPCAgj-rui31CTwg26s0Z0B312XHF6tLOZZYxkavd1zYVt7DJaJcJpVsC1yaagoLBTjrfpV42N2s49QxnXMaQwYJGy2vowbLcxekdOV2h-7Hv63DxqBRoFYNx_DawN2m3JFfIyQMP7lwENXvNK76wnY2boO8asbIS92V4poLnc9v0r4gtV80dFp3558_XYBWhnZq-_klFHsfxJ0Opt_iEA [root@k8s-master01 dashboard]# cp /root/.kube/config /data/dashboard/k8s-dashboard.kubeconfig [root@k8s-master01 dashboard]# sz k8s-dashboard.kubeconfig

10、用文件认证登录

讯享网 10、用文件认证登录 [外链图片转存中...(img-xkxFagQN-65)] [外链图片转存中...(img-bJxfIEM3-70)]
