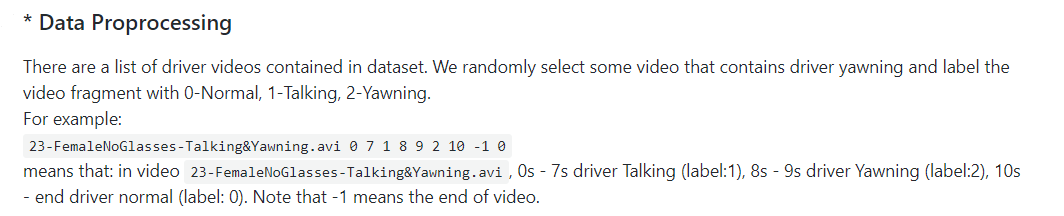

分别将yawn数据集的Normal Talking 和 Yawning的视频单独截取出来。

yawn_split_video

讯享网

import os import cv2 import numpy as np import sys print(sys.path) NUM_ELEMENT = 3 NUM_VIDEO_CLASS = 4 TAGS = ['Normal', 'Talking', 'Yawning'] DATA_SET_LIST = ['train_lst', 'test_lst'] for data_set in DATA_SET_LIST: split_file_list = ['../dataset/' + data_set + '/male_yawn_split.lst', '../dataset/' + data_set + '/female_yawn_split.lst', '../dataset/' + data_set + '/dash_female_yawn_split_yawning.lst', '../dataset/' + data_set + '/dash_male_yawn_split_yawning.lst'] dataset_path_list = ['../YawDD_dataset/Mirror/Male_mirror', '../YawDD_dataset/Mirror/Female_mirror', '../YawDD_dataset/Dash/Female', '../YawDD_dataset/Dash/Male'] save_path_list = ['../dataset/' + data_set + '/mirror_male_split_output', '../dataset/' + data_set + '/mirror_female_split_output', '../dataset/' + data_set + '/dash_female_split_output', '../dataset/' + data_set + '/dash_male_split_output'] for video_index in range(NUM_VIDEO_CLASS): split_file = split_file_list[video_index] dataset_path = dataset_path_list[video_index] save_path = save_path_list[video_index] for i in range(len(TAGS)): path = os.path.join(save_path, TAGS[i]) if os.path.exists(path) is False: os.makedirs(path) print('split file: ', split_file) fd = open(split_file) for line in fd.readlines(): line = line.strip('\n') line = line.split(' ') video_file = os.path.join(dataset_path, line[0]) print('video_file: ',video_file) num_clips = int((len(line) - 1) / NUM_ELEMENT) clips_info = np.array(list(map(int, line[1:]))) clips_info = clips_info.reshape(num_clips, NUM_ELEMENT) cap = cv2.VideoCapture(video_file) fcnt = cap.get(cv2.CAP_PROP_FRAME_COUNT) fps = cap.get(cv2.CAP_PROP_FPS) fsize = (int(cap.get(cv2.CAP_PROP_FRAME_WIDTH)), int(cap.get(cv2.CAP_PROP_FRAME_HEIGHT))) print(video_file) for i in range(num_clips): start_slice = clips_info[i, 0] fstart = int(start_slice * fps) # if -1, continue go to end if clips_info[i, 1] > 0: end_slice = clips_info[i, 1] fend = min(int(end_slice * fps), fcnt) else: fend = int(fcnt) - 20 if fstart >= fend: print('=======start > end, continue======') continue print('%d --> %d, tag: %s' % (fstart, fend, TAGS[clips_info[i, 2]])) assert(fstart > 0 or fend <= fcnt) cap.set(cv2.CAP_PROP_POS_FRAMES, fstart) [_, file_name] = os.path.split(video_file) [video_name, _] = os.path.splitext(file_name) clip_file = '%s/%s/%s-clip-%d.avi' % (save_path, TAGS[clips_info[i, 2]], video_name, i) fourcc = cv2.VideoWriter_fourcc('X', 'V', 'I', 'D') writer = cv2.VideoWriter(clip_file, fourcc, fps=fps, frameSize=fsize) for n in range(fend-fstart): success, img = cap.read() writer.write(img) #cv2.imshow('video', img) #cv2.waitKey(40) writer.release() #cv2.waitKey(-1)

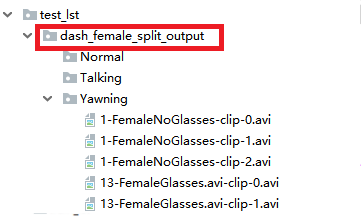

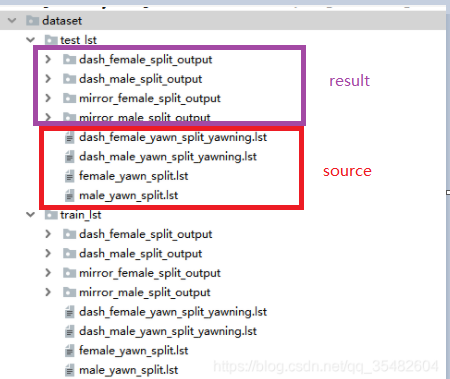

最后产生的结果：

把测试集相应的文件夹的各个类别的视频中的人脸截取出来，每隔两帧截取一张图片，并把标注的结果保存下来。(自定义标签)

extract_face_from_video.py

讯享网#!/usr/bin/env python # -*- coding: utf-8 -*- import cv2 import numpy as np import face_detector as fd import os import multiprocessing def drawBoxes(im, boxes): x1 = boxes[0] y1 = boxes[1] x2 = boxes[2] y2 = boxes[3] cv2.putText(im, 'face', (int(x1), int(y1)), 5, 1.0, [255, 0, 0]) cv2.rectangle(im, (int(x1), int(y1)), (int(x2), int(y2)), (0, 255, 0), 1) return im def rectify_bbox(bbox, img): max_height = img.shape[0] max_width = img.shape[1] bbox[0] = max(bbox[0], 0) bbox[1] = max(bbox[1], 0) bbox[2] = min(bbox[2], max_width) bbox[3] = min(bbox[3], max_height) return bbox def process(video_dir, save_dir, train_file_list): minsize = 20 #error = # if not os.path.exists(train_file_list): # head, tail = os.path.split(train_file_list) # os.makedirs(head) total_face = 0 with open(train_file_list, 'a+') as f_trainList: for dir_path, dir_names, _ in os.walk(video_dir): #root,dir,file print('----------------------------------------') # frame_count = 0 print('dir_path: ',dir_path) print('dir_names: ',dir_names) print('_: ',_) for dir_name in dir_names: print('video_dir_name : ' + dir_path + '/' + dir_name) video_dir_name = os.path.join(dir_path, dir_name) if dir_name in ['Normal']: label = '0' elif dir_name in ['Talking']: label = '0' elif dir_name in ['Yawning']: label = '1' else: print("Too bad, label invalid.") continue video_names = os.listdir(video_dir_name) print('video_names: ',video_names) for video_name in video_names: # video = cv2.VideoCapture() frame_count = -1 cap = cv2.VideoCapture(os.path.join(video_dir_name, video_name)) if cap.isOpened(): ftotal = cap.get(cv2.CAP_PROP_FRAME_COUNT) read_success = True else: read_success = False # cv2.imwrite(img_save_path, img) while read_success: read_success, img = cap.read() try: img.shape except: break frame_count += 1 if frame_count % SAMPLE_STEP == 0: #每隔两帧截取脸部位置 # img = img.transpose(2, 0, 1) conf, raw_boxes = fd.get_facebox(image=img, threshold=0.7) if len(raw_boxes) == 0: # if face can't be detected between n frames print('*too sad, the face can not be detected!') continue elif len(raw_boxes) == 1: bbox = raw_boxes[0] elif len(raw_boxes) > 1: #print('---multi detect!') # idx = np.argsort(-raw_boxes[:, 4]) # TODO. sort bbox = raw_boxes[0] bbox = rectify_bbox(bbox, img) x = int(bbox[0]) y = int(bbox[1]) w = int(bbox[2] - bbox[0]) h = int(bbox[3] - bbox[1]) face = img[y:y + h, x:x + w, :] # cv2.imwrite('face.jpg', face) face_sp = np.shape(face) #if face_sp[0] <= 16 or face_sp[1] <= 16: # continue face_resize = face face_resize = cv2.resize(face_resize, (CROPPED_WIDTH, CROPPED_HEIGHT)) if DEBUG: cv2.imshow('face', face) ch = cv2.waitKey(40000) & 0xFF cv2.imshow('face_trans', face_resize) ch = cv2.waitKey(40000) & 0xFF img = drawBoxes(img, bbox) # for i in range(5): # cv2.circle(img, (point[i], point[5+i]), 2, [0, 0, 255]) cv2.imshow('img', img) ch = cv2.waitKey(40000) & 0xFF if ch == 27: break total_face += 1 img_file_name = video_name.split('.')[0] img_file_name = img_file_name + '-' + str(total_face) + '_' + str(label) + '.jpg' # f_trainList.write(img_file_name + ' ' + label + '\n') img_save_path = os.path.join(save_dir, img_file_name) f_trainList.write(img_save_path + ' ' + label + '\n') cv2.imwrite(img_save_path, face_resize) # print('Processing %d / %d' % (frame_count, ftotal)) cap.release() print('Total face img: {}'.format(total_face)) # writer.release() if __name__ == "__main__": SAMPLE_STEP = 2 NUM_WORKER = 1 DEBUG = False CROPPED_WIDTH = 112 CROPPED_HEIGHT = 112 video_dir = '../dataset/test_lst' face_save_dir = '../extracted_face/face_image' if not os.path.exists(face_save_dir): os.makedirs(face_save_dir) train_file_list_dir = '../extracted_face/' file_list_name = 'test.txt' # dir_path, dir_names, _ = os.walk(video_dir) process(video_dir, face_save_dir, train_file_list_dir+file_list_name) # for i in range(NUM_WORKER): # list_file = 'test.lst' # worker = multiprocessing.Process(target=process, args=(list_file,)) # worker.start() # worker.join()

将数据集分别划分为训练集，验证集，测试集

""" This script split dataset into four sets: test.txt, trainval.txt, train.txt, val.txt """ import os import random class ListGenerator: """Generate a list of specific files in directory.""" def __init__(self): """Initialization""" # The list to be generated. self.file_list = [] def generate_list(self, src_dir, save_dir, format_list=['jpg', 'png'], train_val_ratio=0.9, train_ratio=0.9): """Generate the file list of format_list in target_dir Args: target_dir: the directory in which files will be listed. format_list: a list of file extention names. Returns: a list of file urls. """ self.src_dir = src_dir self.save_dir = save_dir self.format_list = format_list self.train_val_ratio = train_val_ratio self.train_ratio = train_ratio # Walk through directories and list all files. pos_num = 0 for file_path, _, current_files in os.walk(self.src_dir, followlinks=False): current_image_files = [] for filename in current_files: # First make sure the file is exactly of the format we need. # Then process the file. if filename.split('.')[-1] in self.format_list: current_image_files.append(filename) sample_num = len(current_image_files) # print('sample_num: ',sample_num) file_list_index = range(sample_num) # print('file_list_index: ',file_list_index) tv = int(sample_num * self.train_val_ratio) tr = int(tv * self.train_ratio) print("train_val_num: {}\ntrain_num: {}".format(tv, tr)) train_val = random.sample(file_list_index, tv) train = random.sample(train_val, tr) ftrain_val = open(self.save_dir + '/trainval.txt', 'w') ftest = open(self.save_dir + '/test.txt', 'w') ftrain = open(self.save_dir + '/train.txt', 'w') fval = open(self.save_dir + '/val.txt', 'w') for i in file_list_index: label = current_image_files[i].split('.')[0] label = label.split('_')[-1] if label == '1': pos_num += 1 name = os.path.join(self.src_dir, current_image_files[i]) + ' ' + str(label) + '\n' # print('name: ',name) #划分相应的训练集与验证集 if i in train_val: ftrain_val.write(name) if i in train: ftrain.write(name) else: fval.write(name) else: ftest.write(name) print('positive num : {}'.format(pos_num)) ftrain_val.close() ftrain.close() fval.close() ftest.close() return self.file_list def main(): """MAIN""" lg = ListGenerator() lg.generate_list(src_dir='../extracted_face/face_image', save_dir='../extracted_face') print("Done !!") # lg.save_list() if __name__ == '__main__': main()
