官方文档地址：

https://docs.min.io/docs/deploy-minio-on-docker-compose.html

1、安装Docker Compose工具（用于在使用Compose 文件格式定义的 Docker 上运行多容器的应用程序）

官方安装文档地址：https://docs.docker.com/compose/install/

运行此命令以下载 Docker Compose 的当前稳定版本： sudo curl -L "https://github.com/docker/compose/releases/download/1.29.2/docker-compose-$(uname -s)-$(uname -m)" -o /usr/local/bin/docker-compose 对二进制文件应用可执行权限： sudo chmod +x /usr/local/bin/docker-compose 查看是否安装成功 docker-compose --version

2、 新建一个minio文件夹，将官网的docker-compose.yaml 和nginx.conf两个文件下载放在minio文件夹下

讯享网

改造后的docker-compose.yaml 文件详解

讯享网#指定的docker-compos的版本，这个需要和docker版本相适配,对应关系参考 https://docs.docker.com/compose/compose-file/compose-file-v3/ version: '3.8' # Settings and configurations that are common for all containers # minio节点之间默认使用9000来连通，所以容器把9000暴露出来，9001是console端口 # 指定账号密码都为 minioadmin x-minio-common: &minio-common image: quay.io/minio/minio:RELEASE.2021-11-09T03-21-45Z command: server --console-address ":9001" http://minio{1...4}/data{1...2} expose: - "9000" - "9001" environment: MINIO_ROOT_USER: minioadmin MINIO_ROOT_PASSWORD: minioadmin healthcheck: test: ["CMD", "curl", "-f", "http://localhost:9000/minio/health/live"] interval: 30s timeout: 20s retries: 3 # starts 4 docker containers running minio server instances. # using nginx reverse proxy, load balancing, you can access # it through port 9001. # 要挂载磁盘需要这这个地方操作，因为我们不是用docker run运行，而是使用docker-compose命名运行镜像，不好在命令行指定文件挂载 # 如下面的配置 /home/docker/minio/data1-1是docker容器外面的指定目录，/data1是docker里面的 # 这里一共配置了4个minio节点，公用9000和9001端口 services: minio1: <<: *minio-common hostname: minio1 volumes: - /home/docker/minio/data1-1:/data1 - /home/docker/minio/data1-2:/data2 minio2: <<: *minio-common hostname: minio2 volumes: - /home/docker/minio/data2-1:/data1 - /home/docker/minio/data2-2:/data2 minio3: <<: *minio-common hostname: minio3 volumes: - /home/docker/minio/data3-1:/data1 - /home/docker/minio/data3-2:/data2 minio4: <<: *minio-common hostname: minio4 volumes: - /home/docker/minio/data4-1:/data1 - /home/docker/minio/data4-2:/data2 # nginx暴露端口按需修改19000/19001 nginx: image: nginx:1.19.2-alpine hostname: nginx volumes: - ./nginx.conf:/etc/nginx/nginx.conf:ro ports: - "19000:9000" - "19001:9001" depends_on: - minio1 - minio2 - minio3 - minio4

nginx.conf文件就基本只要改下端口就行

user nginx; worker_processes auto; error_log /var/log/nginx/error.log warn; pid /var/run/nginx.pid; events { worker_connections 4096; } http { include /etc/nginx/mime.types; default_type application/octet-stream; log_format main '$remote_addr - $remote_user [$time_local] "$request" ' '$status $body_bytes_sent "$http_referer" ' '"$http_user_agent" "$http_x_forwarded_for"'; access_log /var/log/nginx/access.log main; sendfile on; keepalive_timeout 65; # include /etc/nginx/conf.d/*.conf; upstream minio { server minio1:9000; server minio2:9000; server minio3:9000; server minio4:9000; } upstream console { ip_hash; server minio1:9001; server minio2:9001; server minio3:9001; server minio4:9001; } server { listen 9000; listen [::]:9000; server_name localhost; # To allow special characters in headers ignore_invalid_headers off; # Allow any size file to be uploaded. # Set to a value such as 1000m; to restrict file size to a specific value client_max_body_size 0; # To disable buffering proxy_buffering off; location / { proxy_set_header Host $http_host; proxy_set_header X-Real-IP $remote_addr; proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for; proxy_set_header X-Forwarded-Proto $scheme; proxy_connect_timeout 300; # Default is HTTP/1, keepalive is only enabled in HTTP/1.1 proxy_http_version 1.1; proxy_set_header Connection ""; chunked_transfer_encoding off; proxy_pass http://minio; } } server { listen 9001; listen [::]:9001; server_name localhost; # To allow special characters in headers ignore_invalid_headers off; # Allow any size file to be uploaded. # Set to a value such as 1000m; to restrict file size to a specific value client_max_body_size 0; # To disable buffering proxy_buffering off; location / { proxy_set_header Host $http_host; proxy_set_header X-Real-IP $remote_addr; proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for; proxy_set_header X-Forwarded-Proto $scheme; proxy_set_header X-NginX-Proxy true; # This is necessary to pass the correct IP to be hashed real_ip_header X-Real-IP; proxy_connect_timeout 300; # To support websocket proxy_http_version 1.1; proxy_set_header Upgrade $http_upgrade; proxy_set_header Connection "upgrade"; chunked_transfer_encoding off; proxy_pass http://console; } } }

3、拉取镜像、启动

讯享网#拉取镜像，直接在minio文件夹下操作，省去指定docker-compose.yaml文件，此文件就在minio文件夹中 docker-compose pull #启动 docker-compose up -d

4、访问控制台

http://Ip:19001/login

注意：我们上传数据接口用的是19000（对应9000）接口。19001（对应9001）只是控制台的端口

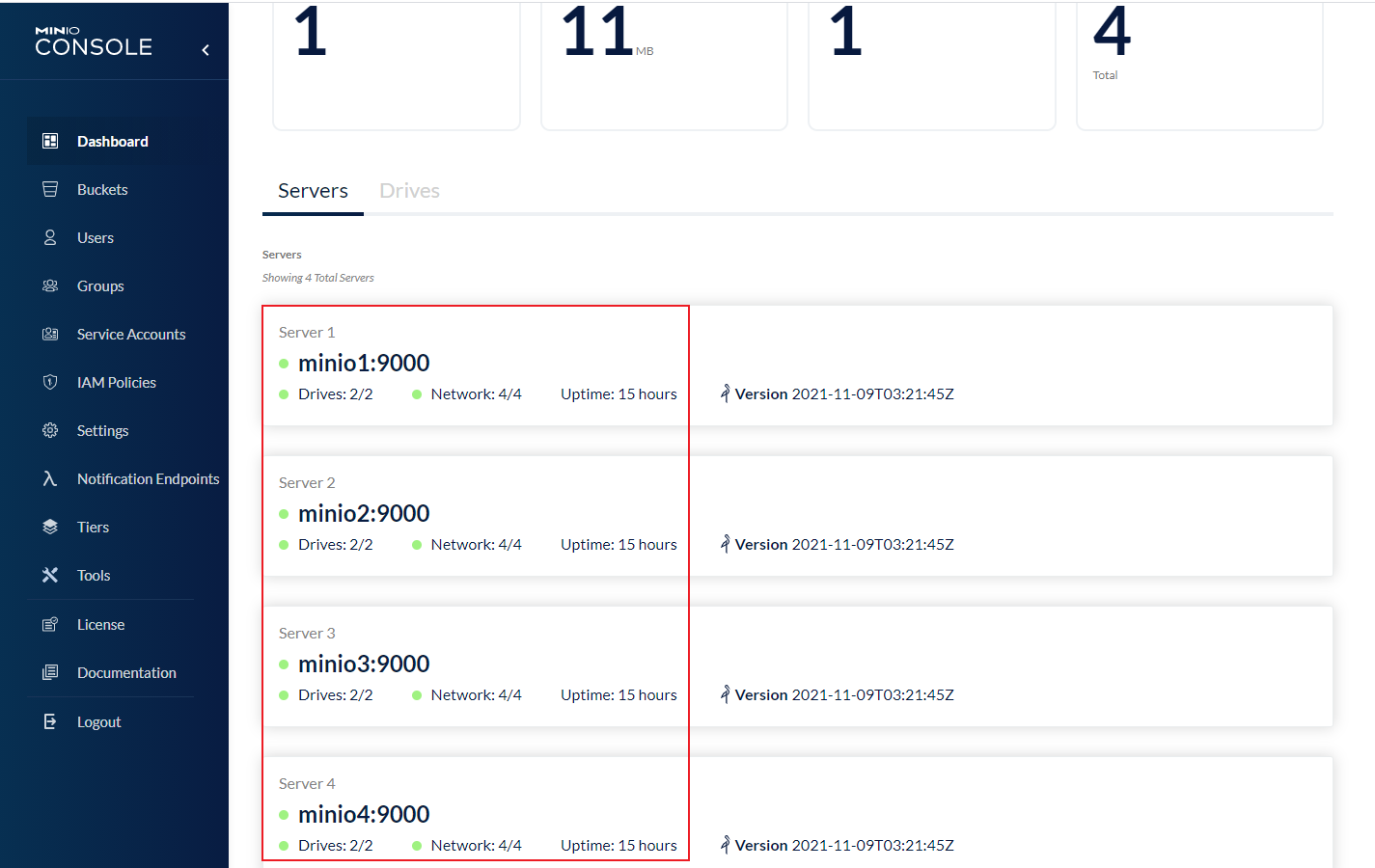

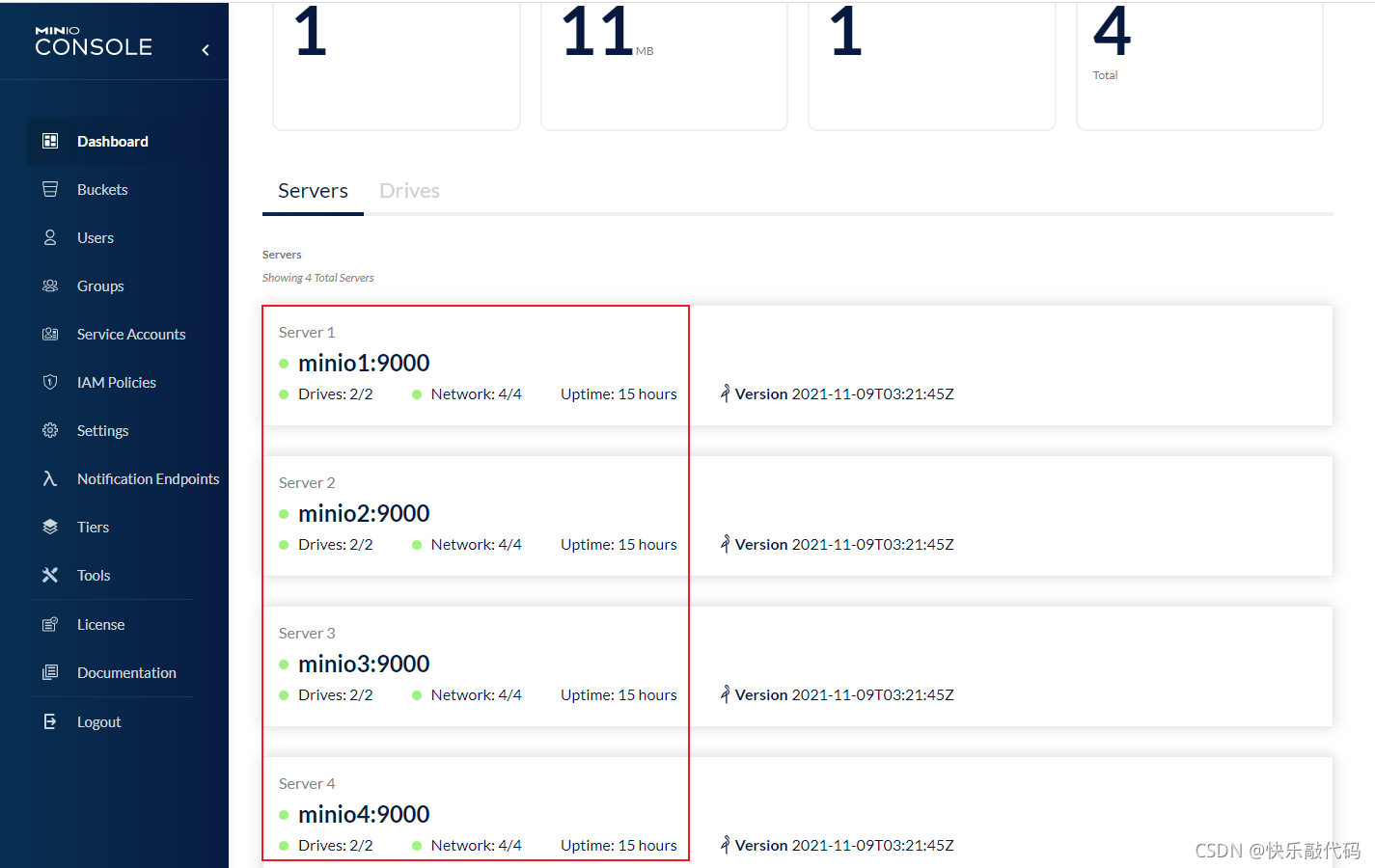

可以看到节点情况

参考：https://www.jianshu.com/p/e22f4
