关键词：CubeMX，CubeIDE，STM32G031C8T6，AHT10，DRF1609H

本项目的全部源码资料下载

本项目中使用了Zigbee模块（DRF1609H），作为无线数据传输使用，初始化DRF1609H主要涉及以下几个方面的内容：
1，设置节点的类型，可以设置为：Router、End Device。Zigbee网络有3种类型的节点：Coordinator、Router、End Device，Cordinator接在电脑上面收集数据，我们这里是采集节点，所以只设置为Router或End Device。
2，检测节点是否加入了网络
3，如果节点没有加入网络，则启动自动扫描加入网络

1，节点类型的设置：

首先读取DRF1609H的参数：G031向DRF1609H发送读取参数指令，发完参数后，有一个500MS的超时等待参数的回复，参数回复总共是53个字节，放在receiveConfigData里面。

 //--Read DRF1609H Configures -- drf1609h_readModule(); HAL_UART_Receive( &huart1, receivedConfigData, 53, 500 );

讯享网//------------------------------ void drf1609h_readModule(void) { drf1609h_sendedIns = sendIns_read; HAL_UART_Transmit_DMA( &huart1, readIns, 9 ); }

读取参数完成后，把读取到的参数整理后放入drf1609这个结构体中：以后取用的时候就非常方便了，建议用户不要改这部分代码，直接拷贝使用就好了。

 //---If DRF1609H Error or Read Error ------ while( readParameterProcess(receivedConfigData, 53) == 0 ) { drf1609h_readModule(); HAL_UART_Receive( &huart1, receivedConfigData, 53, 500 ); }

讯享网//------------------------------ uint8_t readParameterProcess(uint8_t *inputData, uint16_t inputLen) { uint8_t result=0; uint8_t tempXY=0; uint8_t tempRight=0; uint8_t i=0; tempXY = getXY(inputData, inputLen); if(inputData[0]==0xFA) { tempRight++; } if(inputData[1]==0x31) { tempRight++; } if(inputData[2]==0x0A) { tempRight++; } if(inputData[inputLen-1]==tempXY) { tempRight++; } if(tempRight==4) { //------ drf1609.pointType = inputData[readHeaderLen +0]; drf1609.PAN_ID = inputData[readHeaderLen +1]*256 + inputData[readHeaderLen +2]; drf1609.Channel = inputData[readHeaderLen +3]; drf1609.transferModel = inputData[readHeaderLen +4]; drf1609.userAddress = inputData[readHeaderLen +5]*256 + inputData[readHeaderLen +6]; drf1609.X7X8 = inputData[readHeaderLen +7]*256 + inputData[readHeaderLen +8]; drf1609.uartBraudRate = inputData[readHeaderLen +9]; drf1609.uartDataBits = inputData[readHeaderLen +10]; drf1609.uartStopBits = inputData[readHeaderLen +11]; drf1609.uartParity = inputData[readHeaderLen +12]; drf1609.X13X14 = inputData[readHeaderLen +13]*256 + inputData[readHeaderLen +14]; drf1609.antennaSelect = inputData[readHeaderLen +15]; //------- for(i=0; i<8; i++) { drf1609.macAddress[i] = inputData[readHeaderLen +16 +i]; } //-------- drf1609.prePointType = inputData[readHeaderLen +24]; drf1609.prePAN_ID = inputData[readHeaderLen +25]*256 + inputData[readHeaderLen +26]; drf1609.preChannel = inputData[readHeaderLen +27]; drf1609.preTransferModel = inputData[readHeaderLen +28]; drf1609.preUserAddress = inputData[readHeaderLen +29]*256 + inputData[readHeaderLen +30]; drf1609.X31X32 = inputData[readHeaderLen +31]*256 + inputData[readHeaderLen +32]; drf1609.preUartBraudRate = inputData[readHeaderLen +33]; drf1609.preUartDataBits = inputData[readHeaderLen +34]; drf1609.preUartStopBits = inputData[readHeaderLen +35]; drf1609.preUartParity = inputData[readHeaderLen +36]; drf1609.X37X38 = inputData[readHeaderLen +37]*256 + inputData[readHeaderLen +38]; drf1609.preAntennaSelect = inputData[readHeaderLen +39]; //----------- drf1609.shortAddress = inputData[readHeaderLen +40]*256 + inputData[readHeaderLen +41]; drf1609.X42 = inputData[readHeaderLen +42]; drf1609.isSecurity = inputData[readHeaderLen +43]; for(i=0; i<4; i++) { drf1609.securityCode[i] = inputData[readHeaderLen +44 +i]; } result =1; } return result; }

接着比较读出来的节点类型与要设置的节点类型是否一致，如果不一致的话，就重新写入要设置的节点类型：

 if( drf1609H_setPontType != drf1609H_readPointType )

写的过程：
1，产生写入参数
2，写入
3，接收回复的参数，看看写入是否正确

讯享网 getWriteIns(drf1609); drf1609h_writeModule(); HAL_UART_Receive( &huart1, receivedConfigData, 5, 500 );

写入正确以后，则重启模块（注意：DRF1609H的写入参数生效，都需要重启），这里是用一个IO口，控制DRF1609H的RESET脚拉低重启。

讯享网

if( is_InsBack(receivedConfigData, 5) ) { if(receivedConfigData[2] == 0x0A) { drf1609h_reset(); HAL_Delay(2000); drf1609h_status = drf1609h_powerOn; } else { errorStart=1; } } else { errorStart=1; }

需要注意的是，getWriteIns(drf1609)，这个函数是把drf1609结构体，直接变换成写入指令，建议用户不要修改这部分，直接拷贝使用

讯享网//--------------------------------------------------- void getWriteIns(_zigbeeParameters inputParameter) { uint8_t i=0; uint8_t tempXY=0; writeIns[0]= 0xFC; writeIns[1]= 0x27; writeIns[2]= 0x07; writeIns[writeHeaderLen +0]= inputParameter.pointType; writeIns[writeHeaderLen +1]= (inputParameter.PAN_ID & 0xFF00)>>8; writeIns[writeHeaderLen +2]= inputParameter.PAN_ID & 0x00FF; writeIns[writeHeaderLen +3]= inputParameter.Channel; writeIns[writeHeaderLen +4]= inputParameter.transferModel; writeIns[writeHeaderLen +5]= (inputParameter.userAddress & 0xFF00)>>8; writeIns[writeHeaderLen +6]= inputParameter.userAddress & 0x00FF; writeIns[writeHeaderLen +7]= (inputParameter.X7X8 & 0xFF00)>>8; writeIns[writeHeaderLen +8]= inputParameter.X7X8 & 0x00FF; writeIns[writeHeaderLen +9]= inputParameter.uartBraudRate; writeIns[writeHeaderLen +10]= inputParameter.uartDataBits; writeIns[writeHeaderLen +11]= inputParameter.uartStopBits; writeIns[writeHeaderLen +12]= inputParameter.uartParity; writeIns[writeHeaderLen +13]= (inputParameter.X13X14 & 0xFF00)>>8; writeIns[writeHeaderLen +14]= inputParameter.X13X14 & 0x00FF; writeIns[writeHeaderLen +15]= inputParameter.antennaSelect; writeIns[writeHeaderLen +16]= inputParameter.prePointType; writeIns[writeHeaderLen +17]= (inputParameter.prePAN_ID & 0xFF00)>>8; writeIns[writeHeaderLen +18]= inputParameter.prePAN_ID & 0x00FF; writeIns[writeHeaderLen +19]= inputParameter.preChannel; writeIns[writeHeaderLen +20]= inputParameter.preTransferModel; writeIns[writeHeaderLen +21]= (inputParameter.preUserAddress & 0xFF00)>>8; writeIns[writeHeaderLen +22]= inputParameter.preUserAddress & 0x00FF; writeIns[writeHeaderLen +23]= (inputParameter.X31X32 & 0xFF00)>>8; //--AS ReadParameter's X31 X32 writeIns[writeHeaderLen +24]= inputParameter.X31X32 & 0x00FF; //--AS ReadParameter's X31 X32 writeIns[writeHeaderLen +25]= inputParameter.preUartBraudRate; writeIns[writeHeaderLen +26]= inputParameter.preUartDataBits; writeIns[writeHeaderLen +27]= inputParameter.preUartStopBits; writeIns[writeHeaderLen +28]= inputParameter.preUartParity; writeIns[writeHeaderLen +29]= (inputParameter.X37X38 & 0xFF00)>>8; //--AS ReadParameter's X37 X38 writeIns[writeHeaderLen +30]= inputParameter.X37X38 & 0x00FF; //--AS ReadParameter's X37 X38 writeIns[writeHeaderLen +31]= inputParameter.preAntennaSelect; writeIns[writeHeaderLen +32]= 0x1; writeIns[writeHeaderLen +33]= inputParameter.isSecurity; for(i=0; i<4; i++) { writeIns[writeHeaderLen +34 +i]= inputParameter.securityCode[i]; } tempXY = getXY(writeIns, writeInsLen); writeIns[writeInsLen-1]= tempXY; }

2，检测节点是否加入网络

检测节点是否加入网络，我们这里使用了读取DRF1609H节点信号强度指令，如果读取信号强度成功（回复的数据是正确的），则表明DRF1609H已经加入了网络并且与Coordinator通讯正常。
这个函数用来检测DRF1609H是否加入了网络，加入则回复1，没有则回复0：
注意：这里是检测10次，没有加入也回复1，主要考虑在低功耗情况下，如果Coordinator没有开机，如果节点一直检测，则对耗电不利，用户应根据实际情况修改使用。

uint8_t drf1609h_isJoinedNet()

讯享网//---------------------- uint8_t drf1609h_isJoinedNet() { uint8_t result=0; uint8_t i=0; //MX_USART1_UART_Init(); //HAL_Delay(10); for(i=0; i<8; i++) { receivedSignalData[i]=0; } drf1609h_requestSignalIndex(); HAL_UART_Receive( &huart1, receivedSignalData, 8, 500 ); HAL_Delay(1000); if( checkSignalData(receivedSignalData, 8) ) { result=1; receivedSignalData[8] = drf1609.pointType; HAL_UART_Transmit_DMA( &huart1, receivedSignalData, 9 ); } else { haveTryToJoinTimers++; if(haveTryToJoinTimers >= maxJoinTimers) { result=1; } else { result=0; } } return result; }

检测的过程：
1，发送读取信号强度指令
2，等待接收回复数据
3，如果接收回复数据成功（已经加入网络），这里将收到的数据加上自己的节点类型发送给Coordinator，通知节点已经加入成功

 drf1609h_requestSignalIndex(); HAL_UART_Receive( &huart1, receivedSignalData, 8, 500 ); HAL_Delay(1000); if( checkSignalData(receivedSignalData, 8) ) { result=1; receivedSignalData[8] = drf1609.pointType; HAL_UART_Transmit_DMA( &huart1, receivedSignalData, 9 ); }

3，启动节点自动加入网络

如果连按三次DRF1609H的Function按键，则开始自动扫描，如果扫描到Coordinator，则可以自动加入网络，并从Coordinator处获得“给Router预设的参数”，所以节点是不要设置的，我们节点的板子上也没有把DRF1609H的串口留出来，而是通过连按三次按键，自动加入网络，自动取得参数。
1，检测DRF1609H是否加入网络，用的是读取信号强度的指令
2，如果没有加入网络，则启动自动加入网络
3，启动后，等待12秒，再读取信号强度，判断是否加入了网络
注意，板子上有按键，如果是低功耗模式，建议不要启动这个功能，用按键手工加入网络，如果Coordinator没开机，一直扫描网络，会很快耗光电池。

讯享网 //-- Do 5 timers get Signal Index ----// for(i=0; i<5; i++) { drf1609h_requestSignalIndex(); HAL_UART_Receive( &huart1, receivedSignalData, 8, 500 ); HAL_Delay(500); if( checkSignalData(receivedSignalData, 8) ) { tempVal++; i=5; } else { notGetSignalVal++; } }

 drf1609h_autoJoinNet_Start(); HAL_Delay(12000);

讯享网//--------------------------------------- /* This Simulate Function Key to start * point auto join net * ____ ______ ______ ______ * |__| |__| |__| * * 120 200 120 200 120 200 * * ----------------------------------*/ void drf1609h_autoJoinNet_Start() { uint8_t i=0; set_autoJoinNetPin_output(); set_autoJoinNetPin_out_1(); HAL_Delay(100); for(i=0; i<3; i++) { set_autoJoinNetPin_out_0(); HAL_Delay(120); set_autoJoinNetPin_out_1(); HAL_Delay(200); } set_autoJoinNetPin_input(); }

4，DRF1609H的相关指令

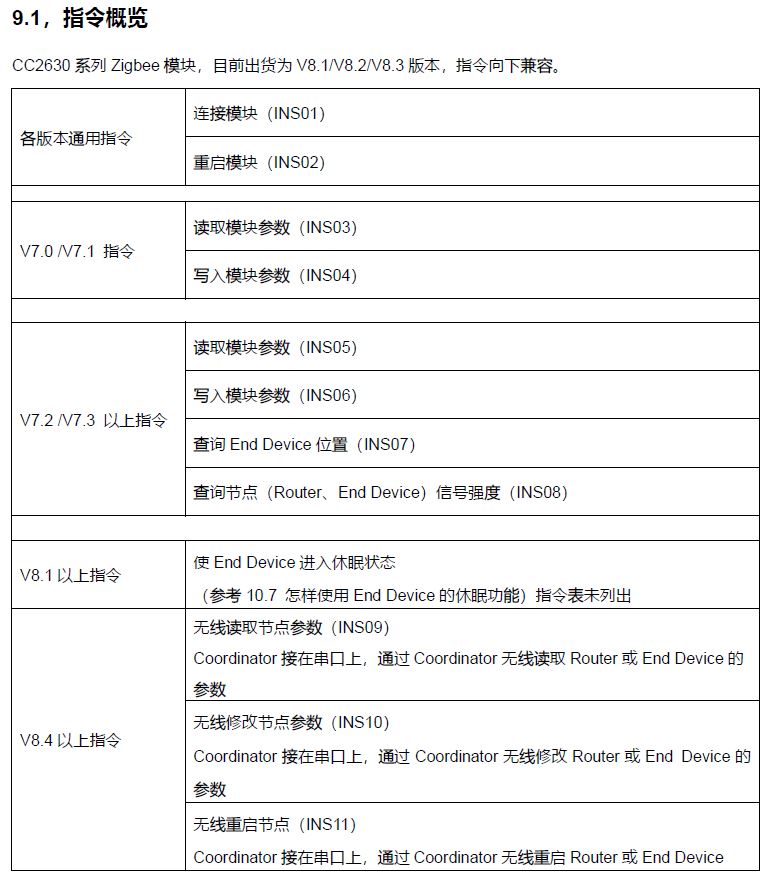

uint8_t linkIns[9] = {0xFC, 0x06, 0x04, 0x44, 0x54, 0x4B, 0x52, 0x46, 0x81}; //---INS01 uint8_t restartIns[9] = {0xFC, 0x06, 0x06, 0x44, 0x54, 0x4B, 0xAA, 0xBB, 0x50}; //---INS02 uint8_t readIns[9] = {0xFC, 0x06, 0x0E, 0x44, 0x54, 0x4B, 0x52, 0x46, 0x8B}; //---INS05 uint8_t writeIns[42]; //--INS06 uint8_t requestSignalIns[9] = {0xFC, 0x06, 0x0C, 0x44, 0x54, 0x4B, 0x52, 0x46, 0x89}; //--INS08
