2025年热对流方程加速的OpenMP实现

大家好，我是讯享网，很高兴认识大家。

1. 热对流问题的Matlab实现

热对流问题不是本文的重点，对这个问题不了解的话可以参考别的学习资料。OpenMP的基础知识可以参考网上很多资料，也可以参考本博主另外的一片博客《OpenMP基础知识详解及代码示例》。

ly = 51; aspect_ratio = 2; lx = aspect_ratio*ly; delta_x = 1./(ly-2); Pr = 1.; Ra = 20000.; % Rayleigh number gr = 0.001; % Gravity buoyancy = [0,gr]; Thot = 1; % Heating on bottom wall Tcold = 0; % Cooling on top wall T0 = (Thot+Tcold)/2; delta_t = sqrt(gr*delta_x); % nu: kinematic viscosity in lattice units nu = sqrt(Pr/Ra)*delta_t/(delta_x*delta_x); % k: thermal diffusivity k = sqrt(1./(Pr*Ra))*delta_t/(delta_x*delta_x); omegaNS = 1./(3*nu+0.5); % Relaxation parameter for fluid omegaT = 1./(3.*k+0.5); % Relaxation parameter for temperature maxT = 80000; % total number of iterations tPlot = 100; % iterations between successive graphical outputs tStatistics = 10; % iterations between successive file accesses % D2Q9 LATTICE CONSTANTS tNS = [4/9, 1/9,1/9,1/9,1/9, 1/36,1/36,1/36,1/36]; cxNS = [ 0, 1, 0, -1, 0, 1, -1, -1, 1]; cyNS = [ 0, 0, 1, 0, -1, 1, 1, -1, -1]; oppNS = [ 1, 4, 5, 2, 3, 8, 9, 6, 7]; % D2Q5 LATTICE CONSTANTS tT = [1/3, 1/6, 1/6, 1/6, 1/6]; cxT = [ 0, 1, 0, -1, 0]; cyT = [ 0, 0, 1, 0, -1]; oppT = [ 1, 4, 5, 2, 3]; [y,x] = meshgrid(1:ly,1:lx); % INITIAL CONDITION FOR FLUID: (rho=1, u=0) ==> fIn(i) = t(i) fIn = reshape( tNS' * ones(1,lx*ly), 9, lx, ly); % INITIAL CONDITION FOR TEMPERATURE: (T=0) ==> TIn(i) = t(i) tIn = reshape( tT' *Tcold *ones(1,lx*ly), 5, lx, ly); % Except for bottom wall, where T=1 tIn(:,:,ly)=Thot*tT'*ones(1,lx); % We need a small trigger, to break symmetry tIn(:,lx/2,ly-1)= tT*(Thot + (Thot/10.)); % Open file for statistics fid = fopen('thermal_statistics.dat','w'); fprintf(fid,'Thermal Statistics: time-step --- uy[nx/2,ny/2] --- Nu\n\n\n'); % MAIN LOOP (TIME CYCLES) for cycle = 1:maxT % MACROSCOPIC VARIABLES rho = sum(fIn); T = sum(tIn); %temperature ux = reshape ( (cxNS * reshape(fIn,9,lx*ly)), 1,lx,ly) ./rho; uy = reshape ( (cyNS * reshape(fIn,9,lx*ly)), 1,lx,ly) ./rho; % MACROSCOPIC BOUNDARY CONDITIONS % NO-SLIP for fluid and CONSTANT at lower and upper % boundary... periodicity wrt. left-right % COLLISION STEP FLUID for i=1:9 cuNS = 3*(cxNS(i)*ux+cyNS(i)*uy); fEq(i,:,:) = rho .* tNS(i) .* ... ( 1 + cuNS + 1/2*(cuNS.*cuNS) - 3/2*(ux.^2+uy.^2) ); force(i,:,:) = 3.*tNS(i) .*rho .* (T-T0) .* ... (cxNS(i)*buoyancy(1)+cyNS(i)*buoyancy(2))/(Thot-Tcold); fOut(i,:,:) = fIn(i,:,:) - omegaNS .* (fIn(i,:,:)-fEq(i,:,:)) + force(i,:,:); end % COLLISION STEP TEMPERATURE for i=1:5 cu = 3*(cxT(i)*ux+cyT(i)*uy); tEq(i,:,:) = T .* tT(i) .* ( 1 + cu ); tOut(i,:,:) = tIn(i,:,:) - omegaT .* (tIn(i,:,:)-tEq(i,:,:)); end % MICROSCOPIC BOUNDARY CONDITIONS FOR FLUID for i=1:9 fOut(i,:,1) = fIn(oppNS(i),:,1); fOut(i,:,ly) = fIn(oppNS(i),:,ly); end % STREAMING STEP FLUID for i=1:9 fIn(i,:,:) = circshift(fOut(i,:,:), [0,cxNS(i),cyNS(i)]); end % STREAMING STEP FLUID for i=1:5 tIn(i,:,:) = circshift(tOut(i,:,:), [0,cxT(i),cyT(i)]); end % MICROSCOPIC BOUNDARY CONDITIONS FOR TEMEPERATURE % tIn(5,:,ly) = Tcold-tIn(1,:,ly)-tIn(2,:,ly)-tIn(3,:,ly)-tIn(4,:,ly); tIn(3,:,1) = Thot-tIn(1,:,1) -tIn(2,:,1) -tIn(4,:,1) -tIn(5,:,1); % VISUALIZATION if (mod(cycle,tStatistics)==0) u = reshape(sqrt(ux.^2+uy.^2),lx,ly); uy_Nu = reshape(uy,lx,ly); % vertical velocity T = reshape(T,lx,ly); Nu = 1. + sum(sum(uy_Nu.*T))/(lx*k*(Thot-Tcold)); fprintf(fid,'%8.0f %12.8f %12.8f\n',cycle,u(int8(lx/2),int8(ly/2))^2, Nu); if(mod(cycle,tPlot)==0) subplot(2,1,1); imagesc(u(:,ly:-1:1)'); title('Fluid velocity'); axis off; drawnow subplot(2,1,2); imagesc(T(:,ly:-1:1)') title(['Temperature (Nusselt number is ' num2str(Nu) ')']); axis off; drawnow end end end fclose(fid);

讯享网

上述代码我们不做过多的解释，感兴趣的盆友可以参考相关资料学习。

2. 使用OpenMP+Mex+Matlab来实现上述的春Matlab代码

讯享网#include <mex.h> #include <omp.h> #include <math.h> #include <string.h> #define DEBUG 1 // 作元素平移时需要将溢出便捷的索引重新放回到(x,y,z)内 inline int inbound(int idx, int size_t){
    if (idx >= size_t) return idx - size_t; else if (idx < 0) return idx + size_t; else return idx; } void mexFunction(int nlhs, mxArray *plhs[], int nrhs, const mxArray *prhs[]) {
    if (nrhs!=2) mexErrMsgTxt("输入参数个数必须为2！\n"); // 变量定义 =================================================================== int ly = 51, ratio = 2, lx = ratio*ly; double dlt_x = 1.0 / (ly - 2), Pr = 1.0, Ra = 20000.0, gr = 0.001, Thot = 1.0, Tcold = 0.0, T0 = (Thot + Tcold) / 2.0; double dlt_t = sqrt(gr*dlt_x), nu = sqrt(Pr / Ra)*dlt_t / (dlt_x*dlt_x), k = sqrt(1.0 / (Pr*Ra))*dlt_t / (dlt_x*dlt_x); double omegaNS = 1.0 / (3 * nu + 0.5), omegaT = 1.0 / (3 * k + 0.5); double buoyancy[2] = {
    0, gr }; int maxT = 80000, tPlot = 100, tStatistics = 10; // 总迭代次数 // D2Q9 晶格常数 double tNS[] = {
    4 / 9.0, 1 / 9.0, 1 / 9.0, 1 / 9.0, 1 / 9.0, 1 / 36.0, 1 / 36.0, 1 / 36.0, 1 / 36.0 }; double cxNS[] = {
    0.0, 1.0, 0.0, -1.0, 0.0, 1.0, -1.0, -1.0, 1.0 }; double cyNS[] = {
    0.0, 0.0, 1.0, 0.0, -1.0, 1.0, 1.0, -1.0, -1.0 }; int oppNS[] = {
    1, 4, 5, 2, 3, 8, 9, 6, 7 }; // D2Q5 晶格常数 double tT[] = {
    1.0 / 3.0, 1.0 / 6.0, 1.0 / 6.0, 1.0 / 6.0, 1.0 / 6.0 }; double cxT[] = {
    0.0, 1.0, 0.0, -1.0, 0.0 }; double cyT[] = {
    0.0, 0.0, 1.0, 0.0, -1.0 }; double oppT[] = {
    1.0, 4.0, 5.0, 2.0, 3.0 }; int thread_num = omp_get_num_procs(); // 获取CPU总的线程数量 #if DEBUG mexPrintf("当前CPU总的线程数量为： %d \n", thread_num); #endif // 这里获取处理过后的fIn和tIn数据 double *fIn = (double *)mxGetPr(prhs[0]); // 9*102*51大小 double *tIn = (double *)mxGetPr(prhs[1]); // 5*102*51 // Size = 1*lx*ly double *ux = (double *)malloc(sizeof(double)* 1 * lx*ly); double *uy = (double *)malloc(sizeof(double)* 1 * lx*ly); double *cuNS = (double *)malloc(sizeof(double)* 1 * lx*ly); double *cu = (double *)malloc(sizeof(double)* 1 * lx*ly); double *rho = (double *)malloc(sizeof(double)* 1 * lx*ly); double *T = (double *)malloc(sizeof(double)* 1 * lx*ly); double *fEq = (double *)malloc(sizeof(double)* 9 * lx*ly); double *force = (double *)malloc(sizeof(double)* 9 * lx*ly); double *fOut = (double *)malloc(sizeof(double)* 9 * lx*ly); double *tEq = (double *)malloc(sizeof(double)* 5 * lx*ly); double *tOut = (double *)malloc(sizeof(double)* 5 * lx*ly); #if 1 mexPrintf("fIn 前20位值： \n"); for (int i = 0; i < 20; i++) mexPrintf("%f ", fIn[i]); mexPrintf("\n"); mexPrintf("tIn 前20位值： \n"); for (int i = 0; i < 20; i++) mexPrintf("%f ", tIn[i]); mexPrintf("\n"); #endif // 文件处理这里暂时去除 for (int i = 1; i <= maxT; i++) // 最外层循环是时间循环，是不能进行并行的 {
    memset(rho, 0, sizeof(double)* 1 * lx*ly); memset(T, 0, sizeof(double)* 1 * lx*ly); #pragma omp parallel for for (int kk = 0; kk < ly; kk++) {
    for (int jj = 0; jj < lx; jj++) {
    for (int id = 0; id < 9; id++) {
    rho[lx*kk+jj] += fIn[9*lx*kk+9*jj+id]; } for (int id = 0; id < 5; id++) {
    T[lx*kk + jj] += tIn[5 * lx*kk + 5 * jj + id]; } } } #if 0  mexPrintf("rho 前20位值： \n"); for (int ii = 0; ii < 20; ii++) mexPrintf("%f ", rho[ii]); mexPrintf("\n"); mexPrintf("T 前20位值： \n"); for (int ii = 0; ii < 20; ii++) mexPrintf("%f ", T[ii]); mexPrintf("\n======================================================================================\n"); mexPrintf("%f ", T[5048]); #endif // 给ux 和 ux 赋值 // 每次循环都需要重新初始化ux,uy memset(ux, 0, sizeof(double)* 1 * lx*ly); memset(uy, 0, sizeof(double)* 1 * lx*ly); #pragma omp parallel for for (int kk = 0; kk < ly; kk++) // 51 {
    for (int jj = 0; jj < lx; jj++) // 102 {
    for (int id = 0; id < 9; id++) // 求和运算发生在最内层循环，所以不需要归约 {
    // id 放在内层，是为了让地址连续，以节约运行时间 ux[kk*lx + jj] += cxNS[id] * fIn[9 * lx*kk + 9 * jj + id] / rho[kk*lx + jj]; uy[kk*lx + jj] += cyNS[id] * fIn[9 * lx*kk + 9 * jj + id] / rho[kk*lx + jj]; } } } #if 0  mexPrintf("ux 前20位值： \n"); for (int ii = 0; ii < 20; ii++) mexPrintf("%f ", ux[ii]); mexPrintf("\n"); mexPrintf("uy 前20位值： \n"); for (int ii = 0; ii < 20; ii++) mexPrintf("%f ", uy[ii]); mexPrintf("\n======================================================================================\n"); #endif for (int j = 0; j < 9; j++) {
    #pragma omp parallel for  for (int k = 0; k < 1 * lx*ly; k++) {
    cuNS[k] = 3 * (cxNS[j] * ux[k] + cyNS[j] * uy[k]); } #pragma omp parallel for  for (int kk = 0; kk < ly; kk++) {
    for (int jj = 0; jj < lx; jj++) // 并行时，可以考虑将内存合并的循环放在外层，以方便每个线程各自访问连续的内存 {
    fEq[9 * lx*kk + 9 * jj + j] = rho[lx*kk + jj] * tNS[j] * (1 + cuNS[lx*kk + jj] + 0.5*cuNS[lx*kk + jj] * cuNS[lx*kk + jj] - 1.5*(ux[lx*kk + jj] * ux[lx*kk + jj] + uy[lx*kk + jj] * uy[lx*kk + jj])); force[9 * lx*kk + 9 * jj + j] = 3 * tNS[j] * rho[lx*kk + jj] * (T[lx*kk + jj] - T0)*(cxNS[j] * buoyancy[0] + cyNS[j] * buoyancy[1]) / (Thot - Tcold); fOut[9 * lx*kk + 9 * jj + j] = fIn[9 * lx*kk + 9 * jj + j] - omegaNS*(fIn[9 * lx*kk + 9 * jj + j] - fEq[9 * lx*kk + 9 * jj + j]) + force[9 * lx*kk + 9 * jj + j]; } } } #if 0  mexPrintf("fEq 前20位值： \n"); for (int ii = 0; ii < 20; ii++) mexPrintf("%f ", fEq[ii]); mexPrintf("\n"); mexPrintf("force 前20位值： \n"); for (int ii = 0; ii < 20; ii++) mexPrintf("%f ", force[ii]); mexPrintf("\n"); mexPrintf("fOut 前20位值： \n"); for (int ii = 0; ii < 20; ii++) mexPrintf("%f ", fOut[ii]); mexPrintf("\n======================================================================================\n"); #endif for (int j = 0; j < 5; j++){
    #pragma omp parallel for  for (int k = 0; k < 1 * lx*ly; k++) {
    cu[k] = 3 * (cxT[j] * ux[k] + cyT[j] * uy[k]); } #pragma omp parallel for  for (int kk = 0; kk < ly; kk++) {
    for (int jj = 0; jj < lx; jj++) {
    tEq[5 * lx*kk + 5 * jj + j] = T[lx*kk + jj] * tT[j] * (1 + cu[lx*kk + jj]); tOut[5 * lx*kk + 5 * jj + j] = tIn[5 * lx*kk + 5 * jj + j] - omegaT*(tIn[5 * lx*kk + 5 * jj + j] - tEq[5 * lx*kk + 5 * jj + j]); } } } #if 0  mexPrintf("tEq 后20位值： \n"); for (int ii = 5 * lx*ly -20 ; ii < 5 * lx*ly; ii++) mexPrintf("%f ", tEq[ii]); mexPrintf("\n"); mexPrintf("tOut 后20位值： \n"); for (int ii = 5 * lx*ly - 20; ii < 5 * lx*ly; ii++) mexPrintf("%f ", tOut[ii]); mexPrintf("\n======================================================================================\n"); #endif for (int j = 0; j < 9; j++){
    #pragma omp parallel for  for (int jj = 0; jj < lx; jj++) {
    fOut[9 * jj + j] = fIn[9 * jj + oppNS[j]-1]; fOut[9 * lx*(ly - 1) + 9 * jj + j] = fIn[9 * lx*(ly - 1) + 9 * jj + oppNS[j]-1]; } } #if 0 mexPrintf("fOut 前20位值： \n"); for (int ii = 0; ii < 20; ii++) mexPrintf("%f ", fOut[ii]); mexPrintf("\n======================================================================================\n"); #endif // 元素平移 #pragma omp parallel for  for (int kk = 0; kk < ly; kk++) {
    for (int jj = 0; jj < lx; jj++) {
    for (int j = 0; j < 9; j++) {
    fIn[9 * lx*kk + 9 * jj + j] = fOut[9 * lx*inbound((kk - (int)cyNS[j]), ly) + 9 * (inbound(jj - (int)cxNS[j], lx)) + j]; } } } // 元素平移 #pragma omp parallel for  for (int kk = 0; kk < ly; kk++) {
    for (int jj = 0; jj < lx; jj++) {
    for (int j = 0; j < 5; j++){
    tIn[5 * lx*kk + 5 * jj + j] = tOut[5 * lx*inbound((kk - (int)cyNS[j]), ly) + 5 * (inbound(jj - (int)cxNS[j], lx)) + j]; } } } #if 0  mexPrintf("fIn 前20位值： \n"); for (int ii = 0; ii < 20; ii++) mexPrintf("%f ", fIn[ii]); mexPrintf("\n\n"); mexPrintf("tIn 前20位值： \n"); for (int ii = 0; ii < 20; ii++) mexPrintf("%f ", tIn[ii]); mexPrintf("\n======================================================================================\n"); #endif #pragma omp parallel for  for (int j = 0; j < lx; j++){
    tIn[5 * lx*(ly - 1) + 5 * j + 4] = Tcold - tIn[5 * lx*(ly - 1) + 5 * j] - tIn[5 * lx*(ly - 1) + 5 * j + 1] - tIn[5 * lx*(ly - 1) + 5 * j + 2] - tIn[5 * lx*(ly - 1) + 5 * j + 3]; tIn[5 * j + 2] = Thot - tIn[5 * j] - tIn[5 * j + 1] - tIn[5 * j + 3] - tIn[5 * j + 4]; } #if 0 mexPrintf("tIn 前20位值： \n"); for (int ii = 0; ii < 20; ii++) mexPrintf("%f ", tIn[ii]); mexPrintf("\n======================================================================================\n"); #endif // 可视化部分放在matlab中去 } // 将结果ux,uy,T输出到 Matlab if (nlhs!= 3) mexErrMsgTxt("输出参数个数必须为3！\n"); plhs[0] = mxCreateDoubleMatrix(lx, ly, mxREAL); // ux plhs[1] = mxCreateDoubleMatrix(lx, ly, mxREAL); // uy plhs[2] = mxCreateDoubleMatrix(lx, ly, mxREAL); // T double *ux_out, *uy_out, *T_out; ux_out = mxGetPr(plhs[0]); uy_out = mxGetPr(plhs[1]); T_out = mxGetPr(plhs[2]); memcpy(ux_out,ux,sizeof(double)*lx*ly); memcpy(uy_out,uy,sizeof(double)*lx*ly); memcpy(T_out,T,sizeof(double)*lx*ly); free(ux);free(uy);free(cuNS);free(cu);free(rho);free(T); free(fEq);free(force);free(fOut);free(tEq);free(tOut); }

上述代码的基本流程是：

1. 利用mex接口从matlab空间中获取数据； 2. 在C++空间中创建变量、分配地址; 3. 并行实现算法 4. 将结果输出给matlab;

3. Matlab中编译并运行OpenMP C++ 代码

讯享网clear; clc; ly = 51; aspect_ratio = 2; lx = aspect_ratio*ly; delta_x = 1./(ly-2); Pr = 1.; Ra = 20000.; % Rayleigh number gr = 0.001; % Gravity buoyancy = [0,gr]; Thot = 1; % Heating on bottom wall Tcold = 0; % Cooling on top wall T0 = (Thot+Tcold)/2; delta_t = sqrt(gr*delta_x); % nu: kinematic viscosity in lattice units nu = sqrt(Pr/Ra)*delta_t/(delta_x*delta_x); % k: thermal diffusivity k = sqrt(1./(Pr*Ra))*delta_t/(delta_x*delta_x); omegaNS = 1./(3*nu+0.5); % Relaxation parameter for fluid omegaT = 1./(3.*k+0.5); % Relaxation parameter for temperature maxT = 80000; % total number of iterations tPlot = 100; % iterations between successive graphical outputs tStatistics = 10; % iterations between successive file accesses % D2Q9 LATTICE CONSTANTS tNS = [4/9, 1/9,1/9,1/9,1/9, 1/36,1/36,1/36,1/36]; cxNS = [ 0, 1, 0, -1, 0, 1, -1, -1, 1]; cyNS = [ 0, 0, 1, 0, -1, 1, 1, -1, -1]; oppNS = [ 1, 4, 5, 2, 3, 8, 9, 6, 7]; % D2Q5 LATTICE CONSTANTS tT = [1/3, 1/6, 1/6, 1/6, 1/6]; cxT = [ 0, 1, 0, -1, 0]; cyT = [ 0, 0, 1, 0, -1]; oppT = [ 1, 4, 5, 2, 3]; [y,x] = meshgrid(1:ly,1:lx); % INITIAL CONDITION FOR FLUID: (rho=1, u=0) ==> fIn(i) = t(i) fIn = reshape( tNS' * ones(1,lx*ly), 9, lx, ly); % INITIAL CONDITION FOR TEMPERATURE: (T=0) ==> TIn(i) = t(i) tIn = reshape( tT' *Tcold *ones(1,lx*ly), 5, lx, ly); % Except for bottom wall, where T=1 tIn(:,:,ly)=Thot*tT'*ones(1,lx); % We need a small trigger, to break symmetry tIn(:,lx/2,ly-1)= tT*(Thot + (Thot/10.)); a=input('请选择串行还是并行执行程序(0 并行/ 1 串行):'); if a==0 % 编译cpp代码，加入并行选项 mex HeatConvectionP.cpp OPTIMFLAGS="-O2 -DNDEBUG /openmp" elseif a==1 % 编译cpp串行代码 mex HeatConvectionS.cpp end % 运行代码 tic;[ux,uy,T]=HeatConvectionS(fIn,tIn);toc % 绘图 u = sqrt(ux.^2+uy.^2); Nu = 1. + sum(sum(uy.*T))/(lx*k*(Thot-Tcold)); subplot(2,1,1); imagesc(u(:,ly:-1:1)'); title('Fluid velocity'); axis off; drawnow subplot(2,1,2); imagesc(T(:,ly:-1:1)') title(['Temperature (Nusselt number is ' num2str(Nu) ')']); axis off; drawnow

4. 运行结果和并行效率对比

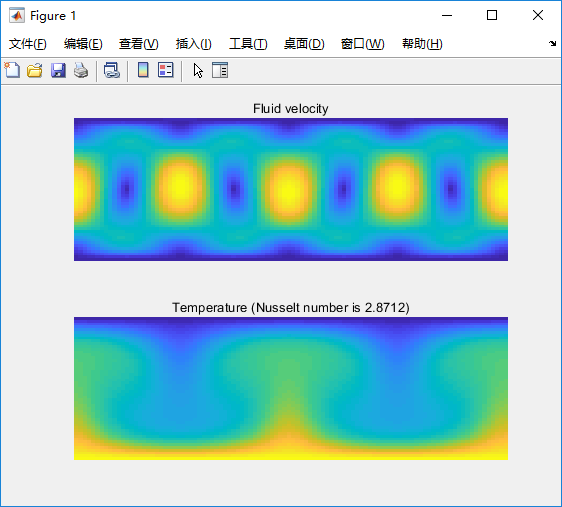

绘图结果
讯享网

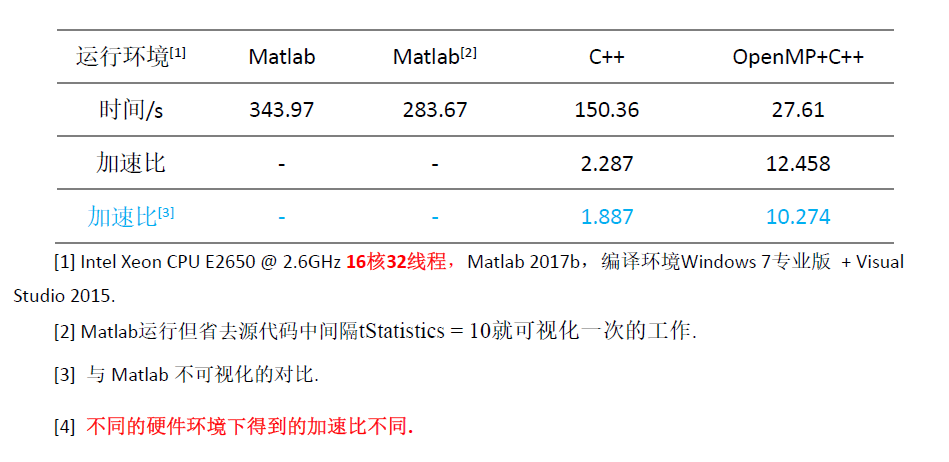

加速效率对比：
Matlab，C++，OpenMP+C++效率对比

5. 程序说明

5.1 Mex接口

本文没有采用纯C++或者Fortran编码方式，而是采用了Matlab + CPP + OpenMP混合编程的方式, 主要出于两个方面的考虑：

1）C++/Fortran的数值处理方便程度远逊色于Matlab，比如代码里的reshape等函数，在C++/Fortran里实现都需要很多的代码，而数据的预处理并不是本文的重点，本文的重点在于加快核心程序的执行速度，并行数据预处理的时间本身也不长；

2）mex接口使得在matlab直接调用C++/Fortran成为可能，前者为后两者提供了丰富的API，这样不仅方便与C++/Fortran之间的数据交互，而且很容易将C++/Fortrande运行结果使用Matlab进行可视化出来，而不是在C++中运行完程序将数据保存成文件，又重写编写Matlab程序读取数据文件进行可视化或者后处理；

5.2 可视化

虽然本程序在Matlab中运行会花费较长时间，但是除以迭代次数Tmax=80000,其实每个迭代步的花费时间并不长，具体为没步骤s左右。这种情况下。如果每步骤都进行图像可视化是非常耗费时间的，所以表中分别对每步都可视化和不可视化(或者说只进行最后一步可视化)分别进行了计时，可以看到每步都可视化的程序耗时要多出很多。出于此考虑，OpenMP的实现在调试正确后，中间过程也不进行可视化以节约时间，而且混合编程的可视化需要将数据在C++和Matlab之间传递，这又会增加程序的耗时。在实际应用中，如果真的需要，我们可以考虑在OpenMP执行一定的步数后(如500步)可视化一次，毕竟一次可视化的数据拷贝时间和500迭代的计算时间相比，是可以忽略不计的。

5.3 并行优化

OpenMP代码实现的时候，考虑到C++存储矩阵的顺序是按行存储的，而Matlab是按列存储的，所以为了在并行时尽量合并内存的访问，我们尽可能将内存连续的循环放在最内侧，尽可能让缓存命中的几率更大，以提高程序的执行效率。
