2025年AI Camera by Altek 开机初用记录

科技前沿 • 2025-02-21 14:32 • 阅读 45

大家好，我是讯享网，很高兴认识大家。

https://azure.github.io/Vision-AI-DevKit-Pages

https://store.altek.com.tw/qualcomm/downloads/Azure-IoT-Starter-Kit#tab-3，下载后的压缩包里有 pdf 的说明文档，简要记录下操作步骤和相关说明。

1.Install adb (Android Debug Bridge) and fastboot into your host (PC)

https://azure.github.io/Vision-AI-DevKit-Pages/docs/platform_tools/ （文档内容见附录1）

2.If you have no license to Qualcomm, you can use fastboot to reflash your device Please refer to “Reflash by fastboot”（附录2）

3. If you have license to Qualcomm, please get QFIL to reflash device from Qualcomm Please refer to “Reflash by QFIL”（附录3）

文本采取步骤2方式。使用fastboot刷新固件，按照附录2步骤，没有问题。

Connect the Vision AI DevKit camera to Wi-Fi
Create necessary Azure IoT resources (Resource Group, IoT Hub, IoT Edge device)
Connect the Vision AI DevKit camera to a created IoT Edge Device
See video output from the camera to a connected monitor or connected video streaming client

Active Azure account
Vision AI DevKit camera hardware
Monitor supporting HDMI input with an HDMI cable (do not use any cable adapters), or an RTSP supporting video player application

These steps will configure your DevKit camera for Wi-Fi and connect the the camera to the IoT Edge device you created earlier in Azure IoT Hub.

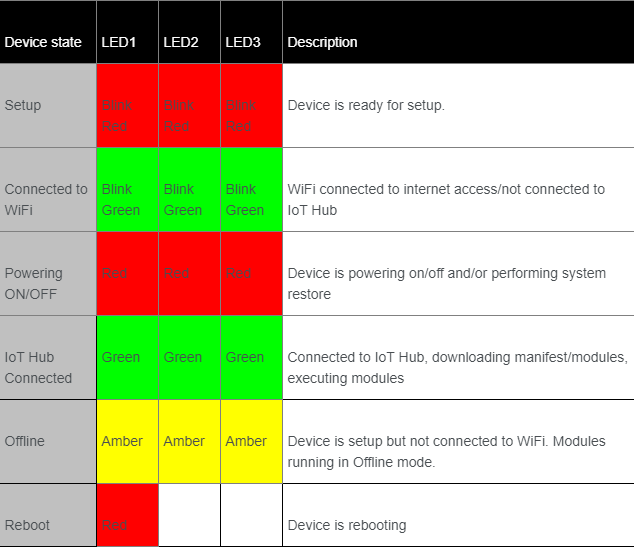

Within 10 seconds of first power up, you should see three flashing RED LED lights. This indicates the device is in Wi-Fi access point mode. If your device is not flashing RED, press the power button for 5 seconds to turn on the DevKit hardware access point.

From your PC, connect to a Wi-Fi network named MSIOT_xxxxxx (xxxxxx is the last 6 characters of the device’s Wi-Fi MAC address, e.g. MSIOT_BD097D).

Notes

The label at the bottom of the device will have the default Wi-Fi access point password. If there is no label, see Troubleshooting Wi-Fi Issues.
If you have connected your device to a display via the HDM
