DM7 DMRMAN备份管理

大家好，我是讯享网，很高兴认识大家。

DMRMAN备份管理：查看（show）、检验(check)、删除(remove)、导入(load)

1.DMRMAN备份集查看 show

包括：备份集数据库信息（DB）、元信息（META）、备份文件信息（FILE）、表信息（仅对表备份集有效）

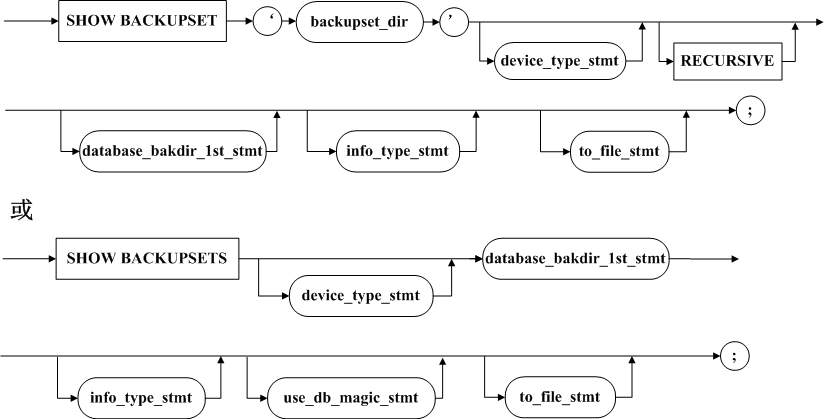

1.1.语法

讯享网

区别：show backupset 查看单个备份集信息，show backupsets 查看多个备份集或某备份目录中多个备份集信息。

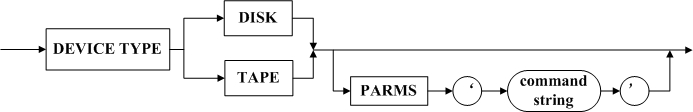

<device_type_stmt>:

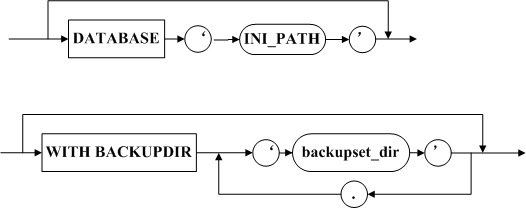

<database_bakdir_lst_stmt>:

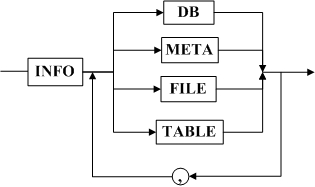

<info_type_stmt>:

<use_db_magic_stmt>:

1.2.案例与实操

1.2.1.查看指定备份集的信息 show

//分别显示备份集的数据库信息<DB INFO>、元数据<META INFO>、文件信息<FILE INFO>

//语法：show backupset '备份集名' ;

[dmdba@DM04 bin]$ ./dmrman RMAN> show backupset '/home/dmdba/dmdbms/data/DAMENG/bak/DBFULL2020'; <backupset [DEVICE TYPE:DISK, BACKUP_PATH: /home/dmdba/dmdbms/data/DAMENG/bak/DBFULL2020] info start ..........> <DB INFO> system path: /home/dmdba/dmdbms/data/DAMENG db magic:  permanent magic:  rac node: 1 page check: 0 rlog encrypt: 0 external cipher[id/name]: 0/ external hash[id/name]: 0/ length in char: 0 use new hash: 1 page size: 8 KB extent size: 16 case sensitive: 1 log page size: 512 B unicode_flag/charset: 0 data version: 0x7000A sys version: V7.6.0.142-Build(2019.03.12-)ENT enable policy: 0 archive flag: 1 blank_pad_mode: 0 crc_check: TRUE <META INFO> backupset sig: BA backupset version: 4009 database name: DAMENG backup name: DB_FULL_DAMENG__092103_000460 backupset description: backupset ID :  parent backupset ID:  META file size : 90624 compressed level: 0 encrypt type: 0 parallel num: 1 backup range: database mpp_timestamp:  ddl_clone: FALSE mpp_flag: FALSE backup level: online backup type: full without log: FALSE START_LSN:  START_SEQ: 44874 END_LSN:  END_SEQ: 45162 base START_LSN: -1 base END_LSN: -1 base name: base backupset: backup time: 2020-05-06 09:21:07 min trx start lsn:  min exec ver: 0x0C pkg size: 0x0 <FILE INFO> backupset directory: /home/dmdba/dmdbms/data/DAMENG/bak/DBFULL2020 backupset name: DBFULL2020 backup data file num: 8 backup piece num: 2 <backup_piece_list> $file_seq |$size(KB) |$pos_desc |$content_type 0 |64544 |DBFULL2020.bak |DATA 1 |149 |DBFULL2020_1.bak |LOG <data_file_list> $file_seq |$group_id |$group_name |$file_id |$file_path |$mirror_path |$file_len 1 |0 |SYSTEM |0 |/home/dmdba/dmdbms/data/DAMENG/SYSTEM.DBF| | 2 |1 |ROLL |0 |/home/dmdba/dmdbms/data/DAMENG/ROLL.DBF| | 3 |4 |MAIN |0 |/home/dmdba/dmdbms/data/DAMENG/MAIN.DBF| | 4 |5 |DMHR |0 |/home/dmdba/dmdbms/data/DAMENG/DMHR.DBF| | 5 |6 |TB40 |0 |/home/dmdba/tbs4_011.dbf | | 6 |6 |TB40 |1 |/home/dmdba/tbs4_02.dbf | | 7 |7 |SYSAUX |0 |/home/dmdba/dmdbms/data/DAMENG/SYSAWR.DBF| | <arch_file_list> $file_seq |$file_path |$file_len |$begin_lsn |$begin_seqno |$begin_rpag_off |$end_lsn |$end_seqno |$create_time |$close_time 8 | | | |44874 |8 | |45162 |0000-00-00 00:00:00 |0000-00-00 00:00:00 <backupset [DEVICE TYPE:DISK, BACKUP_PATH: /home/dmdba/dmdbms/data/DAMENG/bak/DBFULL2020] info end .> show backupsets successfully. time used: 530.757(ms) RMAN>

讯享网

1.2.2.批量显示备份集信息

//批量显示多个备份集或者某备份目录中多个备份集信息

//语法：show backupsets with backupdir ['备份集1','备份集2'...'备份集N'] ｜'备份目录' ;

讯享网RMAN> show backupsets with backupdir '/home/dmdba/dmdbms/data/DAMENG/bak'; show backupsets with backupdir '/home/dmdba/dmdbms/data/DAMENG/bak'; CMD END.CODE:[0] <ALL backupsets list start ..........> <backupset of DB_MAGIC [] GROUP list start ..........> <backupset [DEVICE TYPE:DISK, BACKUP_PATH: /home/dmdba/dmdbms/data/DAMENG/bak/DB_DAMENG_FULL__033131_000477] info start ..........> <DB INFO> system path: /home/dmdba/dmdbms/data/DAMENG db magic:  permanent magic:  rac node: 1 page check: 0 rlog encrypt: 0 external cipher[id/name]: 0/ external hash[id/name]: 0/ length in char: 0 use new hash: 1 page size: 8 KB extent size: 16 case sensitive: 1 log page size: 512 B unicode_flag/charset: 0 data version: 0x7000A sys version: V7.6.0.142-Build(2019.03.12-)ENT enable policy: 0 archive flag: 1 blank_pad_mode: 0 crc_check: TRUE <META INFO> backupset sig: BA backupset version: 4009 database name: DAMENG backup name: DB_FULL_DAMENG__033131_000477 backupset description: backupset ID :  parent backupset ID:  META file size : 86528 compressed level: 0 encrypt type: 0 parallel num: 1 backup range: database mpp_timestamp:  ddl_clone: FALSE mpp_flag: FALSE backup level: offline backup type: full without log: FALSE START_LSN:  START_SEQ:  END_LSN:  END_SEQ:  base START_LSN: -1 base END_LSN: -1 base name: base backupset: backup time: 2020-05-05 03:31:33 min trx start lsn:  min exec ver: 0x0C pkg size: 0x0 <FILE INFO> backupset directory: /home/dmdba/dmdbms/data/DAMENG/bak/DB_DAMENG_FULL__033131_000477 backupset name: DB_DAMENG_FULL__033131_000477 backup data file num: 7 backup piece num: 1 <backup_piece_list> $file_seq |$size(KB) |$pos_desc |$content_type 0 |31168 |DB_DAMENG_FULL__033131_000477.bak |DATA <data_file_list> $file_seq |$group_id |$group_name |$file_id |$file_path |$mirror_path |$file_len 1 |0 |SYSTEM |0 |/home/dmdba/dmdbms/data/DAMENG/SYSTEM.DBF| | 2 |1 |ROLL |0 |/home/dmdba/dmdbms/data/DAMENG/ROLL.DBF| | 3 |4 |MAIN |0 |/home/dmdba/dmdbms/data/DAMENG/MAIN.DBF| | 4 |5 |DMHR |0 |/home/dmdba/dmdbms/data/DAMENG/DMHR.DBF| | 5 |6 |TB40 |0 |/home/dmdba/tbs4_011.dbf | | 6 |6 |TB40 |1 |/home/dmdba/tbs4_02.dbf | | 7 |7 |SYSAUX |0 |/home/dmdba/dmdbms/data/DAMENG/SYSAWR.DBF| | <arch_file_list> $file_seq |$file_path |$file_len |$begin_lsn |$begin_seqno |$begin_rpag_off |$end_lsn |$end_seqno |$create_time |$close_time <backupset [DEVICE TYPE:DISK, BACKUP_PATH: /home/dmdba/dmdbms/data/DAMENG/bak/DB_DAMENG_FULL__033131_000477] info end .> <backupset [DEVICE TYPE:DISK, BACKUP_PATH: /home/dmdba/dmdbms/data/DAMENG/bak/DB_DAMENG_FULL__030555_000638] info start ..........> ………… <backupset of DB_MAGIC [-] GROUP list end ..........> <ALL backupsets list end ..........> show backupsets successfully. time used: 920.301(ms) RMAN>

1.2.3.查看指定数据库的所有备份信息

提示报错

[dmdba@DM04 ~]$ disql SYSDBA/SYSDBA@localhost:5236 服务器[localhost:5236]:处于普通打开状态 登录使用时间: 10.639(毫秒) disql V7.6.0.142-Build(2019.03.12-)ENT SQL> select db_magic ; 行号 DB_MAGIC ---------- -------------------- 1  已用时间: 2.149(毫秒). 执行号:16. SQL>

1.2.4.查看备份集的元数据信息

//语法：show backupset '备份集名' info meta ;

或show backupsets with backupdir '备份目录' info meta ;

//还可以接 info db 、info file

讯享网RMAN> show backupset '/home/dmdba/dmdbms/data/DAMENG/bak/DB_DAMENG_FULL__043433_000506' info meta ; show backupset '/home/dmdba/dmdbms/data/DAMENG/bak/DB_DAMENG_FULL__043433_000506' info meta; <backupset [DEVICE TYPE:DISK, BACKUP_PATH: /home/dmdba/dmdbms/data/DAMENG/bak/DB_DAMENG_FULL__043433_000506] info start ..........> <META INFO> backupset sig: BA backupset version: 4009 database name: DAMENG backup name: DB_FULL_DAMENG__043433_000506 backupset description: backupset ID :  parent backupset ID:  META file size : 82432 compressed level: 0 encrypt type: 0 parallel num: 1 backup range: database mpp_timestamp:  ddl_clone: FALSE mpp_flag: FALSE backup level: offline backup type: full without log: FALSE START_LSN:  START_SEQ: 0 END_LSN:  END_SEQ: -1 base START_LSN: -1 base END_LSN: -1 base name: base backupset: backup time: 2020-05-05 04:34:35 min trx start lsn:  min exec ver: 0x0C pkg size: 0x0 <backupset [DEVICE TYPE:DISK, BACKUP_PATH: /home/dmdba/dmdbms/data/DAMENG/bak/DB_DAMENG_FULL__043433_000506] info end .> show backupsets successfully. time used: 5.734(ms) RMAN>

1.2.5.导出备份集信息

//导出备份集信息到TXT或xml，默认是TXT

//语法：show backupset '备份集' to '/home/dmdba/db0905.txt' ;

或 show backupsets with backupdir '备份目录' to '/home/dmdba/db090501.xml' format xml ;

RMAN> show backupset '/home/dmdba/dmdbms/data/DAMENG/bak/DB_DAMENG_FULL__043433_000506' to '/home/dmdba/db0509.txt' ; [dmdba@DM04 ~]$ cd /home/dmdba/ [dmdba@DM04 ~]$ more db0509.txt <backupset [DEVICE TYPE:DISK, BACKUP_PATH: /home/dmdba/dmdbms/data/DAMENG/bak/DB_DAMENG_FULL__043433_000506] info start ..........> <DB INFO> system path: /home/dmdba/dmdbms/data/DAMENG db magic:  permanent magic:  rac node: 1 page check: 0 rlog encrypt: 0 external cipher[id/name]: 0/ external hash[id/name]: 0/ length in char: 0 use new hash: 1 page size: 8 KB extent size: 16 case sensitive: 1 log page size: 512 B unicode_flag/charset: 0 data version: 0x7000A sys version: V7.6.0.142-Build(2019.03.12-)ENT enable policy: 0 archive flag: 1 blank_pad_mode: 0 crc_check: TRUE <META INFO> backupset sig: BA backupset version: 4009 database name: DAMENG backup name: DB_FULL_DAMENG__043433_000506 backupset description: backupset ID :  parent backupset ID:  META file size : 82432 compressed level: 0 encrypt type: 0 parallel num: 1 backup range: database mpp_timestamp:  ddl_clone: FALSE mpp_flag: FALSE backup level: offline backup type: full without log: FALSE START_LSN:  START_SEQ: 0 END_LSN:  END_SEQ: -1 base START_LSN: -1 base END_LSN: -1 base name: base backupset: backup time: 2020-05-05 04:34:35 min trx start lsn:  min exec ver: 0x0C pkg size: 0x0 <FILE INFO> backupset directory: /home/dmdba/dmdbms/data/DAMENG/bak/DB_DAMENG_FULL__043433_000506 backupset name: DB_DAMENG_FULL__043433_000506 backup data file num: 7 backup piece num: 1 <backup_piece_list> $file_seq |$size(KB) |$pos_desc |$content_type 0 |68264 |DB_DAMENG_FULL__043433_000506.bak |DATA <data_file_list> $file_seq |$group_id |$group_name |$file_id |$file_path |$mirror_path |$file_len 1 |0 |SYSTEM |0 |/home/dmdba/dmdbms/data/DAMENG/SYSTEM.DBF| | 2 |1 |ROLL |0 |/home/dmdba/dmdbms/data/DAMENG/ROLL.DBF| | 3 |4 |MAIN |0 |/home/dmdba/dmdbms/data/DAMENG/MAIN.DBF| | 4 |5 |DMHR |0 |/home/dmdba/dmdbms/data/DAMENG/DMHR.DBF| | 5 |6 |TB40 |0 |/home/dmdba/tbs4_011.dbf | | 6 |6 |TB40 |1 |/home/dmdba/tbs4_02.dbf | | 7 |7 |SYSAUX |0 |/home/dmdba/dmdbms/data/DAMENG/SYSAWR.DBF| | <arch_file_list> $file_seq |$file_path |$file_len |$begin_lsn |$begin_seqno |$begin_rpag_off |$end_lsn |$end_seqno |$create_time |$close_time <backupset [DEVICE TYPE:DISK, BACKUP_PATH: /home/dmdba/dmdbms/data/DAMENG/bak/DB_DAMENG_FULL__043433_000506] info end .> [dmdba@DM04 ~]$

2.备份集校验 (check)

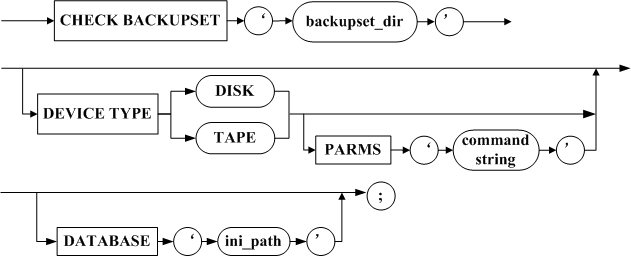

2.1.校验备份集语法

//只能校验一个备份集

2.2.案例及实操

//检验备份集是否存在及合法

//语法：check backupset '备份集';

讯享网RMAN> check backupset '/home/dmdba/dmdbms/data/DAMENG/bak/DBFULL2020' ; check backupset '/home/dmdba/dmdbms/data/DAMENG/bak/DBFULL2020'; CMD END.CODE:[0] check backupset successfully. time used: 60.505(ms) RMAN>

3.备份集删除 (remove)

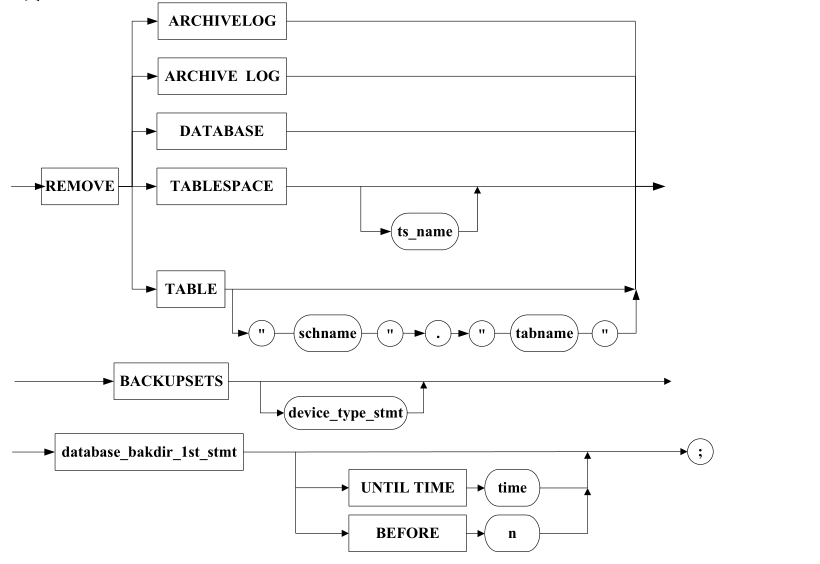

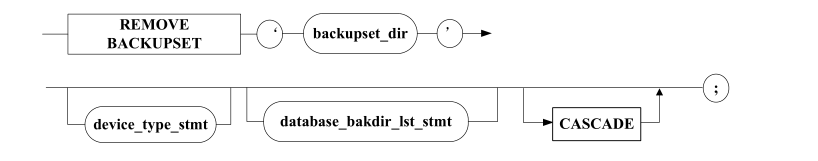

3.1.语法

或

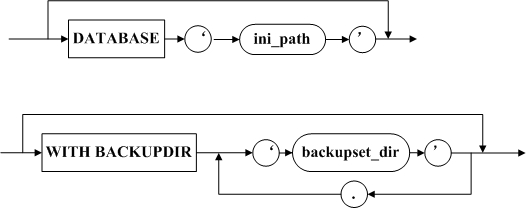

<database_bakdir_lst_stmt>:

3.2.删除备份集

//删除特定的备份集、批量删除所有备份集、批量删除指定时间前的备份集

3.2.1.删除特定的备份集

//每次只能删除一个备份集，若该备份集被作为其它备份集的基备份，则需要指定为CACASE删除

//语法：remove backupset '备份集';

RMAN> remove backupset '/home/dmdba/dmdbms/data/DAMENG/bak/DBFULL2020' ; remove backupset '/home/dmdba/dmdbms/data/DAMENG/bak/DBFULL2020'; CMD END.CODE:[0] remove backupset successfully. time used: 63.624(ms) RMAN>

3.2.2.批量删除指定时间之前的备份

//语法：remove backupsets with backupdir '备份目录' until time '2020-04-29 00:00:00' ;

讯享网RMAN> remove backupsets with backupdir '/home/dmdba/dmdbms/data/DAMENG/bak/' until time '2020-04-29 00:00:00' ; remove backupsets with backupdir '/home/dmdba/dmdbms/data/DAMENG/bak/' until time '2020-04-29 00:00:00'; CMD END.CODE:[-10000],DESC:[备份恢复时MML层出错(-10000)] CMD END.CODE:[0] remove backupset successfully. time used: 1122.085(ms) RMAN>

3.2.3.批量删除距离当前时间前 n 天产生的备份集

//语法：remove backupsets with backupdir '备份目录' before n ; #n取值，0－365天

RMAN> remove backupsets with backupdir '/home/dmdba/dmdbms/data/DAMENG/bak/' before 5 ; remove backupsets with backupdir '/home/dmdba/dmdbms/data/DAMENG/bak/' before 5; CMD END.CODE:[-10000],DESC:[备份恢复时MML层出错(-10000)] CMD END.CODE:[0] remove backupset successfully. time used: 1208.919(ms) RMAN> [dmdba@DM04 bak]$ pwd /home/dmdba/dmdbms/data/DAMENG/bak [dmdba@DM04 bak]$ ls -ltr 总用量 44 -rw-r--r-- 1 dmdba dinstall 61 4月 27 11:14 dmsql.buf24364.buf -rw-r--r-- 1 dmdba dinstall 8 4月 27 15:19 dmsql.buf95088.buf drwxr-xr-x 2 dmdba dinstall 4096 4月 29 07:41 TAB_DMHR_CITY_2020_04_30_14_36_41 drwxr-xr-x 2 dmdba dinstall 4096 4月 29 07:46 DB_DAMENG_FULL_2020_04_30_14_41_29 drwxr-xr-x 2 dmdba dinstall 4096 4月 29 07:57 DB_DAMENG_INCRE_2020_04_30_14_52_13 drwxr-xr-x 2 dmdba dinstall 4096 4月 29 08:42 TS_DMHR_FULL_2020_04_30_15_38_03 drwxr-xr-x 2 dmdba dinstall 4096 5月 5 03:05 DB_DAMENG_FULL__030555_000638 drwxr-xr-x 2 dmdba dinstall 4096 5月 5 03:36 DB_DAMENG_FULL_2020_04_30_15_32_34 drwxr-xr-x 2 dmdba dinstall 4096 5月 5 04:34 DB_DAMENG_FULL__043433_000506 drwxr-xr-x 2 dmdba dinstall 4096 5月 6 03:41 DB_DAMENG_FULL__033131_000477 -rw-r--r-- 1 dmdba dinstall 50 5月 6 10:00 dmsql.buf53070.buf [dmdba@DM04 bak]$ date 2020年 05月 08日 星期五 08:51:46 CST [dmdba@DM04 bak]$ ls -ltr 总用量 24 -rw-r--r-- 1 dmdba dinstall 61 4月 27 11:14 dmsql.buf24364.buf -rw-r--r-- 1 dmdba dinstall 8 4月 27 15:19 dmsql.buf95088.buf drwxr-xr-x 2 dmdba dinstall 4096 5月 5 03:05 DB_DAMENG_FULL__030555_000638 drwxr-xr-x 2 dmdba dinstall 4096 5月 5 04:34 DB_DAMENG_FULL__043433_000506 drwxr-xr-x 2 dmdba dinstall 4096 5月 6 03:41 DB_DAMENG_FULL__033131_000477 -rw-r--r-- 1 dmdba dinstall 50 5月 6 10:00 dmsql.buf53070.buf [dmdba@DM04 bak]$

3.2.4批量删除所有备份集

//语法：remove backupsets with backupdir '备份目录' ;

讯享网RMAN> remove backupsets with backupdir '/home/dmdba/dmdbms/data/DAMENG/bak/' ; remove backupsets with backupdir '/home/dmdba/dmdbms/data/DAMENG/bak/'; CMD END.CODE:[-10000],DESC:[备份恢复时MML层出错(-10000)] CMD END.CODE:[0] remove backupset successfully. time used: 1212.461(ms) RMAN>
