allegro 设置出线方向

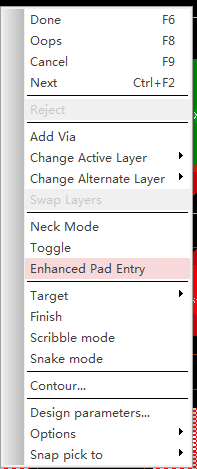

鼠标右键，取消enhanced pad entry

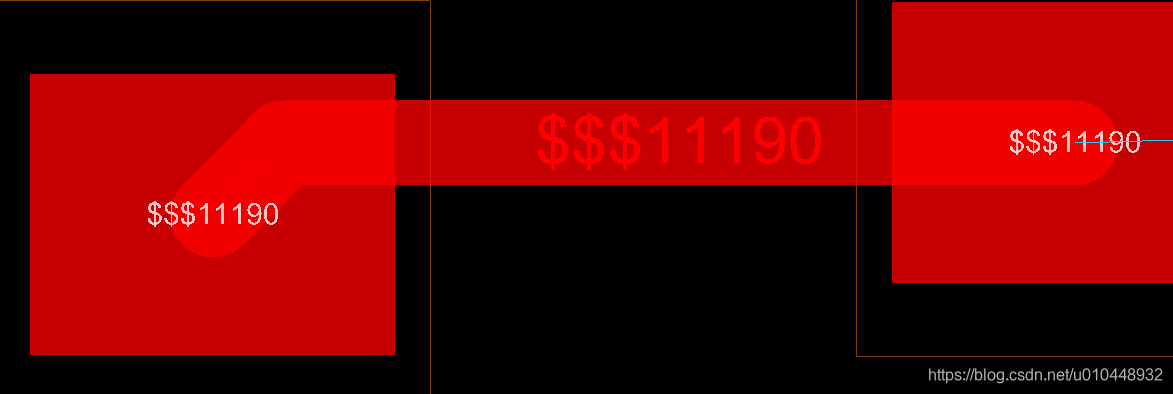

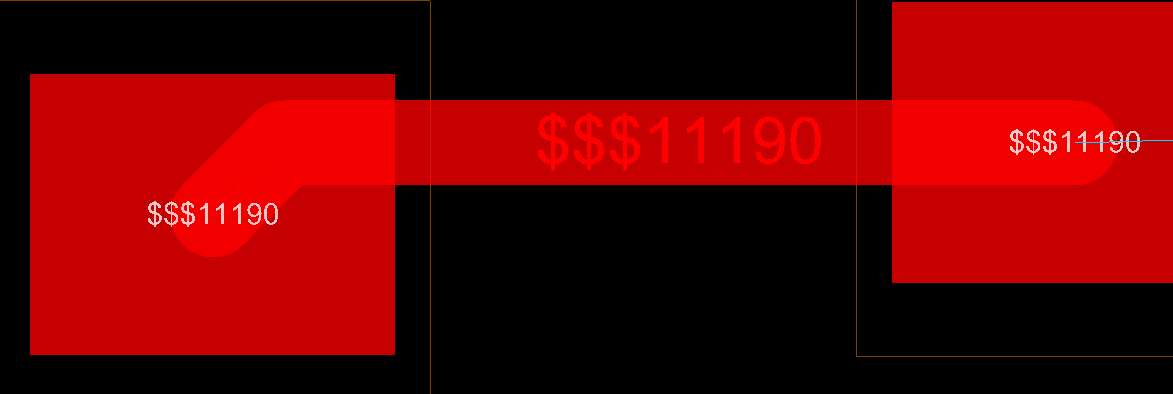

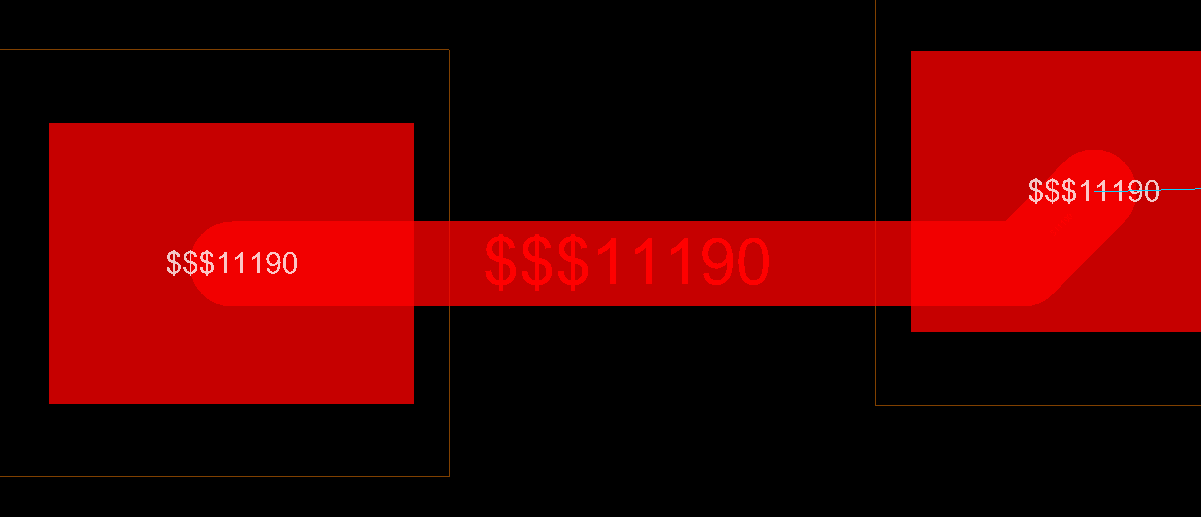

先直后斜取消选择toggle，反之则是先斜后直（下图均为从左开始走线）
选择finish，会自动走完该段线
allegro 如何删除没有网络的net和shape
先锁定所有有网络的线和shape，然后再点击删除
在Allegro中如何Rename的时候把部分器件保护起来
把要重新Rename位号的器件在Edit – Properties中添加一个Auto_rename属性,记住右边的Find栏中要选择Comps
导入DXF文件时报错
'LINE' object may not exist on class 'ROUTE KEEPOUT'讯享网
解决方法：先导入到outline层，然后再导入route keepout
在等长走线时，如何更改target目标线？
答：绕等长有两种：一种是设在一定范围内绕没有基准，就是说在一组BUS里必须绕到这个范围内才会变绿，这个我一般不用，因为BUS里少绕一根不到这个范围就不会变绿。另一种就是设在一定范围内有基准的，也许就是你表达的这种，ElectricalConstraint Set--＞Net--＞Routing--＞Relative Propagation--＞relative Delay--＞Delta:Tolerance下你想设做基准的Net,点鼠标右键，在下拉菜单选择set as target。
Allegro 常用Properties
| Property |
可加入之对象 |
可否在线路图中加入 |
| ALT_SYMBOLS |
Device |
yes |
| AUTO_GENERATED_TERM |
Component |
no |
| AUTO_RENAME |
Reference Designator (Component) |
no |
| BOARD_THICKNESS |
Board |
no |
| BOM_IGNORE |
Component |
yes |
| BUS_NAME |
Net |
yes |
| CLIP_DRAW |
Design (board), Symbol |
no |
| CLIP_DRAWING |
Connect line, Device, Pin, Filled rectangle, Line, Rectangle, Shape, Symbol, Via, Void |
no |
| CLOCK_NET |
Net |
yes |
| COMPONENT_WEIGHT |
Reference Designator (Component) |
yes |
| C_TEMPERATURE |
Reference Designator (Component) |
yes |
| DENSE_COMPONENT |
Reference Designator (Component) |
yes |
| DFA_DEV_CLASS |
Board, Symbol |
no |
| DIFFERENTIAL_PAIR |
Net |
yes |
| DIFFP_2ND_LENGTH |
Net |
no |
| DIFFP_LENGTH_TOL |
Net |
no |
| DRIVER_TERM_VAL |
Net |
no |
| ECL |
Net |
yes |
| ECL_TEMP |
Net |
yes |
| EDGE_SENS |
Net, Xnet, ECSet |
no |
| ELECTRICAL_CONSTRAINT_SET |
Net |
yes |
| FILLET |
Connect Line |
no |
| FIRST_INCIDENT |
Net, Xnet, ECSet |
no |
| FIX_ALL |
Reference Designator (Component) |
yes |
| FIXED |
Reference Designator (Component), Symbol, Connect Line, Filled rectangle, Line, Net, Pin, Rectangle, Shape, Via |
yes |
| FIXED_T_TOLERANCE |
TPoint |
no |
| FP_BOARD_CLEARANCE |
Board |
no |
| FP_NOTES_TEXT_BLOCK |
Board |
no |
| FP_REFDES_TEXT_BLOCK |
Board |
no |
| FP_ROOM_NAME_TEXT_BLOCK |
Board |
no |
| GROUP |
Function Designator |
yes |
| HARD_LOCATION |
Reference Designator, Function Designator |
yes, but not seen in schematic as LOCATION |
| HEAT_SINK_FACTOR |
Reference Designator (Component) |
yes |
| IDF_OWNER |
All Objects |
no |
| IMPEDANCE_RULE |
Net, ECSet |
no |
| INSERTION_CODE |
Device |
yes |
| J_TEMPERATURE |
Reference Designator (Component) |
yes |
| LEAD_DIAMETER |
Board, Symbol |
no |
| LOAD_TERM_VAL |
Net |
no |
| LOGICAL_PATH |
Function Designator (Component) |
yes, but assigned by PXL. Not user defined. |
| MAX_BOND_LENGTH |
Net, Connect Line |
no |
| MAX_BVIA_STAGGER |
Net |
no |
| MAX_EXPOSED_LENGTH |
Net, ECSet |
yes |
| MAX_FINAL_SETTLE |
Net, ECSet |
yes |
| MAX_OVERSHOOT |
Net, ECSet |
yes |
| MAX_PARALLEL (PARALLELISM) |
Net, Connect Line, ECSet |
no |
| MAX_PEAK_XTALK (MAX_PEAK_CROSSTALK) |
Net |
no |
| MAX_POWER_DISS |
Device, Reference Designator (Component) |
yes |
| MAX_SSN |
Net |
no |
| MAX_STUB_LENGTH |
yes |
|
| MAX_UNDERSHOOT |
Net, Connect Line |
yes |
| MAX_VIA_COUNT |
Net, ECSet |
yes |
| MAX_XTALK (MAX_CROSSTALK) |
Net |
no |
| MAX_XTALK (MAX_CROSSTALK) |
Net, Connect Line |
no |
| MIN_BVIA_GAP |
Net |
no |
| MIN_BVIA_STAGGER |
Net |
no |
| MIN_FIRST_SWITCH |
Net, ECSet |
no |
| MIN_HOLD |
Net, Pin |
yes |
| MIN_LINE_WIDTH |
Net, Connect Line |
yes |
| MIN_NECK_WIDTH |
Net, Connect Line |
yes
|
| MIN_NOISE_MARGIN |
Net, ECSet |
yes |
| MIN_SETUP |
Net, Pin |
yes |
| NET_PHYSICAL_TYPE |
Net, Constraint Area (Shape, Rectangle) |
yes |
| NET_SCHEDULE |
Net, ECSet |
no |
| NET_SPACING_TYPE |
Net, Constraint Area (Shape, Rectangle) |
yes |
| NO_DRC |
Pin, Via |
no |
| NO_GLOSS |
Net |
yes |
| NO_LIN2SHAPE_FAT |
Connect Line |
no |
| NO_PIN_ESCAPE |
Reference Designator (Component) , Net, Pin |
yes |
| NO_RAT |
Net |
yes |
| NO_RIPUP |
Net |
yes |
| NO_ROUTE |
Reference Designator (Component), Net |
yes |
| NO_SHAPE_CONNECT |
Pin, Via |
yes |
| NO_SWAP_GATE |
Reference Designator, Function Designator |
yes, but assigned by PXL. See PXL documentation. |
| NO_SWAP_GATE_EXT |
Function Designator |
yes, but assigned by PXL. See PXL documentation. |
| NO_SWAP_PIN |
Reference Designator, Function Designator, Pin |
yes, but assigned by PXL. See PXL documentation. |
| NO_TEST |
Net |
yes |
| NO_VIA_CONNECT |
Pins, Vias |
no |
| PACKAGE_HEIGHT_MAX and PACKAGE_HEIGHT_MIN |
Rectangle, Shape |
no |
| PARALLELISM (MAX_PARALLEL) |
Connect Line, Net |
no |
| PIN_ESCAPE |
Reference Designator, Pin |
yes |
| PIN_SIGNAL_MODEL |
Pin |
no |
| PINUSE |
Pin |
yes, but assigned by PXL. See PXL documentation. |
| PLACE_TAG |
Reference Designator (Component) |
no |
| PLATING |
Shape |
no |
| PROBE_NUMBER |
Net |
yes |
| PROPAGATION_DELAY |
Net, ECSet |
no |
| PULSE_PARAM |
Net, Xnet, Bus, Diff Pair |
no |
| RATED_CURRENT |
Device |
yes |
| RATED_MAX_TEMP |
Device |
yes |
| RATED_POWER |
Device |
yes |
| RATED_VOLTAGE |
Device |
yes |
| RATSNEST_ SCHEDULE |
Net, ECSet |
no |
| REF_DES_FOR_ASSIGN |
Function |
no |
| RELATIVE_PROPAGATION_DELAY |
Net, ECSet |
no |
| REUSE_ID |
Compnent, Symbol |
|
| REUSE_INSTANCE |
Component |
yes |
| REUSE_MODULE |
Component |
yes |
| REUSE_NAME |
Component |
yes |
| REUSE_PID |
Component, Symbol |
|
| ROOM |
Reference Designator, Function Designator |
yes |
| ROOM_TYPE |
Room Boundary |
no |
| ROUTE_PRIORITY |
Net |
yes |
| ROUTE_TO_SHAPE |
Net |
no |
| SAME_NET |
Nets |
no |
| SHIELD_NET |
Net |
yes |
| SHIELD_TYPE |
Net |
yes |
| SLOTNAME |
Function |
no |
| STUB_LENGTH |
Net, ECSet |
yes |
| SWAP_GROUP |
Function Designator |
yes, but assigned by PXL. not user-assigned. |
| SYS_CONFIG_NAME |
Board |
no |
| T_TEMPERATURE |
Reference Designator (Component) |
yes |
| TERMINATOR_PACK |
Device |
no |
| TESTER_GUARDBAND |
Net, Pin |
no |
| THERMAL_RELIEF |
Thermal Connect Line |
no |
| THICKNESS |
Layout Cross Section |
no |
| TIMING_DELAY_OVERRIDE |
Net, Pin |
no |
| TOL |
Device |
yes |
| TOPOLOGY TEMPLATE |
Net |
yes |
| TOPOLOGY_TEMPLATE_REVISION |
Net, ECSet |
yes |
| TOTAL_ETCH_LENGTH |
Xnet, net, bus or diff pair |
yes |
| TS_ALLOWED |
Net |
yes |
| UNFIXED_PINS |
Board, Symbol |
no |
| VALUE |
Discrete Device |
yes |
| VIA_LIST |
Net |
no |
| VOLTAGE |
Reference Designator (Component) |
yes |
| WEIGHT |
Pin |
no |
| WIRE_LENGTH |
Net |
yes |
| XTALK_ACTIVE_TIME |
Net, ECSet |
no |
| XTALK_IGNORE_ NETS |
Net |
no |
| XTALK_SENSITIVE_TIME |
Net, ECSet |
no
|
导入logo
打开封装编辑软件
