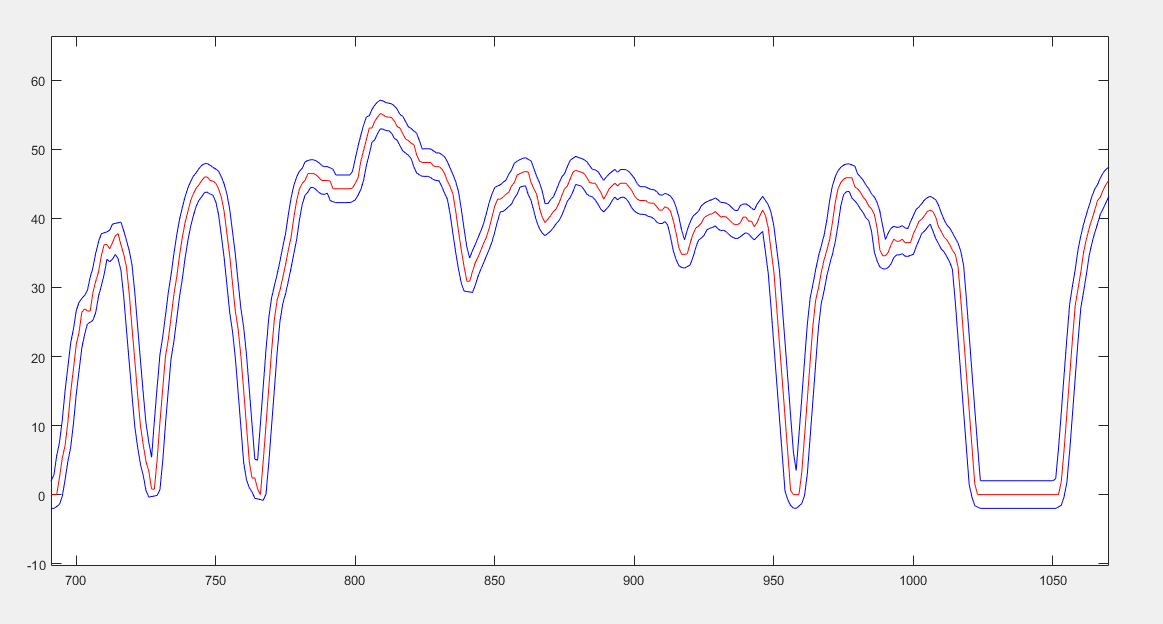

%% 数据边界 clear all; close all;clc; % %% 数据 data = load ('ftp_75_gear.txt'); %导入工况数据 data=data(1:end,:); time=data(:,1); speed=data(:,2); %% 求出曲线的垂直距离为2的包络线 x=time; y=speed; r=2; ratio=zeros(length(x),1); %% 对于一个点有两个斜率，做两条垂线，按照垂线相交点 for i=1:1:length(x)-1 %求斜率 deta_y=y(i+1)-y(i); deta_x=x(i+1)-x(i); ratio(i)=atan(deta_y/deta_x); end ratio(length(x))=ratio(length(x)-1); ratio_m=zeros(length(x),1); %求斜率 ratio_m(1)=0; ratio_m(2:length(x))=ratio(1:length(x)-1); %% 求出曲线的垂直距离为2的包络线 for i=1:length(x) k=pi/2+ratio(i); a0(i)=x(i)+r*cos(k); b0(i)=y(i)+r*sin(k); end %% 同一个点的第二个值 for i=1:length(x) k=pi/2+ratio_m(i); a_1(i)=x(i)+r*cos(k); b_1(i)=y(i)+r*sin(k); end for i=2:length(x)-1 x_intersect=a0(i); y_intersect=b0(i); if( abs(ratio(i)-ratio_m(i))>5/180*pi) m_x=[a0(i),a_1(i+1)]; m_y=[b0(i),b_1(i+1)]; p1=polyfit(m_x,m_y,1); m_x1=[a0(i-1),a_1(i)]; m_y1=[b0(i-1),b_1(i)]; p2=polyfit(m_x1,m_y1,1); x_intersect = fzero(@(x) polyval(p1-p2,x),3); y_intersect = polyval(p1,x_intersect); end x_plot(i)=x_intersect; y_plot(i)=y_intersect; end x_plot(length(x))=x_plot(length(x)-1); y_plot(length(x))= y_plot(length(x)-1); %% 求每点竖直线与包络线的交点 a_m=zeros(length(x_plot),1); for i=1:length(x) record=-ones(length(x),1)*2; for j=1:length(x)-2 if( ( x(i)+10^(-8)>min(x_plot(j),x_plot(j+1))|| x(i)==min(x_plot(j),x_plot(j+1)) ) ... && (x(i)<max(x_plot(j),x_plot(j+1))|| x(i)==max(x_plot(j),x_plot(j+1)) ) ) m_x=x_plot(j:j+1); m_y=y_plot(j:j+1); fit_par=polyfit(m_x,m_y,1);% 计算一次函数的斜率 与 b record(j)= x(i)*fit_par(1)+fit_par(2); end end a_m(i)=max(record); end %% %%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%% %% 求出曲线的垂直距离为2的包络线 for i=1:length(x) k=pi/2+ratio(i); a0(i)=x(i)-r*cos(k); b0(i)=y(i)-r*sin(k); end %% 同一个点的第二个值 for i=1:length(x) k=pi/2+ratio_m(i); a_1(i)=x(i)-r*cos(k); b_1(i)=y(i)-r*sin(k); end for i=2:length(x)-1 x_intersect=a0(i); y_intersect=b0(i); if( abs(ratio(i)-ratio_m(i))>5/180*pi) m_x=[a0(i),a_1(i+1)]; m_y=[b0(i),b_1(i+1)]; p1=polyfit(m_x,m_y,1); m_x1=[a0(i-1),a_1(i)]; m_y1=[b0(i-1),b_1(i)]; p2=polyfit(m_x1,m_y1,1); x_intersect = fzero(@(x) polyval(p1-p2,x),3); y_intersect = polyval(p1,x_intersect); end xx_plot(i)=x_intersect; yy_plot(i)=y_intersect; end xx_plot(length(x))=xx_plot(length(x)-1); yy_plot(length(x))= yy_plot(length(x)-1); %% 求每点竖直线与包络线的交点 a_mm=zeros(length(x),1); for i=1:length(x) record=ones(length(x),1)*100; for j=1:length(x)-1 if( ( x(i)>min(xx_plot(j),xx_plot(j+1))|| x(i)==min(xx_plot(j),xx_plot(j+1)) ) ... && (x(i)<max(xx_plot(j),xx_plot(j+1))|| x(i)==max(xx_plot(j),xx_plot(j+1)) ) ) m_x=xx_plot(j:j+1); m_y=yy_plot(j:j+1); fit_par=polyfit(m_x,m_y,1);% 计算一次函数的斜率 与 b record(j)= x(i)*fit_par(1)+fit_par(2); end end a_mm(i)=min(record); end figure; % plot(x,a_m-y,'k'); % hold on; plot(x,y-a_mm,'k'); hold on; figure; plot(x,y,'r-'); hold on; plot(x,a_m,'k'); hold on; plot(x,a_mm,'k'); hold on;
