本文通过介绍神经网络基础和分步解释代码详细讲述了如何用C++编写神经网络，并且在最后给出实战手写数字识别的全过程指导。
讯享网
-
-
-
-
讯享网#ifndef NET_H
#define NET_H
#endif // NET_H
#pragma once
#include <span style=“color: #50a14f;line-height: 26px;”><iostream>
#include<span style=“color: #50a14f;line-height: 26px;”><opencv2\core\core.hpp>
#include<span style=“color: #50a14f;line-height: 26px;”><opencv2\highgui\highgui.hpp>
//#include<iomanip>
#include“Function.h”
namespace liu
{
class Net
{
public:
std:: vector< int> layer_neuron_num;
std:: vector<cv::Mat> layer;
std:: vector<cv::Mat> weights;
std:: vector<cv::Mat> bias;
public:
Net() {};
~Net() {};
//Initialize net:genetate weights matrices、layer matrices and bias matrices
// bias default all zero
void initNet( std:: vector< int> layer_neuron_num_);
//Initialise the weights matrices.
void initWeights( int type = 0, double a = 0., double b = 0.1);
//Initialise the bias matrices.
void initBias(cv::Scalar& bias);
//Forward
void forward();
//Forward
void backward();
protected:
//initialise the weight matrix.if type =0,Gaussian.else uniform.
void initWeight(cv::Mat &dst, int type, double a, double b);
//Activation function
cv::Mat activationFunction(cv::Mat &x, std:: string func_type);
//Compute delta error
void deltaError();
//Update weights
void updateWeights();
};
}
-
-
-
-
-
-
-
-
-
//Initialize net
void Net::initNet(std::vector<int> layer_neuronnum)
{
layer_neuron_num = layer_neuron num;
//Generate every layer.
layer.resize(layer_neuron_num.size());
for ( int i = 0; i < layer.size(); i++)
{
layer[i].create(layer_neuron_num[i], 1, CV_32FC1);
}
std:: cout << “Generate layers, successfully!” << std:: endl;
//Generate every weights matrix and bias
weights.resize(layer.size() - 1);
bias.resize(layer.size() - 1);
for ( int i = 0; i < (layer.size() - 1); ++i)
{
weights[i].create(layer[i + 1].rows, layer[i].rows, CV_32FC1);
//bias[i].create(layer[i + 1].rows, 1, CV_32FC1);
bias[i] = cv::Mat::zeros(layer[i + 1].rows, 1, CV 32FC1);
}
std::cout << “Generate weights matrices and bias, successfully!” << std::endl;
std::cout << “Initialise Net, done!” << std::endl;
}
讯享网 //initialise the weights matrix.if type =0,Gaussian.else uniform.
void Net::initWeight(cv::Mat &dst, int type, double a, double b)
{
if (type == 0)
{
randn(dst, a, b);
}
else
{
randu(dst, a, b);
}
}
//initialise the weights matrix.
void Net::initWeights(int type, double a, double b)
{
//Initialise weights cv::Matrices and bias
for (int i = 0; i < weights.size(); ++i)
{
initWeight(weights[i], 0, 0., 0.1);
}
}
//Initialise the bias matrices.
void Net::initBias(cv::Scalar& bias)
{
for ( int i = 0; i < bias.size(); i++)
{
bias[i] = bias_;
}
}
讯享网#include”/include/Net.h”
//<opencv2\opencv.hpp>
using namespace std;
using namespace cv;
using namespace liu;
int main(int argc, char *argv[])
{
//Set neuron number of every layer
vector< int> layer_neuron_num = { 784, 100, 10 };
// Initialise Net and weights
Net net;
net.initNet(layer_neuron_num);
net.initWeights( 0, 0., 0.01);
net.initBias(Scalar( 0.05));
getchar();
return 0;
}
Y = WX+b来表示，其中X是输入样本，这里即是第N层的单列矩阵，W是权值矩阵，Y是加权求和之后的结果矩阵，大小与N+1层的单列矩阵相同。b是偏置，默认初始化全部为0。不难推知，W的大小是
(N+1).rows * N.rows。正如上一篇中生成weights矩阵的代码实现一样:
weights[i].create(layer[i + 1].rows, layer[i].rows, CV_32FC1);
O=f(Y)来表示。Y就是上面得到的Y。O就是第N+1层的输出。f就是我们一直说的激活函数。激活函数一般都是非线性函数。它存在的价值就是给神经网络提供非线性建模能力。激活函数的种类有很多，比如sigmoid函数，tanh函数，ReLU函数等。各种函数的优缺点可以参考更为专业的论文和其他更为专业的资料。我们可以先来看一下前向函数forward()的代码：
讯享网 //Forward
void Net::forward()
{
for ( int i = 0; i < layer_neuron_num.size() - 1; ++i)
{
cv::Mat product = weights[i] * layer[i] + bias[i];
layer[i + 1] = activationFunction(product, activation_function);
}
}
activationFunction()里面实现了不同种类的激活函数，可以通过第二个参数来选取用哪一种。代码如下：
//Activation function
cv::Mat Net::activationFunction(cv::Mat &x, std:: string func_type)
{
activation_function = func_type;
cv::Mat fx;
if (func_type == “sigmoid”)
{
fx = sigmoid(x);
}
if (func_type == “tanh”)
{
fx = tanh(x);
}
if (func_type == “ReLU”)
{
fx = ReLU(x);
}
return fx;
}
Function.h和
Function.cpp文件中。在此略去不表，感兴趣的请君移步Github。
讯享网 //Backward
void Net::backward()
{
calcLoss(layer[layer.size() - 1], target, output_error, loss);
deltaError();
updateWeights();
}
-
calcLoss()计算输出误差和目标函数，所有输出误差平方和的均值作为需要最小化的目标函数。 -
deltaError()计算delta误差，也就是下图中delta1df()那部分。 -
updateWeights()更新权值，也就是用下图中的公式更新权值。
//Update weights
void Net::updateWeights()
{
for (int i = 0; i < weights.size(); ++i)
{
cv::Mat delta_weights = learning_rate (delta_err[i] layer[i].t());
weights[i] = weights[i] + delta_weights;
}
}
calcLoss()函数在Function.cpp文件中：
讯享网 //Objective function
void calcLoss(cv::Mat &output, cv::Mat &target, cv::Mat &output_error, float &loss)
{
if (target.empty())
{
std::cout << “Can’t find the target cv::Matrix” << std::endl;
return;
}
output_error = target - output;
cv::Mat err_sqrare;
pow(output_error, 2., err_sqrare);
cv::Scalar err_sqr_sum = sum(err_sqrare);
loss = err_sqr_sum[0] / (float)(output.rows);
}
deltaError()在Net.cpp中：
//Compute delta error
void Net::deltaError()
{
delta_err.resize(layer.size() - 1);
for (int i = delta_err.size() - 1; i >= 0; i–)
{
delta_err[i].create(layer[i + 1].size(), layer[i + 1].type());
//cv::Mat dx = layer[i+1].mul(1 - layer[i+1]);
cv::Mat dx = derivativeFunction(layer[i + 1], activation_function);
//Output layer delta error
if (i == delta_err.size() - 1)
{
delta_err[i] = dx.mul(output_error);
}
else //Hidden layer delta error
{
cv::Mat weight = weights[i];
cv::Mat weight_t = weights[i].t();
cv::Mat delta_err_1 = delta_err[i];
delta_err[i] = dx.mul((weights[i + 1]).t() delta_err[i + 1]);
}
}
}
讯享网 class Net
{
public:
//Integer vector specifying the number of neurons in each layer including the input and output layers.
std:: vector< int> layer_neuron_num;
std:: string activation_function = “sigmoid”;
double learning_rate;
double accuracy = 0.;
std:: vector< double> loss_vec;
float fine_tune_factor = 1.01;
protected:
std:: vector<cv::Mat> layer;
std:: vector<cv::Mat> weights;
std:: vector<cv::Mat> bias;
std:: vector<cv::Mat> delta_err;
cv::Mat output_error;
cv::Mat target;
float loss;
public:
Net() {};
Net() {};
//Initialize net:genetate weights matrices、layer matrices and bias matrices
// bias default all zero
void initNet(std::vector<int> layer_neuronnum);
//Initialise the weights matrices.
void initWeights(int type = 0, double a = 0., double b = 0.1);
//Initialise the bias matrices.
void initBias(cv::Scalar& bias);
//Forward
void forward();
//Forward
void backward();
//Train,use lossthreshold
void train(cv::Mat input, cv::Mat target, float loss_threshold, bool draw_losscurve = false); //Test
void test(cv::Mat &input, cv::Mat &target);
//Predict,just one sample
int predict_one(cv::Mat &input);
//Predict,more than one samples
std::vector<int> predict(cv::Mat &input);
//Save model;
void save(std::string filename);
//Load model;
void load(std::string filename);
protected:
//initialise the weight matrix.if type =0,Gaussian.else uniform.
void initWeight(cv::Mat &dst, int type, double a, double b);
//Activation function
cv::Mat activationFunction(cv::Mat &x, std::string func_type);
//Compute delta error
void deltaError();
//Update weights
void updateWeights();
};
-
-
-
-
//Train,use lossthreshold
void Net::train(cv::Mat input, cv::Mat target, float loss_threshold, bool draw_losscurve)
{
if (input.empty())
{
std::cout << “Input is empty!” << std::endl;
return;
}
std::cout << “Train,begain!” << std::endl;
cv::Mat sample;
if (input.rows == (layer[0].rows) && input.cols == 1)
{
target = target;
sample = input;
layer[0] = sample;
forward();
//backward();
int num_of_train = 0;
while (loss > loss_threshold)
{
backward();
forward();
num_of_train++;
if (num_of_train % 500 == 0)
{
std::cout << “Train ” << num_of_train << “ times” << std::endl;
std::cout << “Loss: ” << loss << std::endl;
}
}
std::cout << std::endl << “Train ” << num_of_train << “ times” << std::endl;
std::cout << “Loss: ” << loss << std::endl;
std::cout << “Train sucessfully!” << std::endl;
}
else if (input.rows == (layer[0].rows) && input.cols > 1)
{
double batch_loss = loss_threshold + 0.01;
int epoch = 0;
while (batch_loss > loss_threshold)
{
batchloss = 0.;
for (int i = 0; i < input.cols; ++i)
{
target = target.col(i);
sample = input.col(i);
layer[0] = sample;
farward();
backward();
batch_loss += loss;
}
loss_vec.push_back(batch_loss);
if (loss_vec.size() >= 2 && draw_loss_curve)
{
draw_curve(board, loss_vec);
}
epoch++;
if (epoch % output_interval == 0)
{
std::cout << “Number of epoch: ” << epoch << std::endl;
std::cout << “Loss sum: ” << batch_loss << std::endl;
}
if (epoch % 100 == 0)
{
learning_rate = fine_tune_factor;
}
}
std::cout << std::endl << “Number of epoch: ” << epoch << std::endl;
std::cout << “Loss sum: ” << batchloss << std::endl;
std::cout << “Train sucessfully!” << std::endl;
}
else
{
std::cout << “Rows of input don’t cv::Match the number of input!” << std::endl;
}
}
-
-
-
讯享网 //Test
void Net::test(cv::Mat &input, cv::Mat &target)
{
if (input.empty())
{
std::cout << “Input is empty!” << std::endl;
return;
}
std::cout << std::endl << “Predict,begain!” << std::endl;
if (input.rows == (layer[0].rows) && input.cols == 1)
{
int predict_number = predict_one(input);
cv::Point targetmaxLoc;
minMaxLoc(target, NULL, NULL, NULL, &target_maxLoc, cv::noArray());
int target_number = target_maxLoc.y;
std::cout << “Predict: ” << predict_number << std::endl;
std::cout << “Target: ” << target_number << std::endl;
std::cout << “Loss: ” << loss << std::endl;
}
else if (input.rows == (layer[0].rows) && input.cols > 1)
{
double loss_sum = 0;
int right_num = 0;
cv::Mat sample;
for (int i = 0; i < input.cols; ++i)
{
sample = input.col(i);
int predict_number = predict_one(sample);
losssum += loss;
target = target.col(i);
cv::Point target_maxLoc;
minMaxLoc(target, NULL, NULL, NULL, &target_maxLoc, cv::noArray());
int target_number = target_maxLoc.y;
std::cout << “Test sample: ” << i << “ ” << “Predict: ” << predict_number << std::endl;
std::cout << “Test sample: ” << i << “ ” << “Target: ” << target_number << std::endl << std::endl;
if (predict_number == target_number)
{
right_num++;
}
}
accuracy = (double)right_num / input.cols;
std::cout << “Loss sum: ” << loss_sum << std::endl;
std::cout << “accuracy: ” << accuracy << std::endl;
}
else
{
std::cout << “Rows of input don’t cv::Match the number of input!” << std::endl;
return;
}
}
predict()函数和predict_one()函数的区别相信很容易从名字看出来，那就是输入一个样本得到一个输出和输出一组样本得到一组输出的区别，显然predict()应该是循环调用predict_one()实现的。所以我们先看一下predict_one()的代码：
int Net::predict_one(cv::Mat &input)
{
if (input.empty())
{
std::cout << “Input is empty!” << std::endl;
return -1;
}
if (input.rows == (layer[0].rows) && input.cols == 1)
{
layer[0] = input;
forward();
cv::Mat layer_out = layer[layer.size() - 1];
cv::Point predict_maxLoc;
minMaxLoc(layer_out, NULL, NULL, NULL, &predict_maxLoc, cv::noArray());
return predict_maxLoc.y;
}
else
{
std::cout << “Please give one sample alone and ensure input.rows = layer[0].rows” << std::endl;
return -1;
}
} forward();
…
…
minMaxLoc(layer_out, NULL, NULL, NULL, &predict_maxLoc, cv::noArray()); forward();
…
…
minMaxLoc(layer_out, NULL, NULL, NULL, &predict_maxLoc, cv::noArray());
讯享网 forward();
…
…
minMaxLoc(layer_out, NULL, NULL, NULL, &predict_maxLoc, cv::noArray());
minMaxLoc()函数来寻找矩阵中最大值的位置。
float类型保存的，这种数值的矩阵Mat不能直接保存为图片格式，所以这里我选择了把预处理之后的样本矩阵和标签矩阵保存到xml文档中。在源码中可以找到把原始的csv文件转换成xml文件的代码。在csv2xml.cpp中。而我转换完成的MNIST的部分数据保存在data文件夹中，可以在Github上找到。
string filename = “input_label.xml”;
FileStorage fs(filename, FileStorage::WRITE);
fs << “input” << inputnormalized;
fs << “target” << target; // Write cv::Mat
fs.release();
讯享网 cv::FileStorage fs;
fs.open(filename, cv::FileStorage::READ);
cv::Mat input, target;
fs[“input”] >> input;
fs[“target”] >> target;
fs.release();
get_input_label()从xml文件中从指定的列开始提取一定数目的样本和标签。默认从第0列开始读取，只是上面函数的简单封装：
//Get sample_number samples in XML file,from the start column.
void get_input_label(std::string filename, cv::Mat& input, cv::Mat& label, int samplenum, int start)
{
cv::FileStorage fs;
fs.open(filename, cv::FileStorage::READ);
cv::Mat input, target;
fs[“input”] >> input;
fs[“target”] >> target;
fs.release();
input = input(cv::Rect(start, 0, samplenum, input.rows));
label = target_(cv::Rect(start, 0, samplenum, target.rows));
}
-
layer_neuron_num，各层神经元数目，这是生成神经网络需要的唯一参数。 -
weights，神经网络初始化之后需要用训练好的权值矩阵去初始化权值。 -
activation_function，使用神经网络的过程其实就是前向计算的过程，显然需要知道激活函数是什么。 -
learning_rate，如果要在现有模型的基础上继续训练以得到更好的模型，更新权值的时候需要用到这个函数。
xml格式，上一篇已经提到了保存和加载xml是多么的方便：
讯享网 //Save model;
void Net::save(std::string filename)
{
cv::FileStorage model(filename, cv::FileStorage::WRITE);
model << “layer_neuron_num” << layer_neuron_num;
model << “learning_rate” << learning_rate;
model << “activation_function” << activation_function;
for (int i = 0; i < weights.size(); i++)
{
std::string weightname = “weight” + std::to_string(i);
model << weightname << weights[i];
}
model.release();
}
//Load model;
void Net::load(std::string filename)
{
cv::FileStorage fs;
fs.open(filename, cv::FileStorage::READ);
cv::Mat input, target_;
fs[“layer_neuron_num”] >> layer_neuron_num;
initNet(layer_neuron_num);
for (int i = 0; i < weights.size(); i++)
{
std::string weightname = “weight” + std::to_string(i);
fs[weight_name] >> weights[i];
}
fs[“learning_rate”] >> learning_rate;
fs[“activation_function”] >> activation_function;
fs.release();
}
//Draw loss curve
void drawcurve(cv::Mat& board, std::vector<double> points)
{
cv::Mat board(620, 1000, CV8UC3, cv::Scalar::all(200));
board = board;
cv::line(board, cv::Point(0, 550), cv::Point(1000, 550), cv::Scalar(0, 0, 0), 2);
cv::line(board, cv::Point(50, 0), cv::Point(50, 1000), cv::Scalar(0, 0, 0), 2);
for (size_t i = 0; i < points.size() - 1; i++)
{
cv::Point pt1(50 + i 2, (int)(548 - points[i]));
cv::Point pt2(50 + i 2 + 1, (int)(548 - points[i + 1]));
cv::line(board, pt1, pt2, cv::Scalar(0, 0, 255), 2);
if (i >= 1000)
{
return;
}
}
cv::imshow(“Loss”, board);
cv::waitKey(10);
}
既然说到了输出的组织方式，那就顺便也提一句输入的组织方式。生成神经网络的时候，每一层都是用一个单列矩阵来表示的。显然第一层输入层就是一个单列矩阵。所以在对数据进行预处理的过程中，我就是把输入样本和标签一列一列地排列起来，作为矩阵存储。标签矩阵的第一列即是第一列样本的标签。以此类推。把输出层设置为一个单列十行的矩阵，标签是几就把第几行的元素设置为1，其余都设为0。由于编程中一般都是从0开始作为第一位的，所以位置与0-9的数字正好一一对应。我们到时候只需要找到输出最大值所在的位置，也就知道了输出是几。”

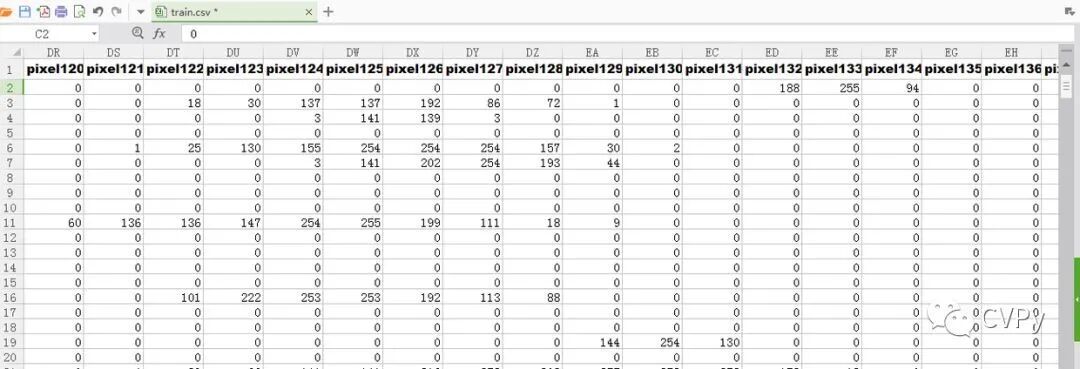

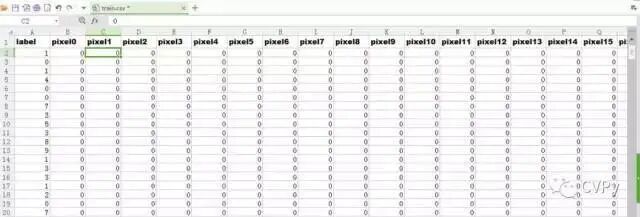

csv2xml.cpp中：
讯享网#include<opencv2\opencv.hpp>
#include<iostream>
using namespace std;
using namespace cv;
//int csv2xml()
int main()
{
CvMLData mlData;
mlData.read_csv(“train.csv”);//读取csv文件
Mat data = cv::Mat(mlData.get_values(), true);
cout << “Data have been read successfully!” << endl;
//Mat double_data;
//data.convertTo(double_data, CV64F);
Mat input = data(Rect(1, 1, 784, data.rows - 1)).t();
Mat label = data(Rect(0, 1, 1, data.rows - 1));
Mat target(10, input_.cols, CV_32F, Scalar::all(0.));
Mat digit(28, 28, CV_32FC1);
Mat col0 = input.col(3);
float label0 = label_.at<float>(3, 0);
cout << label0;
for (int i = 0; i < 28; i++)
{
for (int j = 0; j < 28; j++)
{
digit.at<float>(i, j) = col_0.at<float>(i 28 + j);
}
}
for (int i = 0; i < label_.rows; ++i)
{
float labelnum = label.at<float>(i, 0);
//target_.at<float>(labelnum, i) = 1.;
target.at<float>(label_num, i) = label_num;
}
Mat inputnormalized(input.size(), input.type());
for (int i = 0; i < input.rows; ++i)
{
for (int j = 0; j < input.cols; ++j)
{
//if (input.at<double>(i, j) >= 1.)
//{
inputnormalized.at<float>(i, j) = input.at<float>(i, j) / 255.;
//}
}
}
string filename = “input_label_0-9.xml”;
FileStorage fs(filename, FileStorage::WRITE);
fs << “input” << inputnormalized;
fs << “target” << target; // Write cv::Mat
fs.release();
Mat input_1000 = input_normalized(Rect(0, 0, 10000, input_normalized.rows));
Mat target1000 = target(Rect(0, 0, 10000, target_.rows));
string filename2 = “input_label_0-9_10000.xml”;
FileStorage fs2(filename2, FileStorage::WRITE);
fs2 << “input” << input_1000;
fs2 << “target” << target_1000; // Write cv::Mat
fs2.release();
return 0;
}

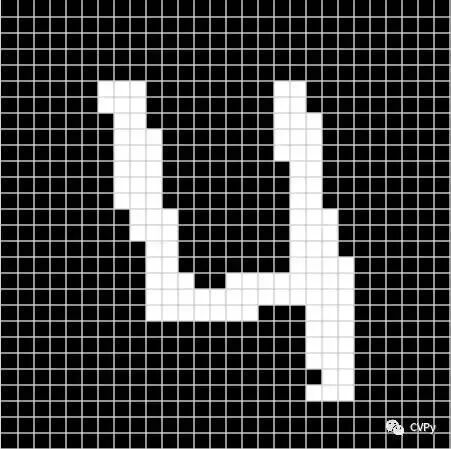

Mat digit的作用是，检验下转换后的矩阵和标签是否对应正确这里是把col(3)，也就是第四个样本从一行重新变成28x28的图像，看上面的第一张图的第一列可以看到，第四个样本的标签是4。那么它转换回来的图像时什么样呢？是下面这样：
-
-
-
-
-
-
#include”/include/Net.h”
//<opencv2\opencv.hpp>
using namespace std;
using namespace cv;
using namespace liu;
int main(int argc, char argv[])
{
//Set neuron number of every layer
vector<int> layer_neuron_num = { 784,100,10 };
// Initialise Net and weights
Net net;
net.initNet(layer_neuron_num);
net.initWeights(0, 0., 0.01);
net.initBias(Scalar(0.5));
//Get test samples and test samples
Mat input, label, test_input, test_label;
int sample_number = 800;
get_input_label(“data/input_label_1000.xml”, input, label, sample_number);
get_input_label(“data/input_label_1000.xml”, test_input, test_label, 200, 800);
//Set loss threshold,learning rate and activation function
float loss_threshold = 0.5;
net.learning_rate = 0.3;
net.output_interval = 2;
net.activation_function = “sigmoid”;
//Train,and draw the loss curve(cause the last parameter is ture) and test the trained net
net.train(input, label, loss_threshold, true);
net.test(test_input, test_label);
//Save the model
net.save(“models/model_sigmoid_800_200.xml”);
getchar();
return 0;
}

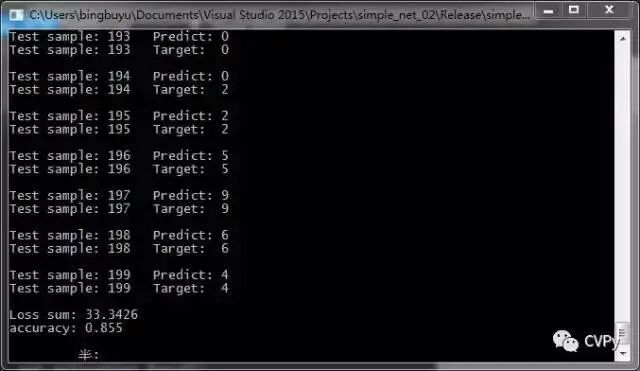

讯享网 //Get test samples and the label is 0–1
Mat test_input, test_label;
int sample_number = 200;
int start_position = 800;
get_input_label(“data/input_label_1000.xml”, test_input, test_label, sample_number, start_position);
//Load the trained net and test.
Net net;
net.load(“models/model_sigmoid_800_200.xml”);
net.test(test_input, test_label);
getchar();
return 0;
//Set loss threshold,learning rate and activation function
float loss_threshold = 0.2;
net.learning_rate = 0.02;
net.output_interval = 2;
net.activation_function = “tanh”;
//convert label from 0—1 to -1—1,cause tanh function range is [-1,1]
label = 2 label - 1;
test_label = 2 * test_label - 1;
讯享网
下载1：OpenCV-Contrib扩展模块中文版教程
在「小白学视觉」公众号后台回复：扩展模块中文教程，即可下载全网第一份OpenCV扩展模块教程中文版，涵盖扩展模块安装、SFM算法、立体视觉、目标跟踪、生物视觉、超分辨率处理等二十多章内容。
下载2：Python视觉实战项目52讲
在「小白学视觉」公众号后台回复：Python视觉实战项目，即可下载包括图像分割、口罩检测、车道线检测、车辆计数、添加眼线、车牌识别、字符识别、情绪检测、文本内容提取、面部识别等31个视觉实战项目，助力快速学校计算机视觉。
下载3：OpenCV实战项目20讲
在「小白学视觉」公众号后台回复：OpenCV实战项目20讲，即可下载含有20个基于OpenCV实现20个实战项目，实现OpenCV学习进阶。
交流群
欢迎加入公众号读者群一起和同行交流，目前有SLAM、三维视觉、传感器、自动驾驶、计算摄影、检测、分割、识别、医学影像、GAN、算法竞赛等微信群（以后会逐渐细分），请扫描下面微信号加群，备注：”昵称+学校/公司+研究方向“，例如：”张三 + 上海交大 + 视觉SLAM“。请按照格式备注，否则不予通过。添加成功后会根据研究方向邀请进入相关微信群。请勿在群内发送广告，否则会请出群，谢谢理解
版权声明：本文内容由互联网用户自发贡献，该文观点仅代表作者本人。本站仅提供信息存储空间服务，不拥有所有权，不承担相关法律责任。如发现本站有涉嫌侵权/违法违规的内容，请联系我们，一经查实，本站将立刻删除。
如需转载请保留出处：https://51itzy.com/kjqy/152975.html
