cebemax hal库 stm32 OLED移植
序言：
这是一篇对于作者对于将OLED的驱动代码移植成hal库的文章，会有完整的过程，后面自然也会有完整的代码，希望能够帮到大家，同时也是做一个记录，方便自己查看。
注：萌新写文，大佬轻喷。
1.写命令与数据函数的完成
原标准库代码
void I2C_Configuration(void) { I2C_InitTypeDef I2C_InitStructure; GPIO_InitTypeDef GPIO_InitStructure; RCC_APB1PeriphClockCmd(RCC_APB1Periph_I2C1,ENABLE); RCC_APB2PeriphClockCmd(RCC_APB2Periph_GPIOB,ENABLE); GPIO_InitStructure.GPIO_Pin = GPIO_Pin_6 | GPIO_Pin_7; GPIO_InitStructure.GPIO_Speed = GPIO_Speed_50MHz; GPIO_InitStructure.GPIO_Mode = GPIO_Mode_AF_OD; GPIO_Init(GPIOB, &GPIO_InitStructure); I2C_DeInit(I2C1); I2C_InitStructure.I2C_Mode = I2C_Mode_I2C; I2C_InitStructure.I2C_DutyCycle = I2C_DutyCycle_2; I2C_InitStructure.I2C_OwnAddress1 = 0x30; I2C_InitStructure.I2C_Ack = I2C_Ack_Enable; I2C_InitStructure.I2C_AcknowledgedAddress = I2C_AcknowledgedAddress_7bit; I2C_InitStructure.I2C_ClockSpeed = ; I2C_Cmd(I2C1, ENABLE); I2C_Init(I2C1, &I2C_InitStructure); } void I2C_WriteByte(uint8_t addr,uint8_t data) { while(I2C_GetFlagStatus(I2C1, I2C_FLAG_BUSY)); I2C_GenerateSTART(I2C1, ENABLE); while(!I2C_CheckEvent(I2C1, I2C_EVENT_MASTER_MODE_SELECT)); I2C_Send7bitAddress(I2C1, OLED_ADDRESS, I2C_Direction_Transmitter); while(!I2C_CheckEvent(I2C1, I2C_EVENT_MASTER_TRANSMITTER_MODE_SELECTED)); I2C_SendData(I2C1, addr); while (!I2C_CheckEvent(I2C1, I2C_EVENT_MASTER_BYTE_TRANSMITTED)); I2C_SendData(I2C1, data); while (!I2C_CheckEvent(I2C1, I2C_EVENT_MASTER_BYTE_TRANSMITTED)); I2C_GenerateSTOP(I2C1, ENABLE); } void WriteCmd(unsigned char I2C_Command) { I2C_WriteByte(0x00, I2C_Command); } void WriteDat(unsigned char I2C_Data) { I2C_WriteByte(0x40, I2C_Data); } 讯享网
函数说明
I2C_Configuration 其实就是 I2C 的初始化函数，hal库里有现成的，所以删除。
I2C_WriteByte 在下面的两个函数有用到，但hal库里有现成的，所以删除。
WriteCmd 和 WriteDat 改写成 HAL 库的方式DelayMs 改为 HAL 库中的函数： HAL_I2C_Mem_Write……
所以就变成了
函数移植
讯享网void WriteCmd(unsigned char I2C_Command) { HAL_I2C_Mem_Write(&hi2c1,0X78,0x00,I2C_MEMADD_SIZE_8BIT,&I2C_Command,1,100); } void WriteDat(unsigned char I2C_Data) { HAL_I2C_Mem_Write(&hi2c1,0X78,0x40,I2C_MEMADD_SIZE_8BIT,&I2C_Data,1,100); }
大家一定很疑惑，为啥一下子就变成这样了勒？
别急，接下来就来好好讲讲。
首先，我们先来看看HAL_I2C_Mem_Write函数的原型。
机翻，不一定会很准确，但能看懂。
移植代码的说明
说过了，是机翻，作者英语不好。
/ * @brief以阻塞模式向特定内存地址写入大量数据 * @param hi2c指针指向一个I2C_HandleTypeDef结构，包含 *指定I2C的配置信息。 目标设备地址:设备7位地址值 *在数据表中必须在调用接口前向左移动 * @param MemAddress内存地址 * @param MemAddSize内存地址的大小 @param pData指向数据缓冲区的指针 * @param大小要发送的数据量 * @param超时超时持续时间 @retval HAL状态 */ 我们再对照着完整的函数看。
讯享网HAL_StatusTypeDef HAL_I2C_Mem_Write(I2C_HandleTypeDef *hi2c, uint16_t DevAddress, uint16_t MemAddress, uint16_t MemAddSize, uint8_t *pData, uint16_t Size, uint32_t Timeout)
两相对照，我们就能够看明白每一个参数大概是干啥的。
这样一来，我们再来看一下我之前写的那两个函数。
void WriteCmd(unsigned char I2C_Command) { HAL_I2C_Mem_Write(&hi2c1,0X78,0x00,I2C_MEMADD_SIZE_8BIT,&I2C_Command,1,100); } void WriteDat(unsigned char I2C_Data) { HAL_I2C_Mem_Write(&hi2c1,0X78,0x40,I2C_MEMADD_SIZE_8BIT,&I2C_Data,1,100); } 大概能看明白了吧。
其中，0X78就是OLED的地址，这是默认地址，还有一种是0X7A的，具体怎么搞，我也没仔细研究，暂时用不上。
I2C_MEMADD_SIZE_8BIT是一个宏定义
讯享网#define I2C_MEMADD_SIZE_8BIT 0x00000001U
代码的优化
void OLED_Write(unsigned char dat,unsigned char cmd) { if(cmd) HAL_I2C_Mem_Write(&hi2c1,0X78,0x00,I2C_MEMADD_SIZE_8BIT,&dat,1,100); else HAL_I2C_Mem_Write(&hi2c1,0X78,0x40,I2C_MEMADD_SIZE_8BIT,&dat,1,100); } 显而易见，dat填要写的数据，cmd选择是写数据还是写命令。
那么，到此，最为基本的写命令与数据的函数就完成了。
接下来，开始写初始化。
2.OLED初始化函数
原标准库函数
讯享网void OLED_Init(void) { IIC_Init(); DelayMs(500); //初始化之前的延时很重要！ OLED_WR_Byte(0xAE,OLED_CMD); //关闭显示 OLED_WR_Byte(0x00,OLED_CMD);//设置低列地址 OLED_WR_Byte(0x10,OLED_CMD);//设置高列地址 OLED_WR_Byte(0x40,OLED_CMD);//设置起始行地址,集映射RAM显示起始行(0x00~0x3F) OLED_WR_Byte(0x81,OLED_CMD);//设置对比度控制寄存器 OLED_WR_Byte(0xCF,OLED_CMD);//设置SEG输出电流亮度 OLED_WR_Byte(0xA1,OLED_CMD);//段重定义设置,bit0:0,0->0;1,0->127; 0xa0左右反置 0xa1正常 OLED_WR_Byte(0xC8,OLED_CMD);//设置COM扫描方向;bit3:0,普通模式;1,重定义模式 COM[N-1]->COM0;N:驱动路数 0xc0上下反置 0xc8正常 OLED_WR_Byte(0xA6,OLED_CMD);//设置正常显示(设置显示方式;bit0:1,反相显示;0,正常显示 ) OLED_WR_Byte(0xA8,OLED_CMD);//设置驱动路数 设置多路复用比(1比64) OLED_WR_Byte(0x3F,OLED_CMD);//1/64 duty(默认0X3F(1/64)) OLED_WR_Byte(0xD3,OLED_CMD);//设置显示偏移位移映射RAM计数器(0x00~0x3F) OLED_WR_Byte(0x00,OLED_CMD);//-not offset OLED_WR_Byte(0xD5,OLED_CMD);//设置显示时钟分频比/振荡器频率 OLED_WR_Byte(0x80,OLED_CMD);//设置分频比，设置时钟为100帧/秒 OLED_WR_Byte(0xD9,OLED_CMD);//设置预充电周期 OLED_WR_Byte(0xF1,OLED_CMD);//设置预充15个时钟，放电1个时钟([3:0],PHASE 1;[7:4],PHASE 2;) OLED_WR_Byte(0xDA,OLED_CMD);//设置COM硬件引脚配置 OLED_WR_Byte(0x12,OLED_CMD);//[5:4]配置 OLED_WR_Byte(0xDB,OLED_CMD);//设置VCOMH 电压倍率 OLED_WR_Byte(0x40,OLED_CMD);//Set VCOM 释放电压([6:4] 000,0.65*vcc;001,0.77*vcc;011,0.83*vcc;) OLED_WR_Byte(0x20,OLED_CMD);//设置页面寻址模式(0x00/0x01/0x02) OLED_WR_Byte(0x02,OLED_CMD);//[1:0],00，列地址模式;01，行地址模式;10,页地址模式;默认10; OLED_WR_Byte(0x8D,OLED_CMD);//设置充电泵启用/禁用 OLED_WR_Byte(0x14,OLED_CMD);//设置(0x10禁用,0x14启用) OLED_WR_Byte(0xA4,OLED_CMD);// 全局显示开启;bit0:1,开启;0,关闭;(白屏/黑屏) (0xa4/0xa5) OLED_WR_Byte(0xA6,OLED_CMD);// 设置显示方式;bit0:1,反相显示;0,正常显示 (0xa6/a7) OLED_WR_Byte(0xAF,OLED_CMD);//开启显示 OLED_Clear(); OLED_SetCursorAddrese(0,0); }
移植后函数
const uint8_t OLED_Init_cmd[28]= { 0xAE, //关闭显示 0x00,//设置低列地址 0x10,//设置高列地址 0x40,//设置起始行地址,集映射RAM显示起始行(0x00~0x3F) 0x81,//设置对比度控制寄存器 0xCF,//设置SEG输出电流亮度 0xA1,//段重定义设置,bit0:0,0->0;1,0->127; 0xa0左右反置 0xa1正常 0xC8,//设置COM扫描方向;bit3:0,普通模式;1,重定义模式 COM[N-1]->COM0;N:驱动路数 0xc0上下反置 0xc8正常 0xA6,//设置正常显示(设置显示方式;bit0:1,反相显示;0,正常显示 ) 0xA8,//设置驱动路数 设置多路复用比(1比64) 0x3F,//1/64 duty(默认0X3F(1/64)) 0xD3,//设置显示偏移位移映射RAM计数器(0x00~0x3F) 0x00,//-not offset 0xD5,//设置显示时钟分频比/振荡器频率 0x80,//设置分频比，设置时钟为100帧/秒 0xD9,//设置预充电周期 0xF1,//设置预充15个时钟，放电1个时钟([3:0],PHASE 1;[7:4],PHASE 2;) 0xDA,//设置COM硬件引脚配置 0x12,//[5:4]配置 0xDB,//设置VCOMH 电压倍率 0x40,//Set VCOM 释放电压([6:4] 000,0.65*vcc;001,0.77*vcc;011,0.83*vcc;) 0x20,//设置页面寻址模式(0x00/0x01/0x02) 0x02,//[1:0],00，列地址模式;01，行地址模式;10,页地址模式;默认10; 0x8D,//设置充电泵启用/禁用 0x14,//设置(0x10禁用,0x14启用) 0xA4,// 全局显示开启;bit0:1,开启;0,关闭;(白屏/黑屏) (0xa4/0xa5) 0xA6,// 设置显示方式;bit0:1,反相显示;0,正常显示 (0xa6/a7) 0xAF //开启显示 }; 然后再加一个初始化的for循环
讯享网void OLED_Init(void) { uint8_t i; //IIC_Init(); //cubemax自动生成了，我们不需要。 HAL_Delay(500); //初始化之前的延时很重要！ for(i = 0;i < 29;i ++) { OLED_Write(OLED_Init_cmd[i],1); } OLED_Clear(); OLED_SetCursorAddrese(0,0); }
原初始化函数里还有三个函数的调用，其中一个我们不需要，另外两个我们先放着，一个是用来清屏的，还有一个是用来设置光标位置的，后面马上就可以看到。
那么，至此，初始化便完成了，我们继续改其他的函数。
上原函数。
3.OLED其他功能函数移植
开显示，关显示，还有显示一个点的原函数
/*函数功能:开启OLED显示 */ void OLED_Display_On(void) { OLED_WR_Byte(0X8D,OLED_CMD); //SET DCDC命令（设置电荷泵） OLED_WR_Byte(0X14,OLED_CMD); //DCDC ON （开启电荷泵） OLED_WR_Byte(0XAF,OLED_CMD); //DISPLAY ON（OLED唤醒） } /*函数功能:关闭OLED显示*/ void OLED_Display_Off(void) { OLED_WR_Byte(0X8D,OLED_CMD); //SET DCDC命令 （设置电荷泵） OLED_WR_Byte(0X10,OLED_CMD); //DCDC OFF （关闭电荷泵） OLED_WR_Byte(0XAE,OLED_CMD); //DISPLAY OFF （OLED休眠） } /* 函数功能:清屏函数,清完屏,整个屏幕是黑色的! 说明: 清屏就是向OLED里写0 对于OLED屏,0就不显示,1才会在屏幕上显示出来一个点 */ void OLED_Clear(void) { u8 i,n; for(i=0;i<8;i++) { OLED_WR_Byte(0xB0+i,OLED_CMD);//设置页地址（0~7） OLED_WR_Byte(0x00,OLED_CMD); //设置显示位置―列低地址 OLED_WR_Byte(0x10,OLED_CMD); //设置显示位置―列高地址 for(n=0;n<128;n++) { OLED_WR_Byte(0x00,OLED_DATA); } } } 开显示的修改
讯享网/*函数功能:开启OLED显示 */ void OLED_Display_On(void) { OLED_Write(0X8D,1);//SET DCDC命令（设置电荷泵） OLED_Write(0X14,1);//DCDC ON （开启电荷泵） OLED_Write(0XAF,1);//DISPLAY ON（OLED唤醒） }
关显示的修改
/*函数功能:关闭OLED显示*/ void OLED_Display_Off(void) { OLED_Write(0X8D,1);//SET DCDC命令 （设置电荷泵） OLED_Write(0X10,1); //DCDC OFF （关闭电荷泵） OLED_Write(0XAE,1);//DISPLAY OFF （OLED休眠） } 清屏函数的修改
讯享网/* 函数功能:清屏函数,清完屏,整个屏幕是黑色的! 说明: 清屏就是向OLED里写0 对于OLED屏,0就不显示,1才会在屏幕上显示出来一个点 */ void OLED_Clear(void) { u8 i,n; for(i=0;i<8;i++) { OLED_Write(0xB0+i,1);//设置页地址（0~7） OLED_Write(0x00,1);//设置显示位置―列低地址 OLED_Write(0x10,1);//设置显示位置―列高地址 for(n=0;n<128;n++) { OLED_Write(0x00,0); } } }
直接复制的小伙伴，是不是有些出现了问题，哈哈。
是一些有关于宏定义的问题。
在c文件里加上这一段就行：
typedef signed char int8_t; // 标准表达方式 signed char 被等同于 int8_t； typedef signed short int int16_t; typedef signed int int32_t; //在32位环境里，int代表4个字节32位！！ /* exact-width unsigned integer types */ typedef unsigned char uint8_t; typedef unsigned short int uint16_t; typedef unsigned int uint32_t; typedef int32_t s32; typedef int16_t s16; typedef int8_t s8; typedef uint32_t u32; //32位 typedef uint16_t u16; //16位 typedef uint8_t u8; //8位 接下来便是
写点，设光标以及垂直滚动的原函数
讯享网/* 函数功能：在显存数组上画一个点 函数参数：x，y为点的横纵坐标 c为这个点的亮灭（1亮0灭） 参数范围：x 0~128 y 0~8 每一个数据是 低位在前，高位在后 */ void OLED_Draw_Point(u8 x,u8 y,u8 c) { u8 page,addr; page = y/8; //显存的页地址 addr = y%8; //显存的一个字节数据中c所在的位置 if(c) OLED_GRAM[page][x] |= 1<<addr; else OLED_GRAM[page][x] &= ~(1<<addr); } /* 函数功能: 设置光标位置 函数参数: x列的起始位置(0~127) y页的起始位置(0~7) 比如: 0x8 高4位0000 低4位1000 */ void OLED_SetCursorAddrese(u8 x,u8 y) { OLED_WR_Byte(0xB0+y,OLED_CMD); //设置页地址 //第6列显示数据 6被分成2个4位(高位和低位)。 OLED_WR_Byte((x&0xF0)>>4|0x10,OLED_CMD);//设置列高起始地址(半字节) OLED_WR_Byte((x&0x0F)|0x00,OLED_CMD); //设置列低起始地址(半字节) } /* 函数名称：OLED_VerticalDisplay 函数功能：实现OLED垂直滚动范围配置 参 数：1.toprow：设置滚动起始行 2.scrollrow：设置滚动行数 注意：toprow+scrollrow<64 函数返回：无 / void OLED_VerticalDisplay(u8 toprow,u8 scrollrow) { OLED_WR_Byte(SET_VERTICAL_SCROLL_AREA,OLED_CMD); OLED_WR_Byte(toprow,OLED_CMD); OLED_WR_Byte(scrollrow,OLED_CMD); }
写点函数的修改
这些函数的名字啥的我都懒得改了，无所谓的。
/* 函数功能：在显存数组上画一个点 函数参数：x，y为点的横纵坐标 c为这个点的亮灭（1亮0灭） 参数范围：x 0~128 y 0~8 每一个数据是 低位在前，高位在后 */ void OLED_Draw_Point(u8 x,u8 y,u8 c) { u8 page,addr; page = y/8; //显存的页地址 addr = y%8; //显存的一个字节数据中c所在的位置 if(c) OLED_GRAM[page][x] |= 1<<addr; else OLED_GRAM[page][x] &= ~(1<<addr); } 这个好像不用改，不过涉及到一个数组，之前没有定义，定义一下。
讯享网u8 OLED_GRAM[8][128];/*定义OLED显存数组*/
函数内容很简单，就是要让哪位显示出来，就给哪位赋值一个1，不显示就给那位非一下，赋值0.
设光标函数的修改
/* 函数功能: 设置光标位置 函数参数: x列的起始位置(0~127) y页的起始位置(0~7) 比如: 0x8 高4位0000 低4位1000 */ void OLED_SetCursorAddrese(u8 x,u8 y) { OLED_Write(0xB0+y,1); //设置页地址 //第6列显示数据 6被分成2个4位(高位和低位)。 OLED_Write((x&0xF0)>>4|0x10,1);//设置列高起始地址(半字节) OLED_Write((x&0x0F)|0x00,1); //设置列低起始地址(半字节) } 滚动函数修改
讯享网/* 函数名称：OLED_VerticalDisplay 函数功能：实现OLED垂直滚动范围配置 参 数：1.toprow：设置滚动起始行 2.scrollrow：设置滚动行数 注意：toprow+scrollrow<64 函数返回：无 / void OLED_VerticalDisplay(u8 toprow,u8 scrollrow) { OLED_Write(0xA3,1);//设置垂直滚动范围命令 OLED_Write(toprow,1);//设置滚动起始行 OLED_Write(scrollrow,1);//设置滚动行数 }
关闭滚动， 按页清屏，更新显示原函数
/* 函数名称：OledScrollStop 函数功能：关闭滚屏功能 / void OledScrollStop(void) { OLED_WR_Byte(DEACTIVATE_SCROLL,OLED_CMD); } /* 函数功能: 按页清屏 （0~7） */ void OLED_PageClear(u8 page) { u8 j; OLED_WR_Byte(0xB0+page,OLED_CMD); //设置页地址 OLED_WR_Byte(0x10,OLED_CMD); //设置列高起始地址(半字节) OLED_WR_Byte(0x00,OLED_CMD); //设置列低起始地址(半字节) for(j=0;j<128;j++) { OLED_WR_Byte(0,OLED_DATA); //写数据 } } /* 函数功能：更新显存到OLED屏幕上 */ void OLED_Refresh_Screen(void) { u8 page,list; //定义页地址和列地址 for(page=0;page<8;page++) { OLED_WR_Byte(0xB0+page,OLED_CMD); //设置页地址（0~7） OLED_WR_Byte(0x00,OLED_CMD); //设置显示位置―列低地址 OLED_WR_Byte(0x10,OLED_CMD); //设置显示位置―列高地址 for(list=0;list<128;list++) { OLED_WR_Byte(OLED_GRAM[page][list],OLED_DATA); } } memset(OLED_GRAM,0,sizeof(OLED_GRAM)); /*清空显存数组*/ } 关闭滚动函数修改
讯享网/* 函数名称：OledScrollStop 函数功能：关闭滚屏功能 / void OledScrollStop(void) { OLED_Write(0x2E,1);//关闭滚动显示功能 }
按页清屏函数修改
/* 函数功能: 按页清屏 （0~7） */ void OLED_PageClear(u8 page) { u8 j; OLED_Write(0xB0+page,1); //设置页地址 OLED_Write(0x10,1); //设置列高起始地址(半字节) OLED_Write(0x00,1); //设置列低起始地址(半字节) for(j=0;j<128;j++) { OLED_Write(0,0); //写数据 } } 更新显示函数修改
讯享网/* 函数功能：更新显存到OLED屏幕上 */ void OLED_Refresh_Screen(void) { u8 page,list; //定义页地址和列地址 for(page=0;page<8;page++) { OLED_Write(0xB0+page,1); //设置页地址（0~7） OLED_Write(0x00,1); //设置显示位置―列低地址 OLED_Write(0x10,1); //设置显示位置―列高地址 for(list=0;list<128;list++) { OLED_Write(OLED_GRAM[page][list],0); } } memset(OLED_GRAM,0,sizeof(OLED_GRAM)); /*清空显存数组*/ }
memset(OLED_GRAM,0,sizeof(OLED_GRAM)); /清空显存数组/这个函数是#include "string.h"这里面的一个函数，整句话的意思是，向OLED_GRAM数组里面写满0.
4.字符显示函数
基础的函数都移植完了，那么接下来就是显示的函数了，原函数这里就不放了。
原程序里他把中英文搞一块儿我觉得编程序的时候不太友好，给**了， 我给单独领出来了，这里只能显示些英文符号。
也不是说他那样干不好，不过一般我们用起来其实最多几个汉字，自己取一下模就行。
或者有兴趣的也可以按照他那样搞一个中文字库，哈哈，有搞好的千万@我一下。
我还是把他的原版程序给你们看看吧。
原程序
void OLED_DisplayString(u8 x,u8 y,u8 width,u8 height,u8 *str) { u8 addr=0,i; u16 font=0; while(*str!='\0') //连续显示 { //取模从空格开始的，计算下标 //写8*16ASCII字符的上半部分 if(*str >= ' '&& *str <= '~') //显示英文 { addr=*str-' '; //取模从空格开始的，计算下标 //写8*16ASCII字符的上半部分 OLED_SetCursorAddrese(x,y); //设置光标的位置 for(i=0;i<width/2;i++) //横向写width列 { OLED_WR_Byte(ASCII_8_16[addr][i],OLED_DATA); } //写8*16ASCII字符的下半部分 OLED_SetCursorAddrese(x,y+1); //设置光标的位置 for(i=0;i<width/2;i++) //横向写width列 { OLED_WR_Byte(ASCII_8_16[addr][i+width/2],OLED_DATA); } str++;//继续显示下一个字符 x+=width/2; //在下一个位置继续显示数据 } else //显示中文 { OLED_SetCursorAddrese(x,y); //设置光标的位置 font=((*str)<<8)+(*(str+1)); switch(font) { case 0xCEC2:addr=0;break;//温 case 0xCAAA:addr=1;break;//湿 case 0xB6C8:addr=2;break;//度 case 0xCAFD:addr=3;break;//数 case 0xBEDD:addr=4;break;//据 case 0xB3C9:addr=5;break;//成 case 0xB9A6:addr=6;break;//功 case 0xB7A2:addr=7;break;//发 case 0xCBCD:addr=8;break;//送 case 0xC1AC:addr=9;break;//连 case 0xBDD3:addr=10;break;//接 case 0xB7FE:addr=11;break;//服 case 0xCEF1:addr=12;break;//务 case 0xC6F7:addr=13;break;//器 case 0xC9CF:addr=14;break;//上 case 0xCFC2:addr=15;break;//下 case 0xCFDE:addr=16;break;//限 case 0xD6B5:addr=17;break;//值 case 0xC9E8:addr=18;break;//设 case 0xD6C3:addr=19;break;//置 case 0xB4AB:addr=20;break;//传 case 0xD6DC:addr=21;break;//周 case 0xC6DA:addr=22;break;//期 case 0xBFD8:addr=23;break;//控 case 0xD6C6:addr=24;break;//制 case 0xB2CE:addr=25;break;//参 case 0xD7DC:addr=26;break;//总 case 0xB1ED:addr=27;break;//表 case 0xB1B8:addr=28;break;//备 case 0xCDF8:addr=29;break;//网 case 0xC2E7:addr=30;break;//络 case 0xD0C5:addr=31;break;//信 case 0xCFA2:addr=32;break;//息 case 0xCAA7:addr=33;break;//失 case 0xB0DC:addr=34;break;//败 case 0xB1A3:addr=35;break;//保 case 0xB4E6:addr=36;break;//存 case 0xB9FD:addr=37;break;//过 case 0xB8DF:addr=38;break;//高 case 0xA1E6:addr=39;break;//℃ case 0xD0C7:addr=40;break;//星 case 0xC8D5:addr=42;break;//日 case 0xD2BB:addr=43;break;//一 case 0xB6FE:addr=44;break;//二 case 0xC8FD:addr=45;break;//三 case 0xCBC4:addr=46;break;//四 case 0xCEE5:addr=47;break;//五 case 0xC1F9:addr=48;break;//六 case 0xC4EA:addr=49;break;//年 case 0xD4C2:addr=50;break;//月 default : break; } for(i=0;i<width;i++) //横向写width列 { OLED_WR_Byte(ChineseFont_16_16[addr][i],OLED_DATA); } //写8*16ASCII字符的下半部分 OLED_SetCursorAddrese(x,y+1); //设置光标的位置 for(i=0;i<width;i++) //横向写width列 { OLED_WR_Byte(ChineseFont_16_16[addr][i+width],OLED_DATA); } str+=2;//继续显示下一个字符 x+=width; //在下一个位置继续显示数据 } } } 英文字符显示函数修改
讯享网void OLED_DisplayString(u8 x,u8 y,u8 *str) { u8 addr=0,i; u16 font=0; while(*str!='\0') //连续显示 { //取模从空格开始的，计算下标 //写8*16ASCII字符的上半部分 addr=*str-' '; //取模从空格开始的，计算下标 //写8*16ASCII字符的上半部分 OLED_SetCursorAddrese(x,y); //设置光标的位置 for(i=0;i<8;i++) //横向写width列 { OLED_Write(ASCII_8_16[addr][i],0); } //写8*16ASCII字符的下半部分 OLED_SetCursorAddrese(x,y+1); //设置光标的位置 for(i=0;i<8;i++) //横向写width列 { OLED_Write(ASCII_8_16[addr][i+8],0); } str++;//继续显示下一个字符 x+=8; //在下一个位置继续显示数据 } }
ASCII_8_16数组
const u8 ASCII_8_16[][16]= { {0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*" ",0*/ {0x00,0x00,0x00,0xF8,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x33,0x00,0x00,0x00,0x00},/*"!",1*/ {0x00,0x10,0x0C,0x02,0x10,0x0C,0x02,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*""",2*/ {0x00,0x40,0xC0,0x78,0x40,0xC0,0x78,0x00,0x00,0x04,0x3F,0x04,0x04,0x3F,0x04,0x00},/*"#",3*/ {0x00,0x70,0x88,0x88,0xFC,0x08,0x30,0x00,0x00,0x18,0x20,0x20,0xFF,0x21,0x1E,0x00},/*"$",4*/ {0xF0,0x08,0xF0,0x80,0x60,0x18,0x00,0x00,0x00,0x31,0x0C,0x03,0x1E,0x21,0x1E,0x00},/*"%",5*/ {0x00,0xF0,0x08,0x88,0x70,0x00,0x00,0x00,0x1E,0x21,0x23,0x2C,0x19,0x27,0x21,0x10},/*"&",6*/ {0x00,0x12,0x0E,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"'",7*/ {0x00,0x00,0x00,0xE0,0x18,0x04,0x02,0x00,0x00,0x00,0x00,0x07,0x18,0x20,0x40,0x00},/*"(",8*/ {0x00,0x02,0x04,0x18,0xE0,0x00,0x00,0x00,0x00,0x40,0x20,0x18,0x07,0x00,0x00,0x00},/*")",9*/ {0x40,0x40,0x80,0xF0,0x80,0x40,0x40,0x00,0x02,0x02,0x01,0x0F,0x01,0x02,0x02,0x00},/*"*",10*/ {0x00,0x00,0x00,0x00,0xE0,0x00,0x00,0x00,0x00,0x01,0x01,0x01,0x0F,0x01,0x01,0x01},/*"+",11*/ {0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x90,0x70,0x00,0x00,0x00,0x00,0x00},/*",",12*/ {0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0x01,0x01,0x01,0x01,0x01,0x00},/*"-",13*/ {0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x30,0x30,0x00,0x00,0x00,0x00,0x00},/*".",14*/ {0x00,0x00,0x00,0x00,0xC0,0x38,0x04,0x00,0x00,0x60,0x18,0x07,0x00,0x00,0x00,0x00},/*"/",15*/ {0x00,0xE0,0x10,0x08,0x08,0x10,0xE0,0x00,0x00,0x0F,0x10,0x20,0x20,0x10,0x0F,0x00},/*"0",16*/ {0x00,0x00,0x10,0x10,0xF8,0x00,0x00,0x00,0x00,0x00,0x20,0x20,0x3F,0x20,0x20,0x00},/*"1",17*/ {0x00,0x70,0x08,0x08,0x08,0x08,0xF0,0x00,0x00,0x30,0x28,0x24,0x22,0x21,0x30,0x00},/*"2",18*/ {0x00,0x30,0x08,0x08,0x08,0x88,0x70,0x00,0x00,0x18,0x20,0x21,0x21,0x22,0x1C,0x00},/*"3",19*/ {0x00,0x00,0x80,0x40,0x30,0xF8,0x00,0x00,0x00,0x06,0x05,0x24,0x24,0x3F,0x24,0x24},/*"4",20*/ {0x00,0xF8,0x88,0x88,0x88,0x08,0x08,0x00,0x00,0x19,0x20,0x20,0x20,0x11,0x0E,0x00},/*"5",21*/ {0x00,0xE0,0x10,0x88,0x88,0x90,0x00,0x00,0x00,0x0F,0x11,0x20,0x20,0x20,0x1F,0x00},/*"6",22*/ {0x00,0x18,0x08,0x08,0x88,0x68,0x18,0x00,0x00,0x00,0x00,0x3E,0x01,0x00,0x00,0x00},/*"7",23*/ {0x00,0x70,0x88,0x08,0x08,0x88,0x70,0x00,0x00,0x1C,0x22,0x21,0x21,0x22,0x1C,0x00},/*"8",24*/ {0x00,0xF0,0x08,0x08,0x08,0x10,0xE0,0x00,0x00,0x01,0x12,0x22,0x22,0x11,0x0F,0x00},/*"9",25*/ {0x00,0x00,0x00,0xC0,0xC0,0x00,0x00,0x00,0x00,0x00,0x00,0x30,0x30,0x00,0x00,0x00},/*":",26*/ {0x00,0x00,0x00,0x80,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xE0,0x00,0x00,0x00,0x00},/*";",27*/ {0x00,0x00,0x80,0x40,0x20,0x10,0x08,0x00,0x00,0x01,0x02,0x04,0x08,0x10,0x20,0x00},/*"<",28*/ {0x00,0x40,0x40,0x40,0x40,0x40,0x40,0x00,0x00,0x02,0x02,0x02,0x02,0x02,0x02,0x00},/*"=",29*/ {0x00,0x08,0x10,0x20,0x40,0x80,0x00,0x00,0x00,0x20,0x10,0x08,0x04,0x02,0x01,0x00},/*">",30*/ {0x00,0x70,0x48,0x08,0x08,0x88,0x70,0x00,0x00,0x00,0x00,0x30,0x37,0x00,0x00,0x00},/*"?",31*/ {0xC0,0x30,0xC8,0x28,0xE8,0x10,0xE0,0x00,0x07,0x18,0x27,0x28,0x2F,0x28,0x17,0x00},/*"@",32*/ {0x00,0x00,0xC0,0x38,0xE0,0x00,0x00,0x00,0x20,0x3C,0x23,0x02,0x02,0x27,0x38,0x20},/*"A",33*/ {0x08,0xF8,0x88,0x88,0x88,0x70,0x00,0x00,0x20,0x3F,0x20,0x20,0x20,0x11,0x0E,0x00},/*"B",34*/ {0xC0,0x30,0x08,0x08,0x08,0x08,0x38,0x00,0x07,0x18,0x20,0x20,0x20,0x10,0x08,0x00},/*"C",35*/ {0x08,0xF8,0x08,0x08,0x08,0x10,0xE0,0x00,0x20,0x3F,0x20,0x20,0x20,0x10,0x0F,0x00},/*"D",36*/ {0x08,0xF8,0x88,0x88,0xE8,0x08,0x10,0x00,0x20,0x3F,0x20,0x20,0x23,0x20,0x18,0x00},/*"E",37*/ {0x08,0xF8,0x88,0x88,0xE8,0x08,0x10,0x00,0x20,0x3F,0x20,0x00,0x03,0x00,0x00,0x00},/*"F",38*/ {0xC0,0x30,0x08,0x08,0x08,0x38,0x00,0x00,0x07,0x18,0x20,0x20,0x22,0x1E,0x02,0x00},/*"G",39*/ {0x08,0xF8,0x08,0x00,0x00,0x08,0xF8,0x08,0x20,0x3F,0x21,0x01,0x01,0x21,0x3F,0x20},/*"H",40*/ {0x00,0x08,0x08,0xF8,0x08,0x08,0x00,0x00,0x00,0x20,0x20,0x3F,0x20,0x20,0x00,0x00},/*"I",41*/ {0x00,0x00,0x08,0x08,0xF8,0x08,0x08,0x00,0xC0,0x80,0x80,0x80,0x7F,0x00,0x00,0x00},/*"J",42*/ {0x08,0xF8,0x88,0xC0,0x28,0x18,0x08,0x00,0x20,0x3F,0x20,0x01,0x26,0x38,0x20,0x00},/*"K",43*/ {0x08,0xF8,0x08,0x00,0x00,0x00,0x00,0x00,0x20,0x3F,0x20,0x20,0x20,0x20,0x30,0x00},/*"L",44*/ {0x08,0xF8,0xF8,0x00,0xF8,0xF8,0x08,0x00,0x20,0x3F,0x01,0x3E,0x01,0x3F,0x20,0x00},/*"M",45*/ {0x08,0xF8,0x30,0xC0,0x00,0x08,0xF8,0x08,0x20,0x3F,0x20,0x00,0x07,0x18,0x3F,0x00},/*"N",46*/ {0xE0,0x10,0x08,0x08,0x08,0x10,0xE0,0x00,0x0F,0x10,0x20,0x20,0x20,0x10,0x0F,0x00},/*"O",47*/ {0x08,0xF8,0x08,0x08,0x08,0x08,0xF0,0x00,0x20,0x3F,0x21,0x01,0x01,0x01,0x00,0x00},/*"P",48*/ {0xE0,0x10,0x08,0x08,0x08,0x10,0xE0,0x00,0x0F,0x10,0x28,0x28,0x30,0x50,0x4F,0x00},/*"Q",49*/ {0x08,0xF8,0x88,0x88,0x88,0x88,0x70,0x00,0x20,0x3F,0x20,0x00,0x03,0x0C,0x30,0x20},/*"R",50*/ {0x00,0x70,0x88,0x08,0x08,0x08,0x38,0x00,0x00,0x38,0x20,0x21,0x21,0x22,0x1C,0x00},/*"S",51*/ {0x18,0x08,0x08,0xF8,0x08,0x08,0x18,0x00,0x00,0x00,0x20,0x3F,0x20,0x00,0x00,0x00},/*"T",52*/ {0x08,0xF8,0x08,0x00,0x00,0x08,0xF8,0x08,0x00,0x1F,0x20,0x20,0x20,0x20,0x1F,0x00},/*"U",53*/ {0x08,0x78,0x88,0x00,0x00,0xC8,0x38,0x08,0x00,0x00,0x07,0x38,0x0E,0x01,0x00,0x00},/*"V",54*/ {0x08,0xF8,0x00,0xF8,0x00,0xF8,0x08,0x00,0x00,0x03,0x3E,0x01,0x3E,0x03,0x00,0x00},/*"W",55*/ {0x08,0x18,0x68,0x80,0x80,0x68,0x18,0x08,0x20,0x30,0x2C,0x03,0x03,0x2C,0x30,0x20},/*"X",56*/ {0x08,0x38,0xC8,0x00,0xC8,0x38,0x08,0x00,0x00,0x00,0x20,0x3F,0x20,0x00,0x00,0x00},/*"Y",57*/ {0x10,0x08,0x08,0x08,0xC8,0x38,0x08,0x00,0x20,0x38,0x26,0x21,0x20,0x20,0x18,0x00},/*"Z",58*/ {0x00,0x00,0x00,0xFE,0x02,0x02,0x02,0x00,0x00,0x00,0x00,0x7F,0x40,0x40,0x40,0x00},/*"[",59*/ {0x00,0x04,0x38,0xC0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0x06,0x38,0xC0,0x00},/*"\",60*/ {0x00,0x02,0x02,0x02,0xFE,0x00,0x00,0x00,0x00,0x40,0x40,0x40,0x7F,0x00,0x00,0x00},/*"]",61*/ {0x00,0x00,0x04,0x02,0x02,0x04,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"^",62*/ {0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x80,0x80,0x80,0x80,0x80,0x80,0x80,0x80},/*"_",63*/ {0x00,0x02,0x02,0x04,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"`",64*/ {0x00,0x00,0x80,0x80,0x80,0x00,0x00,0x00,0x00,0x19,0x24,0x24,0x12,0x3F,0x20,0x00},/*"a",65*/ {0x10,0xF0,0x00,0x80,0x80,0x00,0x00,0x00,0x00,0x3F,0x11,0x20,0x20,0x11,0x0E,0x00},/*"b",66*/ {0x00,0x00,0x00,0x80,0x80,0x80,0x00,0x00,0x00,0x0E,0x11,0x20,0x20,0x20,0x11,0x00},/*"c",67*/ {0x00,0x00,0x80,0x80,0x80,0x90,0xF0,0x00,0x00,0x1F,0x20,0x20,0x20,0x10,0x3F,0x20},/*"d",68*/ {0x00,0x00,0x80,0x80,0x80,0x80,0x00,0x00,0x00,0x1F,0x24,0x24,0x24,0x24,0x17,0x00},/*"e",69*/ {0x00,0x80,0x80,0xE0,0x90,0x90,0x20,0x00,0x00,0x20,0x20,0x3F,0x20,0x20,0x00,0x00},/*"f",70*/ {0x00,0x00,0x80,0x80,0x80,0x80,0x80,0x00,0x00,0x6B,0x94,0x94,0x94,0x93,0x60,0x00},/*"g",71*/ {0x10,0xF0,0x00,0x80,0x80,0x80,0x00,0x00,0x20,0x3F,0x21,0x00,0x00,0x20,0x3F,0x20},/*"h",72*/ {0x00,0x80,0x98,0x98,0x00,0x00,0x00,0x00,0x00,0x20,0x20,0x3F,0x20,0x20,0x00,0x00},/*"i",73*/ {0x00,0x00,0x00,0x80,0x98,0x98,0x00,0x00,0x00,0xC0,0x80,0x80,0x80,0x7F,0x00,0x00},/*"j",74*/ {0x10,0xF0,0x00,0x00,0x80,0x80,0x80,0x00,0x20,0x3F,0x24,0x06,0x29,0x30,0x20,0x00},/*"k",75*/ {0x00,0x10,0x10,0xF8,0x00,0x00,0x00,0x00,0x00,0x20,0x20,0x3F,0x20,0x20,0x00,0x00},/*"l",76*/ {0x80,0x80,0x80,0x80,0x80,0x80,0x80,0x00,0x20,0x3F,0x20,0x00,0x3F,0x20,0x00,0x3F},/*"m",77*/ {0x80,0x80,0x00,0x80,0x80,0x80,0x00,0x00,0x20,0x3F,0x21,0x00,0x00,0x20,0x3F,0x20},/*"n",78*/ {0x00,0x00,0x80,0x80,0x80,0x80,0x00,0x00,0x00,0x1F,0x20,0x20,0x20,0x20,0x1F,0x00},/*"o",79*/ {0x80,0x80,0x00,0x80,0x80,0x00,0x00,0x00,0x80,0xFF,0x91,0x20,0x20,0x11,0x0E,0x00},/*"p",80*/ {0x00,0x00,0x00,0x80,0x80,0x00,0x80,0x00,0x00,0x0E,0x11,0x20,0x20,0x91,0xFF,0x80},/*"q",81*/ {0x80,0x80,0x80,0x00,0x80,0x80,0x80,0x00,0x20,0x20,0x3F,0x21,0x20,0x00,0x01,0x00},/*"r",82*/ {0x00,0x00,0x80,0x80,0x80,0x80,0x80,0x00,0x00,0x33,0x24,0x24,0x24,0x24,0x19,0x00},/*"s",83*/ {0x00,0x80,0x80,0xE0,0x80,0x80,0x00,0x00,0x00,0x00,0x00,0x1F,0x20,0x20,0x10,0x00},/*"t",84*/ {0x80,0x80,0x00,0x00,0x00,0x80,0x80,0x00,0x00,0x1F,0x20,0x20,0x20,0x10,0x3F,0x20},/*"u",85*/ {0x80,0x80,0x80,0x00,0x80,0x80,0x80,0x00,0x00,0x03,0x0C,0x30,0x0C,0x03,0x00,0x00},/*"v",86*/ {0x80,0x80,0x00,0x80,0x80,0x00,0x80,0x80,0x01,0x0E,0x30,0x0C,0x07,0x38,0x06,0x01},/*"w",87*/ {0x00,0x80,0x80,0x80,0x00,0x80,0x80,0x00,0x00,0x20,0x31,0x0E,0x2E,0x31,0x20,0x00},/*"x",88*/ {0x80,0x80,0x80,0x00,0x00,0x80,0x80,0x80,0x00,0x81,0x86,0x78,0x18,0x06,0x01,0x00},/*"y",89*/ {0x00,0x80,0x80,0x80,0x80,0x80,0x80,0x00,0x00,0x21,0x30,0x2C,0x22,0x21,0x30,0x00},/*"z",90*/ {0x00,0x00,0x00,0x00,0x00,0xFC,0x02,0x02,0x00,0x00,0x00,0x00,0x01,0x3E,0x40,0x40},/*"{",91*/ {0x00,0x00,0x00,0x00,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0x00,0x00,0x00},/*"|",92*/ {0x02,0x02,0xFC,0x00,0x00,0x00,0x00,0x00,0x40,0x40,0x3E,0x01,0x00,0x00,0x00,0x00},/*"}",93*/ {0x00,0x80,0x40,0x80,0x80,0x00,0x80,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0x00,0x00},/*"~",94*/ }; 接下来就是：
中文显示函数修改
讯享网void OLED_DisplayChinese(u8 x,u8 y,u8 str) { u8 addr=0,i; addr = str; //你要显示第几个汉字 OLED_SetCursorAddrese(x,y); //设置光标的位置 for(i=0;i<16;i++) //横向写width列 { OLED_Write(ChineseFont_16_16[addr][i],0); } OLED_SetCursorAddrese(x,y+1); //设置光标的位置 for(i=0;i<16;i++) //横向写width列 { OLED_Write(ChineseFont_16_16[addr][i+16],0); } }
ChineseFont_16_16数组
const u8 ChineseFont_16_16[][32]= { {0x10,0x60,0x02,0x8C,0x00,0x00,0xFE,0x92,0x92,0x92,0x92,0x92,0xFE,0x00,0x00,0x00,0x04,0x04,0x7E,0x01,0x40,0x7E,0x42,0x42,0x7E,0x42,0x7E,0x42,0x42,0x7E,0x40,0x00},/*"温",0*/ {0x10,0x60,0x02,0x8C,0x00,0xFE,0x92,0x92,0x92,0x92,0x92,0x92,0xFE,0x00,0x00,0x00,0x04,0x04,0x7E,0x01,0x44,0x48,0x50,0x7F,0x40,0x40,0x7F,0x50,0x48,0x44,0x40,0x00},/*"湿",1*/ {0x00,0x00,0xFC,0x24,0x24,0x24,0xFC,0x25,0x26,0x24,0xFC,0x24,0x24,0x24,0x04,0x00,0x40,0x30,0x8F,0x80,0x84,0x4C,0x55,0x25,0x25,0x25,0x55,0x4C,0x80,0x80,0x80,0x00},/*"度",2*/ {0x90,0x52,0x34,0x10,0xFF,0x10,0x34,0x52,0x80,0x70,0x8F,0x08,0x08,0xF8,0x08,0x00,0x82,0x9A,0x56,0x63,0x22,0x52,0x8E,0x00,0x80,0x40,0x33,0x0C,0x33,0x40,0x80,0x00},/*"数",3*/ {0x10,0x10,0xFF,0x10,0x90,0x00,0xFE,0x92,0x92,0x92,0xF2,0x92,0x92,0x9E,0x80,0x00,0x42,0x82,0x7F,0x01,0x80,0x60,0x1F,0x00,0xFC,0x44,0x47,0x44,0x44,0xFC,0x00,0x00},/*"据",4*/ {0x00,0x00,0xF8,0x88,0x88,0x88,0x88,0x08,0x08,0xFF,0x08,0x09,0x0A,0xC8,0x08,0x00,0x80,0x60,0x1F,0x00,0x10,0x20,0x1F,0x80,0x40,0x21,0x16,0x18,0x26,0x41,0xF8,0x00},/*"成",5*/ {0x08,0x08,0x08,0xF8,0x08,0x08,0x08,0x10,0x10,0xFF,0x10,0x10,0x10,0xF0,0x00,0x00,0x10,0x30,0x10,0x1F,0x08,0x88,0x48,0x30,0x0E,0x01,0x40,0x80,0x40,0x3F,0x00,0x00},/*"功",6*/ {0x00,0x00,0x18,0x16,0x10,0xD0,0xB8,0x97,0x90,0x90,0x90,0x92,0x94,0x10,0x00,0x00,0x00,0x20,0x10,0x8C,0x83,0x80,0x41,0x46,0x28,0x10,0x28,0x44,0x43,0x80,0x80,0x00},/*"发",7*/ {0x40,0x40,0x42,0xCC,0x00,0x88,0x89,0x8E,0x88,0xF8,0x88,0x8C,0x8B,0x88,0x80,0x00,0x00,0x40,0x20,0x1F,0x20,0x40,0x50,0x48,0x46,0x41,0x42,0x44,0x58,0x40,0x40,0x00},/*"送",8*/ {0x40,0x40,0x42,0xCC,0x00,0x04,0x44,0x64,0x5C,0x47,0xF4,0x44,0x44,0x44,0x04,0x00,0x00,0x40,0x20,0x1F,0x20,0x44,0x44,0x44,0x44,0x44,0x7F,0x44,0x44,0x44,0x44,0x00},/*"连",9*/ {0x10,0x10,0x10,0xFF,0x10,0x50,0x44,0x54,0x65,0xC6,0x44,0x64,0x54,0x44,0x40,0x00,0x04,0x44,0x82,0x7F,0x01,0x82,0x82,0x4A,0x56,0x23,0x22,0x52,0x4E,0x82,0x02,0x00},/*"接",10*/ {0x00,0x00,0xFE,0x22,0x22,0x22,0xFE,0x00,0xFE,0x82,0x82,0x92,0xA2,0x9E,0x00,0x00,0x80,0x60,0x1F,0x02,0x42,0x82,0x7F,0x00,0xFF,0x40,0x2F,0x10,0x2C,0x43,0x80,0x00},/*"服",11*/ {0x00,0x00,0x90,0x88,0x4C,0x57,0xA4,0x24,0x54,0x54,0x8C,0x84,0x00,0x00,0x00,0x00,0x01,0x01,0x80,0x42,0x22,0x1A,0x07,0x02,0x42,0x82,0x42,0x3E,0x01,0x01,0x01,0x00},/*"务",12*/ {0x80,0x80,0x9E,0x92,0x92,0x92,0x9E,0xE0,0x80,0x9E,0xB2,0xD2,0x92,0x9E,0x80,0x00,0x08,0x08,0xF4,0x94,0x92,0x92,0xF1,0x00,0x01,0xF2,0x92,0x94,0x94,0xF8,0x08,0x00},/*"器",13*/ {0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0x40,0x40,0x40,0x40,0x40,0x40,0x00,0x00,0x00,0x40,0x40,0x40,0x40,0x40,0x40,0x7F,0x40,0x40,0x40,0x40,0x40,0x40,0x40,0x40,0x00},/*"上",14*/ {0x02,0x02,0x02,0x02,0x02,0x02,0xFE,0x02,0x02,0x42,0x82,0x02,0x02,0x02,0x02,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0x00,0x00,0x00,0x00,0x01,0x06,0x00,0x00,0x00},/*"下",15*/ {0x00,0xFE,0x22,0x5A,0x86,0x00,0xFE,0x92,0x92,0x92,0x92,0x92,0xFE,0x00,0x00,0x00,0x00,0xFF,0x04,0x08,0x07,0x00,0xFF,0x40,0x20,0x03,0x0C,0x14,0x22,0x41,0x40,0x00},/*"限",16*/ {0x00,0x80,0x60,0xF8,0x07,0x04,0xE4,0xA4,0xA4,0xBF,0xA4,0xA4,0xE4,0x04,0x00,0x00,0x01,0x00,0x00,0xFF,0x40,0x40,0x7F,0x4A,0x4A,0x4A,0x4A,0x4A,0x7F,0x40,0x40,0x00},/*"值",17*/ {0x40,0x40,0x42,0xCC,0x00,0x40,0xA0,0x9E,0x82,0x82,0x82,0x9E,0xA0,0x20,0x20,0x00,0x00,0x00,0x00,0x3F,0x90,0x88,0x40,0x43,0x2C,0x10,0x28,0x46,0x41,0x80,0x80,0x00},/*"设",18*/ {0x00,0x17,0x15,0xD5,0x55,0x57,0x55,0x7D,0x55,0x57,0x55,0xD5,0x15,0x17,0x00,0x00,0x40,0x40,0x40,0x7F,0x55,0x55,0x55,0x55,0x55,0x55,0x55,0x7F,0x40,0x40,0x40,0x00},/*"置",19*/ {0x00,0x80,0x60,0xF8,0x07,0x40,0x48,0x48,0xE8,0x5F,0x48,0x48,0x48,0x40,0x40,0x00,0x01,0x00,0x00,0xFF,0x00,0x00,0x02,0x0B,0x12,0x22,0xD2,0x0A,0x06,0x00,0x00,0x00},/*"传",20*/ {0x00,0x00,0xFE,0x82,0x92,0x92,0x92,0xFE,0x92,0x92,0x92,0x82,0xFE,0x00,0x00,0x00,0x80,0x60,0x1F,0x00,0x00,0x1E,0x12,0x12,0x12,0x1E,0x40,0x80,0x7F,0x00,0x00,0x00},/*"周",21*/ {0x00,0x04,0xFF,0x24,0x24,0x24,0xFF,0x04,0x00,0xFE,0x22,0x22,0x22,0xFE,0x00,0x00,0x88,0x48,0x2F,0x09,0x09,0x19,0xAF,0x48,0x30,0x0F,0x02,0x42,0x82,0x7F,0x00,0x00},/*"期",22*/ {0x10,0x10,0x10,0xFF,0x90,0x20,0x98,0x48,0x28,0x09,0x0E,0x28,0x48,0xA8,0x18,0x00,0x02,0x42,0x81,0x7F,0x00,0x40,0x40,0x42,0x42,0x42,0x7E,0x42,0x42,0x42,0x40,0x00},/*"控",23*/ {0x40,0x50,0x4E,0x48,0x48,0xFF,0x48,0x48,0x48,0x40,0xF8,0x00,0x00,0xFF,0x00,0x00,0x00,0x00,0x3E,0x02,0x02,0xFF,0x12,0x22,0x1E,0x00,0x0F,0x40,0x80,0x7F,0x00,0x00},/*"制",24*/ {0x00,0x20,0x20,0xA8,0x6C,0x2A,0x39,0x28,0xA8,0x2A,0x6C,0xA8,0x20,0x20,0x00,0x00,0x02,0x82,0x81,0x90,0x92,0x4A,0x49,0x45,0x24,0x22,0x10,0x08,0x01,0x02,0x02,0x00},/*"参",25*/ {0x00,0x00,0x00,0xF1,0x12,0x14,0x10,0x10,0x10,0x14,0x12,0xF1,0x00,0x00,0x00,0x00,0x40,0x30,0x00,0x03,0x39,0x41,0x41,0x45,0x59,0x41,0x41,0x73,0x00,0x08,0x30,0x00},/*"总",26*/ {0x00,0x04,0x24,0x24,0x24,0x24,0x24,0xFF,0x24,0x24,0x24,0x24,0x24,0x04,0x00,0x00,0x21,0x21,0x11,0x09,0xFD,0x83,0x41,0x23,0x05,0x09,0x11,0x29,0x25,0x41,0x41,0x00},/*"表",27*/ {0x80,0x90,0x90,0x48,0x4C,0x57,0x24,0x24,0x24,0x54,0x4C,0x44,0x80,0x80,0x80,0x00,0x00,0x00,0x00,0xFF,0x49,0x49,0x49,0x7F,0x49,0x49,0x49,0xFF,0x00,0x00,0x00,0x00},/*"备",28*/ {0x00,0xFE,0x02,0x22,0x42,0x82,0x72,0x02,0x22,0x42,0x82,0x72,0x02,0xFE,0x00,0x00,0x00,0xFF,0x10,0x08,0x06,0x01,0x0E,0x10,0x08,0x06,0x01,0x4E,0x80,0x7F,0x00,0x00},/*"网",29*/ {0x20,0x30,0xAC,0x63,0x30,0x20,0x10,0x18,0xA7,0x44,0xA4,0x14,0x0C,0x00,0x00,0x00,0x22,0x67,0x22,0x12,0x12,0x04,0x02,0xFD,0x44,0x44,0x44,0x45,0xFD,0x02,0x02,0x00},/*"络",30*/ {0x00,0x80,0x60,0xF8,0x07,0x00,0x04,0x24,0x24,0x25,0x26,0x24,0x24,0x24,0x04,0x00,0x01,0x00,0x00,0xFF,0x00,0x00,0x00,0xF9,0x49,0x49,0x49,0x49,0x49,0xF9,0x00,0x00},/*"信",31*/ {0x00,0x00,0x00,0xFC,0x54,0x54,0x56,0x55,0x54,0x54,0x54,0xFC,0x00,0x00,0x00,0x00,0x40,0x30,0x00,0x03,0x39,0x41,0x41,0x45,0x59,0x41,0x41,0x73,0x00,0x08,0x30,0x00},/*"息",32*/ {0x00,0x40,0x30,0x1E,0x10,0x10,0x10,0xFF,0x10,0x10,0x10,0x10,0x10,0x00,0x00,0x00,0x81,0x81,0x41,0x21,0x11,0x0D,0x03,0x01,0x03,0x0D,0x11,0x21,0x41,0x81,0x81,0x00},/*"失",33*/ {0x00,0xFE,0x02,0xFA,0x02,0xFE,0x40,0x20,0xD8,0x17,0x10,0x10,0xF0,0x10,0x10,0x00,0x80,0x47,0x30,0x0F,0x10,0x67,0x80,0x40,0x21,0x16,0x08,0x16,0x21,0x40,0x80,0x00},/*"败",34*/ {0x00,0x80,0x60,0xF8,0x07,0x00,0x3E,0x22,0x22,0xE2,0x22,0x22,0x3E,0x00,0x00,0x00,0x01,0x00,0x00,0xFF,0x20,0x11,0x09,0x05,0x03,0xFF,0x03,0x05,0x09,0x11,0x20,0x00},/*"保",35*/ {0x04,0x04,0x84,0xE4,0x1C,0x07,0x24,0x24,0x24,0x24,0xA4,0x64,0x24,0x04,0x04,0x00,0x02,0x01,0x00,0xFF,0x00,0x02,0x02,0x42,0x82,0x7F,0x02,0x02,0x02,0x02,0x02,0x00},/*"存",36*/ {0x40,0x40,0x42,0xCC,0x00,0x08,0x48,0x88,0x08,0x08,0x08,0xFF,0x08,0x08,0x08,0x00,0x00,0x40,0x20,0x1F,0x20,0x40,0x40,0x41,0x40,0x48,0x50,0x4F,0x40,0x40,0x40,0x00},/*"过",37*/ {0x04,0x04,0x04,0x04,0xF4,0x94,0x95,0x96,0x94,0x94,0xF4,0x04,0x04,0x04,0x04,0x00,0x00,0xFE,0x02,0x02,0x7A,0x4A,0x4A,0x4A,0x4A,0x4A,0x7A,0x02,0x82,0xFE,0x00,0x00},/*"高",38*/ {0x06,0x09,0x09,0xE6,0xF8,0x0C,0x04,0x02,0x02,0x02,0x02,0x02,0x04,0x1E,0x00,0x00,0x00,0x00,0x00,0x07,0x1F,0x30,0x20,0x40,0x40,0x40,0x40,0x40,0x20,0x10,0x00,0x00},/*"℃",39*/ {0x00,0x00,0x00,0xBE,0x2A,0x2A,0x2A,0xEA,0x2A,0x2A,0x2A,0x3E,0x00,0x00,0x00,0x00,0x00,0x44,0x42,0x49,0x49,0x49,0x49,0x7F,0x49,0x49,0x49,0x49,0x41,0x40,0x00,0x00},/*"星",40*/ {0x00,0x04,0xFF,0x24,0x24,0x24,0xFF,0x04,0x00,0xFE,0x22,0x22,0x22,0xFE,0x00,0x00,0x88,0x48,0x2F,0x09,0x09,0x19,0xAF,0x48,0x30,0x0F,0x02,0x42,0x82,0x7F,0x00,0x00},/*"期",41*/ {0x00,0x00,0x00,0xFE,0x82,0x82,0x82,0x82,0x82,0x82,0x82,0xFE,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0x40,0x40,0x40,0x40,0x40,0x40,0x40,0xFF,0x00,0x00,0x00,0x00},/*"日",42*/ {0x80,0x80,0x80,0x80,0x80,0x80,0x80,0x80,0x80,0x80,0x80,0x80,0x80,0x80,0x80,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"一",43*/ {0x00,0x00,0x08,0x08,0x08,0x08,0x08,0x08,0x08,0x08,0x08,0x08,0x08,0x00,0x00,0x00,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x00},/*"二",44*/ {0x00,0x04,0x84,0x84,0x84,0x84,0x84,0x84,0x84,0x84,0x84,0x84,0x84,0x04,0x00,0x00,0x20,0x20,0x20,0x20,0x20,0x20,0x20,0x20,0x20,0x20,0x20,0x20,0x20,0x20,0x20,0x00},/*"三",45*/ {0x00,0xFC,0x04,0x04,0x04,0xFC,0x04,0x04,0x04,0xFC,0x04,0x04,0x04,0xFC,0x00,0x00,0x00,0x7F,0x28,0x24,0x23,0x20,0x20,0x20,0x20,0x21,0x22,0x22,0x22,0x7F,0x00,0x00},/*"四",46*/ {0x00,0x02,0x42,0x42,0x42,0xC2,0x7E,0x42,0x42,0x42,0x42,0xC2,0x02,0x02,0x00,0x00,0x40,0x40,0x40,0x40,0x78,0x47,0x40,0x40,0x40,0x40,0x40,0x7F,0x40,0x40,0x40,0x00},/*"五",47*/ {0x20,0x20,0x20,0x20,0x20,0x20,0x21,0x22,0x2C,0x20,0x20,0x20,0x20,0x20,0x20,0x00,0x00,0x40,0x20,0x10,0x0C,0x03,0x00,0x00,0x00,0x01,0x02,0x04,0x18,0x60,0x00,0x00},/*"六",48*/ {0x00,0x20,0x18,0xC7,0x44,0x44,0x44,0x44,0xFC,0x44,0x44,0x44,0x44,0x04,0x00,0x00,0x04,0x04,0x04,0x07,0x04,0x04,0x04,0x04,0xFF,0x04,0x04,0x04,0x04,0x04,0x04,0x00},/*"年",49*/ {0x00,0x00,0x00,0xFE,0x22,0x22,0x22,0x22,0x22,0x22,0x22,0x22,0xFE,0x00,0x00,0x00,0x80,0x40,0x30,0x0F,0x02,0x02,0x02,0x02,0x02,0x02,0x42,0x82,0x7F,0x00,0x00,0x00},/*"月",50*/ {0x00,0xF8,0x01,0x06,0x00,0xF0,0x12,0x12,0x12,0xF2,0x02,0x02,0x02,0xFE,0x00,0x00,0x00,0xFF,0x00,0x00,0x00,0x1F,0x11,0x11,0x11,0x1F,0x00,0x40,0x80,0x7F,0x00,0x00},/*"间",51*/ }; 至于图片显示的函数。
由于没有现成的图片数组素材，也懒得去搞字模了，（本文章里的这些字模都是隔壁偷的，嘿嘿，）所以没有尝试，哈哈，反正原理差不多，大家可以自己动手改一改，如果前面都看明白了的话……

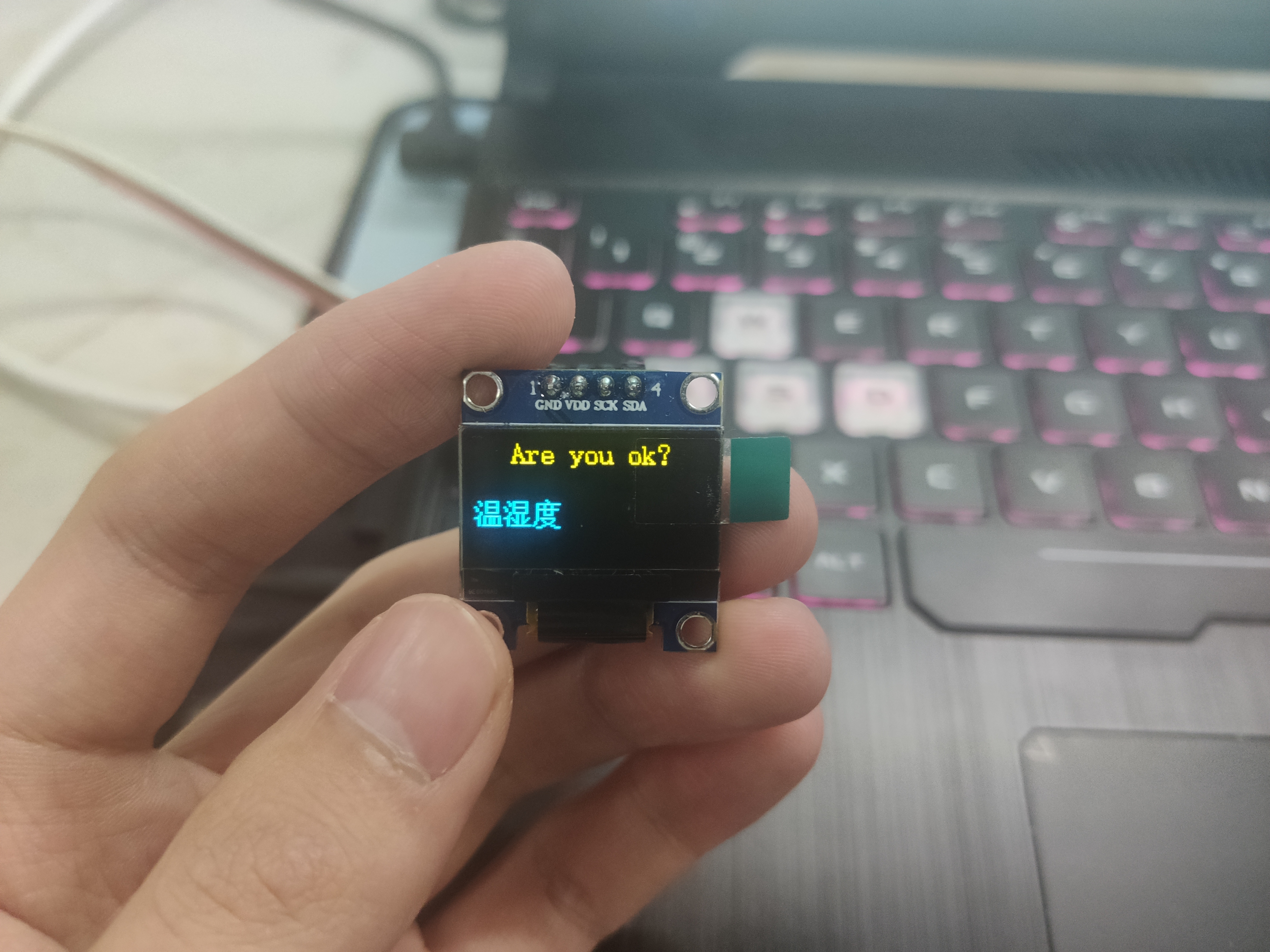

最后的效果大概是这样：
while循环里的代码：
讯享网while (1) { /* USER CODE END WHILE */ OLED_DisplayString(20,0,"Are you ok?"); OLED_DisplayChinese(0,4,0);//温 OLED_DisplayChinese(16,4,1);//湿 OLED_DisplayChinese(32,4,2);//度 /* USER CODE BEGIN 3 */ }
注意啊，OLED的初始化我写在while循环外面了。
最后
再给你们看一下作者cubemax里面的引脚配置吧~
作者用的是C8T6，但是这个OLED的移植显然是可以在所有支持cubemax的32芯片上用的，不然还移植个屁啊，对吧。
需要用到的代码都在这里啦，仔细看完肯定就能过搞出来的。
当然，如果不想去理解那么多，也可以直接拿来就用，付个费就行，哈哈。
作者文章堆里还有一篇一模一样的，付费的文章，里面有完整工程哦~
