1.kubernetes部署

1.1 环境介绍

系统版本 Ubuntu 18.04.4 LTS

角色	主机名	IP
k8s-master1	kubeadm-master1.haostack.com	172.16.62.18
k8s-master2	kubeadm-master2.haostack.com	172.16.62.19
k8s-master3	kubeadm-master3.haostack.com	172.16.62.20
ha1	ha1.haostack.com	172.16.62.21
ha2	ha2.haostack.com	172.16.62.22
node1	node1.haostack.com	172.16.62.31
node2	node2.haostack.com	172.16.62.32
node3	node3.haostack.com	172.16.62.33
harbor	harbor.haostack.com	172.16.62.25
dns	haostack.com	172.16.62.24

1.2 系统环境准备

关闭ipv6

目录 sudo vi /etc/default/grub GRUB_CMDLINE_LINUX_DEFAULT="ipv6.disable=1" GRUB_CMDLINE_LINUX="ipv6.disable=1" #更新 update-grub #重启 reboot

讯享网

关闭防火墙

讯享网root@ha1:~# systemctl status firewalld

关闭ufw

root@ha1:~# ufw status Status: inactive root@ha1:~#

路由转发功能

讯享网sed -i '1i net.ipv4.ip_forward=1' /etc/sysctl.conf sysctl -p

修改时区

sudo cp /usr/share/zoneinfo/Asia/Shanghai /etc/localtime

更新软件源 sources.list

讯享网目录 /etc/apt/sources.list sudo cp /etc/apt/sources.list /etc/apt/sources.list.bak deb http://mirrors.aliyun.com/ubuntu/ bionic main restricted universe multiverse deb-src http://mirrors.aliyun.com/ubuntu/ bionic main restricted universe multiverse deb http://mirrors.aliyun.com/ubuntu/ bionic-security main restricted universe multiverse deb-src http://mirrors.aliyun.com/ubuntu/ bionic-security main restricted universe multiverse deb http://mirrors.aliyun.com/ubuntu/ bionic-updates main restricted universe multiverse deb-src http://mirrors.aliyun.com/ubuntu/ bionic-updates main restricted universe multiverse deb http://mirrors.aliyun.com/ubuntu/ bionic-proposed main restricted universe multiverse deb-src http://mirrors.aliyun.com/ubuntu/ bionic-proposed main restricted universe multiverse deb http://mirrors.aliyun.com/ubuntu/ bionic-backports main restricted universe multiverse deb-src http://mirrors.aliyun.com/ubuntu/ bionic-backports main restricted universe multiverse apt-get update

1.3 HA节点配置keepalived和haproxy

两个节点都需要安装

#安装keepalived+haproxy apt install keepalived haproxy -y #启动服务 systemctl start haproxy systemctl start keepalived systemctl enable keepalived systemctl enable keepalived #keepalived配置 - 从模板文件中拷贝配置文件过来修改参数 root@ha2:~# cp /usr/share/doc/keepalived/samples/keepalived.conf.vrrp /etc/keepalived/keepalived.conf root@ha2:~# root@ha2:~# more /etc/keepalived/keepalived.conf ! Configuration File for keepalived global_defs { notification_email { acassen } notification_email_from  smtp_server 192.168.200.1 smtp_connect_timeout 30 router_id LVS_DEVEL } vrrp_instance VI_199 { state BACKUP interface ens160 garp_master_delay 10 smtp_alert virtual_router_id 22 priority 80 advert_int 1 authentication { auth_type PASS auth_pass  } virtual_ipaddress { 172.16.62.200 dev ens160 label ens160:1 } } #haproxy配置 - 两台配置文件需要一样 root@ha1:/etc/haproxy# vim haproxy.cfg ca-base /etc/ssl/certs crt-base /etc/ssl/private # Default ciphers to use on SSL-enabled listening sockets. # For more information, see ciphers(1SSL). This list is from: # https://hynek.me/articles/hardening-your-web-servers-ssl-ciphers/ # An alternative list with additional directives can be obtained from # https://mozilla.github.io/server-side-tls/ssl-config-generator/?server=haproxy ssl-default-bind-ciphers ECDH+AESGCM:DH+AESGCM:ECDH+AES256:DH+AES256:ECDH+AES128:DH+AES:RSA+AESGCM:RSA+AES:!aNULL:!MD5:!DSS ssl-default-bind-options no-sslv3 defaults log global mode http option httplog option dontlognull timeout connect 5000 timeout client 50000 timeout server 50000 errorfile 400 /etc/haproxy/errors/400.http errorfile 403 /etc/haproxy/errors/403.http errorfile 408 /etc/haproxy/errors/408.http errorfile 500 /etc/haproxy/errors/500.http errorfile 502 /etc/haproxy/errors/502.http errorfile 503 /etc/haproxy/errors/503.http errorfile 504 /etc/haproxy/errors/504.http listen k8s-api-6443 bind 172.16.62.200:6443 mode tcp balance roundrobin server master1 172.16.62.18:6443 check inter 3s fall 3 rise 5 server master2 172.16.62.19:6443 check inter 3s fall 3 rise 5 server master3 172.16.62.20:6443 check inter 3s fall 3 rise 5 #如有报错信息，请指定启动配置文件 /usr/sbin/haproxy -Ws -f /etc/haproxy/haproxy.cfg /usr/sbin/haproxy -Ws -f /etc/haproxy/haproxy.cfg -p /run/haproxy.pid

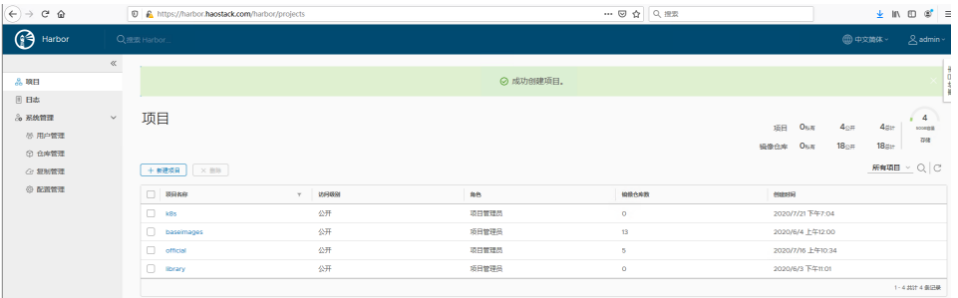

1.4 harbor配置

安装过程略

在这里插入图片描述
讯享网

1.5.docker安装

所有master和node 节点都要配置，这里指向aliyun

1.5.1 Docker CE 镜像

讯享网# step 1: 安装必要的一些系统工具 sudo apt-get update sudo apt-get -y install apt-transport-https ca-certificates curl software-properties-common # step 2: 安装GPG证书 curl -fsSL https://mirrors.aliyun.com/docker-ce/linux/ubuntu/gpg | sudo apt-key add - # Step 3: 写入软件源信息 sudo add-apt-repository "deb [arch=amd64] https://mirrors.aliyun.com/docker-ce/linux/ubuntu $(lsb_release -cs) stable" # Step 4: 更新并安装Docker-CE sudo apt-get -y update #docker 安装 sudo apt-get -y install docker-ce # 安装指定版本的Docker-CE: # Step 1: 查找Docker-CE的版本: # apt-cache madison docker-ce # docker-ce | 17.03.1~ce-0~ubuntu-xenial | https://mirrors.aliyun.com/docker-ce/linux/ubuntu xenial/stable amd64 Packages # docker-ce | 17.03.0~ce-0~ubuntu-xenial | https://mirrors.aliyun.com/docker-ce/linux/ubuntu xenial/stable amd64 Packages # Step 2: 安装指定版本的Docker-CE: (VERSION例如上面的17.03.1~ce-0~ubuntu-xenial) # sudo apt-get -y install docker-ce=[VERSION]

1.5.2 Docker 安装

所有master和node节点都要安装docker

#安装 sudo apt-get -y install docker-ce #查看版本 root@kubeadm-master1:/# docker version Client: Docker Engine - Community Version: 19.03.8 API version: 1.40 Go version: go1.12.17 Git commit: afacb8b7f0 Built: Wed Mar 11 01:25:46 2020 OS/Arch: linux/amd64 Experimental: false Server: Docker Engine - Community Engine: Version: 19.03.12 API version: 1.40 (minimum version 1.12) Go version: go1.13.10 Git commit: 48a66213fe Built: Mon Jun 22 15:44:07 2020 OS/Arch: linux/amd64 Experimental: false containerd: Version: 1.2.13 GitCommit: 7adfa3e55e52b890ea95e65ba581ae3429 runc: Version: 1.0.0-rc10 GitCommit: dc9208a3303feef5b3839f4323d9beb36df0a9dd docker-init: Version: 0.18.0 GitCommit: fec3683

1.5.3 Docker镜像加速器

讯享网root@kubeadm-master2:/# more /etc/docker/daemon.json { "registry-mirrors": ["https://9916w1ow.mirror.aliyuncs.com"] } root@kubeadm-master2:/#

重启服务

sudo systemctl daemon-reload sudo systemctl restart docker

1.6 Kubernetes安装

1.6.1 Kubernetes 镜像

讯享网apt-get update && apt-get install -y apt-transport-https curl https://mirrors.aliyun.com/kubernetes/apt/doc/apt-key.gpg | apt-key add - cat <<EOF >/etc/apt/sources.list.d/kubernetes.list deb https://mirrors.aliyun.com/kubernetes/apt/ kubernetes-xenial main EOF apt-get update apt-get update && apt-get install -y apt-transport-https curl https://mirrors.aliyun.com/kubernetes/apt/doc/apt-key.gpg | apt-key add - cat <<EOF >/etc/apt/sources.list.d/kubernetes.list deb https://mirrors.aliyun.com/kubernetes/apt/ kubernetes-xenial main EOF apt-get update #需要指定版本 apt-get install -y kubelet kubeadm kubectl

1.6.2 查看版本信息

root@kubeadm-master1:/# apt-cache madison kubeadm kubeadm | 1.18.6-00 | https://mirrors.aliyun.com/kubernetes/apt kubernetes-xenial/main amd64 Packages kubeadm | 1.18.5-00 | https://mirrors.aliyun.com/kubernetes/apt kubernetes-xenial/main amd64 Packages kubeadm | 1.18.4-01 | https://mirrors.aliyun.com/kubernetes/apt kubernetes-xenial/main amd64 Packages kubeadm | 1.18.4-00 | https://mirrors.aliyun.com/kubernetes/apt kubernetes-xenial/main amd64 Packages kubeadm | 1.18.3-00 | https://mirrors.aliyun.com/kubernetes/apt kubernetes-xenial/main amd64 Packages kubeadm | 1.18.2-00 | https://mirrors.aliyun.com/kubernetes/apt kubernetes-xenial/main amd64 Packages kubeadm | 1.18.1-00 | https://mirrors.aliyun.com/kubernetes/apt kubernetes-xenial/main amd64 Packages kubeadm | 1.18.0-00 | https://mirrors.aliyun.com/kubernetes/apt kubernetes-xenial/main amd64 Packages kubeadm | 1.17.9-00 | https://mirrors.aliyun.com/kubernetes/apt kubernetes-xenial/main amd64 Packages kubeadm | 1.17.8-00 | https://mirrors.aliyun.com/kubernetes/apt kubernetes-xenial/main amd64 Packages kubeadm | 1.17.7-01 | https://mirrors.aliyun.com/kubernetes/apt kubernetes-xenial/main amd64 Packages kubeadm | 1.17.7-00 | https://mirrors.aliyun.com/kubernetes/apt kubernetes-xenial/main amd64 Packages kubeadm | 1.17.6-00 | https://mirrors.aliyun.com/kubernetes/apt kubernetes-xenial/main amd64 Packages kubeadm | 1.17.5-00 | https://mirrors.aliyun.com/kubernetes/apt kubernetes-xenial/main amd64 Packages

1.6.3 安装kubernetes

所有master和node节点都要安装kubeadm

讯享网- 便于版本升级演示，先安装低版本 root@kubeadm-master1:/# apt install kubeadm=1.17.2-00 kubectl=1.17.2-00 kubelet=1.17.2-00 - 启动服务 root@kubeadm-master1:/var/log# systemctl enable kubelet.service root@kubeadm-master1:/var/log# systemctl start kubelet.service #查看版本 root@kubeadm-master1:/# kubeadm version kubeadm version: &version.Info{Major:"1", Minor:"17", GitVersion:"v1.17.2", GitCommit:"59603c6e503c87169aea6106f57b9f242f64df89", GitTreeState:"clean", BuildDate:"2020-01-18T23:27:49Z", GoVersion:"go1.13.5", Compiler:"gc", Platform:"linux/amd64"} root@kubeadm-master1:/

1.6.4 kubeadm completion 命令补全

#mkdir /data/scripts -p #kubeadm completion bash > /data/scripts/kubeadm_completion.sh source /data/scripts/kubeadm_completion.sh #临时生效 vim /etc/profile #配置文件中是长期生效 source /data/scripts/kubeadm_completion.sh source /etc/profile

1.6.5 kubelet报错日志

讯享网root@kubeadm-master1:/var/log/apt# tail -f /var/log/syslog Jul 22 10:55:46 kubeadm-master1 kubelet[2278]: F0722 10:55:46.086882 2278 server.go:198] failed to load Kubelet config file /var/lib/kubelet/config.yaml, error failed to read kubelet config file "/var/lib/kubelet/config.yaml", error: open /var/lib/kubelet/config.yaml: no such file or directory Jul 22 10:55:46 kubeadm-master1 systemd[1]: kubelet.service: Main process exited, code=exited, status=255/n/a Jul 22 10:55:46 kubeadm-master1 systemd[1]: kubelet.service: Failed with result 'exit-code'. Jul 22 10:55:56 kubeadm-master1 systemd[1]: kubelet.service: Service hold-off time over, scheduling restart. Jul 22 10:55:56 kubeadm-master1 systemd[1]: kubelet.service: Scheduled restart job, restart counter is at 4270. Jul 22 10:55:56 kubeadm-master1 systemd[1]: Stopped kubelet: The Kubernetes Node Agent. Jul 22 10:55:56 kubeadm-master1 systemd[1]: Started kubelet: The Kubernetes Node Agent. Jul 22 10:55:56 kubeadm-master1 kubelet[2338]: F0722 10:55:56. 2338 server.go:198] failed to load Kubelet config file /var/lib/kubelet/config.yaml, error failed to read kubelet config file "/var/lib/kubelet/config.yaml", error: open /var/lib/kubelet/config.yaml: no such file or directory 忽略以上的报错，设置为开机自启动即可，因为此时的配置还没初始化完成，所以此时不能启动kubelet,等后续kubeadm启动成功后再查看

1.7 kubeadm init 初始化

--apiserver-advertise-address string #K8S API Server 将要监听的监听的本机IP --apiserver-bind-port int32 #API Server 绑定的端口,默认为 6443 --apiserver-cert-extra-sans stringSlice #可选的证书额外信息，用于指定 API Server 的服务器证 书。可以是 IP 地址也可以是 DNS 名称。 --cert-dir string #证书的存储路径，缺省路径为 /etc/kubernetes/pki --certificate-key string #定义一个用于加密 kubeadm-certs Secret 中的控制平台证书的密钥 --config string #kubeadm #配置文件的路径 --control-plane-endpoint string #为控制平台指定一个稳定的 IP 地址或 DNS 名称，即配置一 个可以长期使用切是高可用的 VIP 或者域名，k8s 多 master 高可用基于此参数实现 --cri-socket string #要连接的 CRI(容器运行时接口，Container Runtime Interface, 简称 CRI)套 接字的路径，如果为空，则 kubeadm 将尝试自动检测此值，"仅当安装了多个 CRI 或具有非 标准 CRI 插槽时，才使用此选项" --dry-run #不要应用任何更改，只是输出将要执行的操作，其实就是测试运行。 --experimental-kustomize string #用于存储 kustomize 为静态 pod 清单所提供的补丁的路径。 --feature-gates string #一组用来描述各种功能特性的键值（key=value）对，选项是： IPv6DualStack=true|false (ALPHA - default=false) --ignore-preflight-errors strings #可以忽略检查过程 中出现的错误信息，比如忽略 swap，如 果为 all 就忽略所有 --image-repository string #设置一个镜像仓库，默认为 k8s.gcr.io --kubernetes-version string #指定安装 k8s 版本，默认为 stable-1 --node-name string #指定 node 节点名称 --pod-network-cidr #设置 pod ip 地址范围 --service-cidr #设置 service 网络地址范围 --service-dns-domain string #设置 k8s 内部域名，默认为 cluster.local，会有相应的 DNS 服务 (kube-dns/coredns)解析生成的域名记录。 --skip-certificate-key-print #不打印用于加密的 key 信息 --skip-phases strings #要跳过哪些阶段 --skip-token-print #跳过打印 token 信息 --token #指定 token --token-ttl #指定 token 过期时间，默认为 24 小时，0 为永不过期 --upload-certs #更新证书 #全局可选项： --add-dir-header #如果为 true，在日志头部添加日志目录 --log-file string #如果不为空，将使用此日志文件 --log-file-max-size uint #设置日志文件的最大大小，单位为兆，默认为 1800 兆，0 为没有限 制 --rootfs #宿主机的根路径，也就是绝对路径 --skip-headers #如果为 true，在 log 日志里面不显示标题前缀 --skip-log-headers #如果为 true，在 log 日志里里不显示标

1.8.高可用master 初始化

讯享网kubeadm config print init-defaults #输出默认初始化配置 # kubeadm config print init-defaults > kubeadm-init.yaml #将默认配置输出至文件

1.8.1 kubeadm-init.yaml 文件

root@kubeadm-master1:/data# vim kubeadm-init.yaml ttl: 24h0m0s #token 过期时间 usages: - signing - authentication kind: InitConfiguration localAPIEndpoint: advertiseAddress: 172.16.62.18 #master1 ip地址 bindPort: 6443 #API Server端口 nodeRegistration: criSocket: /var/run/dockershim.sock name: kubeadm-master1.haostack.com #master节点名称 taints: - effect: NoSchedule key: node-role.kubernetes.io/master --- apiServer: timeoutForControlPlane: 4m0s apiVersion: kubeadm.k8s.io/v1beta2 certificatesDir: /etc/kubernetes/pki #证书路径 clusterName: kubernetes #集群名称 controlPlaneEndpoint: 172.16.62.200:6443 #添加基于vip的Endpoint controllerManager: {} dns: type: CoreDNS #采用coredns解析 etcd: local: dataDir: /var/lib/etcd imageRepository: registry.cn-hangzhou.aliyuncs.com/google_containers #镜像源 kind: ClusterConfiguration kubernetesVersion: v1.17.2 #安装版本 networking: dnsDomain: haostack.com #域名 podSubnet: 10.10.0.0/16 #pod子网 需要跟flannel子网一致 serviceSubnet: 172.26.0.0/16 #Service子网 scheduler: {}

1.8.2 初始化过程

讯享网root@kubeadm-master1:/data# kubeadm init --config kubeadm-init.yaml W0725 11:17:50. 21297 validation.go:28] Cannot validate kube-proxy config - no validator is available W0725 11:17:50. 21297 validation.go:28] Cannot validate kubelet config - no validator is available [init] Using Kubernetes version: v1.17.2 [preflight] Running pre-flight checks [WARNING IsDockerSystemdCheck]: detected "cgroupfs" as the Docker cgroup driver. The recommended driver is "systemd". Please follow the guide at https://kubernetes.io/docs/setup/cri/ [preflight] Pulling images required for setting up a Kubernetes cluster [preflight] This might take a minute or two, depending on the speed of your internet connection [preflight] You can also perform this action in beforehand using 'kubeadm config images pull' [kubelet-start] Writing kubelet environment file with flags to file "/var/lib/kubelet/kubeadm-flags.env" [kubelet-start] Writing kubelet configuration to file "/var/lib/kubelet/config.yaml" [kubelet-start] Starting the kubelet [certs] Using certificateDir folder "/etc/kubernetes/pki" [certs] Generating "ca" certificate and key [certs] Generating "apiserver" certificate and key [certs] apiserver serving cert is signed for DNS names [kubeadm-master1.haostack.com kubernetes kubernetes.default kubernetes.default.svc kubernetes.default.svc.haostack.com] and IPs [172.26.0.1 172.16.62.18 172.16.62.200] [certs] Generating "apiserver-kubelet-client" certificate and key [certs] Generating "front-proxy-ca" certificate and key [certs] Generating "front-proxy-client" certificate and key [certs] Generating "etcd/ca" certificate and key [certs] Generating "etcd/server" certificate and key [certs] etcd/server serving cert is signed for DNS names [kubeadm-master1.haostack.com localhost] and IPs [172.16.62.18 127.0.0.1 ::1] [certs] Generating "etcd/peer" certificate and key [certs] etcd/peer serving cert is signed for DNS names [kubeadm-master1.haostack.com localhost] and IPs [172.16.62.18 127.0.0.1 ::1] [certs] Generating "etcd/healthcheck-client" certificate and key [certs] Generating "apiserver-etcd-client" certificate and key [certs] Generating "sa" key and public key [kubeconfig] Using kubeconfig folder "/etc/kubernetes" [kubeconfig] Writing "admin.conf" kubeconfig file [kubeconfig] Writing "kubelet.conf" kubeconfig file [kubeconfig] Writing "controller-manager.conf" kubeconfig file [kubeconfig] Writing "scheduler.conf" kubeconfig file [control-plane] Using manifest folder "/etc/kubernetes/manifests" [control-plane] Creating static Pod manifest for "kube-apiserver" [control-plane] Creating static Pod manifest for "kube-controller-manager" W0725 11:18:02. 21297 manifests.go:214] the default kube-apiserver authorization-mode is "Node,RBAC"; using "Node,RBAC" [control-plane] Creating static Pod manifest for "kube-scheduler" W0725 11:18:02. 21297 manifests.go:214] the default kube-apiserver authorization-mode is "Node,RBAC"; using "Node,RBAC" [etcd] Creating static Pod manifest for local etcd in "/etc/kubernetes/manifests" [wait-control-plane] Waiting for the kubelet to boot up the control plane as static Pods from directory "/etc/kubernetes/manifests". This can take up to 4m0s [apiclient] All control plane components are healthy after 38. seconds [upload-config] Storing the configuration used in ConfigMap "kubeadm-config" in the "kube-system" Namespace [kubelet] Creating a ConfigMap "kubelet-config-1.17" in namespace kube-system with the configuration for the kubelets in the cluster [upload-certs] Skipping phase. Please see --upload-certs [mark-control-plane] Marking the node kubeadm-master1.haostack.com as control-plane by adding the label "node-role.kubernetes.io/master=''" [mark-control-plane] Marking the node kubeadm-master1.haostack.com as control-plane by adding the taints [node-role.kubernetes.io/master:NoSchedule] [bootstrap-token] Using token: abcdef.0abcdef [bootstrap-token] Configuring bootstrap tokens, cluster-info ConfigMap, RBAC Roles [bootstrap-token] configured RBAC rules to allow Node Bootstrap tokens to post CSRs in order for nodes to get long term certificate credentials [bootstrap-token] configured RBAC rules to allow the csrapprover controller automatically approve CSRs from a Node Bootstrap Token [bootstrap-token] configured RBAC rules to allow certificate rotation for all node client certificates in the cluster [bootstrap-token] Creating the "cluster-info" ConfigMap in the "kube-public" namespace [kubelet-finalize] Updating "/etc/kubernetes/kubelet.conf" to point to a rotatable kubelet client certificate and key [kubelet-check] Initial timeout of 40s passed. [addons] Applied essential addon: CoreDNS [addons] Applied essential addon: kube-proxy Your Kubernetes control-plane has initialized successfully! To start using your cluster, you need to run the following as a regular user: mkdir -p $HOME/.kube sudo cp -i /etc/kubernetes/admin.conf $HOME/.kube/config sudo chown $(id -u):$(id -g) $HOME/.kube/config You should now deploy a pod network to the cluster. Run "kubectl apply -f [podnetwork].yaml" with one of the options listed at: https://kubernetes.io/docs/concepts/cluster-administration/addons/ You can now join any number of control-plane nodes by copying certificate authorities and service account keys on each node and then running the following as root: kubeadm join 172.16.62.200:6443 --token abcdef.0abcdef \ --discovery-token-ca-cert-hash sha256:28ec6232cef24f6339d3ebc5051f492f301b41610f561aba7b061763c02078fb \ --control-plane Then you can join any number of worker nodes by running the following on each as root: kubeadm join 172.16.62.200:6443 --token abcdef.0abcdef \ --discovery-token-ca-cert-hash sha256:28ec6232cef24f6339d3ebc5051f492f301b41610f561aba7b061763c02078fb root@kubeadm-master1:/data#

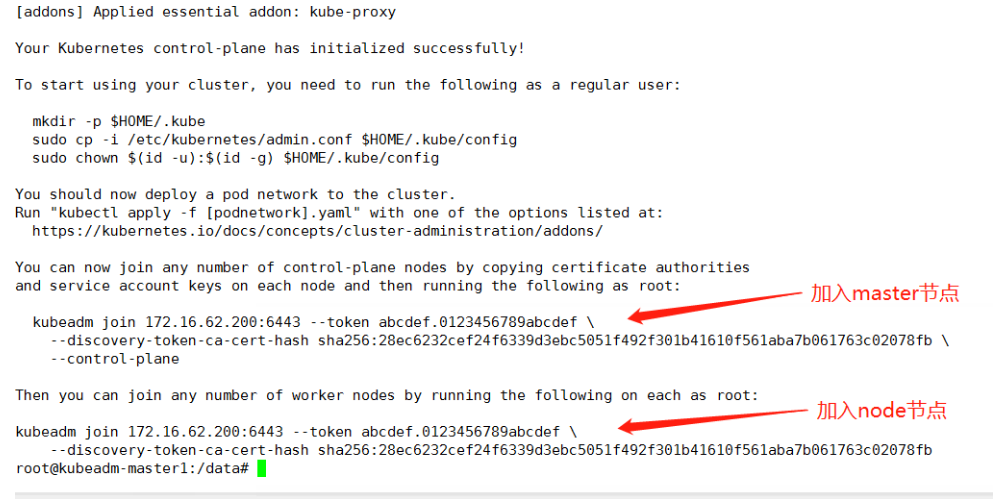

1.8.3 初始化完成

在这里插入图片描述

1.8.4 创建 kube-config 文件

根据提示开始操作

root@kubeadm-master1:/data# mkdir -p $HOME/.kube root@kubeadm-master1:/data# sudo cp -i /etc/kubernetes/admin.conf $HOME/.kube/config root@kubeadm-master1:/data# sudo chown $(id -u):$(id -g) $HOME/.kube/config root@kubeadm-master1:/data# #查看节点信息 root@kubeadm-master1:~/.kube# kubectl get node NAME STATUS ROLES AGE VERSION kubeadm-master1.haostack.com NotReady master 4m20s v1.17.2 root@kubeadm-master1:~/.kube#

1.9 部署kube-config 网络组件

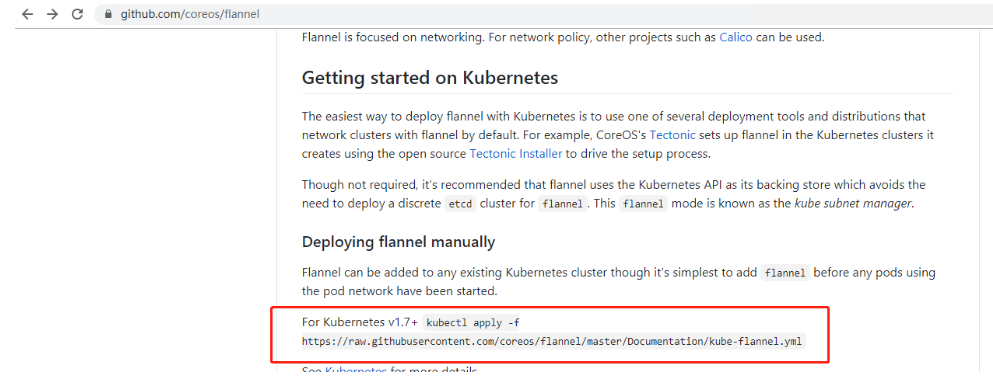

需要下载网络组件 github上路径

在这里插入图片描述

https://raw.githubusercontent.com/coreos/flannel/master/Documentation/kube-flannel.yml

讯享网#需要修改子网 需要跟kube-init.yml文件中的 podSubnet 子网一致 net-conf.json: | { "Network": "10.10.0.0/16", "Backend": { "Type": "vxlan"

1.9.1 开始安装网络组件flannel

root@kubeadm-master1:/data# kubectl apply -f kube kubeadm-init.yaml kube-flannel.yml root@kubeadm-master1:/data# kubectl apply -f kube-flannel.yml podsecuritypolicy.policy/psp.flannel.unprivileged created clusterrole.rbac.authorization.k8s.io/flannel created clusterrolebinding.rbac.authorization.k8s.io/flannel created serviceaccount/flannel created configmap/kube-flannel-cfg created daemonset.apps/kube-flannel-ds-amd64 created daemonset.apps/kube-flannel-ds-arm64 created daemonset.apps/kube-flannel-ds-arm created daemonset.apps/kube-flannel-ds-ppc64le created daemonset.apps/kube-flannel-ds-s390x created root@kubeadm-master1:/data# #验证master节点状态 依据Ready 状态 root@kubeadm-master1:/data# kubectl get node NAME STATUS ROLES AGE VERSION kubeadm-master1.haostack.com Ready master 43m v1.17.2 root@kubeadm-master1:/data#

1.9.2 配置subnet.env

如果有报错，根据报错信息需要手动在/run/flannel目录下添加subnet.env文件

讯享网root@node3:/run/flannel# more subnet.env FLANNEL_NETWORK=10.10.0.0/16 FLANNEL_SUBNET=10.10.0.1/24 FLANNEL_MTU=1450 FLANNEL_IPMASQ=true root@node3:/run/flannel#

1.10 当前 maste 生成证书用于添加新控制节点：

key 很重要，需要保存起来

root@kubeadm-master1:/run/flannel# kubeadm init phase upload-certs --upload-certs W0725 11:28:23. 26849 version.go:101] could not fetch a Kubernetes version from the internet: unable to get URL "https://dl.k8s.io/release/stable-1.txt": Get https://dl.k8s.io/release/stable-1.txt: net/http: request canceled (Client.Timeout exceeded while awaiting headers) W0725 11:28:23. 26849 version.go:102] falling back to the local client version: v1.17.2 W0725 11:28:23. 26849 validation.go:28] Cannot validate kube-proxy config - no validator is available W0725 11:28:23. 26849 validation.go:28] Cannot validate kubelet config - no validator is available [upload-certs] Storing the certificates in Secret "kubeadm-certs" in the "kube-system" Namespace [upload-certs] Using certificate key: 77909a9f1316feb9cb61547e030e87b3b3c341dbcd306e2a4c286e492dd250aa root@kubeadm-master1:/run/flannel#

1.10.1 添加新 master 节点

在另外一台已经安装了 docker、kubeadm 和 kubelet 的 master 节点上执行以下操作

讯享网#命令 kubeadm join 172.16.62.200:6443 --token abcdef.0abcdef \ --discovery-token-ca-cert-hash sha256:28ec6232cef24f6339d3ebc5051f492f301b41610f561aba7b061763c02078fb \ --control-plane --certificate-key 77909a9f1316feb9cb61547e030e87b3b3c341dbcd306e2a4c286e492dd250aa #matser2操作 root@kubeadm-master2:~/.kube# kubeadm join 172.16.62.200:6443 --token abcdef.0abcdef \ --discovery-token-ca-cert-hash sha256:28ec6232cef24f6339d3ebc5051f492f301b41610f561aba7b061763c02078fb \ --control-plane --certificate-key 77909a9f1316feb9cb61547e030e87b3b3c341dbcd306e2a4c286e492dd250aa #matser3操作 root@kubeadm-master3:/var/lib/etcd# kubeadm join 172.16.62.200:6443 --token abcdef.0abcdef \ > --discovery-token-ca-cert-hash sha256:28ec6232cef24f6339d3ebc5051f492f301b41610f561aba7b061763c02078fb \ > --control-plane --certificate-key 77909a9f1316feb9cb61547e030e87b3b3c341dbcd306e2a4c286e492dd250aa #然后安装提示操作，创建文件等 mkdir -p $HOME/.kube sudo cp -i /etc/kubernetes/admin.conf $HOME/.kube/config sudo chown $(id -u):$(id -g) $HOME/.kube/config

1.10.2 加入master 过程

root@kubeadm-master3:/var/lib/etcd# kubeadm join 172.16.62.200:6443 --token abcdef.0abcdef \ > --discovery-token-ca-cert-hash sha256:28ec6232cef24f6339d3ebc5051f492f301b41610f561aba7b061763c02078fb \ > --control-plane --certificate-key 77909a9f1316feb9cb61547e030e87b3b3c341dbcd306e2a4c286e492dd250aa [preflight] Running pre-flight checks [WARNING IsDockerSystemdCheck]: detected "cgroupfs" as the Docker cgroup driver. The recommended driver is "systemd". Please follow the guide at https://kubernetes.io/docs/setup/cri/ [preflight] Reading configuration from the cluster... [preflight] FYI: You can look at this config file with 'kubectl -n kube-system get cm kubeadm-config -oyaml' [preflight] Running pre-flight checks before initializing the new control plane instance [preflight] Pulling images required for setting up a Kubernetes cluster [preflight] This might take a minute or two, depending on the speed of your internet connection [preflight] You can also perform this action in beforehand using 'kubeadm config images pull' [download-certs] Downloading the certificates in Secret "kubeadm-certs" in the "kube-system" Namespace [certs] Using certificateDir folder "/etc/kubernetes/pki" [certs] Generating "front-proxy-client" certificate and key [certs] Generating "etcd/server" certificate and key [certs] etcd/server serving cert is signed for DNS names [kubeadm-master3.haostack.com localhost] and IPs [172.16.62.20 127.0.0.1 ::1] [certs] Generating "etcd/healthcheck-client" certificate and key [certs] Generating "apiserver-etcd-client" certificate and key [certs] Generating "etcd/peer" certificate and key [certs] etcd/peer serving cert is signed for DNS names [kubeadm-master3.haostack.com localhost] and IPs [172.16.62.20 127.0.0.1 ::1] [certs] Generating "apiserver" certificate and key [certs] apiserver serving cert is signed for DNS names [kubeadm-master3.haostack.com kubernetes kubernetes.default kubernetes.default.svc kubernetes.default.svc.haostack.com] and IPs [172.26.0.1 172.16.62.20 172.16.62.200] [certs] Generating "apiserver-kubelet-client" certificate and key [certs] Valid certificates and keys now exist in "/etc/kubernetes/pki" [certs] Using the existing "sa" key [kubeconfig] Generating kubeconfig files [kubeconfig] Using kubeconfig folder "/etc/kubernetes" [kubeconfig] Writing "admin.conf" kubeconfig file [kubeconfig] Writing "controller-manager.conf" kubeconfig file [kubeconfig] Writing "scheduler.conf" kubeconfig file [control-plane] Using manifest folder "/etc/kubernetes/manifests" [control-plane] Creating static Pod manifest for "kube-apiserver" W0725 11:43:52. 20536 manifests.go:214] the default kube-apiserver authorization-mode is "Node,RBAC"; using "Node,RBAC" [control-plane] Creating static Pod manifest for "kube-controller-manager" W0725 11:43:52. 20536 manifests.go:214] the default kube-apiserver authorization-mode is "Node,RBAC"; using "Node,RBAC" [control-plane] Creating static Pod manifest for "kube-scheduler" W0725 11:43:52. 20536 manifests.go:214] the default kube-apiserver authorization-mode is "Node,RBAC"; using "Node,RBAC" [check-etcd] Checking that the etcd cluster is healthy [kubelet-start] Downloading configuration for the kubelet from the "kubelet-config-1.17" ConfigMap in the kube-system namespace [kubelet-start] Writing kubelet configuration to file "/var/lib/kubelet/config.yaml" [kubelet-start] Writing kubelet environment file with flags to file "/var/lib/kubelet/kubeadm-flags.env" [kubelet-start] Starting the kubelet [kubelet-start] Waiting for the kubelet to perform the TLS Bootstrap... [etcd] Announced new etcd member joining to the existing etcd cluster [etcd] Creating static Pod manifest for "etcd" [etcd] Waiting for the new etcd member to join the cluster. This can take up to 40s {"level":"warn","ts":"2020-07-25T11:44:20.889+0800","caller":"clientv3/retry_interceptor.go:61","msg":"retrying of unary invoker failed","target":"passthrough:///https://172.16.62.20:2379","attempt":0,"error":"rpc error: code = DeadlineExceeded desc = context deadline exceeded"} [upload-config] Storing the configuration used in ConfigMap "kubeadm-config" in the "kube-system" Namespace [mark-control-plane] Marking the node kubeadm-master3.haostack.com as control-plane by adding the label "node-role.kubernetes.io/master=''" [mark-control-plane] Marking the node kubeadm-master3.haostack.com as control-plane by adding the taints [node-role.kubernetes.io/master:NoSchedule] This node has joined the cluster and a new control plane instance was created: * Certificate signing request was sent to apiserver and approval was received. * The Kubelet was informed of the new secure connection details. * Control plane (master) label and taint were applied to the new node. * The Kubernetes control plane instances scaled up. * A new etcd member was added to the local/stacked etcd cluster. To start administering your cluster from this node, you need to run the following as a regular user: mkdir -p $HOME/.kube sudo cp -i /etc/kubernetes/admin.conf $HOME/.kube/config sudo chown $(id -u):$(id -g) $HOME/.kube/config Run 'kubectl get nodes' to see this node join the cluster

1.10.3 验证mster状态

讯享网root@kubeadm-master1:/data# kubectl get node NAME STATUS ROLES AGE VERSION kubeadm-master1.haostack.com Ready master 28m v1.17.2 kubeadm-master2.haostack.com Ready master 6m31s v1.17.2 kubeadm-master3.haostack.com Ready master 3m7s v1.17.2 root@kubeadm-master1:/data#

1.10.4 验证k8s集群状态

root@kubeadm-master1:/data# kubectl get cs NAME STATUS MESSAGE ERROR controller-manager Healthy ok scheduler Healthy ok etcd-0 Healthy {"health":"true"} root@kubeadm-master1:/data#

1.10.5 验证csr证书状态

讯享网oot@kubeadm-master1:/data# kubectl get csr NAME AGE REQUESTOR CONDITION csr-7chml 6m18s system:bootstrap:abcdef Approved,Issued csr-n7mz2 2m55s system:bootstrap:abcdef Approved,Issued

1.11 k8s集群添加node节点

各需要加入到 k8s master 集群中的 node 节点都要安装 docker kubeadm kubelet ，因此都要重新执行安装 docker kubeadm kubelet 的步骤，即配置 apt 仓库、配置 docker 加速器、安装命令、启动 kubelet 服务

1.11.1 node节点添加

添加命令为 master 端 kubeadm init 初始化完成之后返回的添加命令

#命令 kubeadm join 172.16.62.200:6443 --token abcdef.0abcdef \ > --discovery-token-ca-cert-hash sha256:28ec6232cef24f6339d3ebc5051f492f301b41610f561aba7b061763c02078fb #node1 oot@node1:/# kubeadm join 172.16.62.200:6443 --token abcdef.0abcdef \ > --discovery-token-ca-cert-hash sha256:28ec6232cef24f6339d3ebc5051f492f301b41610f561aba7b061763c02078fb #node2 root@node2:~# kubeadm join 172.16.62.200:6443 --token abcdef.0abcdef \ > --discovery-token-ca-cert-hash sha256:28ec6232cef24f6339d3ebc5051f492f301b41610f561aba7b061763c02078fb #node3 root@node3:/# kubeadm join 172.16.62.200:6443 --token abcdef.0abcdef \ > --discovery-token-ca-cert-hash sha256:28ec6232cef24f6339d3ebc5051f492f301b41610f561aba7b061763c02078fb

1.11.2 node节点添加到集群过程

讯享网root@node3:/# kubeadm join 172.16.62.200:6443 --token abcdef.0abcdef \ > --discovery-token-ca-cert-hash sha256:28ec6232cef24f6339d3ebc5051f492f301b41610f561aba7b061763c02078fb W0725 11:51:59. 32501 join.go:346] [preflight] WARNING: JoinControlPane.controlPlane settings will be ignored when control-plane flag is not set. [preflight] Running pre-flight checks [WARNING IsDockerSystemdCheck]: detected "cgroupfs" as the Docker cgroup driver. The recommended driver is "systemd". Please follow the guide at https://kubernetes.io/docs/setup/cri/ [preflight] Reading configuration from the cluster... [preflight] FYI: You can look at this config file with 'kubectl -n kube-system get cm kubeadm-config -oyaml' [kubelet-start] Downloading configuration for the kubelet from the "kubelet-config-1.17" ConfigMap in the kube-system namespace [kubelet-start] Writing kubelet configuration to file "/var/lib/kubelet/config.yaml" [kubelet-start] Writing kubelet environment file with flags to file "/var/lib/kubelet/kubeadm-flags.env" [kubelet-start] Starting the kubelet [kubelet-start] Waiting for the kubelet to perform the TLS Bootstrap... This node has joined the cluster: * Certificate signing request was sent to apiserver and a response was received. * The Kubelet was informed of the new secure connection details. Run 'kubectl get nodes' on the control-plane to see this node join the cluster. root@node3:/# #node节点镜像 已经从阿里云下载 root@node3:~# docker image ls REPOSITORY TAG IMAGE ID CREATED SIZE quay.io/coreos/flannel v0.12.0-amd64 4e9f801d2217 4 months ago 52.8MB registry.cn-hangzhou.aliyuncs.com/google_containers/kube-proxy v1.17.2 cba2a99699bd 6 months ago 116MB registry.cn-hangzhou.aliyuncs.com/google_containers/pause 3.1 da86e6ba6ca1 2 years ago 742kB root@node3:~#

1.11.3 验证 node 节点状态都是Ready 状态

root@kubeadm-master1:/data# kubectl get node NAME STATUS ROLES AGE VERSION kubeadm-master1.haostack.com Ready master 36m v1.17.2 kubeadm-master2.haostack.com Ready master 14m v1.17.2 kubeadm-master3.haostack.com Ready master 11m v1.17.2 node1.haostack.com Ready <none> 3m22s v1.17.2 node2.haostack.com Ready <none> 3m21s v1.17.2 node3.haostack.com Ready <none> 3m18s v1.17.2

1.11.4 验证pod状态

讯享网root@kubeadm-master1:/data# kubectl get pod -A NAMESPACE NAME READY STATUS RESTARTS AGE kube-system coredns-7f9c544f75-lspdp 1/1 Running 0 52m kube-system coredns-7f9c544f75-mfbm6 1/1 Running 0 52m kube-system etcd-kubeadm-master1.haostack.com 1/1 Running 0 52m kube-system etcd-kubeadm-master2.haostack.com 1/1 Running 2 30m kube-system etcd-kubeadm-master3.haostack.com 1/1 Running 0 26m kube-system kube-apiserver-kubeadm-master1.haostack.com 1/1 Running 0 52m kube-system kube-apiserver-kubeadm-master2.haostack.com 1/1 Running 2 30m kube-system kube-apiserver-kubeadm-master3.haostack.com 1/1 Running 2 26m kube-system kube-controller-manager-kubeadm-master1.haostack.com 1/1 Running 1 52m kube-system kube-controller-manager-kubeadm-master2.haostack.com 1/1 Running 0 30m kube-system kube-controller-manager-kubeadm-master3.haostack.com 1/1 Running 0 26m kube-system kube-flannel-ds-amd64-5dt7f 1/1 Running 7 18m kube-system kube-flannel-ds-amd64-dq6zv 1/1 Running 7 18m kube-system kube-flannel-ds-amd64-jjptb 1/1 Running 7 18m kube-system kube-flannel-ds-amd64-jvbj5 1/1 Running 10 30m kube-system kube-flannel-ds-amd64-l6x5h 1/1 Running 9 26m kube-system kube-flannel-ds-amd64-zb9xj 1/1 Running 13 44m kube-system kube-proxy-b5mgq 1/1 Running 0 52m kube-system kube-proxy-c65kg 1/1 Running 0 26m kube-system kube-proxy-cptfw 1/1 Running 0 18m kube-system kube-proxy-gkknw 1/1 Running 0 18m kube-system kube-proxy-k95g7 1/1 Running 0 18m kube-system kube-proxy-wgs77 1/1 Running 0 30m kube-system kube-scheduler-kubeadm-master1.haostack.com 1/1 Running 1 52m kube-system kube-scheduler-kubeadm-master2.haostack.com 1/1 Running 3 30m kube-system kube-scheduler-kubeadm-master3.haostack.com 1/1 Running 2 26m root@kubeadm-master1:/data#

1.12 k8s 创建容器并测试网络：

创建测试容器，测试网络连接是否可以通信

#创建 root@kubeadm-master1:/run/flannel# kubectl run net-test1 --image=alpine --replicas=2 sleep  root@kubeadm-master1:/data# kubectl run net-test2 --image=alpine --replicas=3 sleep  kubectl run --generator=deployment/apps.v1 is DEPRECATED and will be removed in a future version. Use kubectl run --generator=run-pod/v1 or kubectl create instead. deployment.apps/net-test2 created root@kubeadm-master1:/data# #查看pod root@kubeadm-master1:/data# kubectl get pod -A -o wide NAMESPACE NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES default net-test1-5fcc69db59-2452n 1/1 Running 0 94s 10.10.4.2 node2.haostack.com <none> <none> default net-test1-5fcc69db59-fh4fb 1/1 Running 0 94s 10.10.3.2 node1.haostack.com <none> <none> default net-test2-8456fd74f7-5jx5f 1/1 Running 0 24s 10.10.4.3 node2.haostack.com <none> <none> default net-test2-8456fd74f7-8k9mn 1/1 Running 0 24s 10.10.3.3 node1.haostack.com <none> <none> default net-test2-8456fd74f7-r5kfh 1/1 Running 0 24s 10.10.5.2 node3.haostack.com <none> <none> #进入到pod中 root@kubeadm-master1:/data# kubectl exec -it net-test2-8456fd74f7-5jx5f sh / # ifconfig eth0 Link encap:Ethernet HWaddr 6A:5C:93:FA:AD:45 inet addr:10.10.4.3 Bcast:10.10.4.255 Mask:255.255.255.0 UP BROADCAST RUNNING MULTICAST MTU:1450 Metric:1 RX packets:1 errors:0 dropped:0 overruns:0 frame:0 TX packets:1 errors:0 dropped:0 overruns:0 carrier:0 collisions:0 txqueuelen:0 RX bytes:42 (42.0 B) TX bytes:42 (42.0 B) lo Link encap:Local Loopback inet addr:127.0.0.1 Mask:255.0.0.0 UP LOOPBACK RUNNING MTU:65536 Metric:1 RX packets:0 errors:0 dropped:0 overruns:0 frame:0 TX packets:0 errors:0 dropped:0 overruns:0 carrier:0 collisions:0 txqueuelen:1000 RX bytes:0 (0.0 B) TX bytes:0 (0.0 B) #测试网络 / # ping 10.10.4.1 PING 10.10.4.1 (10.10.4.1): 56 data bytes 64 bytes from 10.10.4.1: seq=0 ttl=64 time=0.226 ms ^C --- 10.10.4.1 ping statistics --- 1 packets transmitted, 1 packets received, 0% packet loss round-trip min/avg/max = 0.226/0.226/0.226 ms / # ping www.baidu.com PING www.baidu.com (180.101.49.11): 56 data bytes 64 bytes from 180.101.49.11: seq=0 ttl=48 time=9.238 ms ^C --- www.baidu.com ping statistics --- #可以通外网coreDNS 1 packets transmitted, 1 packets received, 0% packet loss round-trip min/avg/max = 9.238/9.238/9.238 ms / # ping 10.10.3.2 PING 10.10.3.2 (10.10.3.2): 56 data bytes 64 bytes from 10.10.3.2: seq=0 ttl=62 time=2.059 ms 64 bytes from 10.10.3.2: seq=1 ttl=62 time=0.752 ms ^C --- 10.10.3.2 ping statistics --- 2 packets transmitted, 2 packets received, 0% packet loss round-trip min/avg/max = 0.752/1.405/2.059 ms / #

2.部署Dashboard

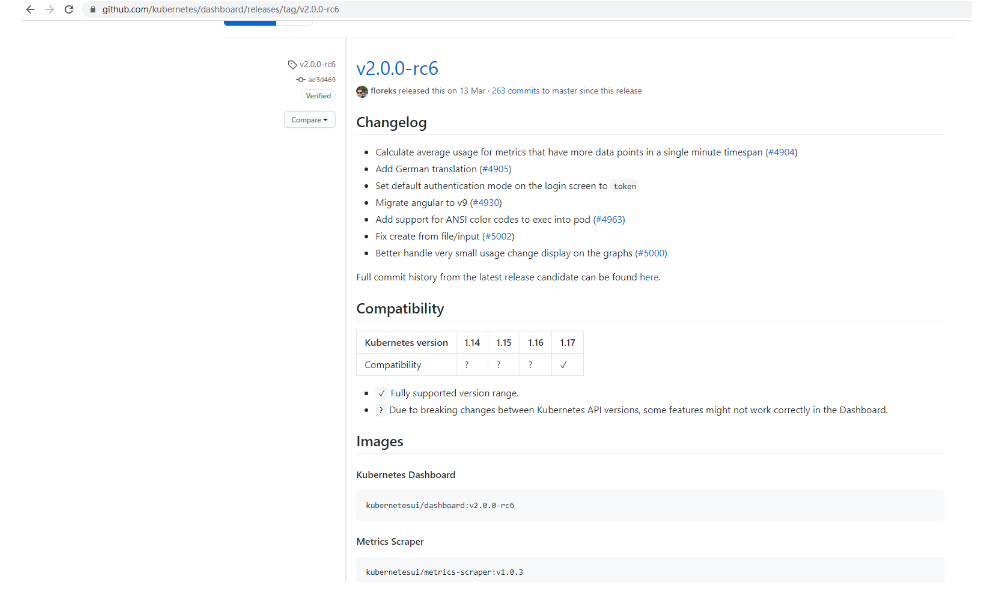

参考github 部署步骤

在这里插入图片描述

2.1 下载dashboard镜像

讯享网docker pull kubernetesui/dashboard:v2.0.0-rc6 docker pull kubernetesui/metrics-scraper:v1.0.3 root@kubeadm-master1:/data/dashboard# docker image ls REPOSITORY TAG IMAGE ID CREATED SIZE harbor.haostack.com/k8s/jack_dashboard v2.0.0-rc6 cdc71b5a8a0e 4 months ago 221MB kubernetesui/dashboard v2.0.0-rc6 cdc71b5a8a0e 4 months ago 221MB quay.io/coreos/flannel v0.12.0-amd64 4e9f801d2217 4 months ago 52.8MB kubernetesui/metrics-scraper v1.0.3 3327f0dbcb4a 5 months ago 40.1MB harbor.haostack.com/k8s/jack_metrics-scraper v1.0.3 3327f0dbcb4a 5 months ago 40.1MB

2.2 上传到harbor

docker push harbor.haostack.com/k8s/jack_dashboard:v2.0.0-rc6 docker push harbor.haostack.com/k8s/jack_metrics-scraper:v1.0.3

2.4 开始部署dashboard 2.0.0-rc6

部署dash_board-2.0.0-rc6.yml admin-user.yml

讯享网root@kubeadm-master1:/data/dashboard# kubectl apply -f dashboard-2.0.0-rc6.yml namespace/kubernetes-dashboard created serviceaccount/kubernetes-dashboard created service/kubernetes-dashboard created secret/kubernetes-dashboard-certs created secret/kubernetes-dashboard-csrf created secret/kubernetes-dashboard-key-holder created configmap/kubernetes-dashboard-settings created role.rbac.authorization.k8s.io/kubernetes-dashboard created clusterrole.rbac.authorization.k8s.io/kubernetes-dashboard created rolebinding.rbac.authorization.k8s.io/kubernetes-dashboard created clusterrolebinding.rbac.authorization.k8s.io/kubernetes-dashboard created deployment.apps/kubernetes-dashboard created service/dashboard-metrics-scraper created deployment.apps/dashboard-metrics-scraper created root@kubeadm-master1:/data/dashboard# kubectl apply -f admin-user.yml serviceaccount/admin-user created clusterrolebinding.rbac.authorization.k8s.io/admin-user created

2.5 获取登录token

token 很重要，需要保存起来

#先查看admin-user root@kubeadm-master1:/data/dashboard# kubectl get secret -A | grep admin-user kubernetes-dashboard admin-user-token-zvzhc kubernetes.io/service-account-token 3 11s #获取token root@kubeadm-master1:/data/dashboard# kubectl describe secret admin-user-token-zvzhc -n kubernetes-dashboard Name: admin-user-token-zvzhc Namespace: kubernetes-dashboard Labels: <none> Annotations: kubernetes.io/service-account.name: admin-user kubernetes.io/service-account.uid: 0356b7eb-3caa-4f92-9093-cf17f013313a Type: kubernetes.io/service-account-token Data ==== ca.crt: 1025 bytes namespace: 20 bytes token: eyJhbGciOiJSUzI1NiIsImtpZCI6InZUR2xzOHZNcTZIY1h0QVMyanN4bGhkY0JUNnpfY2RVSnh6UDdVanRQbHcifQ.eyJpc3MiOiJrdWJlcm5ldGVzL3NlcnZpY2VhY2NvdW50Iiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9uYW1lc3BhY2UiOiJrdWJlcm5ldGVzLWRhc2hib2FyZCIsImt1YmVybmV0ZXMuaW8vc2VydmljZWFjY291bnQvc2VjcmV0Lm5hbWUiOiJhZG1pbi11c2VyLXRva2VuLXp2emhjIiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9zZXJ2aWNlLWFjY291bnQubmFtZSI6ImFkbWluLXVzZXIiLCJrdWJlcm5ldGVzLmlvL3NlcnZpY2VhY2NvdW50L3NlcnZpY2UtYWNjb3VudC51aWQiOiIwMzU2YjdlYi0zY2FhLTRmOTItOTA5My1jZjE3ZjAxMzMxM2EiLCJzdWIiOiJzeXN0ZW06c2VydmljZWFjY291bnQ6a3ViZXJuZXRlcy1kYXNoYm9hcmQ6YWRtaW4tdXNlciJ9.Hm0V37rhde5hibDQKOs_a3y55ZCM_mcSFc3epwy1XiPQ61_a0xP_Wk1acYYGbdNyOEtJ63W0E_yCtbJIj2pLU_G9ZUlilPLE6DydTmTHBoe0yaYVUrBHvNbWZbBs6hu8V1DMSOhletNxBInKJ5eRKyvgV9LoriJRwO4K8U9Ce2sXWTubDyeGwBXhI2Qf_ecv2v5c89IHmYm3VG8HcZuqyIv3nFcxIpeADQd8mnrpY1AizhTDsyKVRbfpGirSkKC7AN4USo37z58sWDnMpDHG34IHMjOemPKx5d-uRrLAp6oCCsdpkaPeT4ulur8Px71FzZSRQ279SJR5aJyvpRR4sQ root@kubeadm-master1:/data/dashboard#

2.6 kubeconfig方式登录

编辑kebeconfig文件

讯享网root@kubeadm-master1:/data/nginx# kubectl get secret -A | grep admin-user kubernetes-dashboard admin-user-token-zvzhc kubernetes.io/service-account-token 3 19h root@kubeadm-master1:/data/nginx# kubectl describe secret admin-user-token-zvzhc -n kubernetes-dashboard Name: admin-user-token-zvzhc Namespace: kubernetes-dashboard Labels: <none> Annotations: kubernetes.io/service-account.name: admin-user kubernetes.io/service-account.uid: 0356b7eb-3caa-4f92-9093-cf17f013313a Type: kubernetes.io/service-account-token Data ==== ca.crt: 1025 bytes namespace: 20 bytes token: eyJhbGciOiJSUzI1NiIsImtpZCI6InZUR2xzOHZNcTZIY1h0QVMyanN4bGhkY0JUNnpfY2RVSnh6UDdVanRQbHcifQ.eyJpc3MiOiJrdWJlcm5ldGVzL3NlcnZpY2VhY2NvdW50Iiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9uYW1lc3BhY2UiOiJrdWJlcm5ldGVzLWRhc2hib2FyZCIsImt1YmVybmV0ZXMuaW8vc2VydmljZWFjY291bnQvc2VjcmV0Lm5hbWUiOiJhZG1pbi11c2VyLXRva2VuLXp2emhjIiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9zZXJ2aWNlLWFjY291bnQubmFtZSI6ImFkbWluLXVzZXIiLCJrdWJlcm5ldGVzLmlvL3NlcnZpY2VhY2NvdW50L3NlcnZpY2UtYWNjb3VudC51aWQiOiIwMzU2YjdlYi0zY2FhLTRmOTItOTA5My1jZjE3ZjAxMzMxM2EiLCJzdWIiOiJzeXN0ZW06c2VydmljZWFjY291bnQ6a3ViZXJuZXRlcy1kYXNoYm9hcmQ6YWRtaW4tdXNlciJ9.Hm0V37rhde5hibDQKOs_a3y55ZCM_mcSFc3epwy1XiPQ61_a0xP_Wk1acYYGbdNyOEtJ63W0E_yCtbJIj2pLU_G9ZUlilPLE6DydTmTHBoe0yaYVUrBHvNbWZbBs6hu8V1DMSOhletNxBInKJ5eRKyvgV9LoriJRwO4K8U9Ce2sXWTubDyeGwBXhI2Qf_ecv2v5c89IHmYm3VG8HcZuqyIv3nFcxIpeADQd8mnrpY1AizhTDsyKVRbfpGirSkKC7AN4USo37z58sWDnMpDHG34IHMjOemPKx5d-uRrLAp6oCCsdpkaPeT4ulur8Px71FzZSRQ279SJR5aJyvpRR4sQ #复制config文件 cp /root/.kube/config /data/kubeconfig #编辑kubeconfig root@kubeadm-master1:/data# more kubeconfig apiVersion: v1 clusters: - cluster: certificate-authority-data: LS0tLS1CRUdJTiBDRVJUSUZJQ0FURS0tLS0tCk1JSUN5RENDQWJDZ0F3SUJBZ0lCQURBTkJna3Foa2lHOXcwQkFRc0ZBREFWTVJNd0VRWURWUVFERXdwcmRXSmwKY201bGRHVnpNQjRYRFRJd01EY3lOVEF6TVRjMU0xb1hEVE13TURjeU16QXpNVGMxTTFvd0ZURVRNQkVH QTFVRQpBeE1LYTNWaVpYSnVaWFJsY3pDQ0FTSXdEUVlKS29aSWh2Y05BUUVCQlFBRGdnRVBBRENDQVFvQ2dnRUJBTkJyCmEyOFRMcFNLeTl1WXE2dWFMQWI1OUhaN1lTa1JZTXpJZ3oxcXQza3oyTDY5SU8rTVpoYjNXeVA4ZVJETVY1RW0KRExNMXhLZU1sNzdPKzNyNHdiZ0JBMXN1aU15Mzh0YUhibFUxblVrbWtE TFIzaVNvcnpGaUV5UGFFSmJyaHNXSQpSMm1Sc1pBWTh1d3l4N2Y2bm9ROTJOenVnYWxwOXBMaGlsSDU4d2pldGJFYXErbVFKR092STdrNzNLMmtFMXJQCjArcDY0Ly9ZdHVweUtYWFBCVEI0ZzJOQUYramdxbWJFSHNMTFBBOUpaZUFzNXZzVmJhSVBnZFRwcGN0ZUFmUzYKS0VIUW1nc3NSMUx1aksrL0VSOXpWd0N3 NWNWakFVWUlNdlMzU3BXQ2lzM0lGWHNaKytWRDM5R3QxVlpnZGVubwp6RlhhQ2dVTWRzaVRsZ0xaZUdjQ0F3RUFBYU1qTUNFd0RnWURWUjBVFIL0JBUURBZ0trTUE4R0ExVWRFd0VCCi93UUZNQU1CQWY4d0RRWUpLb1pJaHZjTkFRRUxCUUFEZ2dFQkFLUlk0eDJoNWMzMFF6YXVpYmx1Tk5KajAyQVoKVjAvUTFD R3hGSHZFcjFUd21GdHphYisvS3BjRlV1YzhCUzY5TUM1OElsbXQ3b3diMDFpdnhiTkRIYXVSa2lLcwpmdy9jcldOS3VjSUZVZElDTytwTlJaRzJTUDhkbzBCbmVTR3Z4WUplTHd6a0NkbTBtYVdxZG9UZ0xTa0s4YXE4Ck1kaEtjY2F5czhaNFFvSnRTMTlwNWRsRlBBQUxrSFJQTm5YenRNSElDUmREZUZEQVNsN2VP YXArQWpUN0tod0QKSG55cWQ3TUYxT2JheWFpUTRHTEowRjhVS2NoVW9RQlNhRllIZlFDYkNIbnpKZlJVN1AzNVZzaHJrRjlpVFFkdQpucEkwZ0F3WEd5cGovSWRWWXVUUTZiTHB1d0kyM0QraXBiQnFPZHJpSE1XM3BFdHY2bmlxMXpvbEVOTT0KLS0tLS1FTkQgQ0VSVElGSUNBVEUtLS0tLQo= server: https://172.16.62.200:6443 name: kubernetes contexts: - context: cluster: kubernetes user: kubernetes-admin name: kubernetes-admin@kubernetes current-context: kubernetes-admin@kubernetes kind: Config preferences: {} users: - name: kubernetes-admin user: client-certificate-data: LS0tLS1CRUdJTiBDRVJUSUZJQ0FURS0tLS0tCk1JSUM4akNDQWRxZ0F3SUJBZ0lJUGxRS0thWTMrY013RFFZSktvWklodmNOQVFFTEJRQXdGVEVUTUJFR0ExVUUKQXhNS2EzVmlaWEp1WlhSbGN6QWVGdzB5TURBM01qVXdNekUzTlROYUZ3MHlNVEEzTWpVd016RTRNREJhTUR ReApGekFWQmdOVkJBb1REbk41YzNSbGJUcHRZWE4wWlhKek1Sa3dGd1lEVlFRREV4QnJkV0psY201bGRHVnpMV0ZrCmJXbHVNSUlCSWpBTkJna3Foa2lHOXcwQkFRRUZBQU9DQVE4QU1JSUJDZ0tDQVFFQXQrTnJFY1BubEJFZHJLRUMKS3BOT0xsRnJQcnFQNDV4ZGlFSmNzUE5IcDc0STJ0TnRsVGlzSmcrY1JPTzg 1R29mOW5QZkI3MVFjd05sSGZoZwpYZEZNeHNkRWhydDl2L0ZnQUdQbk9iRzRUNnUvL3ZKM2NlckYwQWRiZGtZcGVKUWY1aS9KK25nbXpwb0dnZ0YvClVYYkxLRWdncTdFbTJXbEQxNG1KWkZTRGRwaXFCQmhrdVhoenduR2VFT200aHpLOVFNblY1QU5US1J1Uk5rZXoKbjdYWjhPT1VYRXMzVjQ4RFN5bEFISzlZRHR 5V1pTZzAxWG1nenE4TEZwaFIxcjBjaks0MmlxNytrVzF6cHF3OAoyWC9EN3c0UE5rOWNCVnJRaHVUeE5YWjhSdEhGQnBxMVhlU2VNWUxNWFpVd3ZQSWlxTnVhKzd1d2pzK1ZxUTl3CnNzVUZMUUlEQVFBQm95Y3dKVEFPQmdOVkhROEJBZjhFQkFNQ0JhQXdFd1lEVlIwbEJBd3dDZ1lJS3dZQkJRVUgKQXdJd0RRWUp Lb1pJaHZjTkFRRUxCUUFEZ2dFQkFBUTJUdnpGNjYvQ1dpNXBVaGhqbU1NcFhJQVkydERoT0dNWQpra0lnUkVOLzJLYzNnTUR4LzlYOFEybkZGYy9XQzFjbEdiSElHQUIxYlVUekR6T1laM1Zqc05uUFJ4V2J6MkNlCkVlSE0wUjd5V0tWbzZvWFhITDNubXJDYTFoVVFaUUpoeVlydkVONGZVMFYrY1YzNWlCbE8wQ0J nbWxjK1VrOHIKc1Q1OTJBMDFJLzRxRWdkWlllVlcrV0RVNVV6cGVjL3NzNFUwMElwVFNSVWJjQ25Fc1VNM2dXZ1NZL2dsVG5XdwpHOGYzNjVxM3BWUVJ6c2hDT0VuSE1Wak9tbEJvUTh5SkFsa0p2MDJldzhlcHRHNHB3dmVSYzJLTWoyYm1LUzdvCkg5Ukp1MHIrS3c2ZHd6QVVESkMvU216QXZUTHBkS0hJM0hhQjl YQW5DMDZDd2VWZGN0bz0KLS0tLS1FTkQgQ0VSVElGSUNBVEUtLS0tLQo= client-key-data: LS0tLS1CRUdJTiBSU0EgUFJJVkFURSBLRVktLS0tLQpNSUlFb2dJQkFBS0NBUUVBdCtOckVjUG5sQkVkcktFQ0twTk9MbEZyUHJxUDQ1eGRpRUpjc1BOSHA3NEkydE50CmxUaXNKZytjUk9PODVHb2Y5blBmQjcxUWN3TmxIZmhnWGRGTXhzZEVocnQ5di9GZ0FHUG5PYkc0VDZ1Ly92SjM KY2VyRjBBZGJka1lwZUpRZjVpL0orbmdtenBvR2dnRi9VWGJMS0VnZ3E3RW0yV2xEMTRtSlpGU0RkcGlxQkJoawp1WGh6d25HZUVPbTRoeks5UU1uVjVBTlRLUnVSTmtlem43WFo4T09VWEVzM1Y0OERTeWxBSEs5WUR0eVdaU2cwCjFYbWd6cThMRnBoUjFyMGNqSzQyaXE3K2tXMXpwcXc4MlgvRDd3NFBOazljQlZ yUWh1VHhOWFo4UnRIRkJwcTEKWGVTZU1ZTE1YWlV3dlBJaXFOdWErN3V3anMrVnFROXdzc1VGTFFJREFRQUJBb0lCQUROQ3JRMGx2RDkxU2YxZQpZTGszbVBxbWJhdnQyOENLVFRSM3Mxa01hRFFsY0ZoM3lidG9NZXptT3h5bEUzbms3NFlISk93R1pRKzZxWXhpCk9aTE5qb1oyOCs1UEE2M20vbWo5Y0c2UDBSNDh kV2YvZFRhSFNKOUYvY1FKcVBQWTdzOS9FT0hHYnFMM0lzdEkKMlpIKytJRUJJa0phUHNjcVplUUdqZ3N1MS9yTitGdXBGemhrSCtiVFJ4T2xsdkU0OHlseS83TEJuZlJyVTNhbgpRZzVMdlEyYUlGaFdoRktyNEl4T3RjUnBaSkNhWWRIZ0NsM09rdXpTR2tvMm5DbjY3VjRNTm9kQk1IbkJGWTNaCkZmMFpWWWlQYkN ITWd1WGE2QUdrVjJrNGxDa2FyLzdJVWNaTGxpNGVPZlhsNlhhQVhHaEFDa2Rad2M0RE4vblMKT0VRNlhHRUNnWUVBN1VlVFV2MDdRUFNUcC92T2taVWNia2ZIM2dMNkFqYU0wZjZXd0t6ZmxEc2NWLzVPNEhYYwpEcHZwVGI1eVZQc0dXclIzWVhEWEhtNHBrSkViaWtzUkh0YXVIZlZMdG84eDhpdnNSaGVHZkFvczI vMlBNeVZXCmcvY1hSUXBYNTNOOCtvOWJmQ0Y2anpBYWxlMVFsS1RzdXFTSWFnelErQjhtOFdpczFCdVVPMWtDZ1lFQXhtVjYKM3ArMFF0MFJoQWlEWXBuTzFuaVFaSFFuQndQeGpZcmNjdWZod2dibFdaNlBCQ1c2ZWtRZVJkNWxzUWhWUkhIUgpOTHBzQzVXOTNWWFlZOUo2TDBaTDBDdzlXalpQYWVXYVFmblRCRnF TNmpLbFlxdzZheUZIamlHUUdBRDhzT0xHCjM2OS9GYzVMOHAxa0d3Q0dLOW54cDVNQm9SUjl1SFVaUU43WDRmVUNnWUFpcm1LSEw4STRaVWNydDI5aThnTjgKenZzVXBTUzdyQk43SWhZUXhYUE1hN05oM1NiVVFnWFBFTlRSNnpNMDNwZjRMQWFDOUlaTXlWZEQ3U0cwWGZKNwpxbTg2cTc3TVNUUElyTWpWR2QwclJ pVjJaaUpISEg3L3ZON20xWE14dmp5WE50cnRVc3RpSUdyU1hTUjVCWDRnCmJhb09yaDdoRlZTUTFuYmtiYitGeVFLQmdITEhKUFdFMlluUlVaL2NPUDZqVXlsN0tMWWxDS3NqV2V6MFNDTm0KQ1pMeDRHQWZ2a2U4K0F4aU9rMWJvK051bWIzMlJ2MUZXTnErNzlBTUtSdGZHbmNkS1NFdlp2TTQ5bXFpZmNMcgpvR3d sWmxkOW8zYlpneGFWYzB0RUdaUDVoamRqaTRDL2pEdDJWVFB3WUlqS25kVGl5czZTMnQ5dzltYnZ3QU5xCnFPUzlBb0dBRmgrOGRWTjQvSE5sMEpMeXRmdFJrckNmQnU5eGRkK1RDQ1IwYjVtV0YyQVprajU0UnBzcUdWK2IKZ1dZOWZZT1ZBaWg3blJaOTdyUnRkTHJRQlNjVDQ3VHhFY2VJQnB1cXgzYzBSclVRTXF VNXVUbStmdlZqVXZSYQpCSnFFU056VDlwS0lLaUJFallXd1ZLVzFKNnRMcmFRUUljZUMvNkJ5UC8yZWRiSmtkUjA9Ci0tLS0tRU5EIFJTQSBQUklWQVRFIEtFWS0tLS0tCg== #把admin-user token复制过来，注意格式有缩进 token: eyJhbGciOiJSUzI1NiIsImtpZCI6InZUR2xzOHZNcTZIY1h0QVMyanN4bGhkY0JUNnpfY2RVSnh6UDdVanRQbHcifQ.eyJpc3MiOiJrdWJlcm5ldGVzL3NlcnZpY2VhY2NvdW50Iiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9uYW1lc3BhY2UiOiJrdWJlcm5ldGVzLWRhc2hib2FyZCIsIm t1YmVybmV0ZXMuaW8vc2VydmljZWFjY291bnQvc2VjcmV0Lm5hbWUiOiJhZG1pbi11c2VyLXRva2VuLXp2emhjIiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9zZXJ2aWNlLWFjY291bnQubmFtZSI6ImFkbWluLXVzZXIiLCJrdWJlcm5ldGVzLmlvL3NlcnZpY2VhY2NvdW50L3NlcnZpY2UtYWNjb3VudC 51aWQiOiIwMzU2YjdlYi0zY2FhLTRmOTItOTA5My1jZjE3ZjAxMzMxM2EiLCJzdWIiOiJzeXN0ZW06c2VydmljZWFjY291bnQ6a3ViZXJuZXRlcy1kYXNoYm9hcmQ6YWRtaW4tdXNlciJ9.Hm0V37rhde5hibDQKOs_a3y55ZCM_mcSFc3epwy1XiPQ61_a0xP_Wk1acYYGbdNyOEtJ63W0E_yCtbJIj2pLU_G9ZUlil PLE6DydTmTHBoe0yaYVUrBHvNbWZbBs6hu8V1DMSOhletNxBInKJ5eRKyvgV9LoriJRwO4K8U9Ce2sXWTubDyeGwBXhI2Qf_ecv2v5c89IHmYm3VG8HcZuqyIv3nFcxIpeADQd8mnrpY1AizhTDsyKVRbfpGirSkKC7AN4USo37z58sWDnMpDHG34IHMjOemPKx5d-uRrLAp6oCCsdpkaPeT4ulur8Px71FzZSRQ279S JR5aJyvpRR4sQ root@kubeadm-master1:/data#

2.7 验证pod

master节点那验证

root@kubeadm-master2:/etc/kubernetes# kubectl get pod -A | grep kubernetes-dashboard kubernetes-dashboard dashboard-metrics-scraper-6d656c9966-ltzq8 1/1 Running 0 13m kubernetes-dashboard kubernetes-dashboard-df-d56x7 1/1 Running 0 13m root@kubeadm-master2:/etc/kubernetes#

2.8 验证NodePort

讯享网root@kubeadm-master1:/data/dashboard# kubectl get svc -A NAMESPACE NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE default kubernetes ClusterIP 172.26.0.1 <none> 443/TCP 79m kube-system kube-dns ClusterIP 172.26.0.10 <none> 53/UDP,53/TCP,9153/TCP 79m kubernetes-dashboard dashboard-metrics-scraper ClusterIP 172.26.23.205 <none> 8000/TCP 12m kubernetes-dashboard kubernetes-dashboard NodePort 172.26.15.39 <none> 443:30002/TCP 12m root@kubeadm-master1:/data/dashboard# 443:30002/TCP 3m5s

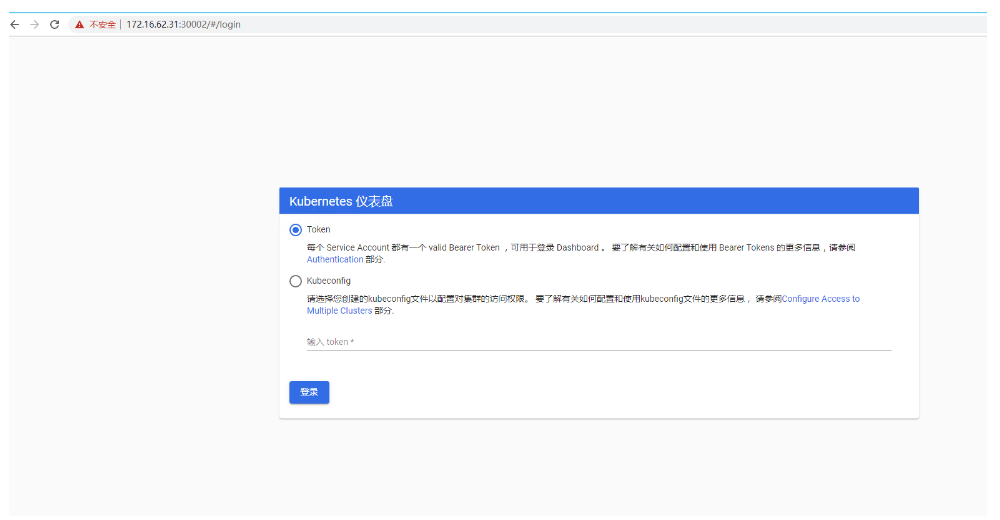

2.9 登录dashboard

在这里插入图片描述

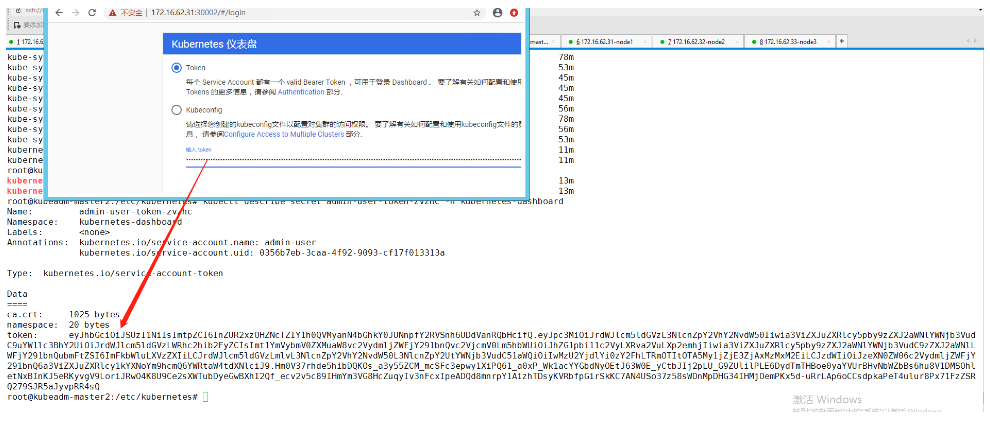

2.9.1 使用token方式登录

[外链图片转存失败,源站可能有防盗链机制,建议将图片保存下来直接上传(img-VOI3Uosc-1595770577581)(DFD35B464A724C87BB488BDCF5EA9100)]

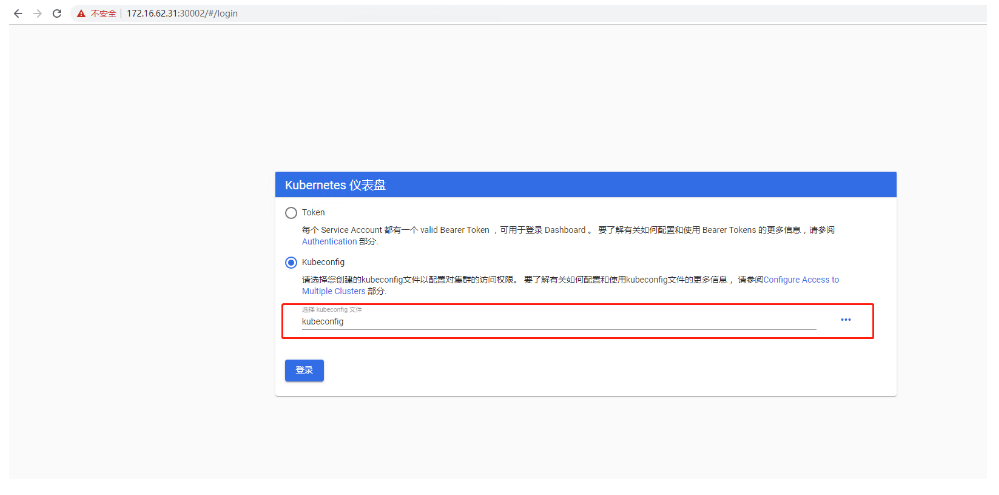

2.9.2 使用kubeconfig 方式登录

[外链图片转存失败,源站可能有防盗链机制,建议将图片保存下来直接上传(img-kg0Y7Kys-1595770577583)(2413445B056C454B9214E523885DA764)]

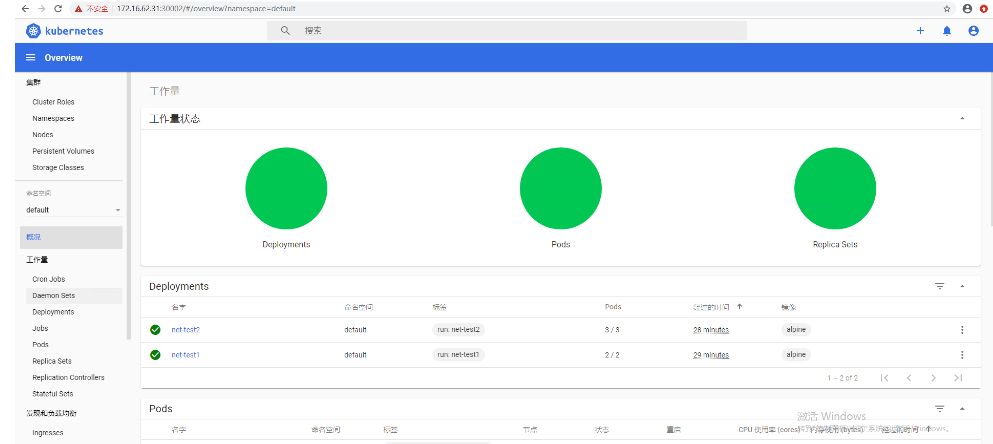

2.10 登录dashboard成功

[外链图片转存失败,源站可能有防盗链机制,建议将图片保存下来直接上传(img-ytS5SV3A-1595770577584)(42F81492E3694BB1A917E89F123A5E1A)]

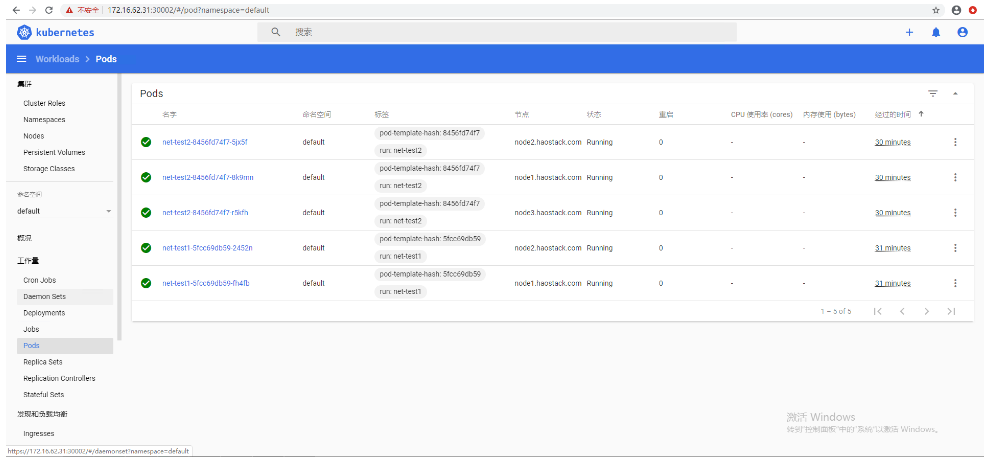

2.11查看pod

[外链图片转存失败,源站可能有防盗链机制,建议将图片保存下来直接上传(img-R9OKOmIr-1595770577585)(9320C650BF9A4A65982333593C20114A)]

3.kubernetes集群升级

3.1 升级步骤

1.查看版本 apt-cache madison kubeadm 2.升级计划检查 - kubeadm upgrade plan 3. keepalive+haproxy配置 - 升级哪个节点就把哪个节点踢出集群 4. 升级master节点-kubeadm #安装指定版本 apt-get install kubeadm=1.17.4-00 #升级 kubeadm upgrade apply v1.17.4 #升级master节点-kubelet和kubectl 安装指定版本 apt install kubelet=1.17.4-00 kubectl=1.17.4-00 #升级 kubeadm upgrade apply 5. 升级node节点 #安装指定版本 apt install kubeadm=1.17.4-00 kubelet=1.17.4-00 #升级kubeadm和kubelet kubeadm upgrade node --kubelet-version 1.17.4

3.2查看kubeadm版本

讯享网root@kubeadm-master1:/data/dashboard# apt-cache madison kubeadm kubeadm | 1.18.6-00 | https://mirrors.aliyun.com/kubernetes/apt kubernetes-xenial/main amd64 Packages kubeadm | 1.18.5-00 | https://mirrors.aliyun.com/kubernetes/apt kubernetes-xenial/main amd64 Packages kubeadm | 1.18.4-01 | https://mirrors.aliyun.com/kubernetes/apt kubernetes-xenial/main amd64 Packages kubeadm | 1.18.4-00 | https://mirrors.aliyun.com/kubernetes/apt kubernetes-xenial/main amd64 Packages kubeadm | 1.18.3-00 | https://mirrors.aliyun.com/kubernetes/apt kubernetes-xenial/main amd64 Packages kubeadm | 1.18.2-00 | https://mirrors.aliyun.com/kubernetes/apt kubernetes-xenial/main amd64 Packages kubeadm | 1.18.1-00 | https://mirrors.aliyun.com/kubernetes/apt kubernetes-xenial/main amd64 Packages kubeadm | 1.18.0-00 | https://mirrors.aliyun.com/kubernetes/apt kubernetes-xenial/main amd64 Packages kubeadm | 1.17.9-00 | https://mirrors.aliyun.com/kubernetes/apt kubernetes-xenial/main amd64 Packages kubeadm | 1.17.8-00 | https://mirrors.aliyun.com/kubernetes/apt kubernetes-xenial/main amd64 Packages kubeadm | 1.17.7-01 | https://mirrors.aliyun.com/kubernetes/apt kubernetes-xenial/main amd64 Packages kubeadm | 1.17.7-00 | https://mirrors.aliyun.com/kubernetes/apt kubernetes-xenial/main amd64 Packages kubeadm | 1.17.6-00 | https://mirrors.aliyun.com/kubernetes/apt kubernetes-xenial/main amd64 Packages kubeadm | 1.17.5-00 | https://mirrors.aliyun.com/kubernetes/apt kubernetes-xenial/main amd64 Packages kubeadm | 1.17.4-00 | https://mirrors.aliyun.com/kubernetes/apt kubernetes-xenial/main amd64 Packages kubeadm | 1.17.3-00 | https://mirrors.aliyun.com/kubernetes/apt kubernetes-xenial/main amd64 Packages

3.3 查看升级计划

建议升级到 kubeadm upgrade apply v1.17.9

root@kubeadm-master1:/# kubeadm upgrade plan [upgrade/config] Making sure the configuration is correct: [upgrade/config] Reading configuration from the cluster... [upgrade/config] FYI: You can look at this config file with 'kubectl -n kube-system get cm kubeadm-config -oyaml' [preflight] Running pre-flight checks. [upgrade] Making sure the cluster is healthy: [upgrade] Fetching available versions to upgrade to [upgrade/versions] Cluster version: v1.17.2 [upgrade/versions] kubeadm version: v1.17.2 I0725 12:47:05. 27423 version.go:251] remote version is much newer: v1.18.6; falling back to: stable-1.17 [upgrade/versions] Latest stable version: v1.17.9 [upgrade/versions] Latest version in the v1.17 series: v1.17.9 Components that must be upgraded manually after you have upgraded the control plane with 'kubeadm upgrade apply': COMPONENT CURRENT AVAILABLE Kubelet 6 x v1.17.2 v1.17.9 Upgrade to the latest version in the v1.17 series: COMPONENT CURRENT AVAILABLE API Server v1.17.2 v1.17.9 Controller Manager v1.17.2 v1.17.9 Scheduler v1.17.2 v1.17.9 Kube Proxy v1.17.2 v1.17.9 CoreDNS 1.6.5 1.6.5 Etcd 3.4.3 3.4.3-0 You can now apply the upgrade by executing the following command: kubeadm upgrade apply v1.17.9 Note: Before you can perform this upgrade, you have to update kubeadm to v1.17.9. _____________________________________________________________________ root@kubeadm-master1:/#

3.4 升级kubadm服务

所有master和node节点都要升级

3.4.1 安装

安装命令 apt-get install kubeadm=1.17.4-00

讯享网#3个节点都要安装 root@kubeadm-master2:/etc/kubernetes# apt-get install kubeadm=1.17.4-00 Reading package lists... Done Building dependency tree Reading state information... Done The following packages will be DOWNGRADED: kubeadm 0 upgraded, 0 newly installed, 1 downgraded, 0 to remove and 58 not upgraded. Need to get 8,064 kB of archives. After this operation, 4,096 B disk space will be freed. Do you want to continue? [Y/n] Y Get:1 https://mirrors.aliyun.com/kubernetes/apt kubernetes-xenial/main amd64 kubeadm amd64 1.17.4-00 [8,064 kB] Fetched 8,064 kB in 0s (20.7 MB/s) dpkg: warning: downgrading kubeadm from 1.17.9-00 to 1.17.4-00 (Reading database ...  files and directories currently installed.) Preparing to unpack .../kubeadm_1.17.4-00_amd64.deb ... Unpacking kubeadm (1.17.4-00) over (1.17.9-00) ... Setting up kubeadm (1.17.4-00) ... root@kubeadm-master2:/etc/kubernetes#

3.4.2 升级kubeadm

升级命令 kubeadm upgrade apply v1.17.4
由于v1.17.9 总是超时，这里测试升级到v1.17.4

- 所有master节点都要升级 #master1 root@kubeadm-master1:/data/scripts# kubeadm upgrade apply v1.17.4 #master2 root@kubeadm-master2:/etc/kubernetes# kubeadm upgrade apply v1.17.4 #master3 root@kubeadm-master3:/etc/kubernetes# kubeadm upgrade apply v1.17.4

3.4.3 升级kubelet和kubectl

所有master节点

讯享网- apt install kubelet=1.17.4-00 kubectl=1.17.4-00 #安装 - kubeadm upgrade apply kubelet=1.17.4 kubectl=1.17.4 #升级

3.4.4 node节点升级

node节点只有kubadm 和kubelet组件，只要升级这两个即可

apt install kubeadm=1.17.4-00 kubelet=1.17.4-00 #安装 kubeadm upgrade node --kubelet-version 1.17.4 #升级

3.4.5 升级过程

讯享网#master升级过程 root@kubeadm-master1:/data/scripts# kubeadm upgrade apply v1.17.4 [upgrade/config] Making sure the configuration is correct: [upgrade/config] Reading configuration from the cluster... [upgrade/config] FYI: You can look at this config file with 'kubectl -n kube-system get cm kubeadm-config -oyaml' [preflight] Running pre-flight checks. [upgrade] Making sure the cluster is healthy: [upgrade/version] You have chosen to change the cluster version to "v1.17.4" [upgrade/versions] Cluster version: v1.17.4 [upgrade/versions] kubeadm version: v1.17.9 [upgrade/confirm] Are you sure you want to proceed with the upgrade? [y/N]: y [upgrade/prepull] Will prepull images for components [kube-apiserver kube-controller-manager kube-scheduler etcd] [upgrade/prepull] Prepulling image for component etcd. [upgrade/prepull] Prepulling image for component kube-apiserver. [upgrade/prepull] Prepulling image for component kube-controller-manager. [upgrade/prepull] Prepulling image for component kube-scheduler. [apiclient] Found 0 Pods for label selector k8s-app=upgrade-prepull-kube-scheduler [apiclient] Found 3 Pods for label selector k8s-app=upgrade-prepull-kube-apiserver [apiclient] Found 3 Pods for label selector k8s-app=upgrade-prepull-kube-controller-manager [apiclient] Found 0 Pods for label selector k8s-app=upgrade-prepull-etcd [apiclient] Found 3 Pods for label selector k8s-app=upgrade-prepull-kube-scheduler [apiclient] Found 3 Pods for label selector k8s-app=upgrade-prepull-etcd [upgrade/prepull] Prepulled image for component kube-scheduler. [upgrade/prepull] Prepulled image for component kube-apiserver. [upgrade/prepull] Prepulled image for component kube-controller-manager. [upgrade/prepull] Prepulled image for component etcd. [upgrade/prepull] Successfully prepulled the images for all the control plane components [upgrade/apply] Upgrading your Static Pod-hosted control plane to version "v1.17.4"... Static pod: kube-apiserver-kubeadm-master1.haostack.com hash: b5e3b0092320eb9795f14c21b091fb3f Static pod: kube-controller-manager-kubeadm-master1.haostack.com hash: bd130f2488b3f5237c32145a1856eaa6 Static pod: kube-scheduler-kubeadm-master1.haostack.com hash: 92eb55a1e38e273dab9a560bc [upgrade/etcd] Upgrading to TLS for etcd [upgrade/etcd] Non fatal issue encountered during upgrade: the desired etcd version for this Kubernetes version "v1.17.4" is "3.4.3-0", but the current etcd version is "3.4.3". Won't downgrade etcd, instead just continue [upgrade/staticpods] Writing new Static Pod manifests to "/etc/kubernetes/tmp/kubeadm-upgraded-manifests" W0725 17:37:49. 346 manifests.go:214] the default kube-apiserver authorization-mode is "Node,RBAC"; using "Node,RBAC" [upgrade/staticpods] Preparing for "kube-apiserver" upgrade [upgrade/staticpods] Renewing apiserver certificate [upgrade/staticpods] Renewing apiserver-kubelet-client certificate [upgrade/staticpods] Renewing front-proxy-client certificate [upgrade/staticpods] Renewing apiserver-etcd-client certificate [upgrade/staticpods] Moved new manifest to "/etc/kubernetes/manifests/kube-apiserver.yaml" and backed up old manifest to "/etc/kubernetes/tmp/kubeadm-backup-manifests-2020-07-25-17-37-47/kube-apiserver.yaml" [upgrade/staticpods] Waiting for the kubelet to restart the component [upgrade/staticpods] This might take a minute or longer depending on the component/version gap (timeout 5m0s) Static pod: kube-apiserver-kubeadm-master1.haostack.com hash: b5e3b0092320eb9795f14c21b091fb3f Static pod: kube-apiserver-kubeadm-master1.haostack.com hash: 9a6e25f7f4f72df425fb7b61b7dc9c94 [apiclient] Found 3 Pods for label selector component=kube-apiserver [upgrade/staticpods] Component "kube-apiserver" upgraded successfully! [upgrade/staticpods] Preparing for "kube-controller-manager" upgrade [upgrade/staticpods] Renewing controller-manager.conf certificate [upgrade/staticpods] Moved new manifest to "/etc/kubernetes/manifests/kube-controller-manager.yaml" and backed up old manifest to "/etc/kubernetes/tmp/kubeadm-backup-manifests-2020-07-25-17-37-47/kube-controller-manager.yaml" [upgrade/staticpods] Waiting for the kubelet to restart the component [upgrade/staticpods] This might take a minute or longer depending on the component/version gap (timeout 5m0s) Static pod: kube-controller-manager-kubeadm-master1.haostack.com hash: bd130f2488b3f5237c32145a1856eaa6 Static pod: kube-controller-manager-kubeadm-master1.haostack.com hash: 0c38f39e720ba377cf3e5bb783dab2b8 [apiclient] Found 3 Pods for label selector component=kube-controller-manager [upgrade/staticpods] Component "kube-controller-manager" upgraded successfully! [upgrade/staticpods] Preparing for "kube-scheduler" upgrade [upgrade/staticpods] Renewing scheduler.conf certificate [upgrade/staticpods] Moved new manifest to "/etc/kubernetes/manifests/kube-scheduler.yaml" and backed up old manifest to "/etc/kubernetes/tmp/kubeadm-backup-manifests-2020-07-25-17-37-47/kube-scheduler.yaml" [upgrade/staticpods] Waiting for the kubelet to restart the component [upgrade/staticpods] This might take a minute or longer depending on the component/version gap (timeout 5m0s) Static pod: kube-scheduler-kubeadm-master1.haostack.com hash: 92eb55a1e38e273dab9a560bc Static pod: kube-scheduler-kubeadm-master1.haostack.com hash: 51b669bfc8f29eab8a4b7da81 [apiclient] Found 3 Pods for label selector component=kube-scheduler [upgrade/staticpods] Component "kube-scheduler" upgraded successfully! [upload-config] Storing the configuration used in ConfigMap "kubeadm-config" in the "kube-system" Namespace [kubelet] Creating a ConfigMap "kubelet-config-1.17" in namespace kube-system with the configuration for the kubelets in the cluster [kubelet-start] Downloading configuration for the kubelet from the "kubelet-config-1.17" ConfigMap in the kube-system namespace [kubelet-start] Writing kubelet configuration to file "/var/lib/kubelet/config.yaml" [bootstrap-token] configured RBAC rules to allow Node Bootstrap tokens to post CSRs in order for nodes to get long term certificate credentials [bootstrap-token] configured RBAC rules to allow the csrapprover controller automatically approve CSRs from a Node Bootstrap Token [bootstrap-token] configured RBAC rules to allow certificate rotation for all node client certificates in the cluster [addons]: Migrating CoreDNS Corefile [addons] Applied essential addon: CoreDNS [addons] Applied essential addon: kube-proxy [upgrade/successful] SUCCESS! Your cluster was upgraded to "v1.17.4". Enjoy! [upgrade/kubelet] Now that your control plane is upgraded, please proceed with upgrading your kubelets if you haven't already done so. root@kubeadm-master1:/data/scripts# #node节点升级过程 oot@node3:/# kubeadm upgrade node --kubelet-version 1.17.4 [upgrade] Reading configuration from the cluster... [upgrade] FYI: You can look at this config file with 'kubectl -n kube-system get cm kubeadm-config -oyaml' [upgrade] Skipping phase. Not a control plane node. [upgrade] Using kubelet config version 1.17.4, while kubernetes-version is v1.17.4 [kubelet-start] Downloading configuration for the kubelet from the "kubelet-config-1.17" ConfigMap in the kube-system namespace [kubelet-start] Writing kubelet configuration to file "/var/lib/kubelet/config.yaml" [upgrade] The configuration for this node was successfully updated! [upgrade] Now you should go ahead and upgrade the kubelet package using your package manager.

3.5 验证版本

所有节点kubeadmy版本 v1.17.4

root@kubeadm-master1:/data/scripts# kubeadm version kubeadm version: &version.Info{Major:"1", Minor:"17", GitVersion:"v1.17.4", GitCommit:"8d8aaad77120c120a22b3a990b5ea", GitTreeState:"clean", BuildDate:"2020-03-12T21:01:11Z", GoVersion:"go1.13.8", Compiler:"gc", Platform:"linux/amd64"} root@kubeadm-master1:/data/scripts#

kubectl版本

讯享网root@kubeadm-master1:/data/scripts# kubectl get node NAME STATUS ROLES AGE VERSION kubeadm-master1.haostack.com Ready master 6h53m v1.17.4 kubeadm-master2.haostack.com Ready master 6h31m v1.17.4 kubeadm-master3.haostack.com Ready master 6h28m v1.17.4 node1.haostack.com Ready <none> 6h20m v1.17.4 node2.haostack.com Ready <none> 6h20m v1.17.4 node3.haostack.com Ready <none> 6h20m v1.17.4 root@kubeadm-master1:/data/scripts#

4.运行Nginx+tomcat

4.1 nginx.yml文件

root@kubeadm-master1:/data/nginx# more nginx.yml apiVersion: apps/v1 kind: Deployment metadata: name: nginx-deployment labels: app: nginx spec: replicas: 1 selector: matchLabels: app: nginx template: metadata: labels: app: nginx spec: containers: - name: nginx image: harbor.haostack.com/baseimages/jack_nginx_yum:v1 #内部仓库 ports: - containerPort: 80 --- kind: Service apiVersion: v1 metadata: labels: app: app-nginx-service-label name: app-nginx-service #service 名称 namespace: default spec: type: NodePort ports: - name: http port: 80 #service端口 protocol: TCP targetPort: 80 #nginx服务端口 nodePort: 30007 #nodeport端口 selector: app: nginx root@kubeadm-master1:/data/nginx#

4.2.tomcat.yml文件

讯享网root@kubeadm-master1:/data/tomcat# more tomcat.yml apiVersion: apps/v1 kind: Deployment metadata: name: tomcat-deployment labels: app: tomcat spec: replicas: 1 selector: matchLabels: app: tomcat template: metadata: labels: app: tomcat spec: containers: - name: tomcat image: harbor.haostack.com/baseimages/jack_tomcat_app1:v1 ports: - containerPort: 8080 --- kind: Service apiVersion: v1 metadata: labels: app: app-tomcat-service-label name: app-tomcat-service namespace: default spec: type: NodePort ports: - name: http port: 80 protocol: TCP targetPort: 8080 nodePort: 30006 selector: app: tomcat root@kubeadm-master1:/data/tomcat#

4.3 创建pod

root@kubeadm-master1:/data/tomcat# kubectl apply -f tomcat.yml root@kubeadm-master1:/data/tomcat# kubectl apply -f tomcat.yml

4.4 查看pod

一个pod 状态都是运行状态

讯享网root@kubeadm-master1:~# kubectl get pod -o wide NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES net-test1-5fcc69db59-2452n 1/1 Running 0 9h 10.10.4.2 node2.haostack.com <none> <none> net-test1-5fcc69db59-fh4fb 1/1 Running 0 9h 10.10.3.2 node1.haostack.com <none> <none> net-test2-8456fd74f7-5jx5f 1/1 Running 0 9h 10.10.4.3 node2.haostack.com <none> <none> net-test2-8456fd74f7-8k9mn 1/1 Running 0 9h 10.10.3.3 node1.haostack.com <none> <none> net-test2-8456fd74f7-r5kfh 1/1 Running 0 9h 10.10.5.2 node3.haostack.com <none> <none> nginx-deployment-555f58994f-dpjk7 1/1 Running 0 149m 10.10.3.5 node1.haostack.com <none> <none> tomcat-deployment-6f566f49f8-6z2h7 1/1 Running 0 27m 10.10.4.6 node2.haostack.com <none> <none>

4.5 查看service

app-nginx-service和app-tomcat-service

root@kubeadm-master1:~# kubectl get service -o wide NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE SELECTOR app-nginx-service NodePort 172.26.183.218 <none> 80:30007/TCP 15m app=nginx app-tomcat-service NodePort 172.26.160.109 <none> 80:30006/TCP 17m app=tomcat kubernetes ClusterIP 172.26.0.1 <none> 443/TCP 10h <none> root@kubeadm-master1:~# #service 会把请求转发给后端的tomcat 8080 root@kubeadm-master1:~# kubectl describe service app-tomcat-service Name: app-tomcat-service Namespace: default Labels: app=app-tomcat-service-label Annotations: kubectl.kubernetes.io/last-applied-configuration: {"apiVersion":"v1","kind":"Service","metadata":{"annotations":{},"labels":{"app":"app-tomcat-service-label"},"name":"app-tomcat-service","... Selector: app=tomcat Type: NodePort IP: 172.26.160.109 Port: http 80/TCP TargetPort: 8080/TCP NodePort: http 30006/TCP Endpoints: 10.10.4.6:8080 Session Affinity: None External Traffic Policy: Cluster Events: <none> root@kubeadm-master1:~# kubectl get pod NAME READY STATUS RESTARTS AGE net-test1-5fcc69db59-2452n 1/1 Running 0 9h net-test1-5fcc69db59-fh4fb 1/1 Running 0 9h net-test2-8456fd74f7-5jx5f 1/1 Running 0 9h net-test2-8456fd74f7-8k9mn 1/1 Running 0 9h net-test2-8456fd74f7-r5kfh 1/1 Running 0 9h nginx-deployment-555f58994f-dpjk7 1/1 Running 0 158m tomcat-deployment-6f566f49f8-6z2h7 1/1 Running 0 36m root@kubeadm-master1:~#

4.6 配置nginx

在nginx配置文件中增加如下配置

讯享网  server {
 45         listen       80 default_server;
 46         server_name  _;
 47         root         /usr/share/nginx/html;
 48         include /etc/nginx/default.d/*.conf;
 49
 50         location /app1 {
 51         proxy_pass http://app-tomcat-service;
 52     }
 53         error_page 404 /404.html;
 54         location = /40x.html {
 55     }
 56         error_page 500 502 503 504 /50x.html;
 57         location = /50x.html {
 58         }
 59     }
 60 }

4.7 利用haproxy实现反向代理

基于 haproxy 和 keepalived 实现高可用的反向代理，并访问到运行在 kubernetes 集群中业务 Pod
haproxy配置

listen k8s-pod-nginx bind 172.16.62.201:80 mode tcp balance roundrobin server node1 172.16.62.31:30007 check inter 3s fall 3 rise 5 server node2 172.16.62.32:30007 check inter 3s fall 3 rise 5 server node3 172.16.62.33:30007 check inter 3s fall 3 rise 5

keepalive VIP配置
172.16.62.201 www.haostack.com 已经在DNS上做解析

讯享网root@kubeadm-master3:/etc/kubernetes# curl www.haostack.com docker nginx pod2 root@kubeadm-master3:/etc/kubernetes# curl www.haostack.com docker nginx pod3 root@kubeadm-master3:/etc/kubernetes# curl www.haostack.com docker nginx pod2 root@kubeadm-master3:/etc/kubernetes# curl www.haostack.com docker nginx pod1 root@kubeadm-master3:/etc/kubernetes# curl www.haostack.com docker nginx pod3 root@kubeadm-master3:/etc/kubernetes#

4.8 nginx+tomcat测试

进入nginx pod 访问tomcat 测试

oot@kubeadm-master1:/data/nginx# docker exec -it nginx-deployment-555f58994f-dpjk7 sh
Error: No such container: nginx-deployment-555f58994f-dpjk7
root@kubeadm-master1:/data/nginx# kubectl  exec -it nginx-deployment-555f58994f-dpjk7 sh
sh-4.2# ifconfig
eth0: flags=4163<UP,BROADCAST,RUNNING,MULTICAST>  mtu 1450
        inet 10.10.3.5  netmask 255.255.255.0  broadcast 10.10.3.255
        ether f2:6d:71:27:f3:57  txqueuelen 0  (Ethernet)
        RX packets 4486  bytes 312171 (304.8 KiB)
        RX errors 0  dropped 0  overruns 0  frame 0
        TX packets 2426  bytes 176207 (172.0 KiB)
        TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0

lo: flags=73<UP,LOOPBACK,RUNNING>  mtu 65536
        inet 127.0.0.1  netmask 255.0.0.0
        loop  txqueuelen 1000  (Local Loopback)
        RX packets 24  bytes 1964 (1.9 KiB)
        RX errors 0  dropped 0  overruns 0  frame 0
        TX packets 24  bytes 1964 (1.9 KiB)
        TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0

sh-4.2# ping 10.10.4.6
PING 10.10.4.6 (10.10.4.6) 56(84) bytes of data.
64 bytes from 10.10.4.6: icmp_seq=1 ttl=62 time=0.960 ms
64 bytes from 10.10.4.6: icmp_seq=2 ttl=62 time=0.710 ms
#测试tomcat
sh-4.2# curl 10.10.4.6:8080/app1/index.html
tomcat app1 web server
docker
sh-4.2#

访问nginx默认页面

讯享网root@kubeadm-master3:/etc/kubernetes# curl www.haostack.com docker nginx pod1

访问tomcat默认页面

root@kubeadm-master3:/etc/kubernetes# curl 172.16.62.31:30006/app1/ tomcat app1 web server docker root@kubeadm-master3:/etc/kubernetes#

访问nginx代理页面

讯享网root@kubeadm-master3:/etc/kubernetes# curl www.haostack.com/app1/ tomcat app1 web server docker root@kubeadm-master3:/etc/kubernetes
