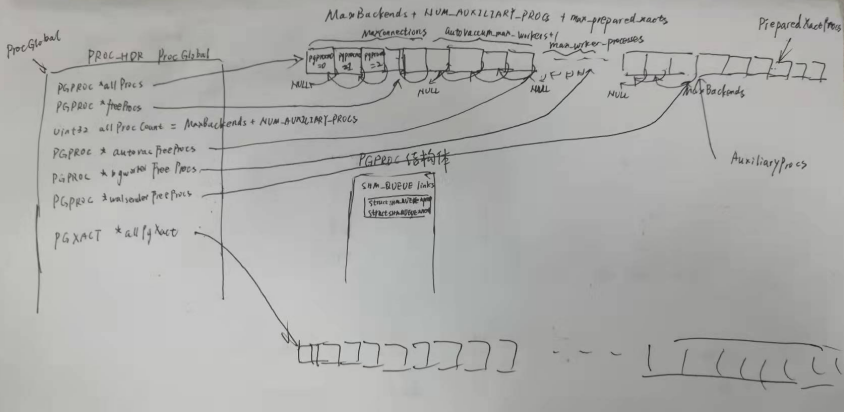

allProcs数组包含了后端/台进程PGPROC槽（一个数组元素算一个槽）。allPgXact数组包含了后端/台进程PGXACT槽。freeProcs是指后端/台进程PGPROC空闲链表，autovacFreeProcs是指autovacuum进程PGPROC空闲链表，bgworkerFreeProcs是指bgworker进程PGPROC空闲链表，walsenderFreeProc是指swalsender进程PGPROC空闲链表。

/* Pointers to shared-memory structures */ PROC_HDR *ProcGlobal = NULL; /* There is one ProcGlobal struct for the whole database cluster. */ typedef struct PROC_HDR {
    /* Array of PGPROC structures (not including dummies for prepared txns) */ PGPROC *allProcs; /* Array of PGXACT structures (not including dummies for prepared txns) */ PGXACT *allPgXact; /* Length of allProcs array */ uint32 allProcCount; /* Head of list of free PGPROC structures */ PGPROC *freeProcs; /* Head of list of autovacuum's free PGPROC structures */ PGPROC *autovacFreeProcs; /* Head of list of bgworker free PGPROC structures */ PGPROC *bgworkerFreeProcs; /* Head of list of walsender free PGPROC structures */ PGPROC *walsenderFreeProcs; /* First pgproc waiting for group XID clear */ pg_atomic_uint32 procArrayGroupFirst; /* First pgproc waiting for group transaction status update */ pg_atomic_uint32 clogGroupFirst; /* WALWriter process's latch */ Latch *walwriterLatch; /* Checkpointer process's latch */ Latch *checkpointerLatch; /* Current shared estimate of appropriate spins_per_delay value */ int spins_per_delay; /* The proc of the Startup process, since not in ProcArray */ PGPROC *startupProc; int startupProcPid; /* Buffer id of the buffer that Startup process waits for pin on, or -1 */ int startupBufferPinWaitBufId; } PROC_HDR;

初始化

讯享网/* Report shared-memory space needed by InitProcGlobal. */ Size ProcGlobalShmemSize(void) {
    Size size = 0; /* ProcGlobal */ size = add_size(size, sizeof(PROC_HDR)); /* MyProcs, including autovacuum workers and launcher */ size = add_size(size, mul_size(MaxBackends, sizeof(PGPROC))); /* AuxiliaryProcs */ size = add_size(size, mul_size(NUM_AUXILIARY_PROCS, sizeof(PGPROC))); /* Prepared xacts */ size = add_size(size, mul_size(max_prepared_xacts, sizeof(PGPROC))); /* ProcStructLock */ size = add_size(size, sizeof(slock_t)); size = add_size(size, mul_size(MaxBackends, sizeof(PGXACT))); size = add_size(size, mul_size(NUM_AUXILIARY_PROCS, sizeof(PGXACT))); size = add_size(size, mul_size(max_prepared_xacts, sizeof(PGXACT))); return size; } /* Report number of semaphores needed by InitProcGlobal. */ int ProcGlobalSemas(void) {
    /* We need a sema per backend (including autovacuum), plus one for each auxiliary process. */ return MaxBackends + NUM_AUXILIARY_PROCS; }

讯享网

/* InitProcGlobal - * Initialize the global process table during postmaster or standalone * backend startup. * We also create all the per-process semaphores we will need to support * the requested number of backends. We used to allocate semaphores * only when backends were actually started up, but that is bad because * it lets Postgres fail under load --- a lot of Unix systems are * (mis)configured with small limits on the number of semaphores, and * running out when trying to start another backend is a common failure. * So, now we grab enough semaphores to support the desired max number * of backends immediately at initialization --- if the sysadmin has set * MaxConnections, max_worker_processes, max_wal_senders, or * autovacuum_max_workers higher than his kernel will support, he'll * find out sooner rather than later. * Another reason for creating semaphores here is that the semaphore * implementation typically requires us to create semaphores in the * postmaster, not in backends. * Note: this is NOT called by individual backends under a postmaster, * not even in the EXEC_BACKEND case. The ProcGlobal and AuxiliaryProcs * pointers must be propagated specially for EXEC_BACKEND operation. */ void InitProcGlobal(void) {
    PGPROC *procs; PGXACT *pgxacts; int i, j; bool found; uint32 TotalProcs = MaxBackends + NUM_AUXILIARY_PROCS + max_prepared_xacts; /* Create the ProcGlobal shared structure */ ProcGlobal = (PROC_HDR *)ShmemInitStruct("Proc Header", sizeof(PROC_HDR), &found);Assert(!found); /* Initialize the data structures. */ ProcGlobal->spins_per_delay = DEFAULT_SPINS_PER_DELAY; ProcGlobal->freeProcs = NULL; ProcGlobal->autovacFreeProcs = NULL; ProcGlobal->bgworkerFreeProcs = NULL; ProcGlobal->walsenderFreeProcs = NULL; ProcGlobal->startupProc = NULL; ProcGlobal->startupProcPid = 0; ProcGlobal->startupBufferPinWaitBufId = -1; ProcGlobal->walwriterLatch = NULL; ProcGlobal->checkpointerLatch = NULL; pg_atomic_init_u32(&ProcGlobal->procArrayGroupFirst, INVALID_PGPROCNO); pg_atomic_init_u32(&ProcGlobal->clogGroupFirst, INVALID_PGPROCNO); /* Create and initialize all the PGPROC structures we'll need. There are * five separate consumers: (1) normal backends, (2) autovacuum workers * and the autovacuum launcher, (3) background workers, (4) auxiliary * processes, and (5) prepared transactions. Each PGPROC structure is * dedicated to exactly one of these purposes, and they do not move * between groups. */ procs = (PGPROC *) ShmemAlloc(TotalProcs * sizeof(PGPROC)); MemSet(procs, 0, TotalProcs * sizeof(PGPROC)); ProcGlobal->allProcs = procs; /* XXX allProcCount isn't really all of them; it excludes prepared xacts */ ProcGlobal->allProcCount = MaxBackends + NUM_AUXILIARY_PROCS; /* Also allocate a separate array of PGXACT structures. This is separate * from the main PGPROC array so that the most heavily accessed data is * stored contiguously in memory in as few cache lines as possible. This * provides significant performance benefits, especially on a * multiprocessor system. There is one PGXACT structure for every PGPROC * structure. */ pgxacts = (PGXACT *) ShmemAlloc(TotalProcs * sizeof(PGXACT)); MemSet(pgxacts, 0, TotalProcs * sizeof(PGXACT)); ProcGlobal->allPgXact = pgxacts; for (i = 0; i < TotalProcs; i++) {
    /* Common initialization for all PGPROCs, regardless of type. */ /* Set up per-PGPROC semaphore, latch, and backendLock. Prepared xact * dummy PGPROCs don't need these though - they're never associated * with a real process */ if (i < MaxBackends + NUM_AUXILIARY_PROCS){
    procs[i].sem = PGSemaphoreCreate(); InitSharedLatch(&(procs[i].procLatch)); LWLockInitialize(&(procs[i].backendLock), LWTRANCHE_PROC); } procs[i].pgprocno = i; /* Newly created PGPROCs for normal backends, autovacuum and bgworkers * must be queued up on the appropriate free list. Because there can * only ever be a small, fixed number of auxiliary processes, no free * list is used in that case; InitAuxiliaryProcess() instead uses a * linear search. PGPROCs for prepared transactions are added to a * free list by TwoPhaseShmemInit(). */ if (i < MaxConnections){
    /* PGPROC for normal backend, add to freeProcs list */ procs[i].links.next = (SHM_QUEUE *) ProcGlobal->freeProcs; ProcGlobal->freeProcs = &procs[i]; procs[i].procgloballist = &ProcGlobal->freeProcs; }else if (i < MaxConnections + autovacuum_max_workers + 1){
    /* PGPROC for AV launcher/worker, add to autovacFreeProcs list */ procs[i].links.next = (SHM_QUEUE *) ProcGlobal->autovacFreeProcs; ProcGlobal->autovacFreeProcs = &procs[i]; procs[i].procgloballist = &ProcGlobal->autovacFreeProcs; }else if (i < MaxConnections + autovacuum_max_workers + 1 + max_worker_processes){
    /* PGPROC for bgworker, add to bgworkerFreeProcs list */ procs[i].links.next = (SHM_QUEUE *) ProcGlobal->bgworkerFreeProcs; ProcGlobal->bgworkerFreeProcs = &procs[i]; procs[i].procgloballist = &ProcGlobal->bgworkerFreeProcs; }else if (i < MaxBackends){
    /* PGPROC for walsender, add to walsenderFreeProcs list */ procs[i].links.next = (SHM_QUEUE *) ProcGlobal->walsenderFreeProcs; ProcGlobal->walsenderFreeProcs = &procs[i]; procs[i].procgloballist = &ProcGlobal->walsenderFreeProcs; } /* Initialize myProcLocks[] shared memory queues. */ for (j = 0; j < NUM_LOCK_PARTITIONS; j++) SHMQueueInit(&(procs[i].myProcLocks[j])); /* Initialize lockGroupMembers list. */ dlist_init(&procs[i].lockGroupMembers); /* Initialize the atomic variables, otherwise, it won't be safe to * access them for backends that aren't currently in use. */ pg_atomic_init_u32(&(procs[i].procArrayGroupNext), INVALID_PGPROCNO); pg_atomic_init_u32(&(procs[i].clogGroupNext), INVALID_PGPROCNO); } /* Save pointers to the blocks of PGPROC structures reserved for auxiliary * processes and prepared transactions. */ AuxiliaryProcs = &procs[MaxBackends]; PreparedXactProcs = &procs[MaxBackends + NUM_AUXILIARY_PROCS]; /* Create ProcStructLock spinlock, too */ ProcStructLock = (slock_t *) ShmemAlloc(sizeof(slock_t)); SpinLockInit(ProcStructLock); }

申请一个PGPROC

InitProcess函数为后端进程初始化进程数据结构体PGPROC。根据后端进程类型从不同的空闲链表中获取空闲的PGPROC结构体。获取ProcStructLock锁，从空闲链表中获取一个PGPROC结构体，将空闲链表指向links.next所指向的PGPROC结构体。

讯享网/* InitProcess -- initialize a per-process data structure for this backend */ void InitProcess(void) {
    PGPROC *volatile *procgloballist; /* Decide which list should supply our PGPROC. */ if (IsAnyAutoVacuumProcess()) procgloballist = &ProcGlobal->autovacFreeProcs; else if (IsBackgroundWorker) procgloballist = &ProcGlobal->bgworkerFreeProcs; else if (am_walsender) procgloballist = &ProcGlobal->walsenderFreeProcs; else procgloballist = &ProcGlobal->freeProcs; /* Try to get a proc struct from the appropriate free list. If this * fails, we must be out of PGPROC structures (not to mention semaphores). * While we are holding the ProcStructLock, also copy the current shared * estimate of spins_per_delay to local storage. */ SpinLockAcquire(ProcStructLock); set_spins_per_delay(ProcGlobal->spins_per_delay); MyProc = *procgloballist; if (MyProc != NULL){
    *procgloballist = (PGPROC *) MyProc->links.next; SpinLockRelease(ProcStructLock); }else{
    /* If we reach here, all the PGPROCs are in use. This is one of the * possible places to detect "too many backends", so give the standard * error message. XXX do we need to give a different failure message * in the autovacuum case? */ SpinLockRelease(ProcStructLock); if (am_walsender) ereport(FATAL,(errcode(ERRCODE_TOO_MANY_CONNECTIONS),errmsg("number of requested standby connections exceeds max_wal_senders (currently %d)",max_wal_senders))); ereport(FATAL,(errcode(ERRCODE_TOO_MANY_CONNECTIONS),errmsg("sorry, too many clients already"))); } MyPgXact = &ProcGlobal->allPgXact[MyProc->pgprocno];
