题目

建表时使用 create table ... stored as geek 来创建GeekFormat表
该表的文件类型为文本类型，非二进制类型，类似Base64TextInputFormat和Base64TextOutputFormat，GeekFormat也是用于加密

• 解密规则如下：文件中出现任何的geek，geeeek，geeeeeeeeeeek等单词时，进行过滤，即删除该单词。gek需要保留。字母中连续的“e”最大长度为256个。

• 加密规则如下：文件输出时每随机2到256个单词，就插入一个gee…k，字母e的个数等于前面出现的非gee…k单词的个数。

思路

使用 Hive 建表时可以使用 STORED AS 指定特定的关键字，如下：

CREATE TABLE tb_test ( id int ) STORED AS PARQUET;

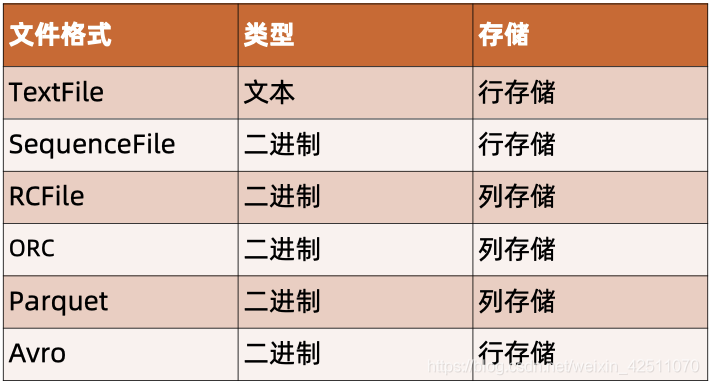

还可以指定以下格式：

讯享网
STORED AS PARQUET 是以下三句话的简写：

讯享网ROW FORMAT SERDE 'org.apache.hadoop.hive.ql.io.parquet.serde.ParquetHiveSerDe' STORED AS INPUTFORMAT 'org.apache.hadoop.hive.ql.io.parquet.MapredParquetInputFormat' OUTPUTFORMAT 'org.apache.hadoop.hive.ql.io.parquet.MapredParquetOutputFormat'

• ROW FORMAT SERDE 是指定序列化和反序列化的，即Java对象转换为字节的转换关系，可以使用默认值
• STORED AS INPUTFORMAT 是对输入输出的格式化操作，这是实现加解密的关键

实现可以参考 Base64TextInputFormat.java

编码

1.GeekTextInputFormat.java

InputFormat 是指怎么读取到 hive 表中

public class GeekTextInputFormat implements InputFormat<LongWritable, BytesWritable>, JobConfigurable {
    public static class GeekLineRecordReader implements RecordReader<LongWritable, BytesWritable>, JobConfigurable {
    LineRecordReader reader; Text text; public GeekLineRecordReader(LineRecordReader reader) {
    this.reader = reader; text = reader.createValue(); } @Override public void close() throws IOException {
    reader.close(); } @Override public LongWritable createKey() {
    return reader.createKey(); } @Override public BytesWritable createValue() {
    return new BytesWritable(); } @Override public long getPos() throws IOException {
    return reader.getPos(); } @Override public float getProgress() throws IOException {
    return reader.getProgress(); } @Override public boolean next(LongWritable key, BytesWritable value) throws IOException {
    while (reader.next(key, text)) {
    String newStr = decode(); // text -> byte[] -> value byte[] textBytes = newStr.getBytes(); int length = text.getLength(); // Trim additional bytes if (length != textBytes.length) {
    textBytes = Arrays.copyOf(textBytes, length); } value.set(textBytes, 0, textBytes.length); return true; } // no more data return false; } private String decode() {
    return text.toString().replaceAll("gee+k", ""); } @Override public void configure(JobConf job) {
    } } TextInputFormat format; JobConf job; public GeekTextInputFormat() {
    format = new TextInputFormat(); } @Override public void configure(JobConf job) {
    this.job = job; format.configure(job); } public RecordReader<LongWritable, BytesWritable> getRecordReader( InputSplit genericSplit, JobConf job, Reporter reporter) throws IOException {
    reporter.setStatus(genericSplit.toString()); GeekLineRecordReader reader = new GeekLineRecordReader( new LineRecordReader(job, (FileSplit) genericSplit)); reader.configure(job); return reader; } @Override public InputSplit[] getSplits(JobConf job, int numSplits) throws IOException {
    return format.getSplits(job, numSplits); } }

关键的实现是在 GeekLineRecordReader 的 next() 加入解密规则

2.GeekTextOutputFormat.java

OutputFormat 是指怎么输出到文件中

讯享网public class GeekTextOutputFormat<K extends WritableComparable, V extends Writable> extends HiveIgnoreKeyTextOutputFormat<K, V> {
    public static class GeekRecordWriter implements RecordWriter, JobConfigurable {
    RecordWriter writer; BytesWritable bytesWritable; public GeekRecordWriter(RecordWriter writer) {
    this.writer = writer; bytesWritable = new BytesWritable(); } @Override public void write(Writable w) throws IOException {
    // Get input data byte[] input; if (w instanceof Text) {
    input = encode(w.toString()); } else {
    assert (w instanceof BytesWritable); input = ((BytesWritable) w).getBytes(); } // Encode byte[] output = input; bytesWritable.set(output, 0, output.length); writer.write(bytesWritable); } private byte[] encode(String content) {
    String[] words = content.split(" "); StringBuilder sb = new StringBuilder(); int bound = 254; int r = new Random().nextInt(bound) + 2; int j = 0; for (int i = 0; i < words.length; i++, j++) {
    sb.append(words[i]).append(" "); if (j == r) {
    sb.append("g"); for (int i1 = 0; i1 < j; i1++) {
    sb.append("e"); } sb.append("k").append(" "); j = 0; r = new Random().nextInt(bound) + 2; } } return sb.toString().getBytes(); } @Override public void close(boolean abort) throws IOException {
    writer.close(abort); } @Override public void configure(JobConf job) {
    } } @Override public RecordWriter getHiveRecordWriter(JobConf jc, Path finalOutPath, Class<? extends Writable> valueClass, boolean isCompressed, Properties tableProperties, Progressable progress) throws IOException {
    GeekRecordWriter writer = new GeekRecordWriter(super .getHiveRecordWriter(jc, finalOutPath, BytesWritable.class, isCompressed, tableProperties, progress)); writer.configure(jc); return writer; } }

关键的实现是在 GeekRecordWriter 的 write() 加入加规则

打包运行

```shell # 使用 maven 打包，并上传到服务器 # 进入到 hive cli add jar /home/student/hadoop/learn_hive-1.0-SNAPSHOT.jar; # 建表 create table tb_test_format(str STRING) stored as inputformat 'com.reiser.fileformat.GeekTextInputFormat' outputformat 'com.reiser.fileformat.GeekTextOutputFormat'; # 插入数据 INSERT INTO TABLE tb_test_format values('This notebook can be used to install gek on all worker nodes, run data generation, and create the TPCDS database.');

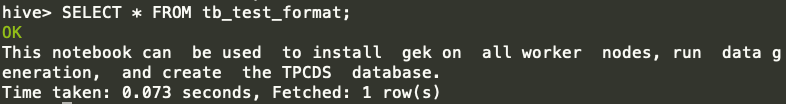

Hive 结果

HDFS 结果

补充

以上结果虽然正确，但是没有实现 stored as geek，这里需要对自定义格式进行注册

1. 新建一个存储格式描述类并继承 AbstractStorageFormatDescriptor ，该类返回 stored as 关键字以及 InputFormat、OutputFormat 和 SerDe 类的名称。
2. 将存储格式描述类的名称添加到 org.apache.hadoop.hive.ql.io.StorageFormatDescriptor 注册文件中。

讯享网public class GeekStorageFormatDescriptor extends AbstractStorageFormatDescriptor {
    @Override public Set<String> getNames() {
    return ImmutableSet.of("geek"); } @Override public String getInputFormat() {
    return GeekTextInputFormat.class.getName(); } @Override public String getOutputFormat() {
    return GeekTextOutputFormat.class.getName(); } }

参考

https://issues.apache.org/jira/browse/HIVE-5976

https://cwiki.apache.org/confluence/display/Hive/DeveloperGuide#DeveloperGuide-HiveSerDe
